ACR30W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

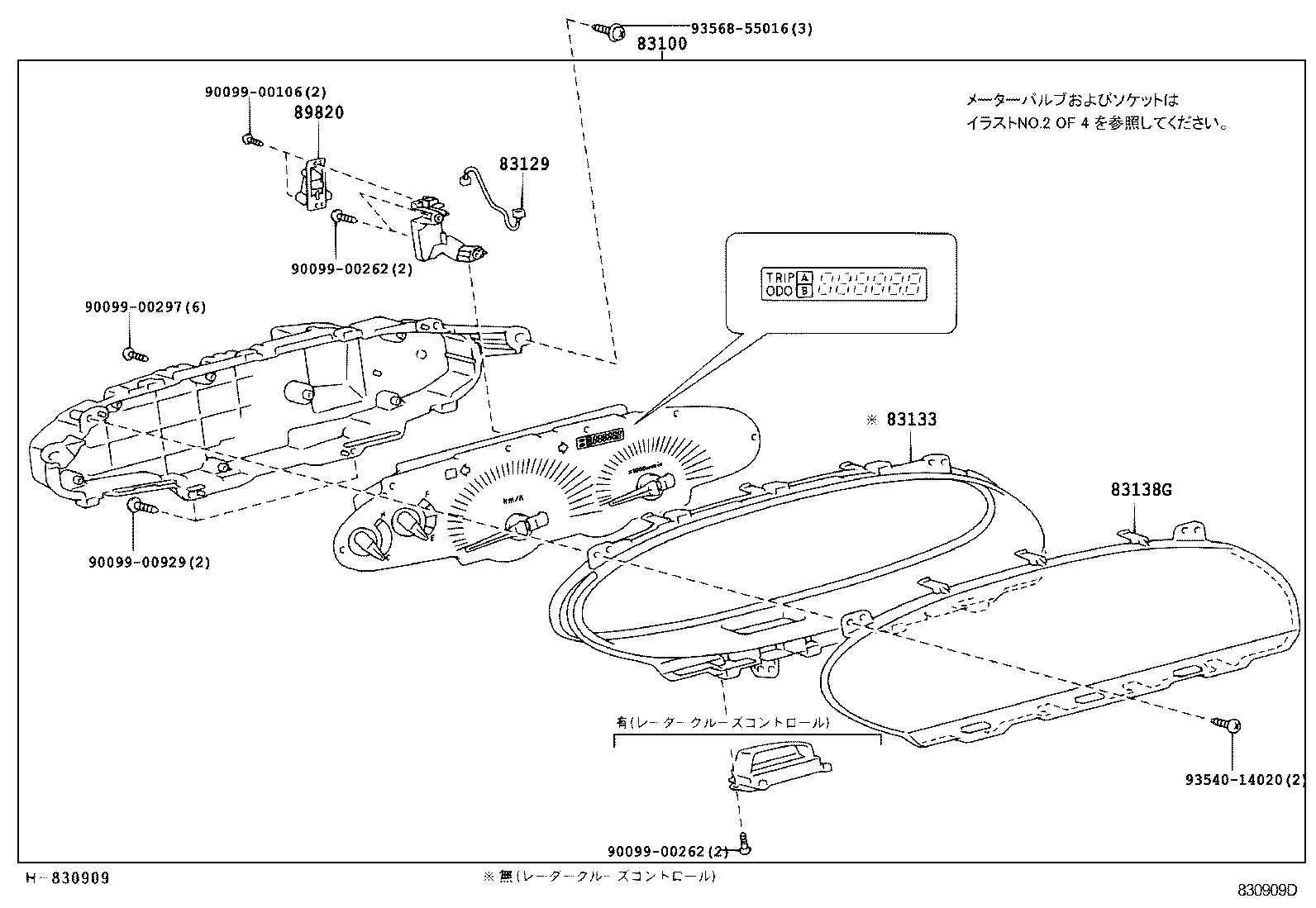

ILLUST NO. 1 OF 4(0304- )AERAS,AERSS,G

Click highlighted areas on diagram

ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ

diagram 83100 83129 83133 83138G 89820 9009900106 9009900262 9009900262 9009900297 9009900929 9354014020 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-2J230

ACR30,40..AERSS

DENSO

 1
83129 - WIRE, METER
83875-28770

ACR30,40,MCR30,40

 1
83138G - GLASS, COMBINATION METER
83852-28800

ACR30,40,MCR30,40..AERAS,AERSS,G

 1
89820 - SENSOR ASSY, INCLINATION
89820-35010

ACR30,40,MCR30,40

 1
89820-35010

ACR30,40,MCR30,40

 1
Common parts
90099-00106
90099-00262
90099-00297
90099-00929
93540-14020
93568-55016

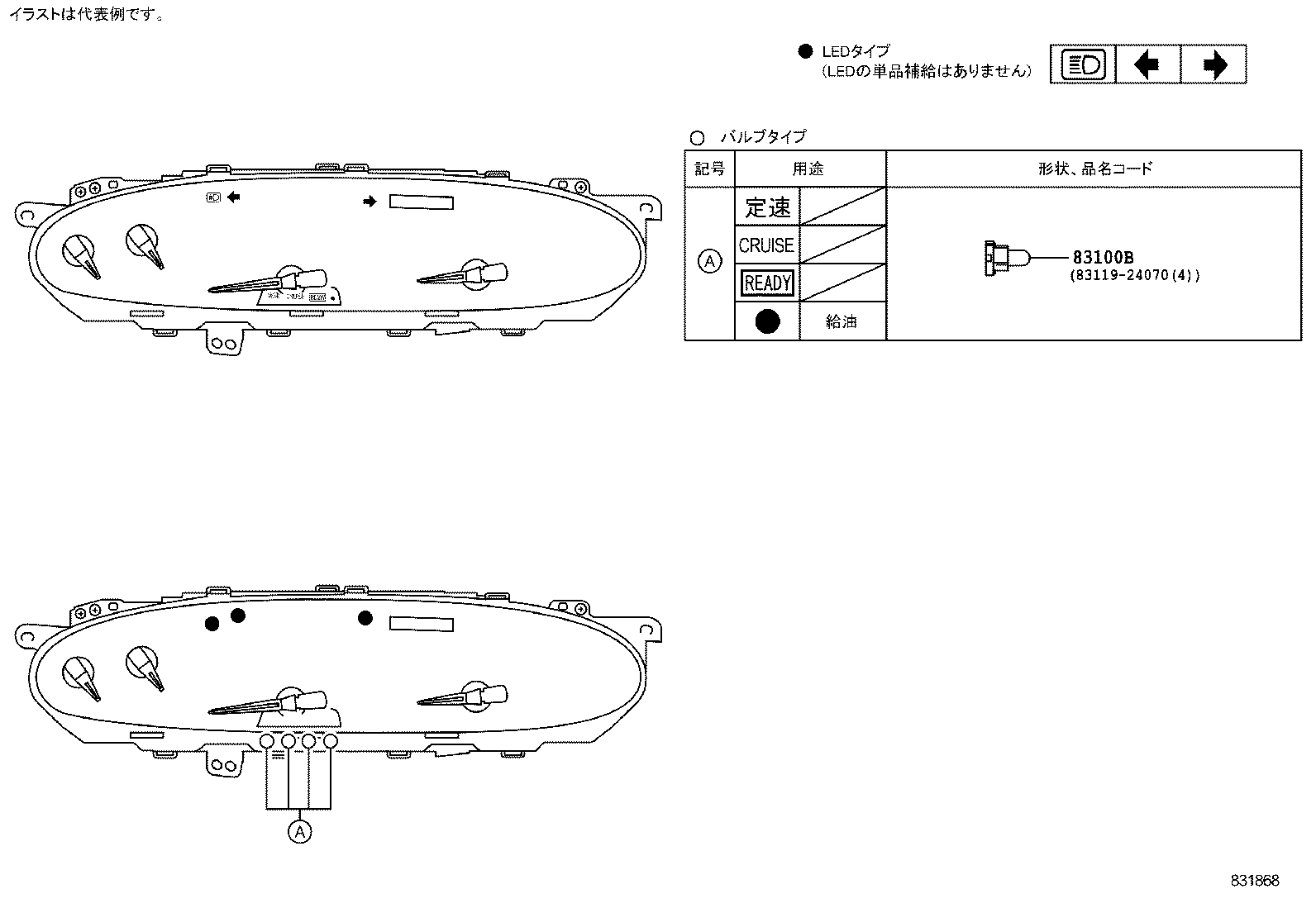

ILLUST NO. 2 OF 4(0304- )AERAS,AERSS,G

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞ & ｿｹｯﾄ ｵﾌﾟﾃｲﾄﾛﾝﾒｰﾀ

diagram 83100B
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ACR30,40,MCR30,40

12V 1.2W ｿｹｯﾄ無し

 1
