ACR30W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )ACR30,40

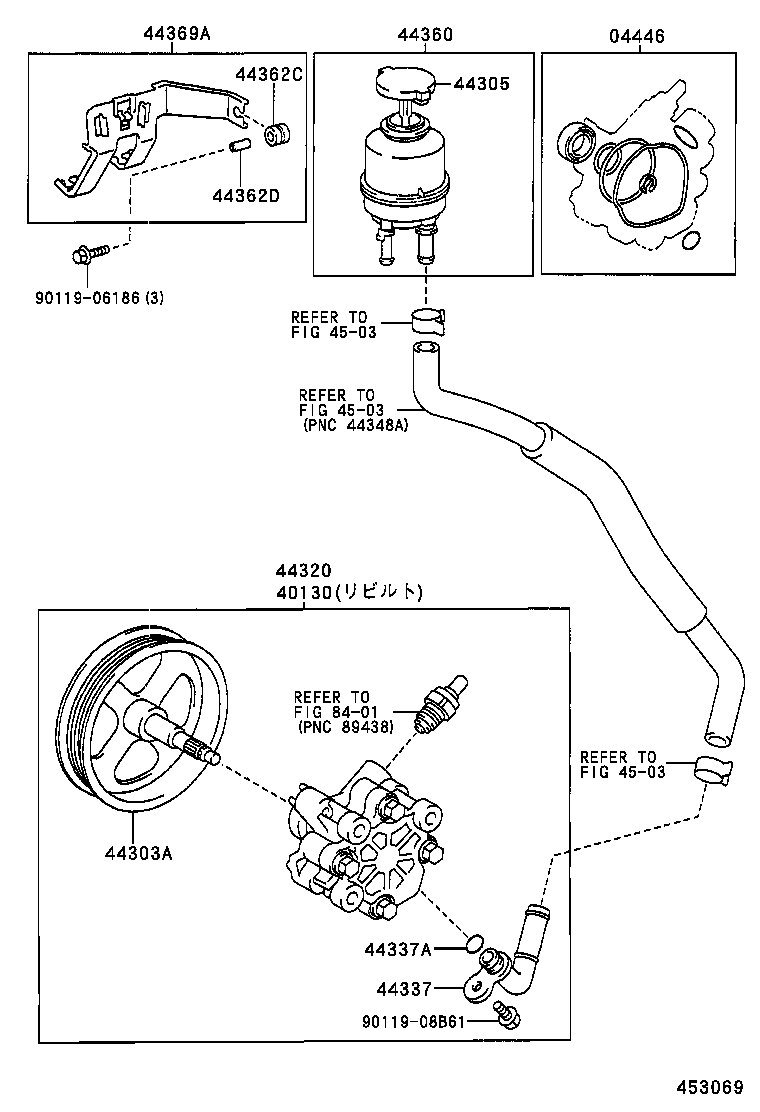

Click highlighted areas on diagram

diagram 04446 40130 44303A 44305 44320 44337 44337A 44360 44362C 44362D 44369A 4503 4503 4503 8401 9011906186 9011908B61
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050

ACR30,40

 1
40130 - PUMP ASSY,VANE REBUILT
40130-28240

ACR30,40

TOYODA KOKI

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010

ACR30,40

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030

ACR30,40,MCR30,40

 1
44305-28030

ACR30,40,MCR30,40

 1
44320 - PUMP ASSY, VANE
44310-28240

ACR30,40

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32110

ACR30,40

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

ACR30,40

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-28150

ACR30,40,MCR30,40

 1
44360-28150

ACR30,40,MCR30,40

 1
44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR)
90540-09004

ACR30,40,MCR30,40

 3
90540-09004

ACR30,40,MCR30,40

 3
44362D - SPACER(FOR VANE PUMP OIL RESERVOIR)
90560-06014

ACR30,40,MCR30,40

 3
90560-06014

ACR30,40,MCR30,40

 3
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-28030

ACR30,40,MCR30,40

 1
44390-28030

ACR30,40,MCR30,40

 1
Common parts
90119-06186
90119-08B61
Linked diagrams
4503
8401
