ACR30W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

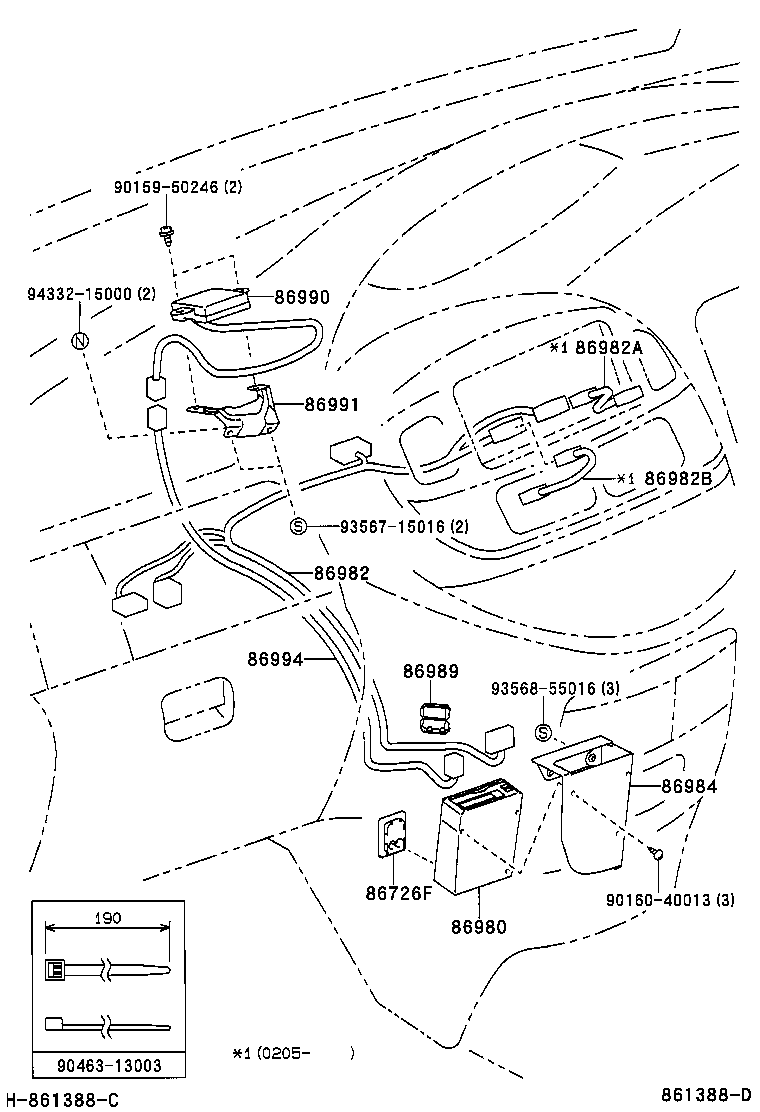

Click highlighted areas on diagram

diagram 86726F 86980 86982 86982A 86982B 86984 86989 86990 86991 86994 9015950246 9016040013 9046313003 9356715016 9356855016 9433215000
Part # Description Qty Price
86726F - COVER, MOBILEPHONE
86726-30200

ACR30,40,MCR30,40

 1
86726-30200

ACR30,40,MCR30,40..07S..AERAS

 1
86726-30200

ACR30,40,MCR30,40

 1
86980 - COMPUTER ASSY, TOLL COLLECTION
86980-28010

ACR30,40,MCR30,40

 1
86980-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86980-28020

ACR30,40,MCR30,40

 1
86980-28011

ACR30,40,MCR30,40

 1
86982 - WIRE, TOLL COLLECTION
86982-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86982-28011

ACR30,40,MCR30,40

 1
86982-28010

ACR30,40,MCR30,40

 1
86982A - WIRE, TOLL COLLECTION SUB, NO.1
86982-28020

ACR30,40,MCR30,40

 1
86982-28020

ACR30,40,MCR30,40

 1
86982B - WIRE, TOLL COLLECTION SUB, NO.2
86982-28030

ACR30,40,MCR30,40

 1
86982-28030

ACR30,40,MCR30,40

 1
86984 - BRACKET, TOLL COLLECTION COMPUTER
86984-28010

ACR30,40,MCR30,40

 1
86984-28010

ACR30,40,MCR30,40

 1
86984-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86989 - CLAMP, TOLL COLLECTION FILTER
86989-28010

ACR30,40,MCR30,40

 1
86989-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86989-28010

ACR30,40,MCR30,40

 1
86990 - ANTENNA ASSY, TOLL COLLECTION
86990-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86990-28010

ACR30,40,MCR30,40

 1
86990-28010

ACR30,40,MCR30,40

 1
86991 - BRACKET, TOLL COLLECTION ANTENNA
86991-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86991-28010

ACR30,40,MCR30,40

 1
86991-28010

ACR30,40,MCR30,40

 1
86994 - WIRE, TOLL COLLECTION ANTENNA
86994-28010

ACR30,40,MCR30,40..07S..AERAS

 1
86994-28010

ACR30,40,MCR30,40

 1
86994-28010

ACR30,40,MCR30,40

 1
Common parts
90159-50246
90160-40013
90463-13003
93567-15016
93568-55016
94332-15000
