ESTIMA T/L
ACR30W-MFSSK (2001)
8606 - CAMERA & REAR MONITOR DISPLAY

ACR30W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0104-0304)

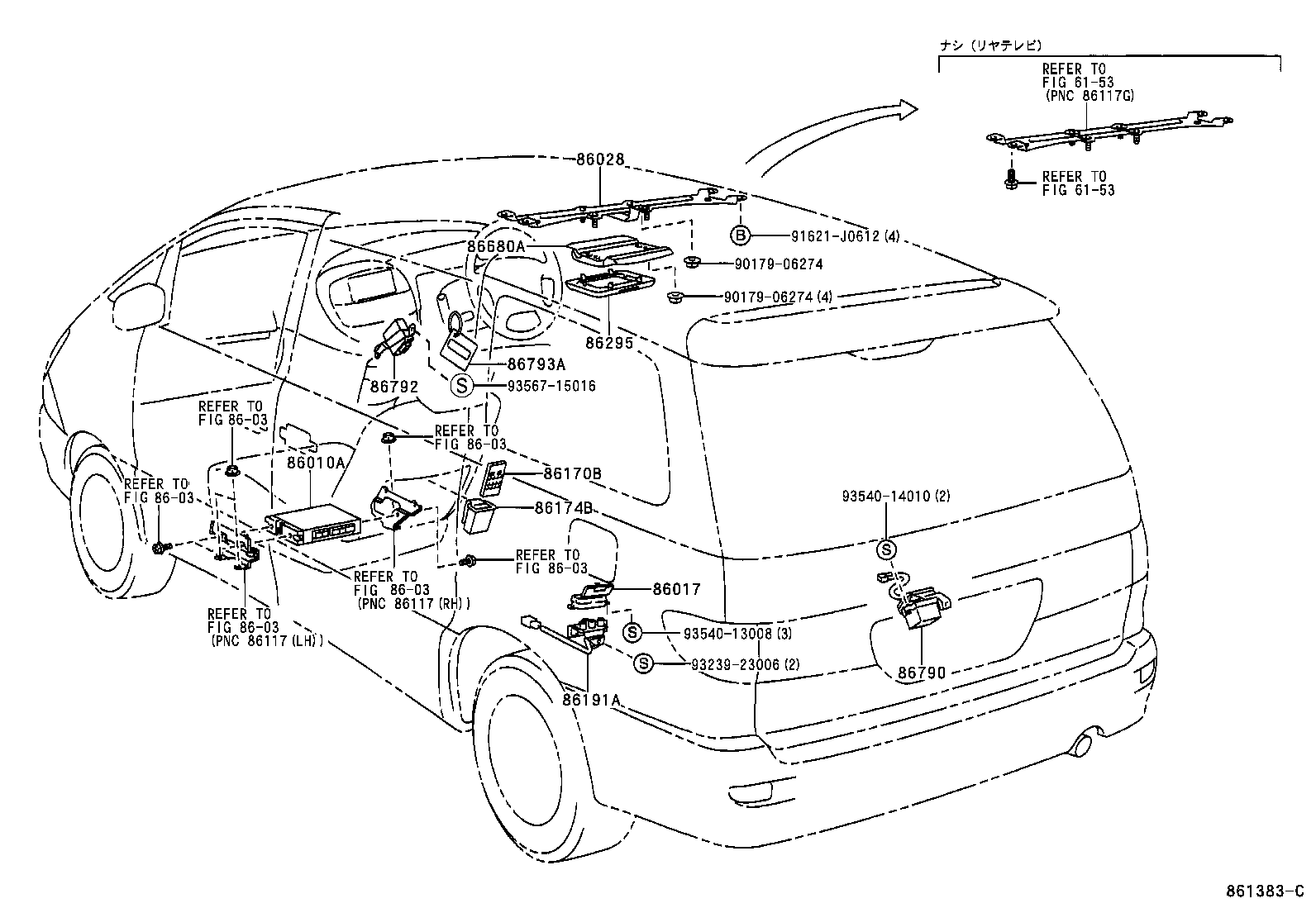

Click highlighted areas on diagram

Part #	Description	Period	Qty
86010A - TUNER ASSY, TELEVISION
86010-28080	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86010-28080	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86017 - PARTS SET, VIDEO
86017-28010B2	ACR30,40,MCR30,40..AERAS BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86017-28010B4	ACR30,40,MCR30,40..AERAS,AERSS MD.GRAY,TRIM1#	04/2003 - 01/2006	1
86028 - BRACKET SUB-ASSY, TELEVISION
86028-28010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86028-28010	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86028-28011	ACR30,40,MCR30,40..AERAS,AERSS,G	04/2003 - 12/2999	1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-28060	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 12/2999	1
86170-28050	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86170-28050	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86174B - CASE, SWITCH & VOLUME
86174-28010	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86174-28010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86174-58010	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 12/2999	1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
86191-28050	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 01/2006	1
86295 - BASE, TELEVISION
86295-28020B0	ACR30,40,MCR30,40..AERAS,AERSS LT.GRAY,TRIM1#	04/2003 - 01/2006	1
86295-28010B0	ACR30,40,MCR30,40..AERAS LT. BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86680A - DISPLAY ASSY, TELEVISION
86680-28040B0	ACR30,40,MCR30,40..AERAS,AERSS MATSUSHITA,LT.GRAY,TRIM1#	04/2003 - 01/2006	1
86680-28040A0	ACR30,40,MCR30,40..AERAS MATSUSHITA,G-EDITION (E),(F),IVORY,TRIM0#	12/2003 - 09/2004	1
86680-28030B0	ACR30,40,MCR30,40..AERAS FUJITSU TEN,LT. BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86790 - CAMERA ASSY, TELEVISION
86790-28130A0	ACR30,40,MCR30,40..AERAS,AERSS,G,X WHITE PM.,042,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130C0	ACR30,40,MCR30,40..AERAS,AERSS BLACK,202,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28090	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86790-28140	ACR30,40,MCR30,40..AERAS,AERSS,G,X ﾘﾔ	04/2003 - 01/2006	1
86790-28070	ACR30,40,MCR30,40	12/1999 - 04/2001	1
86790-28130B1	ACR30,40,MCR30,40..AERAS,AERSS GRAY ME.,1D2,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130B0	ACR30,40,MCR30,40..AERAS ﾌﾟﾚﾐｱﾑﾅﾋﾞｽﾍﾟｼｬﾙ (J),(R),SILVER ME.,1C0,ﾌﾛﾝﾄ	09/2004 - 01/2006	1
86790-28130D0	ACR30,40,MCR30,40..AERAS,AERSS,G,X SUPER RED MC.,3J7,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130E0	ACR30,40,MCR30,40..AERAS,G,X BEIGE ME.,4R4,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86792 - CONTROLLER, TELEVISION CAMERA
86792-28070	ACR30,40,MCR30,40..AERAS,G,X	04/2003 - 07/2003	1
86792-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	1
86792-28071	ACR30,40,MCR30,40..AERAS,G,X	07/2003 - 01/2006	1
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-13010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
Common parts
90179-06274
91621-J0612
93239-23006
93540-13008
93540-14010
93567-15016
Linked diagrams
6153
8603

(0304- )AERAS,AERSS,G,X

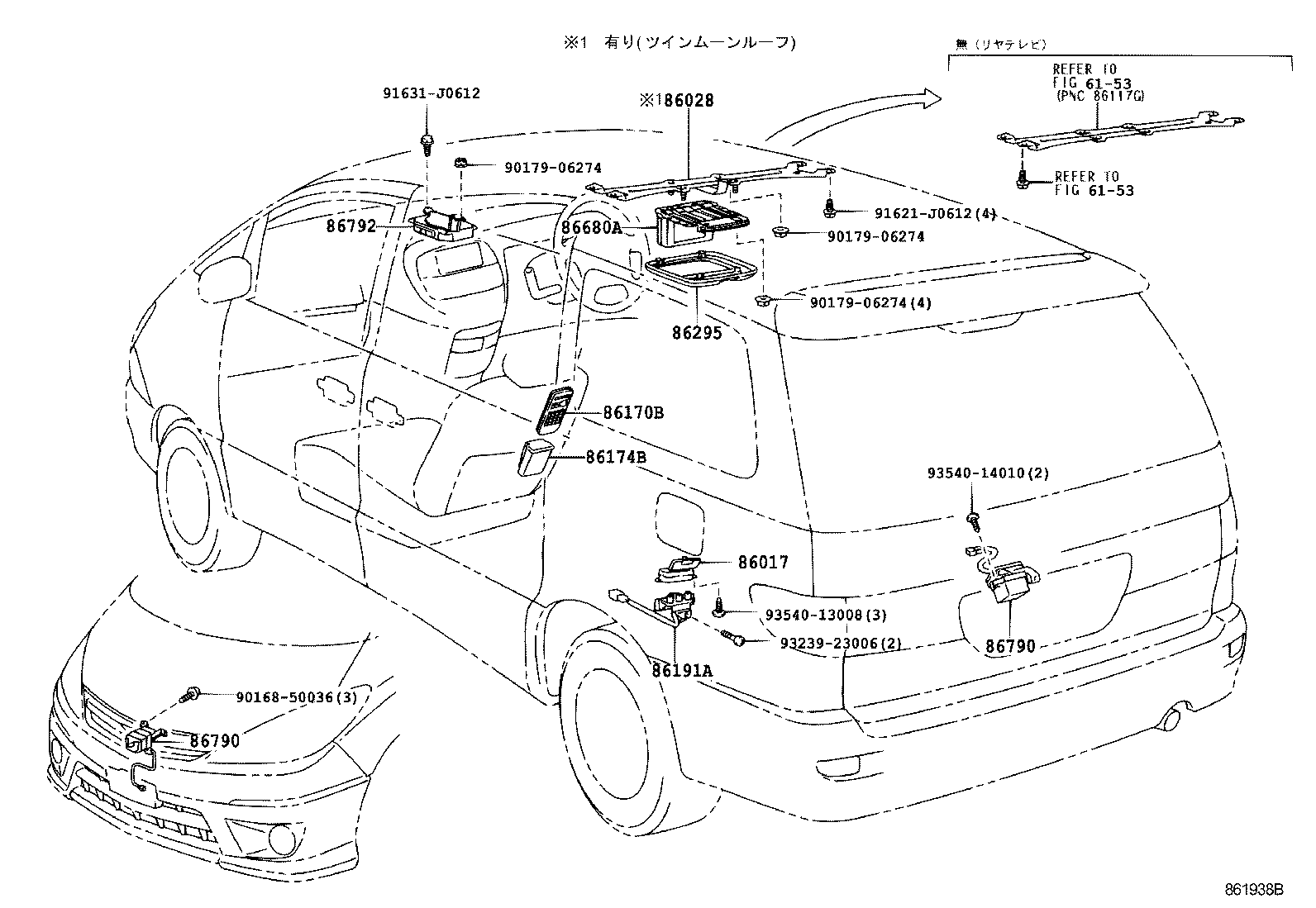

Click highlighted areas on diagram

Part #	Description	Period	Qty
86017 - PARTS SET, VIDEO
86017-28010B2	ACR30,40,MCR30,40..AERAS BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86017-28010B4	ACR30,40,MCR30,40..AERAS,AERSS MD.GRAY,TRIM1#	04/2003 - 01/2006	1
86028 - BRACKET SUB-ASSY, TELEVISION
86028-28010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86028-28010	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86028-28011	ACR30,40,MCR30,40..AERAS,AERSS,G	04/2003 - 12/2999	1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-28060	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 12/2999	1
86170-28050	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86170-28050	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86174B - CASE, SWITCH & VOLUME
86174-28010	ACR30,40,MCR30,40	05/2001 - 04/2003	1
86174-28010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 05/2001	1
86174-58010	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 12/2999	1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
86191-28050	ACR30,40,MCR30,40..AERAS,AERSS,G,X	04/2003 - 01/2006	1
86295 - BASE, TELEVISION
86295-28020B0	ACR30,40,MCR30,40..AERAS,AERSS LT.GRAY,TRIM1#	04/2003 - 01/2006	1
86295-28010B0	ACR30,40,MCR30,40..AERAS LT. BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86680A - DISPLAY ASSY, TELEVISION
86680-28040B0	ACR30,40,MCR30,40..AERAS,AERSS MATSUSHITA,LT.GRAY,TRIM1#	04/2003 - 01/2006	1
86680-28040A0	ACR30,40,MCR30,40..AERAS MATSUSHITA,G-EDITION (E),(F),IVORY,TRIM0#	12/2003 - 09/2004	1
86680-28030B0	ACR30,40,MCR30,40..AERAS FUJITSU TEN,LT. BLUISH GRAY,TRIM1#	12/1999 - 04/2003	1
86790 - CAMERA ASSY, TELEVISION
86790-28130A0	ACR30,40,MCR30,40..AERAS,AERSS,G,X WHITE PM.,042,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130C0	ACR30,40,MCR30,40..AERAS,AERSS BLACK,202,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28090	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86790-28140	ACR30,40,MCR30,40..AERAS,AERSS,G,X ﾘﾔ	04/2003 - 01/2006	1
86790-28070	ACR30,40,MCR30,40	12/1999 - 04/2001	1
86790-28130B1	ACR30,40,MCR30,40..AERAS,AERSS GRAY ME.,1D2,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130B0	ACR30,40,MCR30,40..AERAS ﾌﾟﾚﾐｱﾑﾅﾋﾞｽﾍﾟｼｬﾙ (J),(R),SILVER ME.,1C0,ﾌﾛﾝﾄ	09/2004 - 01/2006	1
86790-28130D0	ACR30,40,MCR30,40..AERAS,AERSS,G,X SUPER RED MC.,3J7,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130E0	ACR30,40,MCR30,40..AERAS,G,X BEIGE ME.,4R4,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790 - CAMERA ASSY, TELEVISION
86790-28130A0	ACR30,40,MCR30,40..AERAS,AERSS,G,X WHITE PM.,042,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130C0	ACR30,40,MCR30,40..AERAS,AERSS BLACK,202,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28090	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86790-28140	ACR30,40,MCR30,40..AERAS,AERSS,G,X ﾘﾔ	04/2003 - 01/2006	1
86790-28070	ACR30,40,MCR30,40	12/1999 - 04/2001	1
86790-28130B1	ACR30,40,MCR30,40..AERAS,AERSS GRAY ME.,1D2,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130B0	ACR30,40,MCR30,40..AERAS ﾌﾟﾚﾐｱﾑﾅﾋﾞｽﾍﾟｼｬﾙ (J),(R),SILVER ME.,1C0,ﾌﾛﾝﾄ	09/2004 - 01/2006	1
86790-28130D0	ACR30,40,MCR30,40..AERAS,AERSS,G,X SUPER RED MC.,3J7,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86790-28130E0	ACR30,40,MCR30,40..AERAS,G,X BEIGE ME.,4R4,ﾌﾛﾝﾄ	04/2003 - 01/2006	1
86792 - CONTROLLER, TELEVISION CAMERA
86792-28070	ACR30,40,MCR30,40..AERAS,G,X	04/2003 - 07/2003	1
86792-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	1
86792-28071	ACR30,40,MCR30,40..AERAS,G,X	07/2003 - 01/2006	1
Common parts
90168-50036
90179-06274
91621-J0612
91631-J0612
93239-23006
93540-13008
93540-14010
Linked diagrams
6153

ACR30W-MFSSK (2001)

(0104-0304)

(0304- )AERAS,AERSS,G,X
