ACR30W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0304)

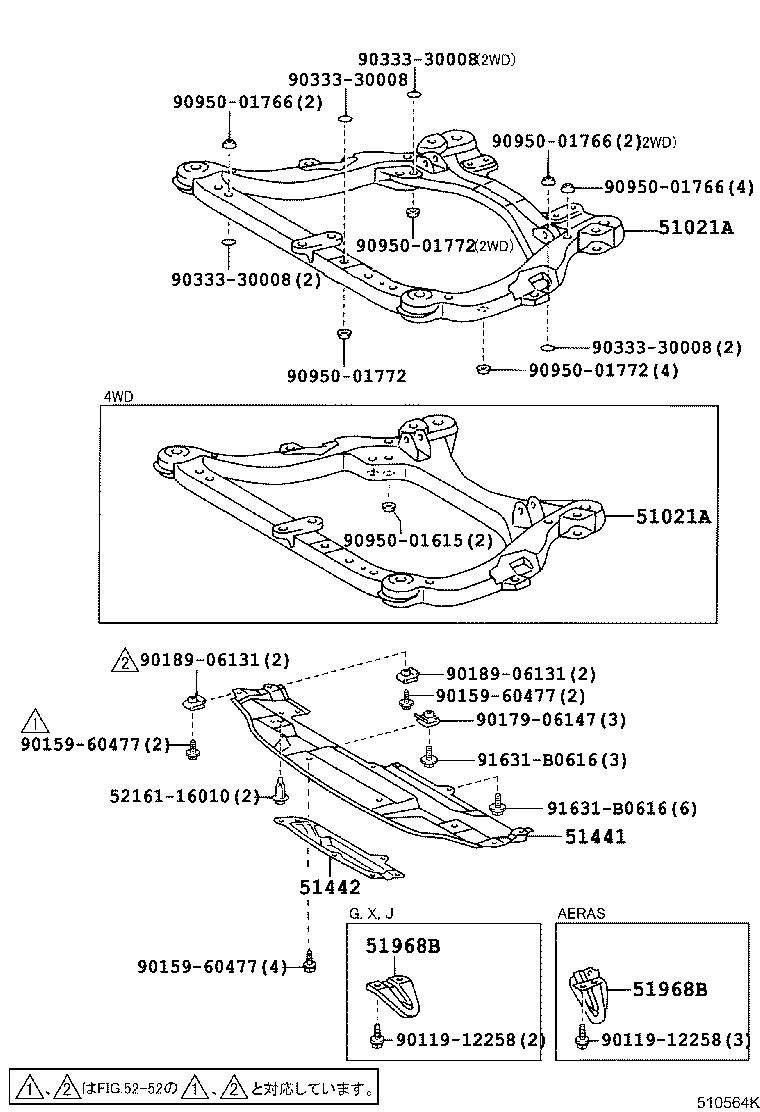

Click highlighted areas on diagram

diagram 51021A 51021A 51441 51442 51968B 51968B 5216116010 9011912258 9011912258 9015960477 9015960477 9015960477 9017906147 9018906131 9018906131 9033330008 9033330008 9033330008 9033330008 9095001615 9095001766 9095001766 9095001766 9095001772 9095001772 9095001772 91631B0616 91631B0616
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51100-28010

ACR30,MCR30

 1
51100-28010

ACR30,MCR30

 1
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51100-28010

ACR30,MCR30

 1
51100-28010

ACR30,MCR30

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28120

ACR30,40,MCR30,40

 1
51440-58010

ACR30,40,MCR30,40

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-28100

ACR30,40,MCR30,40

 1
51442-28100

ACR30,40,MCR30,40

 1
51968B - HOOK, TRANSPORT, REAR LH
51096-44010

ACR30,40,MCR30,40..AERAS,AERSS

 1
51096-44010

ACR30,40,MCR30,40..AERAS

 1
51968B - HOOK, TRANSPORT, REAR LH
51096-44010

ACR30,40,MCR30,40..AERAS,AERSS

 1
51096-44010

ACR30,40,MCR30,40..AERAS

 1
Common parts
52161-16010
90119-12258
90159-60477
90179-06147
90189-06131
90333-30008
90950-01615
90950-01766
90950-01772
91631-B0616

(0304- )

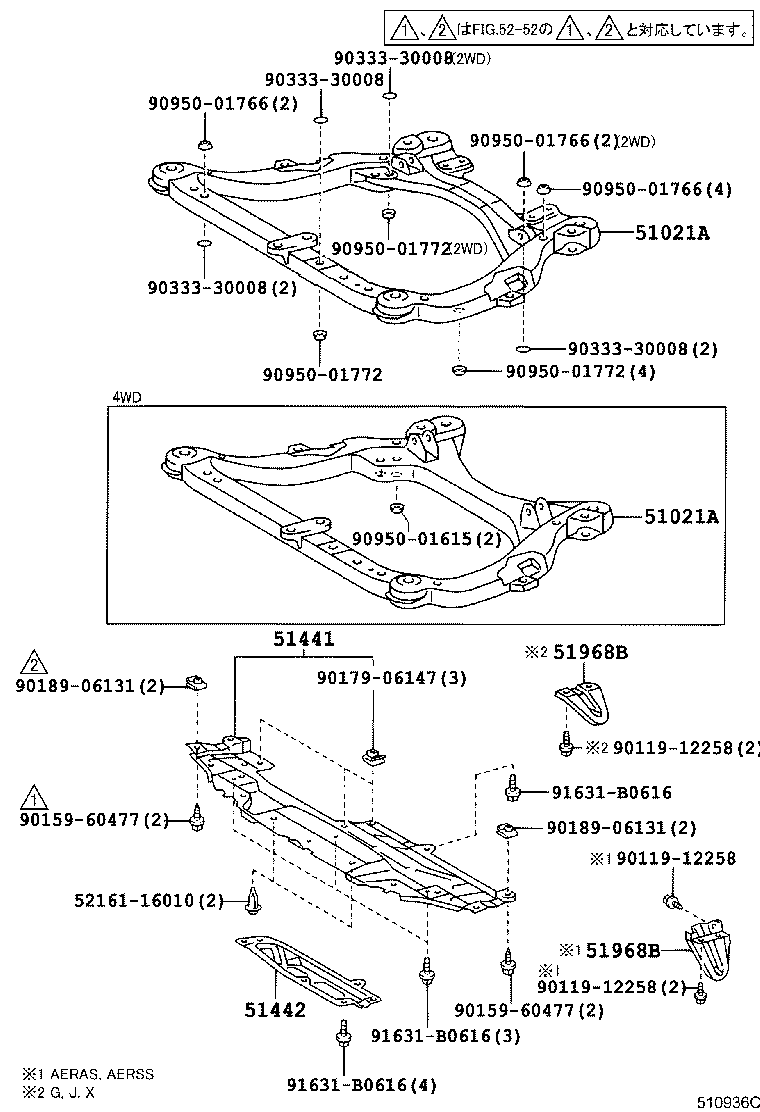

Click highlighted areas on diagram

diagram 51021A 51021A 51441 51442 51968B 51968B 5216116010 9011912258 9011912258 9011912258 9015960477 9015960477 9017906147 9018906131 9018906131 9033330008 9033330008 9033330008 9033330008 9095001615 9095001766 9095001766 9095001766 9095001772 9095001772 9095001772 91631B0616 91631B0616 91631B0616
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51100-28010

ACR30,MCR30

 1
51100-28010

ACR30,MCR30

 1
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51100-28010

ACR30,MCR30

 1
51100-28010

ACR30,MCR30

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28120

ACR30,40,MCR30,40

 1
51440-58010

ACR30,40,MCR30,40

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-28100

ACR30,40,MCR30,40

 1
51442-28100

ACR30,40,MCR30,40

 1
51968B - HOOK, TRANSPORT, REAR LH
51096-44010

ACR30,40,MCR30,40..AERAS,AERSS

 1
51096-44010

ACR30,40,MCR30,40..AERAS

 1
51968B - HOOK, TRANSPORT, REAR LH
51096-44010

ACR30,40,MCR30,40..AERAS,AERSS

 1
51096-44010

ACR30,40,MCR30,40..AERAS

 1
Common parts
52161-16010
90119-12258
90159-60477
90179-06147
90189-06131
90333-30008
90950-01615
90950-01766
90950-01772
91631-B0616
