ACR30W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )2AZFE

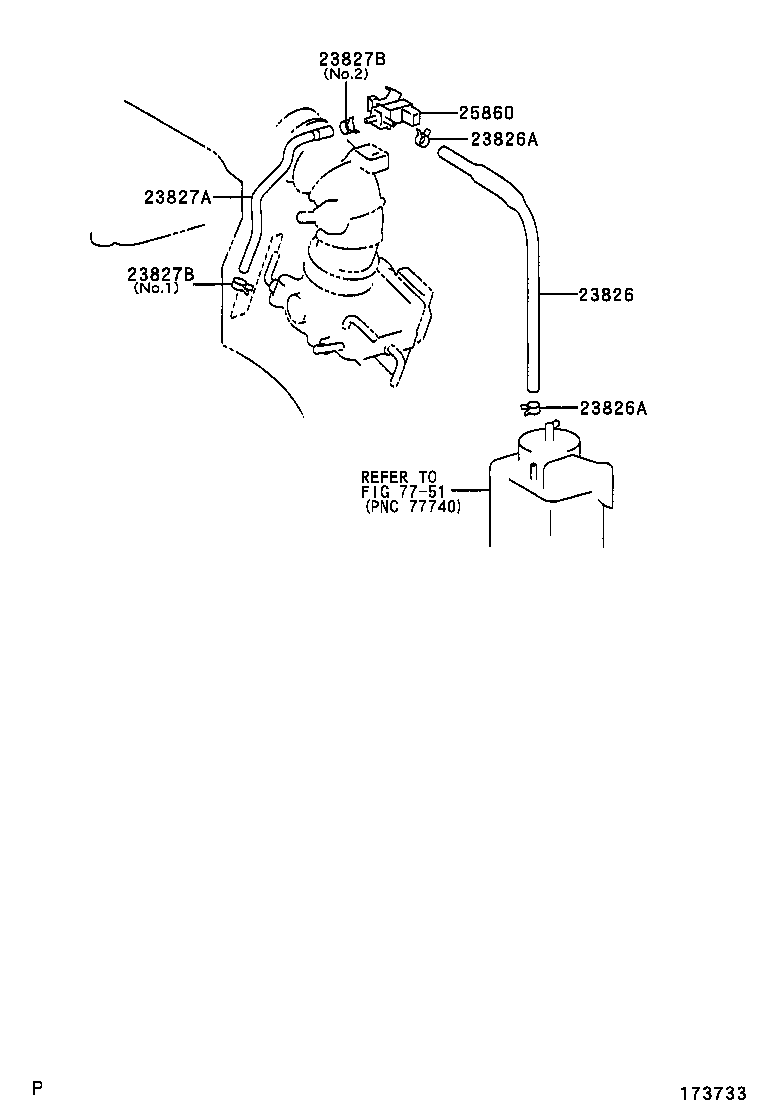

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23827A 23827B 23827B 25860 7751
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-28060

2AZFE..ACR30,40

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

2AZFE..ACR30,40

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

2AZFE..ACR30,40

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-28190

2AZFE..ACR30,40

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41000

2AZFE..ACR30,40

NO.1

 1
96132-51100

2AZFE..ACR30,40

NO.2

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41000

2AZFE..ACR30,40

NO.1

 1
96132-51100

2AZFE..ACR30,40

NO.2

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28110

2AZFE..ACR30,40

 1
Linked diagrams
7751
