ACR30W-MFSQK (2000)

Toyota Estima T/L

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0304)

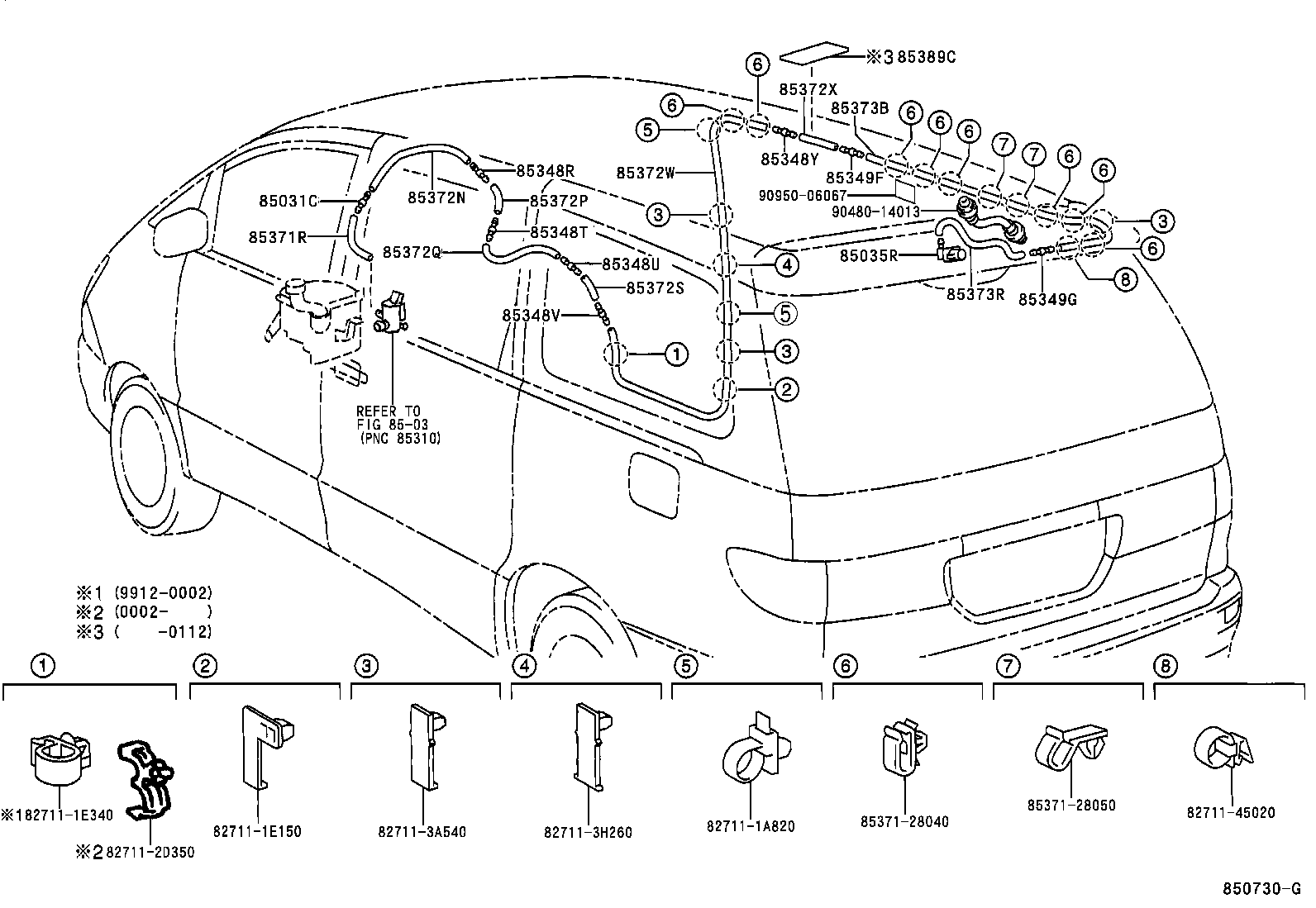

Click highlighted areas on diagram

diagram 827111A820 827111E150 827111E340 827112D350 827113A540 827113H260 8271145020 8503 85031C 85035R 85348R 85348T 85348U 85348V 85348Y 85349F 85349G 8537128040 8537128050 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373R 85389C 9048014013 9095006067
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85349-89122

ACR30,40,MCR30,40

 1
85376-46040

ACR30,40,MCR30,40

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-44020

ACR30,40,MCR30,40

 1
85391-44020

ACR30,40,MCR30,40

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

ACR30,40,MCR30,40

*H,L=70

 1
90099-33080

ACR30,40,MCR30,40

*H,L=320

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

ACR30,40,MCR30,40

*H,L=570

 1
90446-07001

ACR30,40,MCR30,40

*H,L=430

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

ACR30,40,MCR30,40

*H,L=500

 1
90446-07001

ACR30,40,MCR30,40

*H,L=500

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33658

ACR30,40,MCR30,40

*H,L=3680

 1
90099-33658

ACR30,40,MCR30,40

*H,L=3680

 1
90099-33595

ACR30,40,MCR30,40

*H,L=3317

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90446-07001

ACR30,40,MCR30,40

*H,L=1140

 1
90446-07001

ACR30,40,MCR30,40

*H,L=1140

 1
90446-07001

ACR30,40,MCR30,40

*H,L=1700

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

ACR30,40,MCR30,40

*H,L=270

 1
90099-33299

ACR30,40,MCR30,40

*H,L=270

 1
85389C - PROTECTOR, WASHER
85389-28740

ACR30,40,MCR30,40

 1
Common parts
82711-1A820
82711-1E150
82711-1E340
82711-2D350
82711-3A540
82711-3H260
82711-45020
85371-28040
85371-28050
90480-14013
90950-06067
Linked diagrams
8503

(0304- )

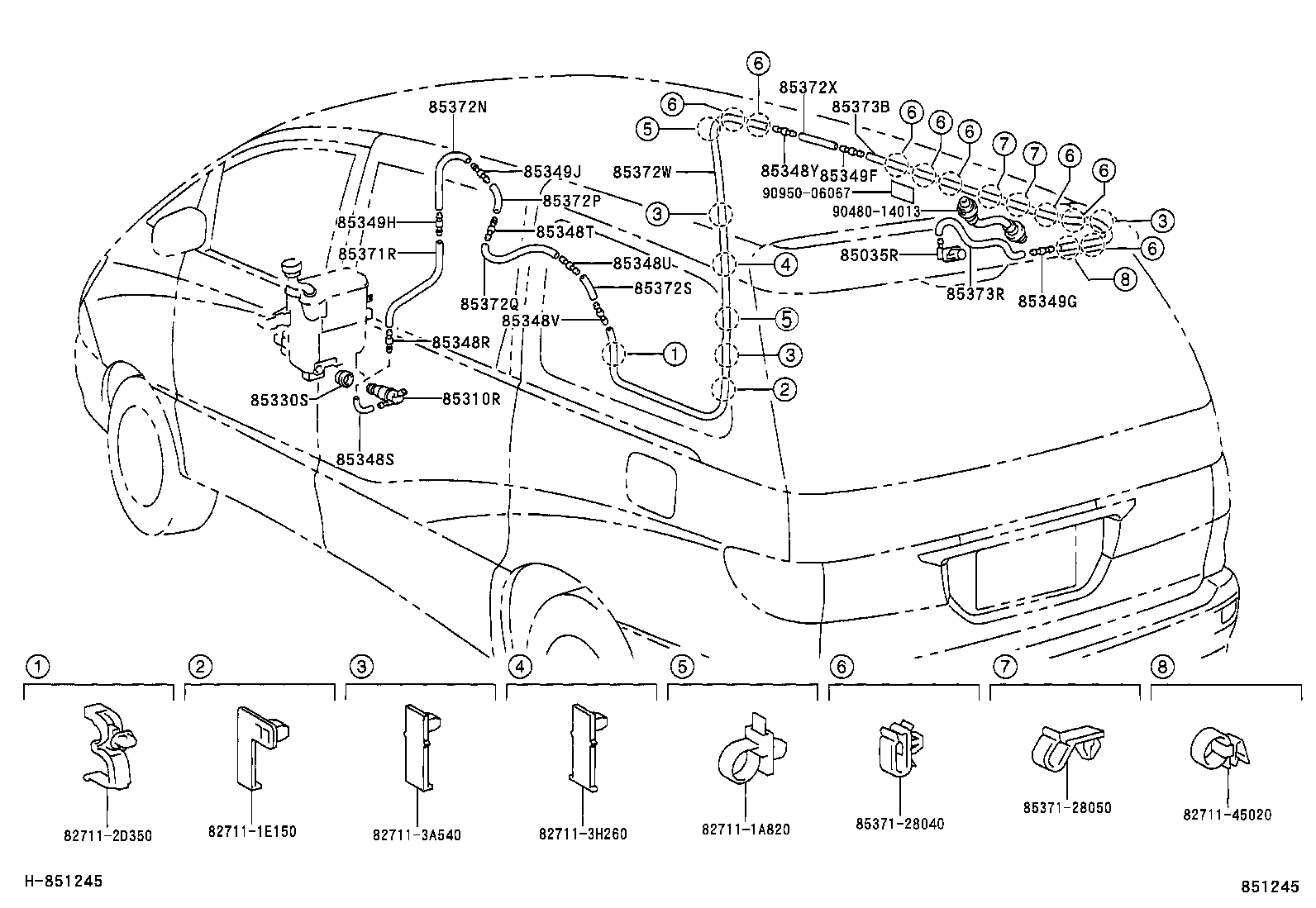

Click highlighted areas on diagram

diagram 827111A820 827111E150 827112D350 827113A540 827113H260 8271145020 85035R 85310R 85330S 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349G 85349H 85349J 8537128040 8537128050 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373R 9048014013 9095006067
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-44020

ACR30,40,MCR30,40

 1
85391-44020

ACR30,40,MCR30,40

 1
85310R - MOTOR ASSY, REAR WASHER
85330-60160

ACR30,40,MCR30,40

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ACR30,40,MCR30,40

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

ACR30,40,MCR30,40

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ACR30,40,MCR30,40

 1
85349J - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ACR30,40,MCR30,40

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

ACR30,40,MCR30,40

*H,L=70

 1
90099-33080

ACR30,40,MCR30,40

*H,L=320

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

ACR30,40,MCR30,40

*H,L=570

 1
90446-07001

ACR30,40,MCR30,40

*H,L=430

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

ACR30,40,MCR30,40

*H,L=500

 1
90446-07001

ACR30,40,MCR30,40

*H,L=500

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33658

ACR30,40,MCR30,40

*H,L=3680

 1
90099-33658

ACR30,40,MCR30,40

*H,L=3680

 1
90099-33595

ACR30,40,MCR30,40

*H,L=3317

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
90099-33299

ACR30,40,MCR30,40

*H,L=50

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90446-07001

ACR30,40,MCR30,40

*H,L=1140

 1
90446-07001

ACR30,40,MCR30,40

*H,L=1140

 1
90446-07001

ACR30,40,MCR30,40

*H,L=1700

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

ACR30,40,MCR30,40

*H,L=270

 1
90099-33299

ACR30,40,MCR30,40

*H,L=270

 1
Common parts
82711-1A820
82711-1E150
82711-2D350
82711-3A540
82711-3H260
82711-45020
85371-28040
85371-28050
90480-14013
90950-06067
