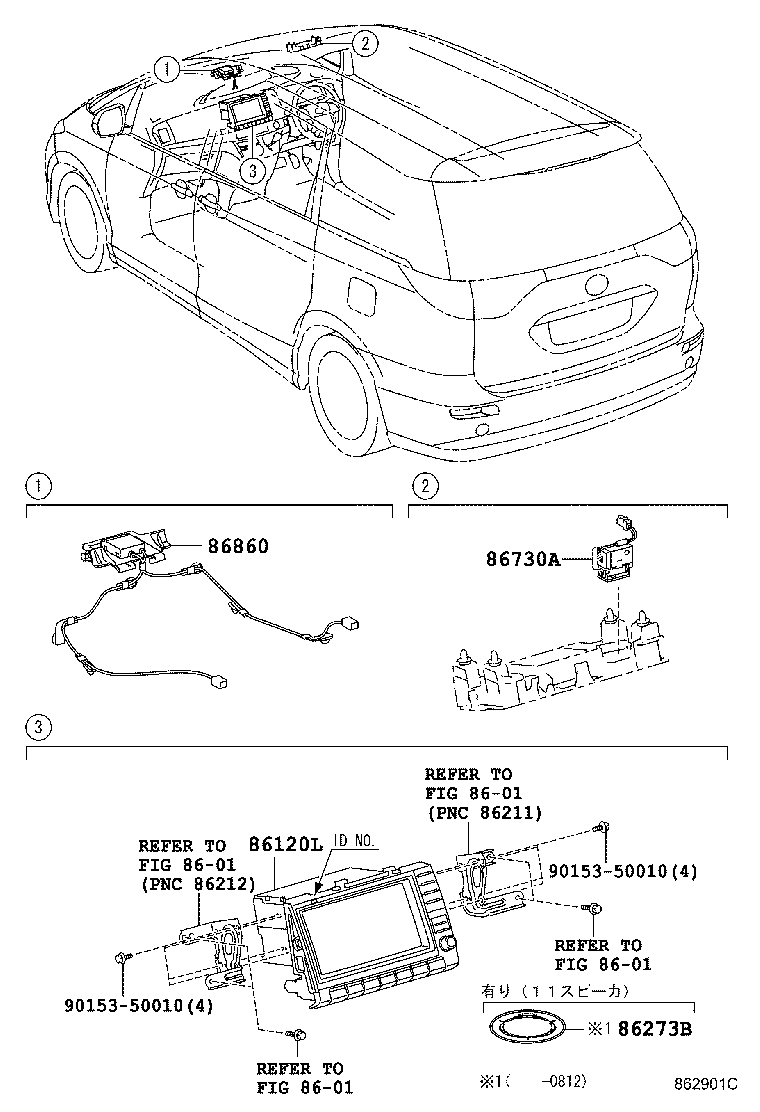

Toyota Estima hybrid AHR20 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86100-28022	AHR20..G..CBU FUJITSU TEN,ID=26022	09/2006 - 03/2007	1
86100-28021	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 08/2006	1
86100-28031	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 08/2006	1
86100-28022	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	09/2006 - 03/2007	1
86100-28033	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	04/2007 - 08/2007	1
86100-28021	AHR20..G..CBU FUJITSU TEN,ID=26022	06/2006 - 08/2006	1
86100-28032	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	09/2006 - 03/2007	1
86100-28023	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	04/2007 - 09/2007	1
86100-28036	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	08/2008 - 12/2008	1
86100-28026	AHR20..G..CBU FUJITSU TEN,ID=26022	09/2008 - 12/2008	1
86100-28024	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	10/2007 - 03/2008	1
86100-28025	AHR20..G..CBU FUJITSU TEN,ID=26022	04/2008 - 08/2008	1
86100-28023	AHR20..G..CBU FUJITSU TEN,ID=26022	04/2007 - 09/2007	1
86100-28035	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	04/2008 - 07/2008	1
86100-28024	AHR20..G..CBU FUJITSU TEN,ID=26022	10/2007 - 03/2008	1
86100-28025	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	04/2008 - 08/2008	1
86100-28034	AHR20..CBU MATSUSHITA,ID=56086,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	09/2007 - 03/2008	1
86100-28026	AHR20..X FUJITSU TEN,ID=26022,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	09/2008 - 12/2008	1
86273B - ADAPTER, DISC PLAYER
86273-58010	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28020	AHR20..G..CBU	06/2006 - 12/2008	1
86730-28020	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86730-28020	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86860 - ANTENNA ASSY, NAVIGATION
86860-28150	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86860-28150	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86870-28010	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)	06/2006 - 12/2008	1
86870-28010	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)	06/2006 - 12/2008	1
86870-28020	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&GｰBOOK−有り	06/2006 - 12/2008	1
86860-28150	AHR20..G..CBU	06/2006 - 12/2008	1
86870-28020	AHR20..G..CBU GｰBOOK−有り	06/2006 - 12/2008	1
86870-28010	AHR20..G..CBU ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)	06/2006 - 12/2008	1
86870-28020	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&GｰBOOK−有り	06/2006 - 12/2008	1
86870-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)&GｰBOOK−有り	06/2006 - 12/2008	1
86870-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)&GｰBOOK−有り	06/2006 - 12/2008	1
86870-28030	AHR20..G..CBU ETC−有り(ﾒｰｶｰｵﾌﾟｼｮﾝ)&GｰBOOK−有り	06/2006 - 12/2008	1
Common parts
90153-50010
Linked diagrams
8601

AHR20W-GRXQB (2006)

(0606-1204)
