AHR20W-GRXQB (2006)
Toyota Estima Hybrid
Production
Jun 2006
-
Dec 2008
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0606-1204)

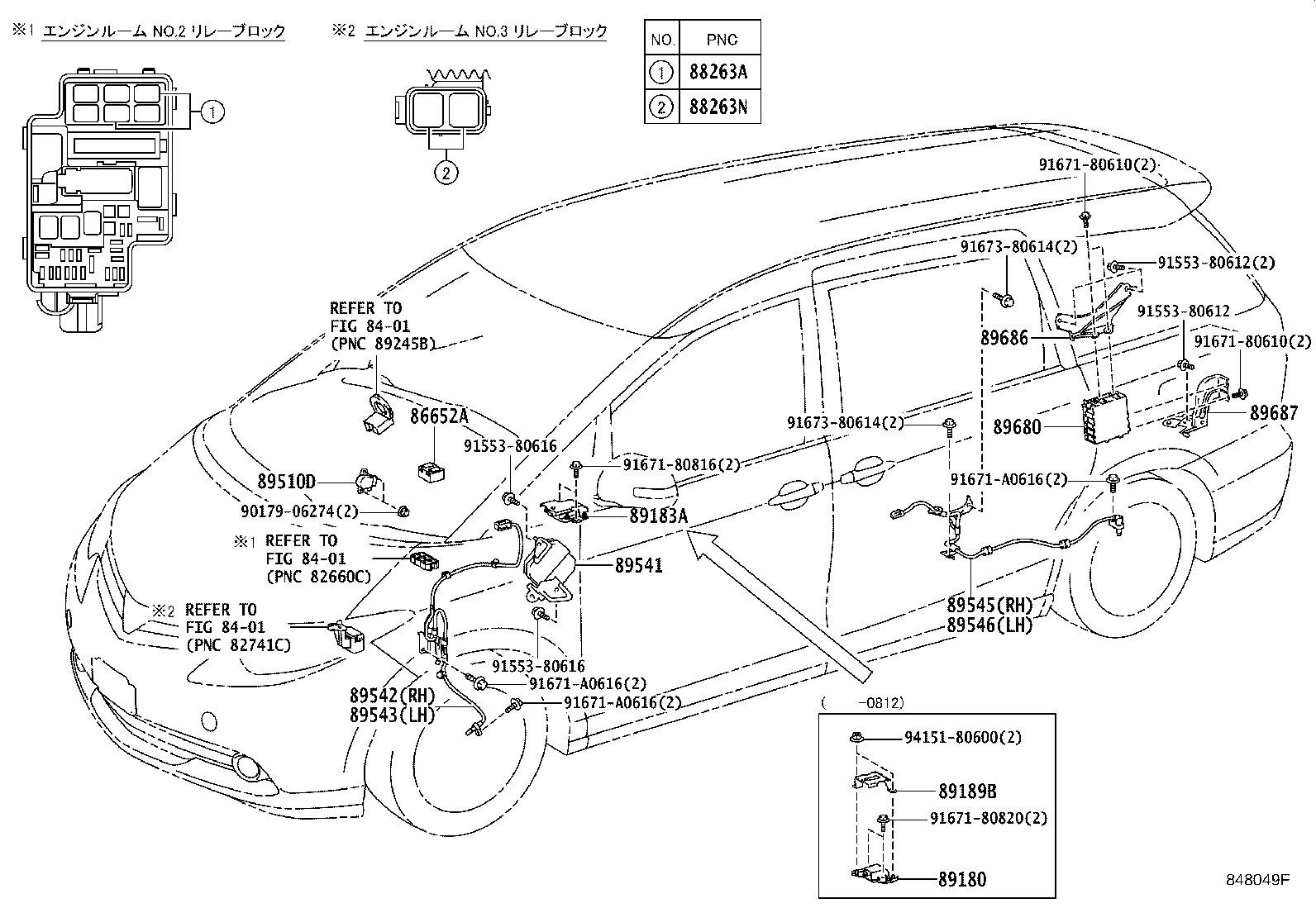

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
AHR20..CBU |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-32070 |
AHR20..CBU |
2 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-21010 |
AHR20..CBU |
2 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-28020 |
AHR20..CBU |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-28010 |
AHR20..CBU |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-30040 |
AHR20..CBU |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89540-28570 |
AHR20..CBU |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-28100 |
AHR20..CBU |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-28100 |
AHR20..CBU |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-28180 |
AHR20..CBU |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-28170 |
AHR20..CBU |
1 | ||
| 89680 - SUPPLY ASSY, BRAKE CONTROL POWER | ||||
| 89680-33010 |
AHR20..CBU |
1 | ||
| 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-28020 |
AHR20..CBU |
1 | ||
| 89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2 | ||||
| 89687-28020 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91553-80612 | ||||
| 91553-80616 | ||||
| 91671-80610 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91671-A0616 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
