AHR20W-GRXQB (2006)
Toyota Estima Hybrid

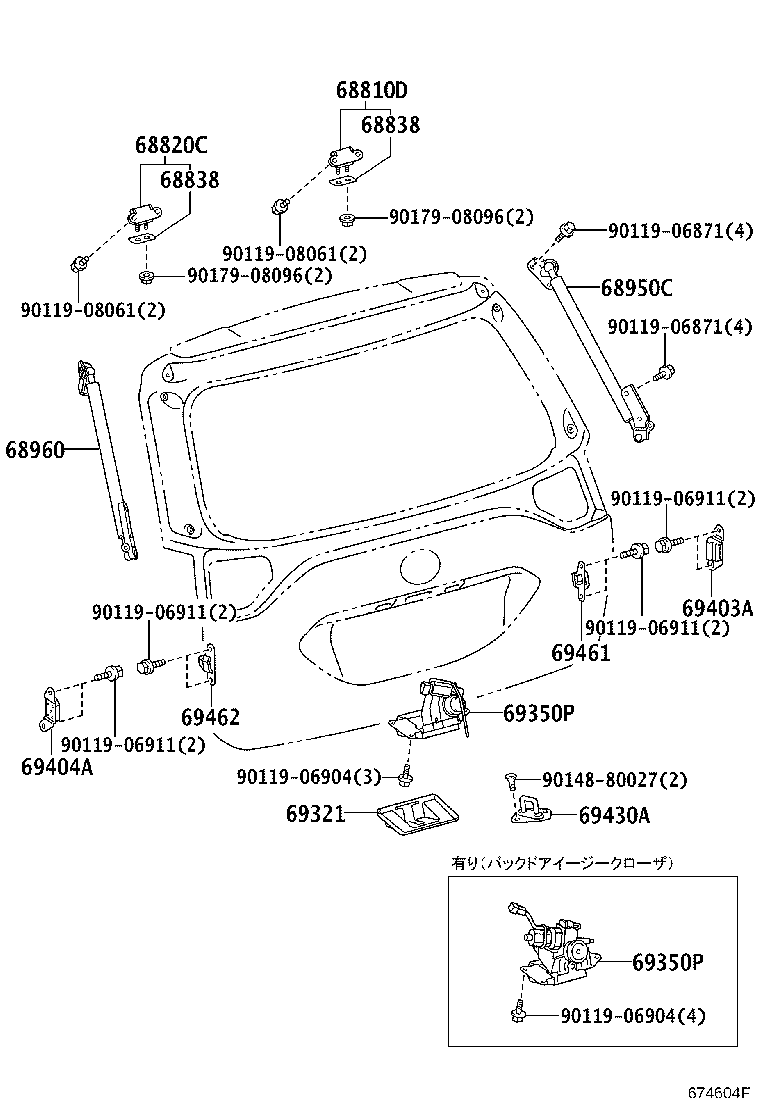

ILLUST NO. 1 OF 2(0606- )AEPR ; (0606- )AEPG,AERAS,AESM,G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-21050 |
AHR20..CBU |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-21050 |
AHR20..CBU |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
AHR20..CBU 厚さ=1.0 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
AHR20..CBU 厚さ=1.0 |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-28320 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 68950-28300 |
AHR20..CBU |
1 | ||
| 68950-28321 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 68950-28301 |
AHR20..CBU |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-28300 |
AHR20..CBU |
1 | ||
| 68960-28320 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 68960-28321 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 68960-28301 |
AHR20..CBU |
1 | ||
| 69321 - COVER, BACK DOOR LOCK | ||||
| 69321-28020 |
AHR20..CBU |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28160 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 69350-28150 |
AHR20..CBU |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28160 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 69350-28150 |
AHR20..CBU |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 67293-28030 |
AHR20..CBU |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 67294-28020 |
AHR20..CBU |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-28050 |
AHR20..CBU |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 67281-28010 |
AHR20..CBU |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67282-28010 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90119-06871 | ||||
| 90119-06904 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90148-80027 | ||||
| 90179-08096 | ||||

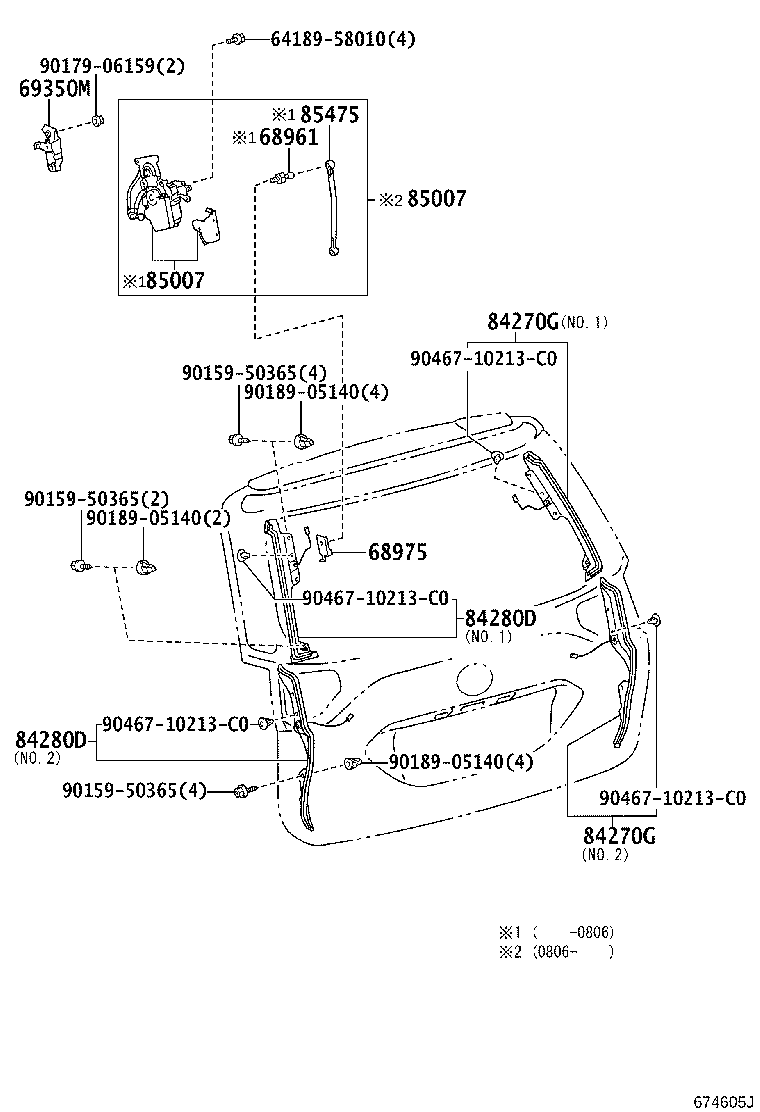

ILLUST NO. 2 OF 2(0606-0812)G
ｱﾘ(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 68975 - PLATE, BACK DOOR STAY | ||||
| 68975-28040 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 69350M - BRACKET, BACK DOOR LOCK | ||||
| 85724-28010 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-28030 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.1 |
1 | ||
| 84270-28040 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.2 |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-28030 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.1 |
1 | ||
| 84270-28040 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.2 |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-28040 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.2 |
1 | ||
| 84280-28030 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.1 |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-28040 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.2 |
1 | ||
| 84280-28030 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),NO.1 |
1 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-29015 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 85007-28020 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-29015 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 85007-28020 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 85475 - ROD, POWER BACK DOOR | ||||
| 85475-28020 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90159-50365 | ||||
| 90179-06159 | ||||
| 90189-05140 | ||||
| 90467-10213C0 | ||||
