AHR20W-GRXQB (2006)
Toyota Estima Hybrid

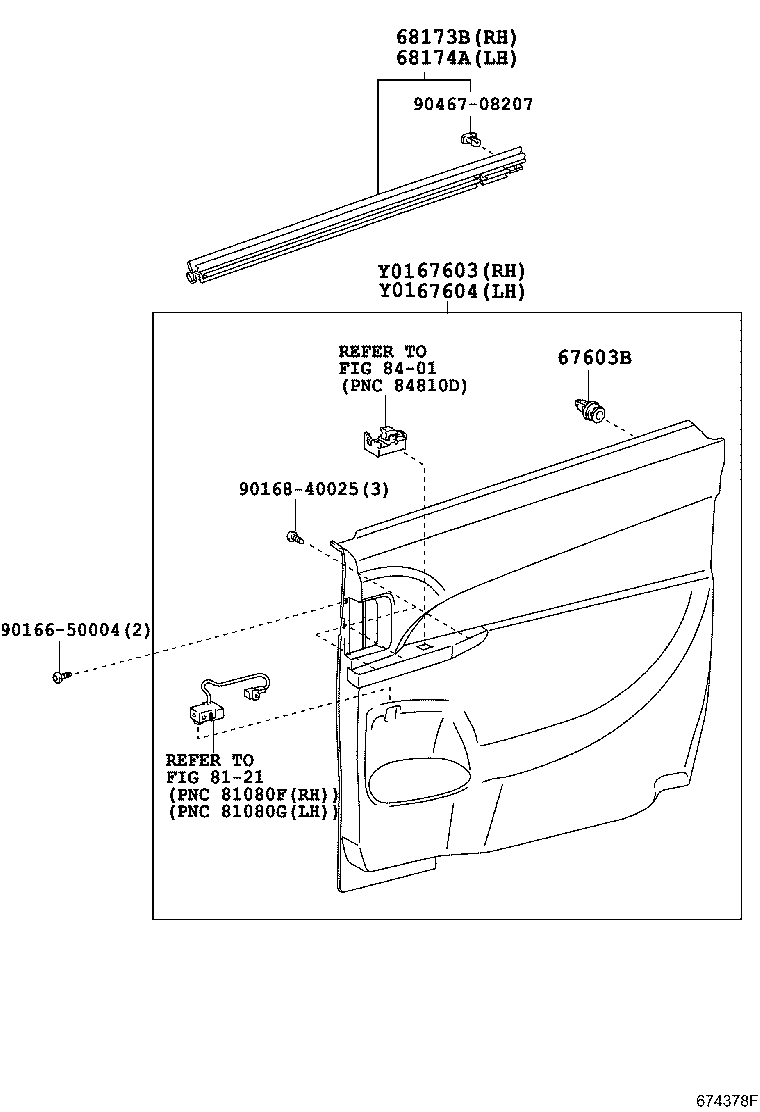

ILLUST NO. 2 OF 2(0606- )AEPR ; (0606- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28370E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 67680-28321E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 67680-28371E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 67680-28320E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AHR20..CBU |
26 | ||
| 90467-09206 |
AHR20..CBU |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28511E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 67690-28510E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 67690-28690E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 67690-28691E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-28030 |
AHR20..CBU |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-28040 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90166-50004 | ||||
| 90168-40025 | ||||
| 90467-08207 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

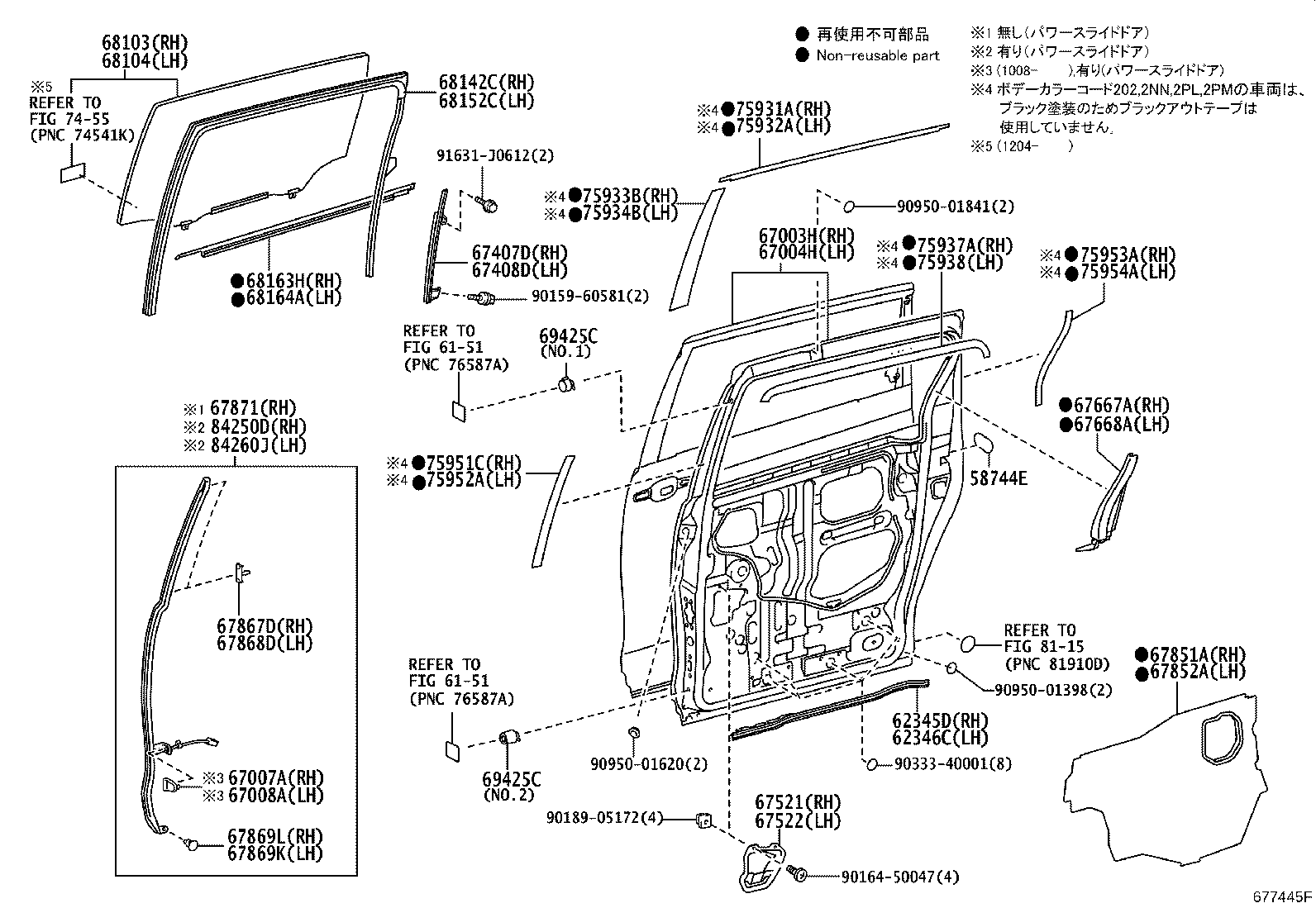

ILLUST NO. 1 OF 2(0606- )AEPR ; (0606- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744E - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58743-28020 |
AHR20..CBU |
1 | ||
| 58743-28010 |
AHR20..CBU |
1 | ||
| 62345D - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-28030 |
AHR20..CBU |
1 | ||
| 62346C - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-28040 |
AHR20..CBU |
1 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28440 |
AHR20..X ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 67003-28450 |
AHR20..X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 67003-28440 |
AHR20..G..CBU |
1 | ||
| 67003-28460 |
AHR20..X ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 67003-28430 |
AHR20..X |
1 | ||
| 67003-28460 |
AHR20..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28460 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 67004-28440 |
AHR20..CBU |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28030 |
AHR20..CBU |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28060 |
AHR20..CBU |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28040 |
AHR20..CBU |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28030 |
AHR20..CBU |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28040 |
AHR20..CBU |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28040 |
AHR20..CBU |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28090 |
AHR20..X |
1 | ||
| 67851-28100 |
AHR20..X ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 67851-28100 |
AHR20..G..CBU |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28110 |
AHR20..CBU |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67869-28010 |
AHR20..CBU |
2 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67869-28010 |
AHR20..CBU |
2 | ||
| 67869K - CLIP, DOOR WEATHERSTRIP, LH | ||||
| 67869-28020 |
AHR20..CBU |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28020 |
AHR20..CBU |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67865-28020 |
AHR20..X |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28190 |
AHR20..CBU *TEM,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28210 |
AHR20..CBU *TEM,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28110 |
AHR20..CBU |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28080 |
AHR20..CBU |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28040 |
AHR20..CBU |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28040 |
AHR20..CBU |
1 | ||
| 69425C - CUSHION, SLIDE DOOR STOP | ||||
| 69425-28010 |
AHR20..CBU NO.1 |
2 | ||
| 69425-28020 |
AHR20..CBU NO.2 |
2 | ||
| 69425C - CUSHION, SLIDE DOOR STOP | ||||
| 69425-28010 |
AHR20..CBU NO.1 |
2 | ||
| 69425-28020 |
AHR20..CBU NO.2 |
2 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28030 |
AHR20..CBU |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28030 |
AHR20..CBU |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28030 |
AHR20..CBU |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28030 |
AHR20..CBU |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-28021 |
AHR20..CBU |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-28021 |
AHR20..CBU |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-28031 |
AHR20..CBU |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-28031 |
AHR20..CBU |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-28031 |
AHR20..CBU |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-28021 |
AHR20..CBU |
1 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-28040 |
AHR20..G..CBU |
1 | ||
| 84250-28040 |
AHR20..X ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-28060 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90159-60581 | ||||
| 90164-50047 | ||||
| 90189-05172 | ||||
| 90333-40001 | ||||
| 90950-01398 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||
| 8115 | ||||
