AHR20W-GRXQB (2006)
Toyota Estima Hybrid
(0606-0812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28080 |
AHR20..CBU |
1 | ||
| 52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52155-28090 |
AHR20..CBU |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28050 |
AHR20..CBU |
1 | ||
| 52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52156-28060 |
AHR20..CBU |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28240J1 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52159-28240C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52159-28240A1 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-28240B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52159-28510K0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.PURPLE M.M.,9AE |
1 | ||
| 52159-28510A0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52159-28510B0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52159-28510J1 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52159-28510C0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),BLACK,202 |
1 | ||
| 52159-28240K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AHR20..CBU |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AHR20..CBU |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AHR20..CBU |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AHR20..CBU |
4 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-28030B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52163-28030C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52163-28030K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52163-28030A1 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52163-28030J1 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-28020C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52164-28020K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52164-28020B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52164-28020A1 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52164-28020J1 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-28040 |
AHR20..CBU |
1 | ||
| 52616 - ABSORBER, REAR BUMPER ENERGY, LH | ||||
| 52616-28010 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-60217 | ||||
| 90159-60431 | ||||
| 90189-06228 | ||||

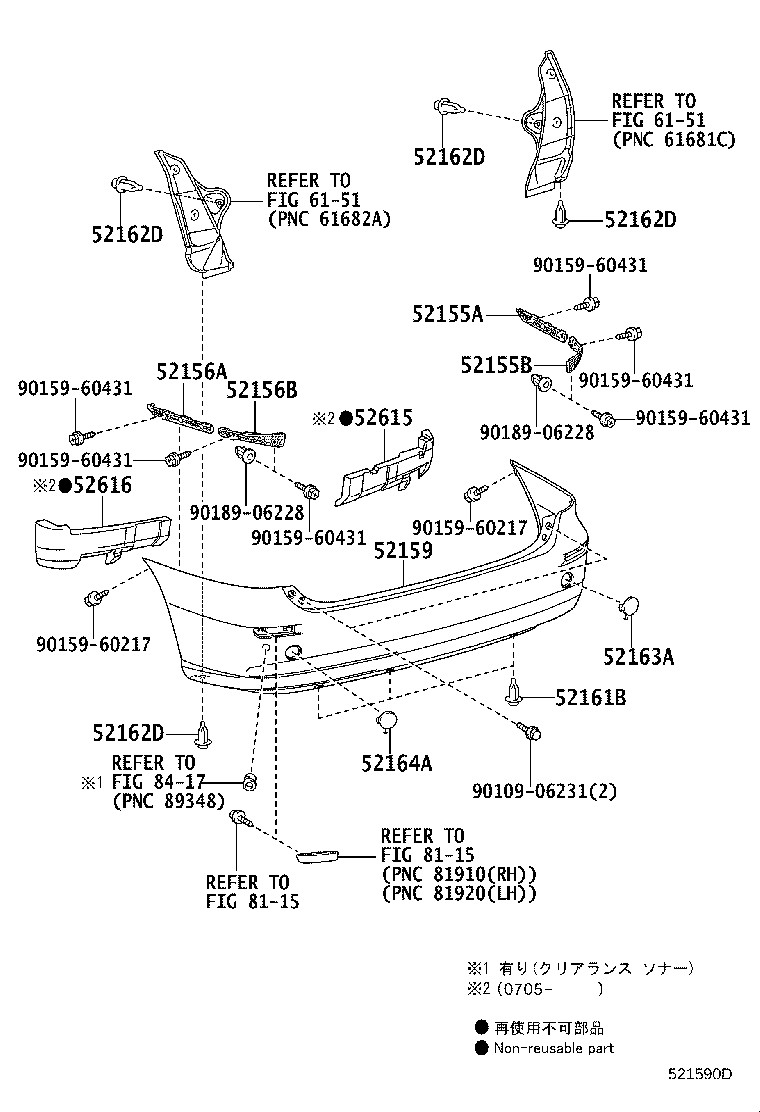

| Linked diagrams | ||||
| 6151 | ||||
| 8115 | ||||
| 8417 | ||||
