AHR20W-GRXQB (2006)

Toyota Estima Hybrid

Production Jun 2006 - Dec 2008
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

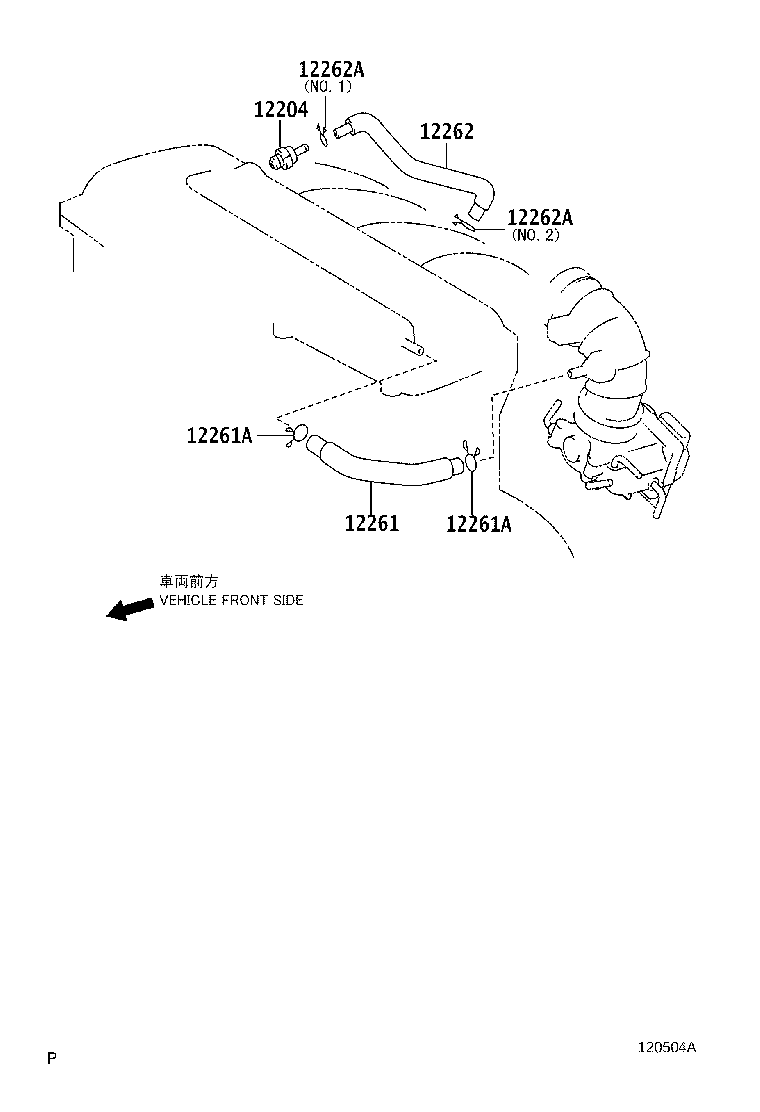

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28030

2AZFXE..AHR20..CBU

 1
12261 - HOSE, VENTILATION
12261-28170

2AZFXE..AHR20..CBU

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-41900

2AZFXE..AHR20..CBU

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-41900

2AZFXE..AHR20..CBU

 2
12262 - HOSE, VENTILATION, NO.2
12262-28021

2AZFXE..AHR20..CBU

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

2AZFXE..AHR20..CBU

NO.1

 1
90467-16035

2AZFXE..AHR20..CBU

NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

2AZFXE..AHR20..CBU

NO.1

 1
90467-16035

2AZFXE..AHR20..CBU

NO.2

 1
