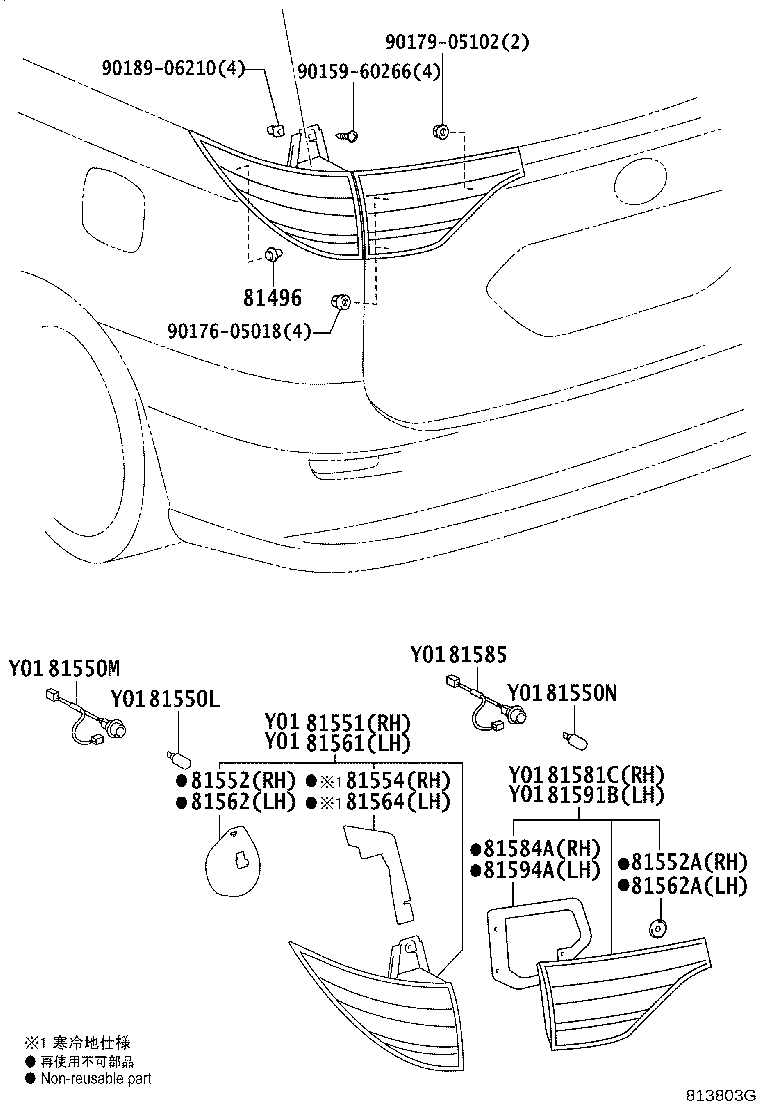

Toyota Estima hybrid AHR20 REAR COMBINATION LAMP

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010	AHR20..CBU	06/2006 - 12/2008	2
81496-28010	AHR20..CBU	12/2008 - 04/2012	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	AHR20..CBU 12V 21W,ｱﾝﾊﾞｰ	12/2008 - 04/2012	2
90981-15011	AHR20..CBU 12V 21W,ｱﾝﾊﾞｰ	06/2006 - 12/2008	2
81550M - SOCKET, REAR TURN SIGNAL LAMP
81555-28500	AHR20..CBU	12/2008 - 04/2012	2
81555-28400	AHR20..CBU	06/2006 - 12/2008	2
81550N - BULB, BACK UP LAMP
90981-11059	AHR20..CBU 12V 16W	06/2006 - 12/2008	2
90981-11059	AHR20..CBU 12V 16W	12/2008 - 04/2012	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-28521	AHR20..CBU	11/2010 - 04/2012	1
81551-28530	AHR20..CBU 寒冷地仕様	12/2008 - 11/2010	1
81551-28420	AHR20..CBU	06/2006 - 12/2008	1
81551-28520	AHR20..CBU	12/2008 - 11/2010	1
81551-28531	AHR20..CBU 寒冷地仕様	11/2010 - 04/2012	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-28400	AHR20..CBU	06/2006 - 12/2008	1
81552-28501	AHR20..CBU	11/2010 - 04/2012	1
81552-28500	AHR20..CBU	12/2008 - 11/2010	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81584-22040	AHR20..CBU	12/2008 - 04/2012	1
81584-22040	AHR20..CBU	06/2006 - 12/2008	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-28500	AHR20..CBU 寒冷地仕様	12/2008 - 04/2012	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28420	AHR20..CBU	06/2006 - 12/2008	1
81561-28520	AHR20..CBU	12/2008 - 11/2010	1
81561-28530	AHR20..CBU 寒冷地仕様	12/2008 - 11/2010	1
81561-28521	AHR20..CBU	11/2010 - 04/2012	1
81561-28531	AHR20..CBU 寒冷地仕様	11/2010 - 04/2012	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-28400	AHR20..CBU	06/2006 - 12/2008	1
81562-28500	AHR20..CBU	12/2008 - 11/2010	1
81562-28501	AHR20..CBU	11/2010 - 04/2012	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81584-22040	AHR20..CBU	12/2008 - 04/2012	1
81584-22040	AHR20..CBU	06/2006 - 12/2008	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-28500	AHR20..CBU 寒冷地仕様	12/2008 - 04/2012	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-28270	AHR20..CBU	12/2008 - 11/2010	1
81581-28271	AHR20..CBU	11/2010 - 04/2012	1
81581-28240	AHR20..CBU	06/2006 - 12/2008	1
81584A - GASKET, REAR LAMP RH
81584-28220	AHR20..CBU	06/2006 - 12/2008	1
81584-28260	AHR20..CBU	12/2008 - 11/2010	1
81584-28261	AHR20..CBU	11/2010 - 04/2012	1
81585 - SOCKET & WIRE, REAR LAMP
81585-28260	AHR20..CBU 右側	12/2008 - 04/2012	1
81585-28220	AHR20..CBU 右側	06/2006 - 12/2008	1
81595-28260	AHR20..CBU 左側	12/2008 - 04/2012	1
81595-28220	AHR20..CBU 左側	06/2006 - 12/2008	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-28240	AHR20..CBU	06/2006 - 12/2008	1
81591-28270	AHR20..CBU	12/2008 - 11/2010	1
81591-28271	AHR20..CBU	11/2010 - 04/2012	1
81594A - GASKET, REAR LAMP LH
81594-28220	AHR20..CBU	06/2006 - 12/2008	1
81594-28261	AHR20..CBU	11/2010 - 04/2012	1
81594-28260	AHR20..CBU	12/2008 - 11/2010	1
Common parts
90159-60266
90176-05018
90179-05102
90189-06210

AHR20W-GRXEB (2008)

(0606-1605)
