AHR20W-GRXEB (2008)
Toyota Estima Hybrid

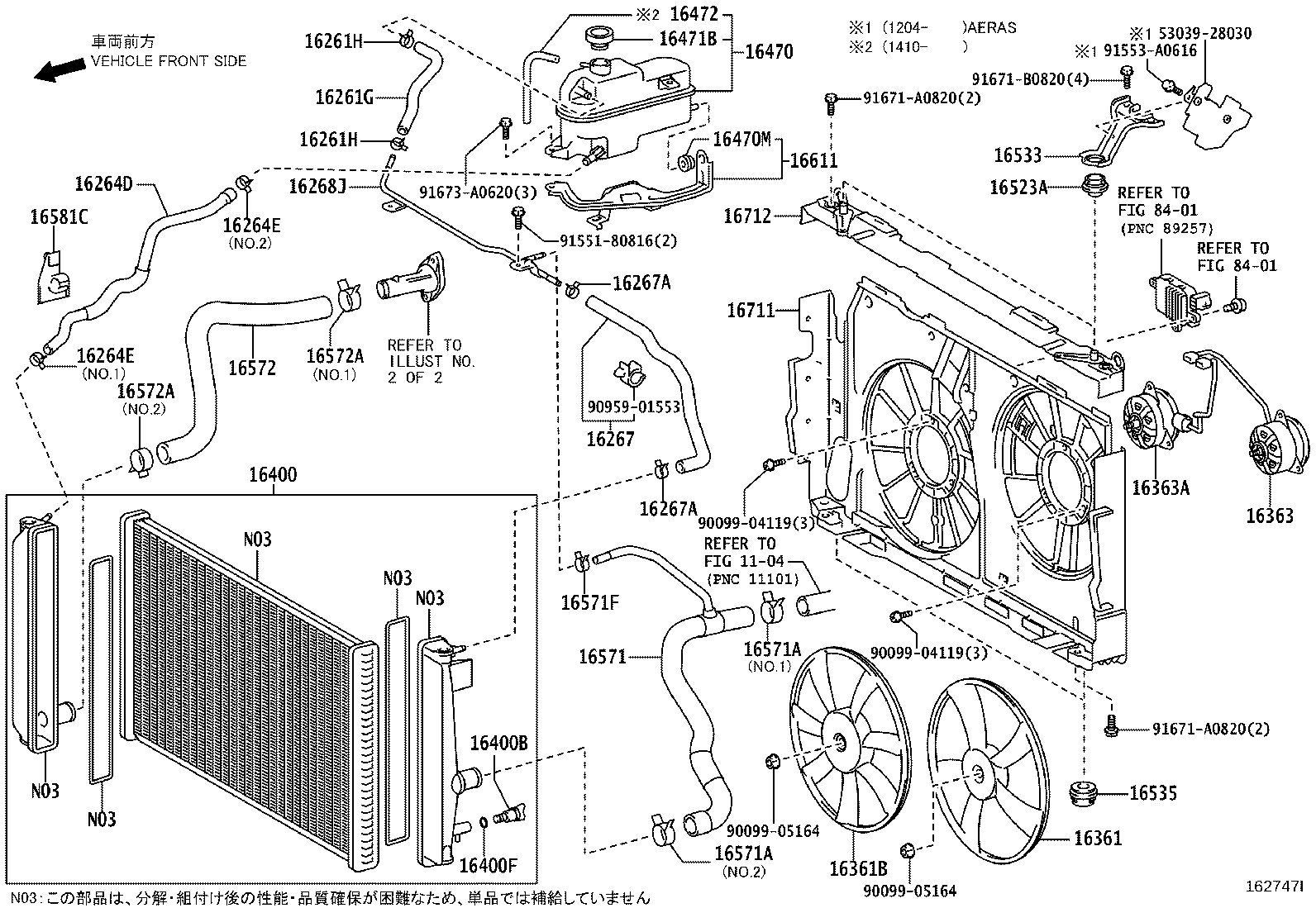

ILLUST NO. 1 OF 2(0606-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28080 |
2AZFXE..AHR20..CBU |
1 | ||
| 16261-28080 |
2AZFXE..AHR20..CBU |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28100 |
2AZFXE..AHR20..CBU |
1 | ||
| 16264-28100 |
2AZFXE..AHR20..CBU |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96134-51700 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 96134-51700 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96134-51700 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 96134-51700 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-28060 |
2AZFXE..AHR20..CBU |
1 | ||
| 16267-28060 |
2AZFXE..AHR20..CBU |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 90467-15022 |
2AZFXE..AHR20..CBU |
2 | ||
| 16268J - PIPE, WATER BY-PASS, NO.5 | ||||
| 16268-28130 |
2AZFXE..AHR20..CBU |
1 | ||
| 16268-28130 |
2AZFXE..AHR20..CBU |
1 | ||
| 16361 - FAN | ||||
| 16361-28220 |
2AZFXE..AHR20..CBU 5æžšç¾½ |
1 | ||
| 16361-28220 |
2AZFXE..AHR20..CBU 5æžšç¾½ |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28230 |
2AZFXE..AHR20..CBU 7æžšç¾½ |
1 | ||
| 16361-28230 |
2AZFXE..AHR20..CBU 7æžšç¾½ |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31100 |
2AZFXE..AHR20..CBU |
1 | ||
| 16363-31100 |
2AZFXE..AHR20..CBU |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31140 |
2AZFXE..AHR20..CBU |
1 | ||
| 16363-31140 |
2AZFXE..AHR20..CBU |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28560 |
2AZFXE..AHR20..CBU |
1 | ||
| 16400-28560 |
2AZFXE..AHR20..CBU |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2AZFXE..AHR20..CBU |
1 | ||
| 16417-21280 |
2AZFXE..AHR20..CBU |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2AZFXE..AHR20..CBU |
1 | ||
| 16492-21050 |
2AZFXE..AHR20..CBU |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28120 |
2AZFXE..AHR20..CBU |
1 | ||
| 16470-28120 |
2AZFXE..AHR20..CBU |
1 | ||
| 16470M - GROMMET | ||||
| 90480-16044 |
2AZFXE..AHR20..CBU |
1 | ||
| 90480-16044 |
2AZFXE..AHR20..CBU |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
2AZFXE..AHR20..CBU |
1 | ||
| 16475-28120 |
2AZFXE..AHR20..CBU |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2AZFXE..AHR20..CBU |
2 | ||
| 16523-28030 |
2AZFXE..AHR20..CBU |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28040 |
2AZFXE..AHR20..CBU |
2 | ||
| 16533-28041 |
2AZFXE..AHR20..CBU |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2AZFXE..AHR20..CBU |
2 | ||
| 16535-20030 |
2AZFXE..AHR20..CBU |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28280 |
2AZFXE..AHR20..CBU |
1 | ||
| 16571-28280 |
2AZFXE..AHR20..CBU |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-37002 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90467-37005 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-37002 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90467-37005 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-41501 |
2AZFXE..AHR20..CBU |
1 | ||
| 96136-41501 |
2AZFXE..AHR20..CBU |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28230 |
2AZFXE..AHR20..CBU |
1 | ||
| 16572-28230 |
2AZFXE..AHR20..CBU |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90467-37005 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90466-37002 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90466-41008 |
2AZFXE..AHR20..CBU NO.2 |
1 | ||
| 90467-37005 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 90466-37002 |
2AZFXE..AHR20..CBU NO.1 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-28050 |
2AZFXE..AHR20..CBU |
1 | ||
| 16581-28051 |
2AZFXE..AHR20..CBU |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28040 |
2AZFXE..AHR20..CBU |
1 | ||
| 16611-28040 |
2AZFXE..AHR20..CBU |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-28360 |
2AZFXE..AHR20..CBU |
1 | ||
| 16711-28361 |
2AZFXE..AHR20..CBU |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-28070 |
2AZFXE..AHR20..CBU |
1 | ||
| 16712-28070 |
2AZFXE..AHR20..CBU |
1 | ||
| Common parts | ||||
| 53039-28030 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90959-01553 | ||||
| 91551-80816 | ||||
| 91553-A0616 | ||||
| 91671-A0820 | ||||
| 91671-B0820 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||
