Toyota Estima hybrid AHR20 STANDARD TOOL

AHR20W-GRXEB (2008)

Toyota Estima Hybrid

Production Dec 2008 - Apr 2012

Engine 2AZFXE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0606-0912)

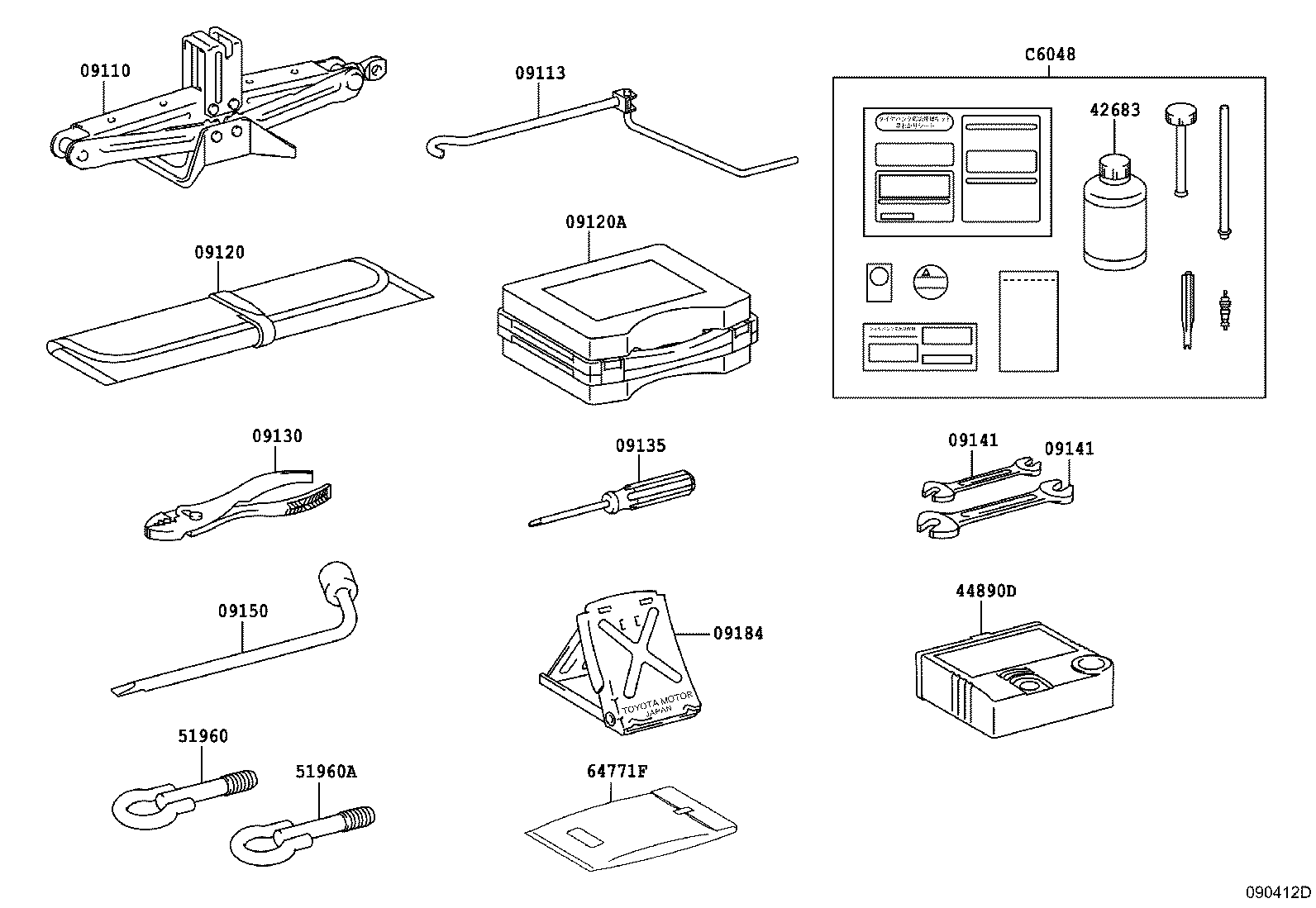

Click highlighted areas on diagram

Part #	Description	Period	Qty
09110 - JACK ASSY
09111-28190	AHR20..CBU TYPE B:ｲﾗｽﾄ参照	03/2011 - 04/2012	1
09110-28180	AHR20..CBU	06/2006 - 12/2008	1
09110-28180	AHR20..CBU TYPE A:ｲﾗｽﾄ参照	12/2008 - 03/2011	1
09113 - HANDLE, JACK
09113-44010	AHR20..CBU	06/2006 - 12/2008	1
09113-44010	AHR20..CBU	12/2008 - 04/2012	1
09120 - BAG, TOOL
09120-12011	AHR20..CBU	12/2008 - 03/2010	1
09120-28090	AHR20..CBU	04/2010 - 04/2012	1
09120-12011	AHR20..CBU	06/2006 - 12/2008	1
09120A - CASE, TOOL
09120-28060	AHR20..CBU	06/2006 - 12/2008	1
09120-28060	AHR20..CBU	12/2008 - 12/2009	1
09130 - PLIERS
99913-11500	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99913-11500	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09135 - DRIVER, SCREW
99915-10700	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99915-10700	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09141 - SPANNER
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09141 - SPANNER
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09150 - WRENCH, HUB NUT BOX
09150-40010	AHR20..CBU	06/2006 - 12/2008	1
09150-40010	AHR20..CBU	12/2008 - 04/2012	1
09184 - STOPPER, WHEEL
09184-00010	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09184-00010	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
42683 - SEAL, TIRE REPAIR
42683-28010	AHR20..CBU	12/2008 - 12/2009	1
42683-28010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16	12/2008 - 12/2009	1
42683-28010	AHR20..CBU	06/2006 - 12/2008	1
42683-28010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16	06/2006 - 12/2008	1
42683-50010	AHR20..CBU	12/2009 - 04/2012	1
44890D - COMPRESSOR ASSY, AIR
44890-52010	AHR20..CBU	06/2006 - 12/2008	1
44890-52010	AHR20..CBU	12/2008 - 12/2009	1
51960 - HOOK ASSY, FRONT
51960-28030	AHR20..CBU	06/2006 - 06/2007	1
51960-28031	AHR20..CBU	12/2008 - 04/2012	1
51960A - HOOK ASSY, REAR
51960-28030	AHR20..CBU	06/2006 - 06/2007	1
51960-28031	AHR20..CBU	12/2008 - 04/2012	1
64771F - COVER, SPARE WHEEL
64771-44010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)	12/2008 - 04/2012	1
64771-44010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)	06/2006 - 12/2008	1
C6048 - REPAIR SET, TIRE
C6048-28020	AHR20..CBU	12/2008 - 12/2009	1
C6048-50010	AHR20..CBU	12/2009 - 04/2012	1
C6048-28020	AHR20..CBU	06/2006 - 12/2008	1

(0912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
09110 - JACK ASSY
09111-28190	AHR20..CBU TYPE B:ｲﾗｽﾄ参照	03/2011 - 04/2012	1
09110-28180	AHR20..CBU	06/2006 - 12/2008	1
09110-28180	AHR20..CBU TYPE A:ｲﾗｽﾄ参照	12/2008 - 03/2011	1
09113 - HANDLE, JACK
09113-44010	AHR20..CBU	06/2006 - 12/2008	1
09113-44010	AHR20..CBU	12/2008 - 04/2012	1
09120 - BAG, TOOL
09120-12011	AHR20..CBU	12/2008 - 03/2010	1
09120-28090	AHR20..CBU	04/2010 - 04/2012	1
09120-12011	AHR20..CBU	06/2006 - 12/2008	1
09130 - PLIERS
99913-11500	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99913-11500	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09135 - DRIVER, SCREW
99915-10700	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99915-10700	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09141 - SPANNER
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09141 - SPANNER
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
99914-10810	AHR20..CBU 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
99914-11214	AHR20..CBU 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09150 - WRENCH, HUB NUT BOX
09150-40010	AHR20..CBU	06/2006 - 12/2008	1
09150-40010	AHR20..CBU	12/2008 - 04/2012	1
09184 - STOPPER, WHEEL
09184-00010	AHR20..CBU ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	12/2008 - 04/2012	1
09184-00010	AHR20..CBU ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ﾌﾟﾗｲﾔ,輪止め,ｽﾊﾟﾅ2個	06/2006 - 12/2008	1
42606B - REPAIR KIT, TUBELESS TIRE
42606-50010	AHR20..CBU	12/2009 - 03/2012	1
42683 - SEAL, TIRE REPAIR
42683-28010	AHR20..CBU	12/2008 - 12/2009	1
42683-28010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16	12/2008 - 12/2009	1
42683-28010	AHR20..CBU	06/2006 - 12/2008	1
42683-28010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16	06/2006 - 12/2008	1
42683-50010	AHR20..CBU	12/2009 - 04/2012	1
51960 - HOOK ASSY, FRONT
51960-28030	AHR20..CBU	06/2006 - 06/2007	1
51960-28031	AHR20..CBU	12/2008 - 04/2012	1
51960A - HOOK ASSY, REAR
51960-28030	AHR20..CBU	06/2006 - 06/2007	1
51960-28031	AHR20..CBU	12/2008 - 04/2012	1
64771F - COVER, SPARE WHEEL
64771-44010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)	12/2008 - 04/2012	1
64771-44010	AHR20..CBU ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)	06/2006 - 12/2008	1
C6048 - REPAIR SET, TIRE
C6048-28020	AHR20..CBU	12/2008 - 12/2009	1
C6048-50010	AHR20..CBU	12/2009 - 04/2012	1
C6048-28020	AHR20..CBU	06/2006 - 12/2008	1
