AHR20W-GRXEB (2006)
Toyota Estima Hybrid
(0606-0812)

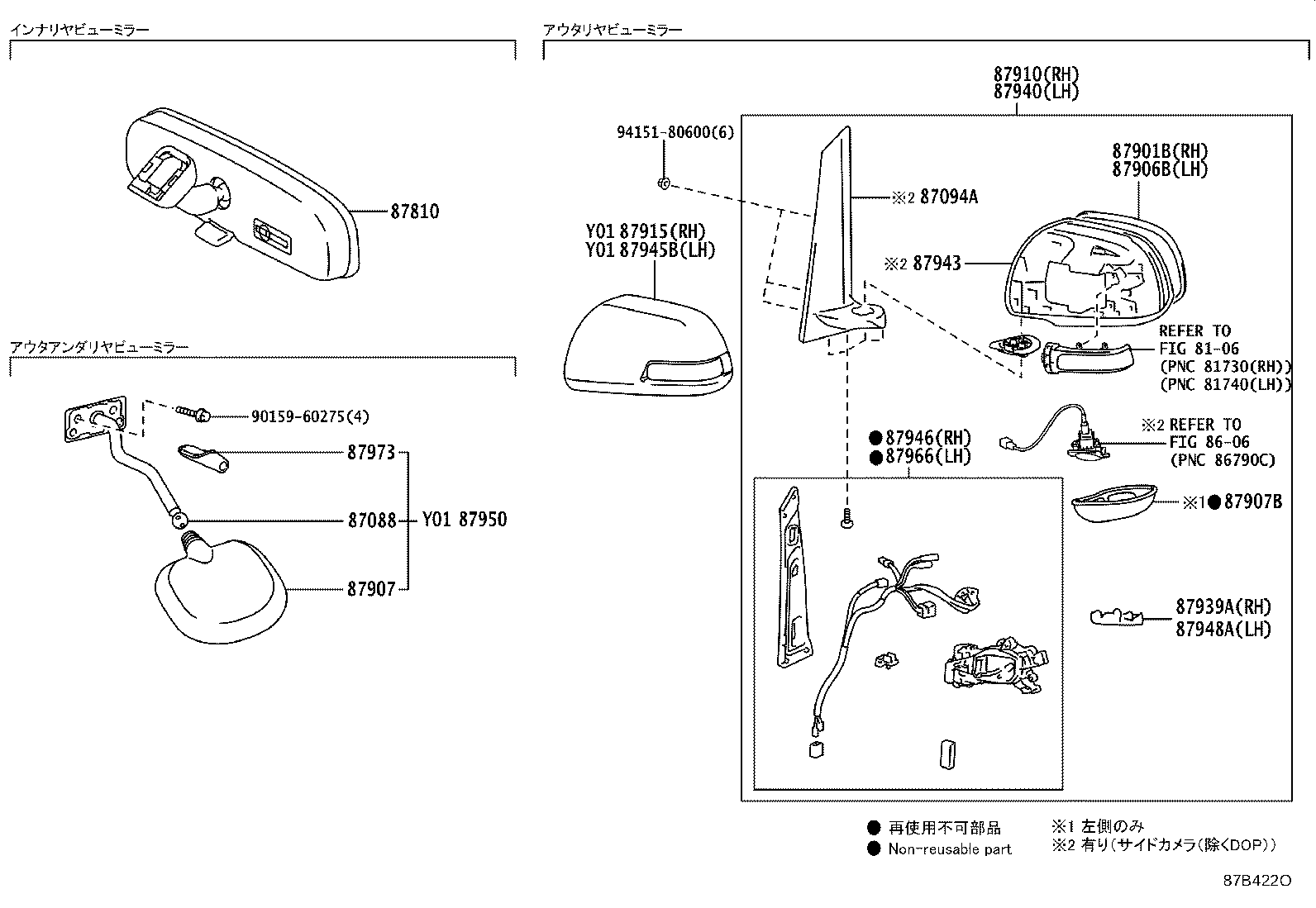

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-28050 |
AHR20..CBU ﾘﾔ ｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 8794B-28A20 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 8794B-28A20 |
AHR20..G..CBU |
1 | ||
| 8794B-28A20 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
AHR20..CBU |
1 | ||
| 87810-52041 |
AHR20..CBU |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87931-28A20 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87931-28A20 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87931-28A20 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87931-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87931-28A30 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87931-28A30 |
AHR20..CBU 寒冷地仕様 |
1 | ||
| 87931-28A20 |
AHR20..CBU |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-28A30 |
AHR20..CBU 寒冷地仕様 |
1 | ||
| 87961-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87961-28A20 |
AHR20..CBU |
1 | ||
| 87961-28A30 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87961-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-28010 |
AHR20..CBU ﾘﾔ ｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 87907-28030 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87907-28030 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87907-28030 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87907-28030 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87907-28030 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87907-28030 |
AHR20..CBU |
1 | ||
| 87907-28030 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-28A30 |
AHR20..X 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87910-28A30 |
AHR20..X 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87910-28A20 |
AHR20..X 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87910-28A30 |
AHR20..X 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87910-28A30 |
AHR20..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87910-28A20 |
AHR20..X 塗装不要,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87910-28A20 |
AHR20..CBU 塗装不要 |
1 | ||
| 87910-28A20 |
AHR20..X 塗装不要,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-28060A1 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 87915-28060C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 87915-28060K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 87915-28060B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 87915-28060J1 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 87939A - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-28A20 |
AHR20..CBU |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-28A41 |
AHR20..X 塗装不要,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87940-28A51 |
AHR20..X 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87940-28A31 |
AHR20..X 塗装不要,寒冷地仕様 |
1 | ||
| 87940-28A21 |
AHR20..X 塗装不要 |
1 | ||
| 87940-28A41 |
AHR20..G..CBU 塗装不要 |
1 | ||
| 87940-28A51 |
AHR20..X 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87940-28A51 |
AHR20..X 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87940-28A51 |
AHR20..G..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-28A41 |
AHR20..X 塗装不要,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87940-28A41 |
AHR20..X 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87943 - BODY, OUTER MIRROR, LH | ||||
| 8794A-28B90 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 8794A-28B90 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
AHR20..G..CBU |
1 | ||
| 8794A-28B90 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-28060A1 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 87945-28060B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 87945-28060C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 87945-28060K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 87945-28060J1 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-28A20 |
AHR20..CBU |
1 | ||
| 87946-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87946-28A30 |
AHR20..CBU 寒冷地仕様 |
1 | ||
| 87946-28A30 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87946-28A30 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87948A - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-28A20 |
AHR20..CBU |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-28160 |
AHR20..CBU ﾘﾔ ｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-28A50 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87966-28A40 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 87966-28A40 |
AHR20..G..CBU |
1 | ||
| 87966-28A50 |
AHR20..X 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87966-28A50 |
AHR20..X 寒冷地仕様&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87966-28A30 |
AHR20..X 寒冷地仕様 |
1 | ||
| 87966-28A40 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87966-28A40 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 87966-28A50 |
AHR20..G..CBU 寒冷地仕様 |
1 | ||
| 87966-28A20 |
AHR20..X |
1 | ||
| 87973 - COVER, OUTER UNDER RR VIEW MIRROR | ||||
| 87973-28080 |
AHR20..CBU ﾘﾔ ｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| Common parts | ||||
| 90159-60275 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
