AHR20W-GRXEB (2006)
Toyota Estima Hybrid

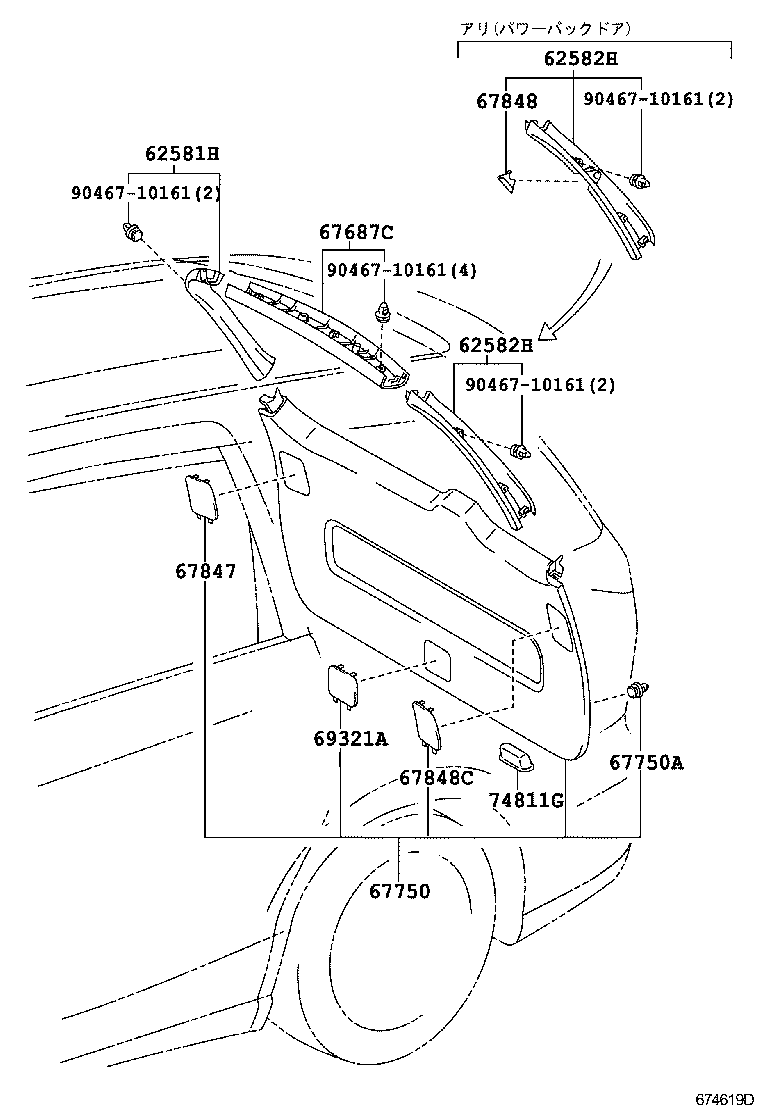

ILLUST NO. 2 OF 2(0606- )AEPR ; (0606- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581H - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62581-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-28080E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62582-28070E1 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 62582-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62582-28090E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-28080E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62582-28070E1 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 62582-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62582-28090E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 67687C - GARNISH, BACK WINDOW | ||||
| 67687-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67687-28080E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-28150E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67750-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67750-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AHR20..CBU |
18 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-28120E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67847-28120E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-28040E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67848-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-28010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 69321-28010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 74811G - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
AHR20..CBU BLACK |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||

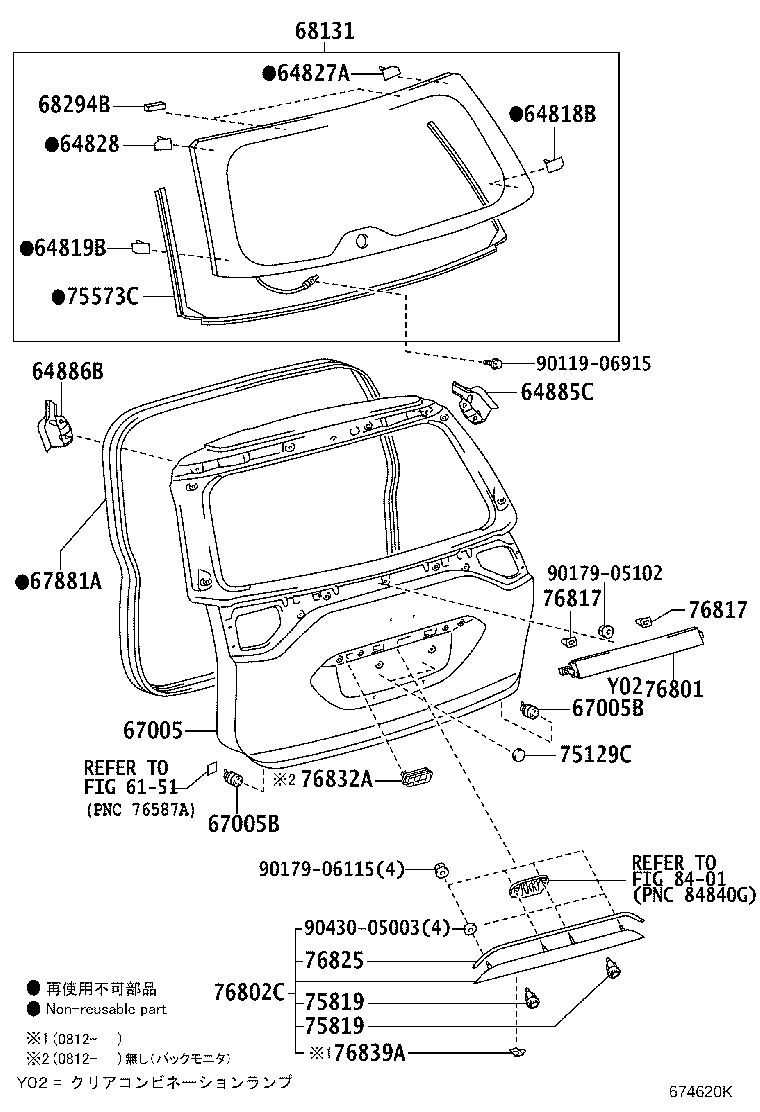

ILLUST NO. 1 OF 2(0606- )AEPR ; (0606- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-28020 |
AHR20..CBU |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-28020 |
AHR20..CBU |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-28040 |
AHR20..CBU |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-28030 |
AHR20..CBU |
1 | ||
| 64885C - CHANNEL, BACK DOOR GLASS, RH | ||||
| 64885-28060 |
AHR20..CBU |
1 | ||
| 64886B - CHANNEL, BACK DOOR GLASS, LH | ||||
| 64886-28060 |
AHR20..CBU |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-28A70 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 67005-28A60 |
AHR20..X |
1 | ||
| 67005-28A70 |
AHR20..G..CBU |
1 | ||
| 67005-28C60 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 67005-28C60 |
AHR20..G..CBU |
1 | ||
| 67005-28A90 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 67005-28A70 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 67005-28A70 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 67005-28C80 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納) |
1 | ||
| 67005-28A50 |
AHR20..X |
1 | ||
| 67005-28A70 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 67005-28C60 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10042 |
AHR20..CBU |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10042 |
AHR20..CBU |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-28120 |
AHR20..CBU |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-28600 |
AHR20..CBU *EHT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AHR20..CBU |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-26010 |
AHR20..CBU |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-28030 |
AHR20..CBU |
1 | ||
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-33010 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
2 | ||
| 75819-33010 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
2 | ||
| 75819-33010 |
AHR20..CBU |
2 | ||
| 75819-33010 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
2 | ||
| 75819-33010 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-33010 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
2 | ||
| 75819-33010 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
2 | ||
| 75819-33010 |
AHR20..CBU |
2 | ||
| 75819-33010 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
2 | ||
| 75819-33010 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-28390 |
AHR20..CBU |
1 | ||
| 76801-28350 |
AHR20..CBU |
1 | ||
| 76802C - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2 | ||||
| 76802-28010 |
AHR20..X |
1 | ||
| 76802-28020 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 76802-28020 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 76802-28020 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 76802-28020 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 76802-28020 |
AHR20..G..CBU |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
AHR20..CBU |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
AHR20..CBU |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-28080 |
AHR20..CBU |
1 | ||
| 76825-28080 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ |
1 | ||
| 76825-28080 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 76825-28080 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 76825-28080 |
AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-05102 | ||||
| 90179-06115 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8401 | ||||
