AHR20W-GRXEB (2006)

Toyota Estima Hybrid

Production Jun 2006 - Dec 2008
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

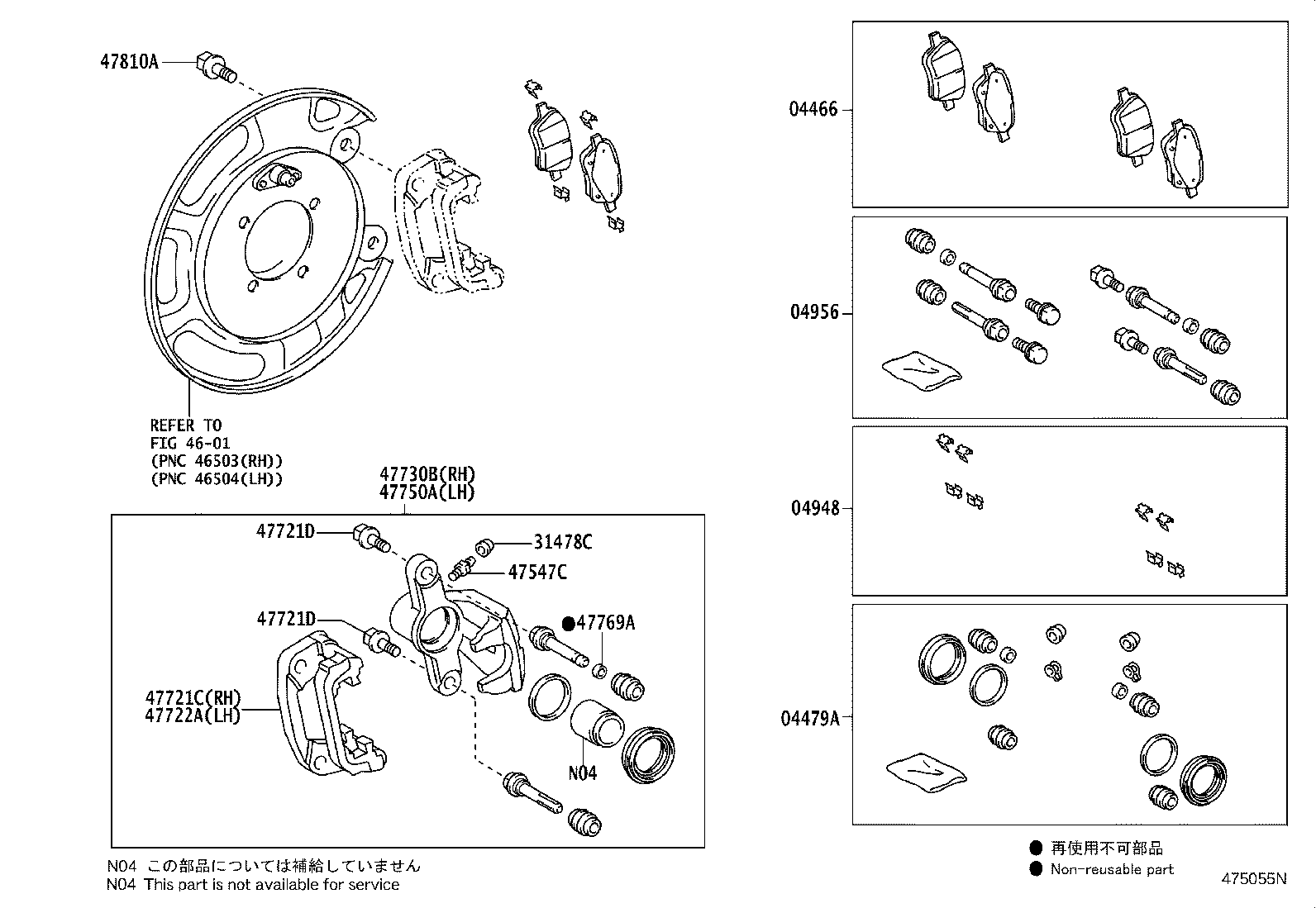

Click highlighted areas on diagram

diagram 04466 04479A 04948 04956 31478C 4601 47547C 47721C 47721D 47721D 47722A 47730B 47750A 47769A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-28110

AHR20..CBU

ﾏｰｸ AK NS254

 1
04466-58010

AHR20..CBU

ﾏｰｸ AK NS254

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-28180

AHR20..CBU

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-28020

AHR20..CBU

 1
04956 - SLIDE PIN KIT, REAR DISC BRAKE CYLINDER
04956-28010

AHR20..CBU

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-05030

AHR20..CBU

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-05020

AHR20..CBU

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-28060

AHR20..CBU

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47715-05060

AHR20..CBU

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47715-05060

AHR20..CBU

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-28060

AHR20..CBU

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47830-28060

AHR20..CBU

 1
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-28060

AHR20..CBU

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47879-28060

AHR20..CBU

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
91672-B1228

AHR20..CBU

 4
Linked diagrams
4601
