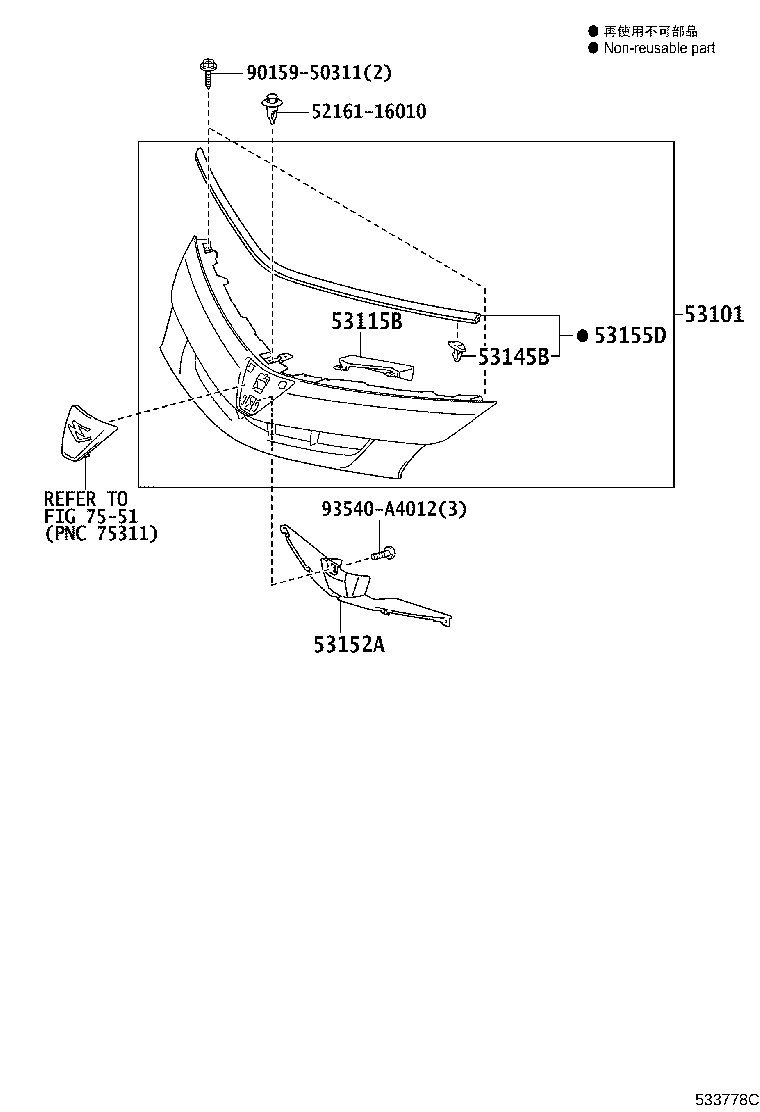

Toyota Estima hybrid AHR20 RADIATOR GRILLE

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28340	AHR20..G..CBU ﾒｯｷ	06/2006 - 12/2008	1
53101-28340	AHR20..X ﾒｯｷ,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
53101-28340	AHR20..X ﾒｯｷ,ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
53101-28330	AHR20..X ﾒｯｷ	06/2006 - 12/2008	1
53101-28491B1	AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4	04/2012 - 04/2013	1
53101-28501A0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070	04/2012 - 04/2013	1
53101-28491B0	AHR20..(G,X)..CBU SILVER ME.,1F7	04/2012 - 04/2013	1
53101-28491C0	AHR20..(G,X)..CBU BLACK,202	04/2012 - 04/2013	1
53101-28491A0	AHR20..(G,X)..CBU WHITE PEARL CS.,070	04/2012 - 04/2013	1
53101-28501D0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DEEP RED M.M.,3R9	04/2012 - 04/2013	1
53101-28492B0	AHR20..(G,X)..CBU SILVER ME.,1F7	04/2013 - 05/2016	1
53101-28491D0	AHR20..(G,X)..CBU DEEP RED M.M.,3R9	04/2012 - 04/2013	1
53101-28492A0	AHR20..(G,X)..CBU WHITE PEARL CS.,070	04/2013 - 05/2016	1
53101-28381D0	AHR20..AERAS..CBU DEEP RED M.M.,3R9	04/2012 - 05/2016	1
53101-28501B0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7	04/2012 - 04/2013	1
53101-28381A0	AHR20..AERAS..CBU WHITE PEARL CS.,070	04/2012 - 05/2016	1
53101-28381B1	AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4	04/2012 - 05/2016	1
53101-28501C0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,BLACK,202	04/2012 - 04/2013	1
53101-28502A0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070	04/2013 - 05/2016	1
53101-28492C0	AHR20..(G,X)..CBU BLACK,202	04/2013 - 05/2016	1
53101-28501B1	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,ICE TITANIUM M.M.,1H4	04/2012 - 04/2013	1
53101-28381C0	AHR20..AERAS..CBU BLACK,202	04/2012 - 05/2016	1
53101-28381B0	AHR20..AERAS..CBU SILVER ME.,1F7	04/2012 - 05/2016	1
53101-28502C0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202	04/2013 - 05/2016	1
53101-28502B1	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
53101-28492B1	AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
53101-28502B0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7	04/2013 - 05/2016	1
53101-28492D0	AHR20..(G,X)..CBU DEEP RED M.M.,3R9	04/2013 - 05/2016	1
53101-28381J0	AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5	04/2012 - 05/2016	1
53101-28502D0	AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9	04/2013 - 05/2016	1
53115B - BRACKET, RADIATOR GRILLE
53115-28070	AHR20..AERAS..CBU	04/2012 - 05/2016	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030	AHR20..AERAS..CBU	04/2012 - 05/2016	2
53145-60030	AHR20..(G,X)..CBU	04/2012 - 05/2016	13
53152A - GUIDE, RADIATOR GRILLE AIR
53152-28021	AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ)	04/2012 - 04/2013	1
53152-28021	AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ)	04/2013 - 05/2016	1
53152-28030	AHR20..AERAS..CBU	04/2012 - 05/2016	1
53155D - SEAL, RADIATOR GRILLE, NO.1
53397-28040	AHR20..CBU	06/2006 - 12/2008	1
53397-28040	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
53397-28050	AHR20..(G,X)..CBU	04/2012 - 05/2016	1
53397-28070	AHR20..AERAS..CBU	04/2012 - 05/2016	1
53397-28040	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
Common parts
52161-16010
90159-50311
93540-A4012
Linked diagrams
7551

AHR20W-GFXSB (2012)

(1204-1605)AERAS
