AHR20W-GFXSB (2012)
Toyota Estima Hybrid
(1204-1605)AERAS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

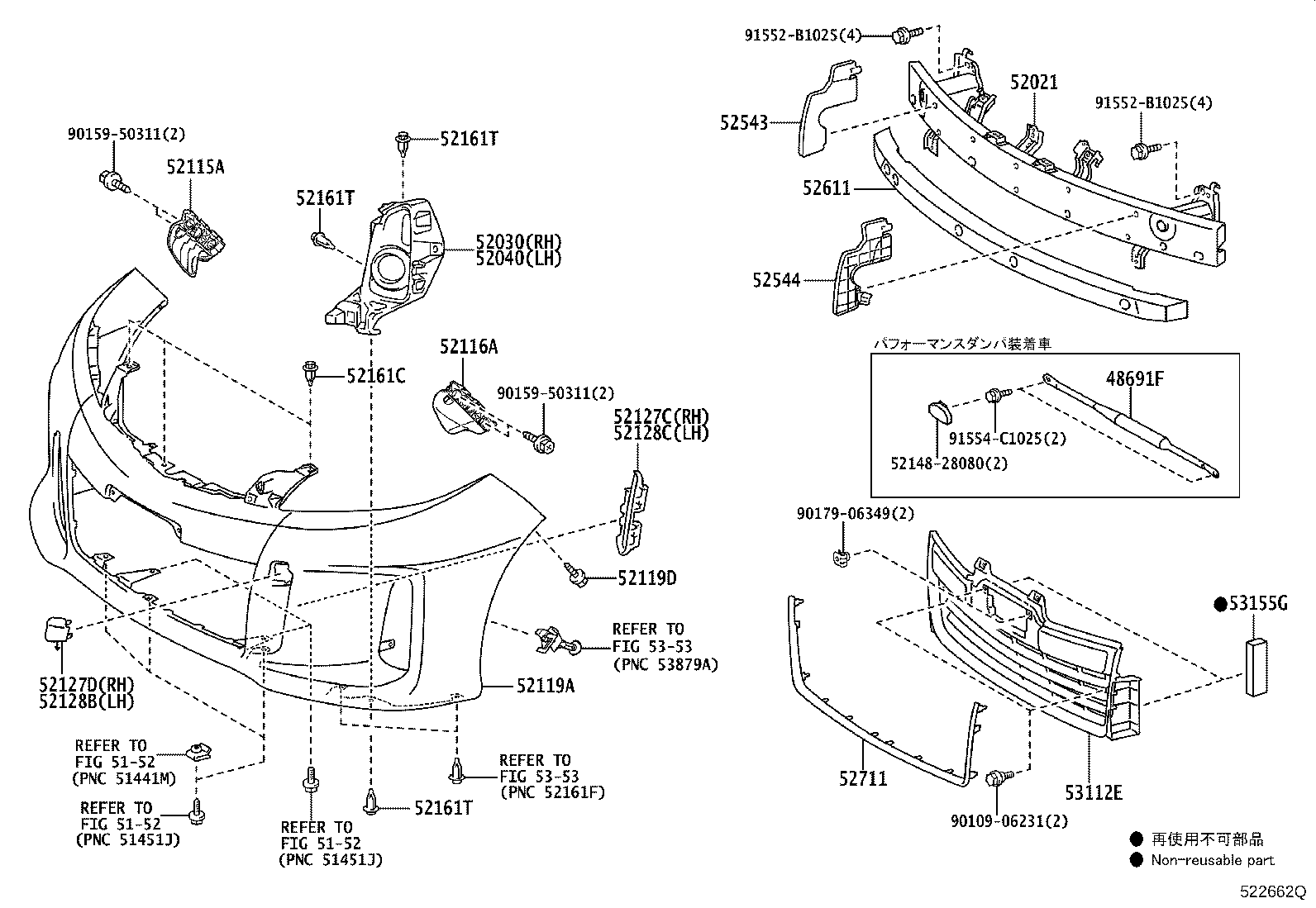

| 48691F - DAMPER, FRONT REINFORCEMENT | ||||
| 48691-28010 |
AHR20..07S..AERAS..CBU AERAS “PREMIUM EDITION”*(H) or *(M) |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28220 |
AHR20..CBU |
1 | ||
| 52021-28210 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式 |
1 | ||
| 52021-28211 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
1 | ||
| 52021-28230 |
AHR20..AERAS..CBU |
1 | ||
| 52021-28221 |
AHR20..(G,X)..CBU |
1 | ||
| 52029-28060 |
AHR20..07S..AERAS..CBU AERAS “PREMIUM EDITION”*(H) or *(M) |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28080 |
AHR20..07S..AERAS..CBU ﾒｯｷ,“VERY EDITION”*(V)or*(I)or*(T) |
1 | ||
| 52030-28010 |
AHR20..AERAS..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28010 |
AHR20..AERAS..CBU ﾒｯｷ |
1 | ||
| 52040-28080 |
AHR20..07S..AERAS..CBU ﾒｯｷ,“VERY EDITION”*(V)or*(I)or*(T) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28120 |
AHR20..CBU |
1 | ||
| 52115-28170 |
AHR20..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28170 |
AHR20..CBU |
1 | ||
| 52116-28060 |
AHR20..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28C40K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C40B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28C50B0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28C40A0 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28C50A0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C60B0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28C50C0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),BLACK,202 |
1 | ||
| 52119-28C60K0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C70J0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C40J0 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C70A0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C60A0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28C50J0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C40C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52119-28C70K0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C70C0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),BLACK,202 |
1 | ||
| 52119-28C60J0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C60C0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,BLACK,202 |
1 | ||
| 52119-28C50K0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28F50C0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28F50A0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28F50B0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F60C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28F50D0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F60A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10A0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28F60B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28F50B1 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28G10C0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28G10B1 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28G10D0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F60B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F40C0 |
AHR20..(G,X)..CBU BLACK,202 |
1 | ||
| 52119-28G00C0 |
AHR20..AERAS..CBU BLACK,202 |
1 | ||
| 52119-28G00A0 |
AHR20..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10B0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F40D0 |
AHR20..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G00J0 |
AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28G10J0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),GRAYISH BLUEM.M.,8V5 |
1 | ||
| 52119-28G00B0 |
AHR20..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28C70B0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28F60D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F40A0 |
AHR20..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28G00B1 |
AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G20A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G20B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28F40B0 |
AHR20..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28F40B1 |
AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G20B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J40D0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J40B0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J50D0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G20D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G20C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,BLACK,202 |
1 | ||
| 52119-28J40B1 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G00D0 |
AHR20..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J40C0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J50B0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J60A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J40A0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J40A0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T)&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J60B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J50C0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J50A0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G00A0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T),WHITE PEARL CS.,070 |
1 | ||
| 52119-28J50B1 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J60D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J60B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J40J0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28J60C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J40C0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T)&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28G00C0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T),BLACK,202 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-50353 |
AHR20..CBU |
2 | ||
| 90159-60217 |
AHR20..CBU |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-28440 |
AHR20..AERAS..CBU |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28220J0 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28220A0 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28320C0 |
AHR20..(G,X)..CBU BLACK,202 |
1 | ||
| 52127-28220B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28220C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52127-28320A0 |
AHR20..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28320D0 |
AHR20..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28320B0 |
AHR20..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28430C0 |
AHR20..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28430B1 |
AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52127-28430J0 |
AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-28220K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52127-28430A0 |
AHR20..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28430D0 |
AHR20..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28430B0 |
AHR20..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28320B1 |
AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52127-28220B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28220C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52127-28220K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52128-28430B0 |
AHR20..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28220A0 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52128-28430J0 |
AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-28430A0 |
AHR20..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52128-28430C0 |
AHR20..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28220J0 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52128-28430B1 |
AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52128-28430D0 |
AHR20..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28440 |
AHR20..AERAS..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..AERAS..CBU |
6 | ||
| 52161-16010 |
AHR20..(G,X)..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..AERAS..CBU |
6 | ||
| 52161-16010 |
AHR20..(G,X)..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..AERAS..CBU |
6 | ||
| 52161-16010 |
AHR20..(G,X)..CBU |
4 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52545-28070 |
AHR20..CBU |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52546-28070 |
AHR20..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28080 |
AHR20..CBU |
1 | ||
| 52611-28080 |
AHR20..CBU |
1 | ||
| 52611-28081 |
AHR20..CBU |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28150 |
AHR20..AERAS..CBU ﾒｯｷ |
1 | ||
| 52711-28180 |
AHR20..07S..AERAS..CBU ﾒｯｷ,“VERY EDITION”*(V)or*(I)or*(T) |
1 | ||
| 52711-28180 |
AHR20..07S..AERAS..CBU ﾒｯｷ,“VERY EDITION”*(V)or*(I)or*(T)&ｸﾘｱﾗﾝｽ\ﾅｰ−有り |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28130 |
AHR20..(G,X)..CBU 塗装不要 |
1 | ||
| 53112-28210 |
AHR20..AERAS..CBU 塗装不要 |
1 | ||
| 53155G - SEAL, RADIATOR GRILLE | ||||
| 53155-28040 |
AHR20..CBU |
2 | ||
| 53155-28051 |
AHR20..CBU |
2 | ||
| Common parts | ||||
| 52148-28080 | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90179-06349 | ||||
| 91552-B1025 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
(1204-1605)G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28220 |
AHR20..CBU |
1 | ||
| 52021-28210 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式 |
1 | ||
| 52021-28211 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
1 | ||
| 52021-28230 |
AHR20..AERAS..CBU |
1 | ||
| 52021-28221 |
AHR20..(G,X)..CBU |
1 | ||
| 52029-28060 |
AHR20..07S..AERAS..CBU AERAS “PREMIUM EDITION”*(H) or *(M) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28120 |
AHR20..CBU |
1 | ||
| 52115-28170 |
AHR20..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28170 |
AHR20..CBU |
1 | ||
| 52116-28060 |
AHR20..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28C40K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C40B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28C50B0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28C40A0 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28C50A0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C60B0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28C50C0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),BLACK,202 |
1 | ||
| 52119-28C60K0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C70J0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C40J0 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C70A0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C60A0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28C50J0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C40C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52119-28C70K0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28C70C0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),BLACK,202 |
1 | ||
| 52119-28C60J0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28C60C0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,BLACK,202 |
1 | ||
| 52119-28C50K0 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28F50C0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28F50A0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28F50B0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F60C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28F50D0 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F60A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10A0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28F60B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G00C0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T),BLACK,202 |
1 | ||
| 52119-28F50B1 |
AHR20..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28G10C0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28G10B1 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28G10D0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F60B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F40C0 |
AHR20..(G,X)..CBU BLACK,202 |
1 | ||
| 52119-28G00C0 |
AHR20..AERAS..CBU BLACK,202 |
1 | ||
| 52119-28G00A0 |
AHR20..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10B0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28F40D0 |
AHR20..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G00J0 |
AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28G10J0 |
AHR20..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),GRAYISH BLUEM.M.,8V5 |
1 | ||
| 52119-28G00B0 |
AHR20..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28C70B0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28F60D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F40A0 |
AHR20..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28G00B1 |
AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G20A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G20B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28F40B0 |
AHR20..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28F40B1 |
AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G20B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J40D0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J40B0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J50D0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G20D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G20C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,BLACK,202 |
1 | ||
| 52119-28J40B1 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G00D0 |
AHR20..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J40C0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J50B0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J60A0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J40A0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J40A0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T)&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J60B1 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J50C0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J50A0 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G00A0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T),WHITE PEARL CS.,070 |
1 | ||
| 52119-28J50B1 |
AHR20..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J60D0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J60B0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J40J0 |
AHR20..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28J60C0 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J40C0 |
AHR20..07S..AERAS..CBU “VERY EDITION”*(V)or*(I)or*(T)&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-50353 |
AHR20..CBU |
2 | ||
| 90159-60217 |
AHR20..CBU |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-50353 |
AHR20..CBU |
2 | ||
| 90159-60217 |
AHR20..CBU |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28220A0 |
AHR20..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28220J0 |
AHR20..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28320C0 |
AHR20..(G,X)..CBU BLACK,202 |
1 | ||
| 52127-28220B0 |
AHR20..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28220C0 |
AHR20..CBU BLACK,202 |
1 | ||
| 52127-28320A0 |
AHR20..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28320D0 |
AHR20..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28320B0 |
AHR20..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28430C0 |
AHR20..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28430B1 |
AHR20..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52127-28430J0 |
AHR20..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-28220K0 |
AHR20..CBU LT.PURPLE M.M.,9AE |
1 | ||
| 52127-28430A0 |
AHR20..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28430D0 |
AHR20..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28430B0 |
AHR20..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28320B1 |
AHR20..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52133 - REINFORCEMENT, FRONT BUMPER | ||||
| 52133-28170 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
1 | ||
| 52133-28100 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式 |
1 | ||
| 52133-28170 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
1 | ||
| 52133-28170 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 52133-28100 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
2 | ||
| 52161-16010 |
AHR20..CBU |
3 | ||
| 52161-16010 |
AHR20..CBU |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り |
2 | ||
| 52161-16010 |
AHR20..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..AERAS..CBU |
6 | ||
| 52161-16010 |
AHR20..(G,X)..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AHR20..AERAS..CBU |
6 | ||
| 52161-16010 |
AHR20..(G,X)..CBU |
4 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52545-28070 |
AHR20..CBU |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52546-28070 |
AHR20..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28080 |
AHR20..CBU |
1 | ||
| 52611-28080 |
AHR20..CBU |
1 | ||
| 52611-28081 |
AHR20..CBU |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28130 |
AHR20..(G,X)..CBU 塗装不要 |
1 | ||
| 53112-28210 |
AHR20..AERAS..CBU 塗装不要 |
1 | ||
| 53155G - SEAL, RADIATOR GRILLE | ||||
| 53155-28040 |
AHR20..CBU |
2 | ||
| 53155-28051 |
AHR20..CBU |
2 | ||
| 81481C - BRACKET, FOG LAMP | ||||
| 81481-28380 |
AHR20..(G,X)..CBU 右側 |
1 | ||
| 81482-28380 |
AHR20..(G,X)..CBU 左側 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-28390 |
AHR20..(G,X)..CBU |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-28390 |
AHR20..(G,X)..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-06451 | ||||
| 90159-50311 | ||||
| 90159-60081 | ||||
| 90179-06349 | ||||
| 91552-B1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7551 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
