ESTIMA HYBRID
AHR20W-GFXQB (2006)
8606 - CAMERA & REAR MONITOR DISPLAY

AHR20W-GFXQB (2006)

Toyota Estima Hybrid

Production Jun 2006 - Dec 2008

Engine 2AZFXE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0606-1605)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-58030	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86174B - CASE, SWITCH & VOLUME
86174-58010	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 12/2008	1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-28080E0	AHR20..G..CBU GREGE,TRIM4#	06/2006 - 12/2008	1
86191-28080E0	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ,GREGE,TRIM4#	06/2006 - 12/2008	1
86191-28080E0	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,GREGE,TRIM4#	06/2006 - 12/2008	1
86291 - BRACKET, TELEVISION
86291-28231	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	07/2008 - 12/2008	1
86291-28141	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	07/2008 - 12/2008	1
86291-28230	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	06/2007 - 06/2008	1
86291-28210	AHR20..CBU 右側	06/2007 - 12/2008	1
86291-28220	AHR20..CBU 左側	06/2007 - 12/2008	1
86291-28140	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2008	1
86291-28120	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,右側	06/2006 - 12/2008	1
86291-28130	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,左側	06/2006 - 12/2008	1
86291 - BRACKET, TELEVISION
86291-28231	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	07/2008 - 12/2008	1
86291-28141	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	07/2008 - 12/2008	1
86291-28230	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	06/2007 - 06/2008	1
86291-28210	AHR20..CBU 右側	06/2007 - 12/2008	1
86291-28220	AHR20..CBU 左側	06/2007 - 12/2008	1
86291-28140	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2008	1
86291-28120	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,右側	06/2006 - 12/2008	1
86291-28130	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,左側	06/2006 - 12/2008	1
86291 - BRACKET, TELEVISION
86291-28231	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	07/2008 - 12/2008	1
86291-28141	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	07/2008 - 12/2008	1
86291-28230	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り	06/2007 - 06/2008	1
86291-28210	AHR20..CBU 右側	06/2007 - 12/2008	1
86291-28220	AHR20..CBU 左側	06/2007 - 12/2008	1
86291-28140	AHR20..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2008	1
86291-28120	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,右側	06/2006 - 12/2008	1
86291-28130	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,左側	06/2006 - 12/2008	1
86295 - BASE, TELEVISION
86295-58020E0	AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,GREGE,TRIM4#	06/2006 - 12/2008	1
86680A - DISPLAY ASSY, TELEVISION
86680-58030E0	AHR20..CBU MATSUSHITA,ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,GREGE,TRIM4#	06/2006 - 12/2008	1
86790B - CAMERA ASSY, TELEVISION, FR
86790-28370	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 11/2006	1
86790-28370	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 11/2006	1
86790-28370	AHR20..G..CBU	06/2006 - 11/2006	1
86790-28372	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	04/2007 - 06/2007	1
86790-28371	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	12/2006 - 03/2007	1
86790-28372	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	04/2007 - 06/2007	1
86790-28371	AHR20..G..CBU	12/2006 - 03/2007	1
86790-28372	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86790-28371	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	12/2006 - 03/2007	1
86790-28372	AHR20..G..CBU	04/2007 - 12/2008	1
86790C - CAMERA ASSY, TELEVISION, SIDE
86790-28290	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86790-28290	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86790-28290	AHR20..G..CBU	06/2006 - 12/2008	1
86790-28290	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86790C - CAMERA ASSY, TELEVISION, SIDE
86790-28290	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86790-28290	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86790-28290	AHR20..G..CBU	06/2006 - 12/2008	1
86790-28290	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86790D - CAMERA ASSY, TELEVISION, RR
86790-28220	AHR20..G..CBU	06/2006 - 12/2008	1
86790-28220	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86790-28220	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86790-28220	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86790-28220	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
Common parts
90109-06370
90119-06915
90159-50032
90159-50322
90168-50035
90179-06014
90179-06274
90189-05072
90189-05175
93540-54010
93540-A4012
93568-55014

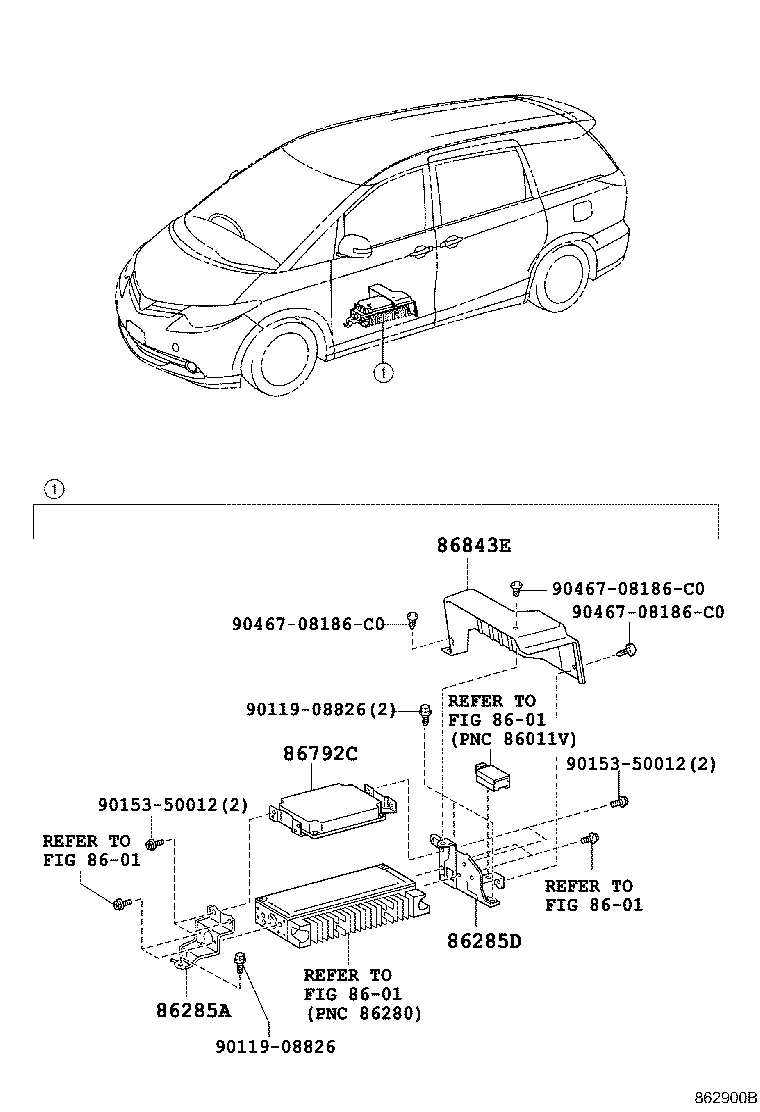

ILLUST NO. 2 OF 2(0606-0812)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86285A - BRACKET, AMPLIFIER, NO.2
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86285-28110	AHR20..G..CBU	06/2006 - 12/2008	1
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86285-28110	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86285D - BRACKET, AMPLIFIER, NO.1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86285-28120	AHR20..G..CBU	06/2006 - 12/2008	1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86285-28120	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86792C - COMPUTER, PARKING ASSIST
86792-28240	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86792-28240	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86792-28280	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86792-28240	AHR20..G..CBU	06/2006 - 12/2008	1
86792-28240	AHR20..X ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86843E - COVER, NAVIGATION COMPUTER
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86843-28030	AHR20..G..CBU	06/2006 - 12/2008	1
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ	06/2006 - 06/2007	1
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り	06/2007 - 12/2008	1
86843-28030	AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ)	06/2007 - 12/2008	1
Common parts
90119-08826
90153-50012
90467-08186C0
Linked diagrams
8601

AHR20W-GFXQB (2006)

ILLUST NO. 1 OF 2(0606-1605)

ILLUST NO. 2 OF 2(0606-0812)

Part Price Details
