AHR20W-GFXQB (2006)

Toyota Estima Hybrid

Production Jun 2006 - Dec 2008
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

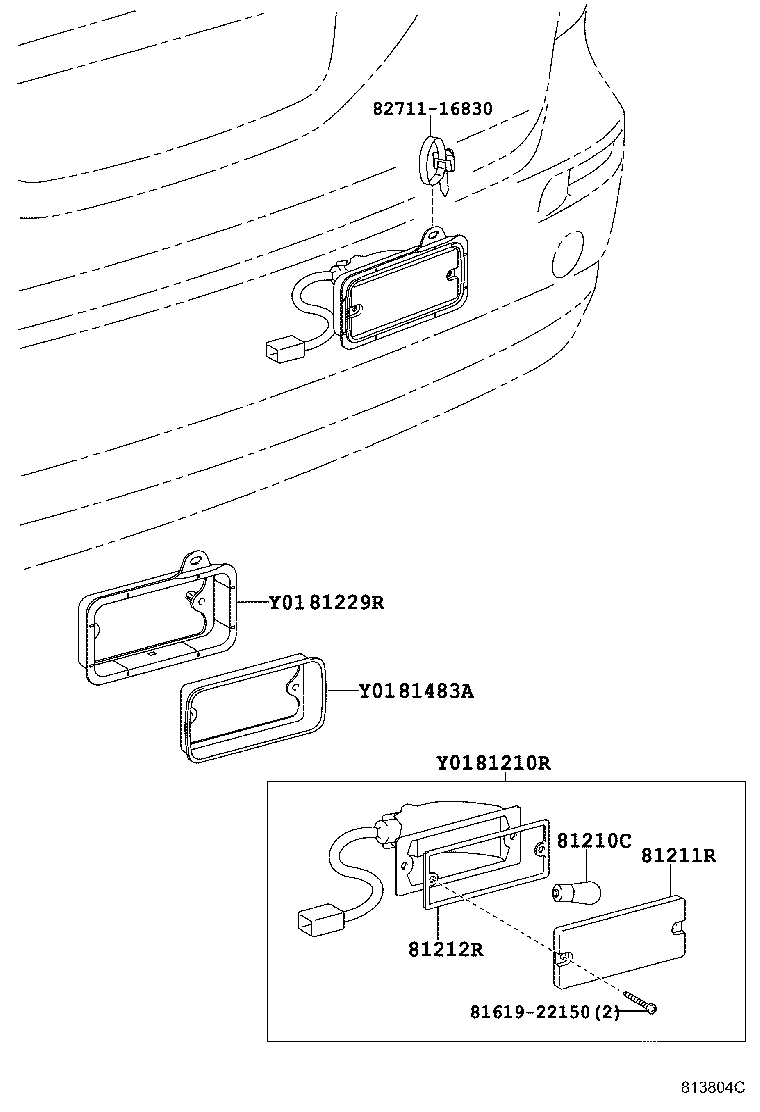

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 81229R 81483A 8161922150 8271116830
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

AHR20..CBU

12V 21W,ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81210R - LAMP ASSY, REAR FOG
81480-28050

AHR20..CBU

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81211R - LENS, REAR FOG LAMP
81211-20030

AHR20..CBU

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81458-63010

AHR20..CBU

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81229R - BRACKET, REAR FOG LAMP
81481-28170

AHR20..CBU

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81483A - PROTECTOR, FOG LAMP
81483-28050

AHR20..CBU

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
81619-22150
82711-16830
