AHR20W-GFXQB (2006)
Toyota Estima Hybrid
ILLUST NO. 3 OF 3(0606- )
ﾘﾔ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-28020E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73139-28020E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
AHR20..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR20..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AHR20..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-28010 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 73345-28010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-16050E3 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-16050E3 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-28110E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73510-28110E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28100E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73530-28100E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73530-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28100E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73530-28100E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73530-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73540C - BELT ASSY, REAR NO.2 SEAT LAP TYPE | ||||
| 73540-28080E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73540-28090E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73540-28090E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28390E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28410E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 73570-28410E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73570-28400E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28410E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 73570-28410E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73570-28400E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28190E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28190E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-28140E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11048 | ||||
| 90119-06951 | ||||
| 90179-11010 | ||||
ILLUST NO. 2 OF 3(0606- )07S
ﾘﾔ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
AHR20..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR20..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AHR20..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
AHR20..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR20..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AHR20..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
AHR20..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR20..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AHR20..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH | ||||
| 73310-28210E1 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73310-28211E1 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH | ||||
| 73320-28210E1 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73320-28211E1 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28600E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73370-28600E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050E3 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73230-16410E3 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-16410E3 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73230-D1110E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-16410E3 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 73230-D1110E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90179-05011 | ||||
| 90179-11010 | ||||
| 90201-15023 | ||||
| 90206-17005 | ||||
| 90901-19040 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
| Linked diagrams | ||||
| 7151 | ||||

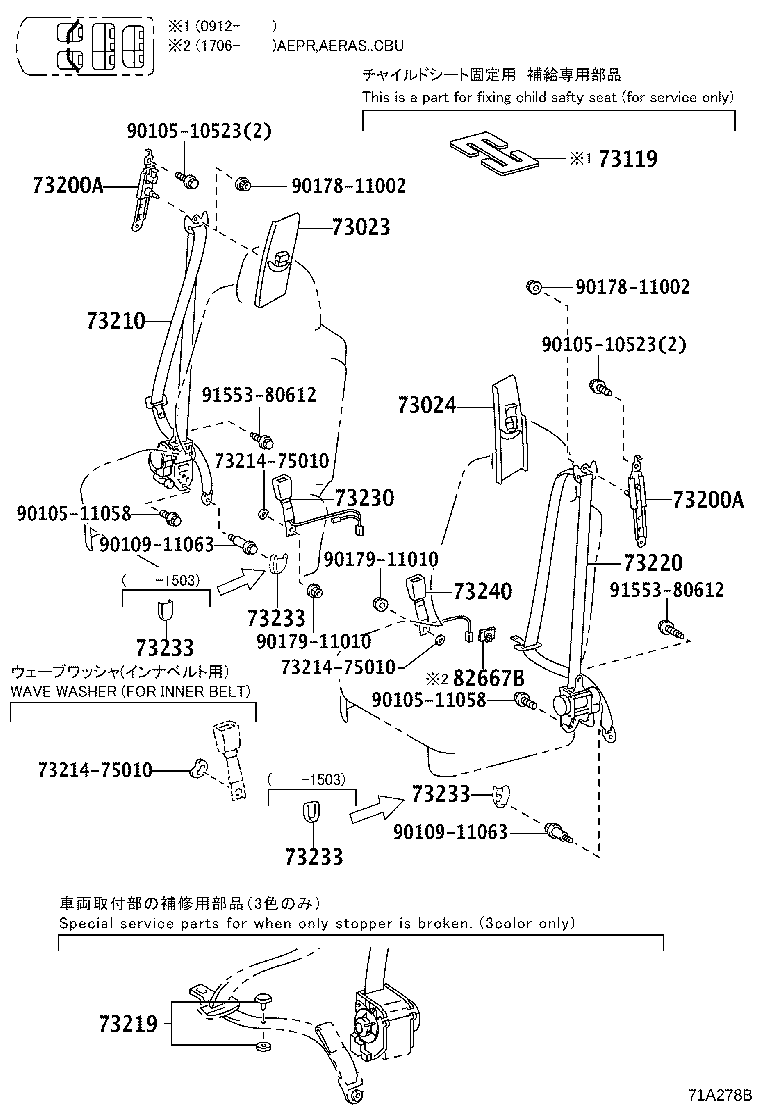

ILLUST NO. 1 OF 3(0606- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
AHR20..CBU |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
AHR20..CBU |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28780E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,GREGE,TRIM4# |
1 | ||
| 73210-28320E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73210-28780E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
AHR20..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR20..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AHR20..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28740E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,GREGE,TRIM4# |
1 | ||
| 73220-28740E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73220-28220E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28470E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73230-28490E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 73230-28440E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 73230-28430E0 |
AHR20..X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73230-28470E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,GREGE,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-28480E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73230-28450E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73230-28480E0 |
AHR20..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式,GREGE,TRIM4# |
1 | ||
| 73230-28500E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
