AHR20W-GFXQB (2006)
Toyota Estima Hybrid

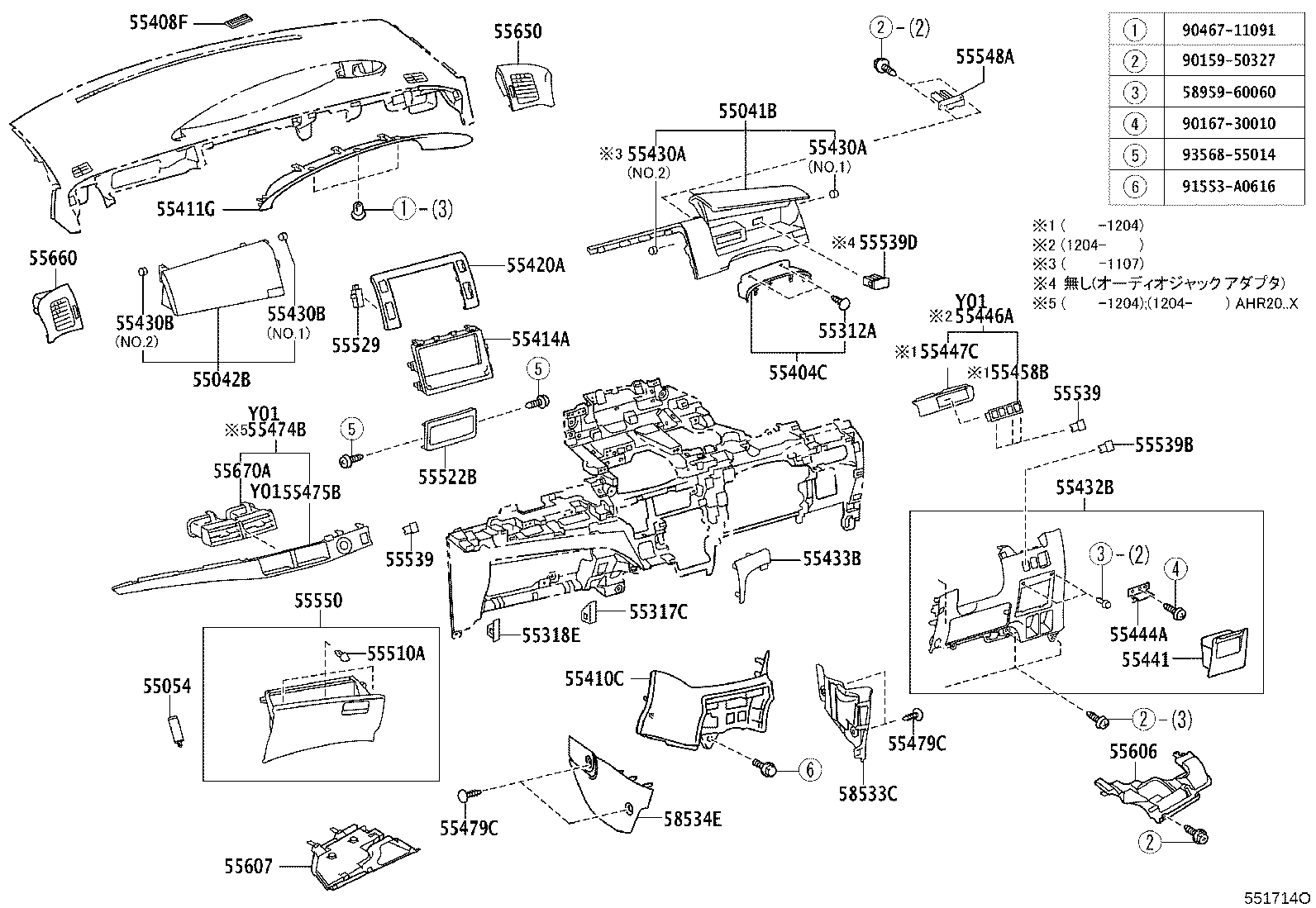

ILLUST NO. 2 OF 2(0606-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55041-28041E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55042-28041E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
AHR20..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07090E3 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 90467-08186C0 |
AHR20..CBU BLACK |
2 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-28270 |
AHR20..CBU |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-28050E0 |
AHR20..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-28290E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-28220 |
AHR20..CBU |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-28060 |
AHR20..X |
1 | ||
| 55414-28060 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 6ｽﾋﾟｰｶ |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-28270 |
AHR20..CBU |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28030 |
AHR20..CBU NO.1 & NO.2 |
2 | ||
| 55430-28070 |
AHR20..CBU NO.1 |
1 | ||
| 55430-28090 |
AHR20..CBU NO.2 |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28030 |
AHR20..CBU NO.1 & NO.2 |
2 | ||
| 55430-28070 |
AHR20..CBU NO.1 |
1 | ||
| 55430-28090 |
AHR20..CBU NO.2 |
1 | ||
| 55430B - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28040 |
AHR20..CBU NO.2 |
1 | ||
| 55430-28080 |
AHR20..CBU NO.1 & NO.2 |
2 | ||
| 55430-28030 |
AHR20..CBU NO.1 |
1 | ||
| 55430B - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28040 |
AHR20..CBU NO.2 |
1 | ||
| 55430-28080 |
AHR20..CBU NO.1 & NO.2 |
2 | ||
| 55430-28030 |
AHR20..CBU NO.1 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55480-28080E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28110E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52220 |
AHR20..CBU |
1 | ||
| 55444-28190 |
AHR20..CBU |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-28070 |
AHR20..G..CBU |
1 | ||
| 55447-28020 |
AHR20..X |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55618-28010 |
AHR20..CBU |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-28090 |
AHR20..G..CBU |
1 | ||
| 55470-28020 |
AHR20..X |
1 | ||
| 55475B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER | ||||
| 55663-28090 |
AHR20..G..CBU |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07080E4 |
AHR20..CBU GREGE,TRIM4# |
4 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07080E4 |
AHR20..CBU GREGE,TRIM4# |
4 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
AHR20..CBU |
3 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
AHR20..X |
1 | ||
| 55529 - COVER, WARNING LAMP HOLE | ||||
| 55529-28030 |
AHR20..X ｸﾘｱﾗﾝｽｿﾅｰ−有り |
1 | ||
| 55529-28030 |
AHR20..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ) |
1 | ||
| 55529-28030 |
AHR20..CBU |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
AHR20..CBU BLACK,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
AHR20..CBU BLACK,TRIM4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-28160E0 |
AHR20..X ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側),GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-28110E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-28030C0 |
AHR20..CBU BLACK,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-28010C0 |
AHR20..CBU BLACK,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28240E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28260E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-28140 |
AHR20..CBU |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90159-50327 | ||||
| 90167-30010 | ||||
| 90467-11091 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||

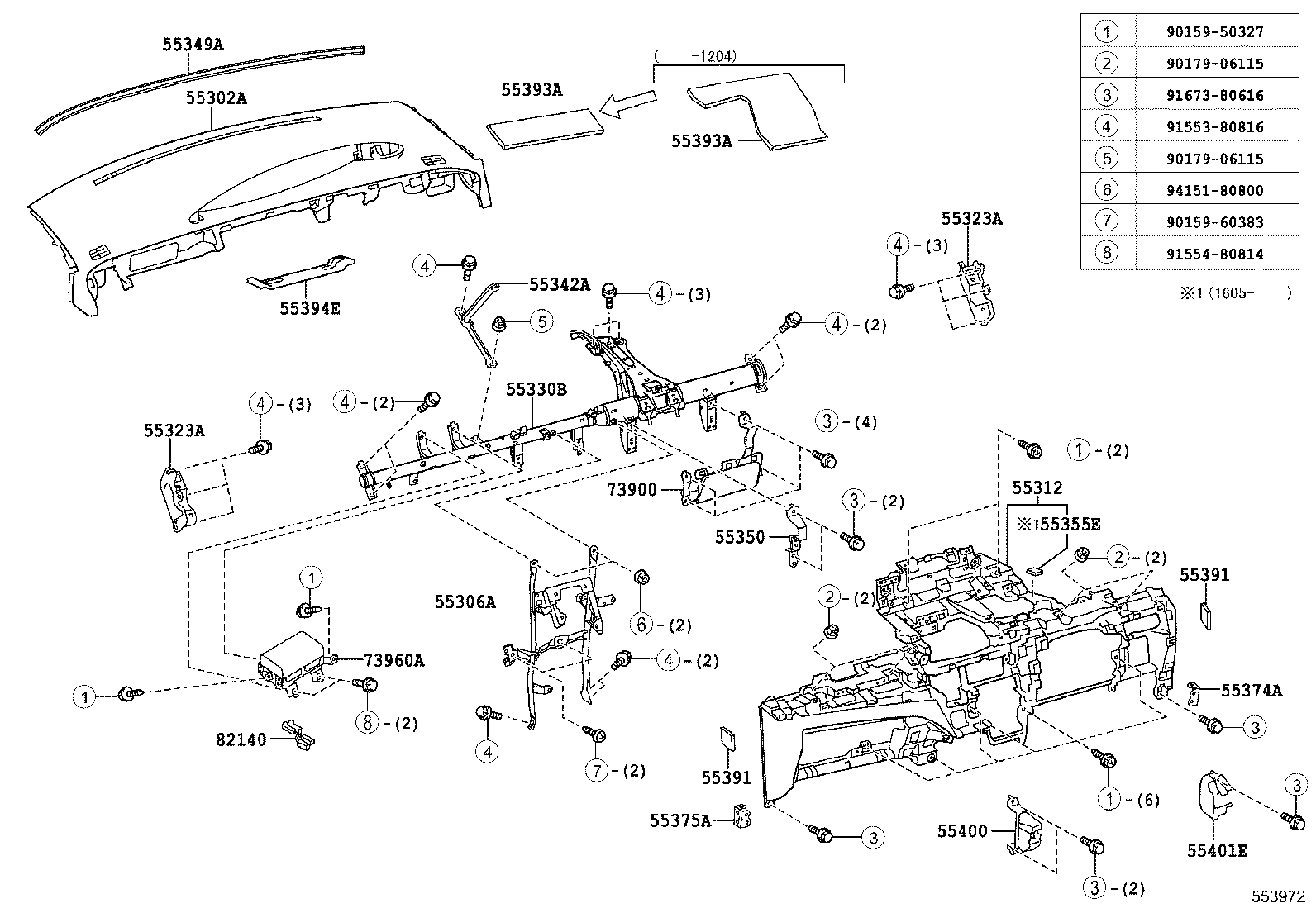

ILLUST NO. 1 OF 2(0606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-28080E0 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 55302-28090E0 |
AHR20..G..CBU ASH BROWN,TRIM4# |
1 | ||
| 55302-28081E0 |
AHR20..X ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 55302-28060E0 |
AHR20..X ASH BROWN,TRIM4# |
1 | ||
| 55302-28111E0 |
AHR20..G..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 55302-28061E0 |
AHR20..X ASH BROWN,TRIM4# |
1 | ||
| 55302-28110E0 |
AHR20..G..CBU ｵｰﾃﾞｨｵ−DVD−AVGN 11ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 55302-28091E0 |
AHR20..G..CBU ASH BROWN,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28190 |
AHR20..CBU |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55304-28030 |
AHR20..CBU 左側 |
1 | ||
| 55304-28020 |
AHR20..CBU 右側 |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55304-28030 |
AHR20..CBU 左側 |
1 | ||
| 55304-28020 |
AHR20..CBU 右側 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-28190 |
AHR20..CBU |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-28060 |
AHR20..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-28210 |
AHR20..CBU |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-28010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-28050 |
AHR20..CBU |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-28050 |
AHR20..CBU |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-28040 |
AHR20..CBU |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-28040 |
AHR20..CBU |
2 | ||
| 55393A - CUSHION, INSTRUMENT PANEL, LOWER NO.3 | ||||
| 55393-28060 |
AHR20..CBU |
1 | ||
| 55393A - CUSHION, INSTRUMENT PANEL, LOWER NO.3 | ||||
| 55393-28060 |
AHR20..CBU |
1 | ||
| 55394E - CUSHION, INSTRUMENT PANEL, LOWER NO.4 | ||||
| 55394-28040 |
AHR20..CBU |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-28010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 55400-28010 |
AHR20..CBU |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-28080 |
AHR20..CBU |
1 | ||
| 55401-28080 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-28010E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-28070 |
AHR20..CBU |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-28010 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06115 | ||||
| 91553-80816 | ||||
| 91554-80814 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
