AHR20W-GFXEB (2012)
Toyota Estima Hybrid

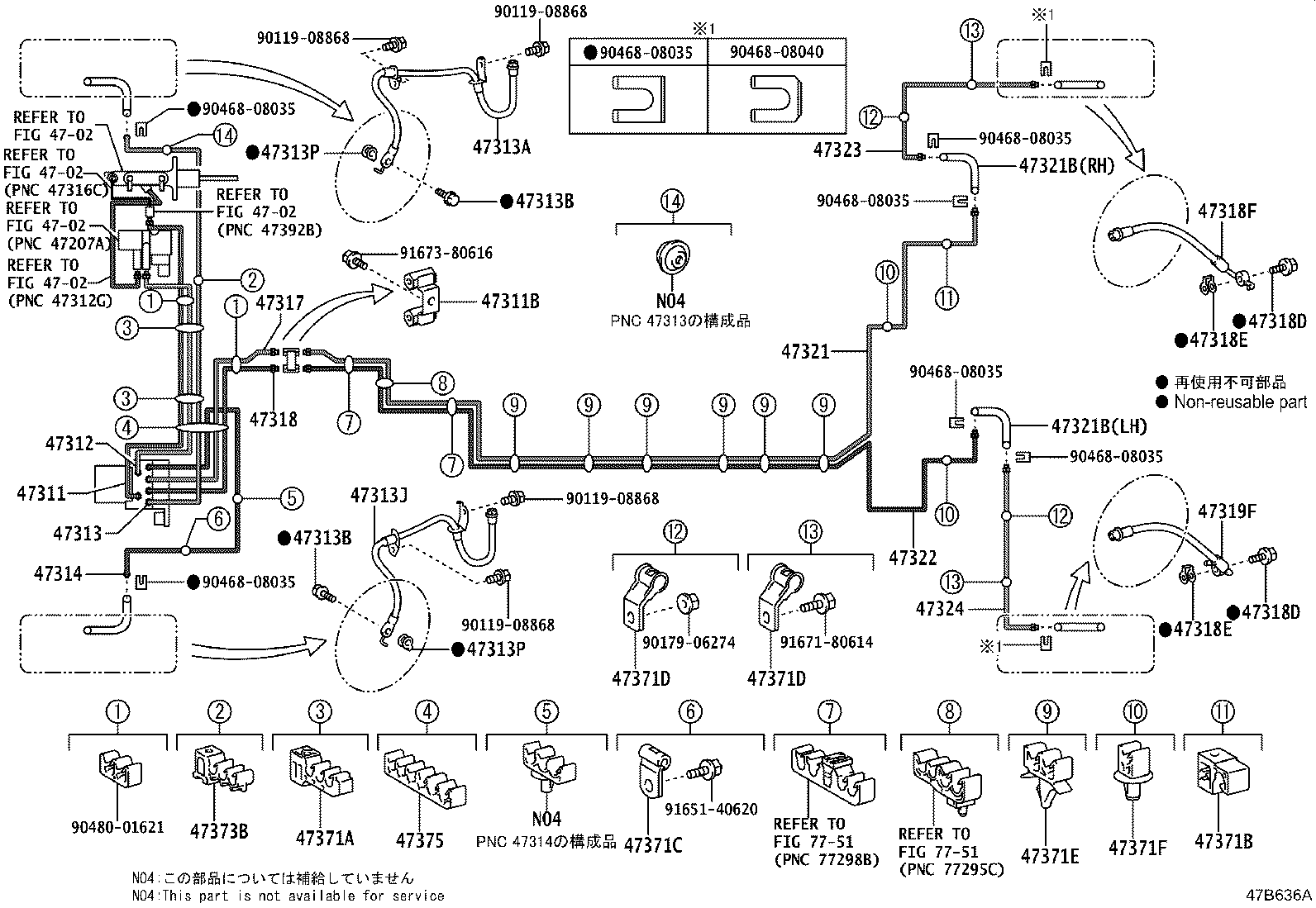

ILLUST NO. 1 OF 2(1204- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28750 |
AHR20..CBU |
1 | ||
| 47311-28720 |
AHR20..CBU |
1 | ||
| 47311-28810 |
AHR20..CBU |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
AHR20..CBU |
1 | ||
| 90412-10260 |
AHR20..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28510 |
AHR20..CBU |
1 | ||
| 47312-28550 |
AHR20..CBU |
1 | ||
| 47312-28610 |
AHR20..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28470 |
AHR20..CBU |
1 | ||
| 47313-28470 |
AHR20..CBU |
1 | ||
| 47313-28540 |
AHR20..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E55 |
AHR20..CBU |
1 | ||
| 90947-02E55 |
AHR20..CBU |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E56 |
AHR20..CBU |
1 | ||
| 90947-02E56 |
AHR20..CBU |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28460 |
AHR20..CBU |
1 | ||
| 47314-28390 |
AHR20..CBU |
1 | ||
| 47314-28390 |
AHR20..CBU |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28270 |
AHR20..CBU |
1 | ||
| 47317-28340 |
AHR20..CBU |
1 | ||
| 47317-28270 |
AHR20..CBU |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28120 |
AHR20..CBU |
1 | ||
| 47318-28090 |
AHR20..CBU |
1 | ||
| 47318-28090 |
AHR20..CBU |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 90401-10058 |
AHR20..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47389-50020 |
AHR20..CBU |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E23 |
AHR20..CBU |
1 | ||
| 90947-02F45 |
AHR20..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E24 |
AHR20..CBU |
1 | ||
| 90947-02F46 |
AHR20..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28540 |
AHR20..CBU |
1 | ||
| 47321-28540 |
AHR20..CBU |
1 | ||
| 47321-28600 |
AHR20..CBU |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E61 |
AHR20..CBU 右側 |
1 | ||
| 90947-02F44 |
AHR20..CBU 左側 |
1 | ||
| 90947-02E62 |
AHR20..CBU 左側 |
1 | ||
| 90947-02E60 |
AHR20..CBU 右側 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E61 |
AHR20..CBU 右側 |
1 | ||
| 90947-02F44 |
AHR20..CBU 左側 |
1 | ||
| 90947-02E62 |
AHR20..CBU 左側 |
1 | ||
| 90947-02E60 |
AHR20..CBU 右側 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28350 |
AHR20..CBU |
1 | ||
| 47322-28350 |
AHR20..CBU |
1 | ||
| 47322-28420 |
AHR20..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28360 |
AHR20..CBU |
1 | ||
| 47323-28360 |
AHR20..CBU |
1 | ||
| 47323-28420 |
AHR20..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28260 |
AHR20..CBU |
1 | ||
| 47324-28320 |
AHR20..CBU |
1 | ||
| 47324-28260 |
AHR20..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01886 |
AHR20..CBU |
2 | ||
| 90949-01D08 |
AHR20..CBU |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01C82 |
AHR20..CBU |
1 | ||
| 90949-01C82 |
AHR20..CBU |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-08730 |
AHR20..CBU |
1 | ||
| 90461-08730 |
AHR20..CBU |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10731 |
AHR20..CBU |
4 | ||
| 90461-10731 |
AHR20..CBU |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10731 |
AHR20..CBU |
4 | ||
| 90461-10731 |
AHR20..CBU |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
AHR20..CBU |
6 | ||
| 90469-07019 |
AHR20..CBU |
6 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
AHR20..CBU |
2 | ||
| 90949-01E01 |
AHR20..CBU |
2 | ||
| 90949-01D29 |
AHR20..CBU |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C95 |
AHR20..CBU |
1 | ||
| 90949-01C95 |
AHR20..CBU |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00890 |
AHR20..CBU |
1 | ||
| 90464-00890 |
AHR20..CBU |
1 | ||
| 90949-01E17 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90480-01621 | ||||
| 91651-40620 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
