AHR20W-GFXEB (2008)
Toyota Estima Hybrid
Production
Dec 2008
-
Apr 2012
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0812-1204)

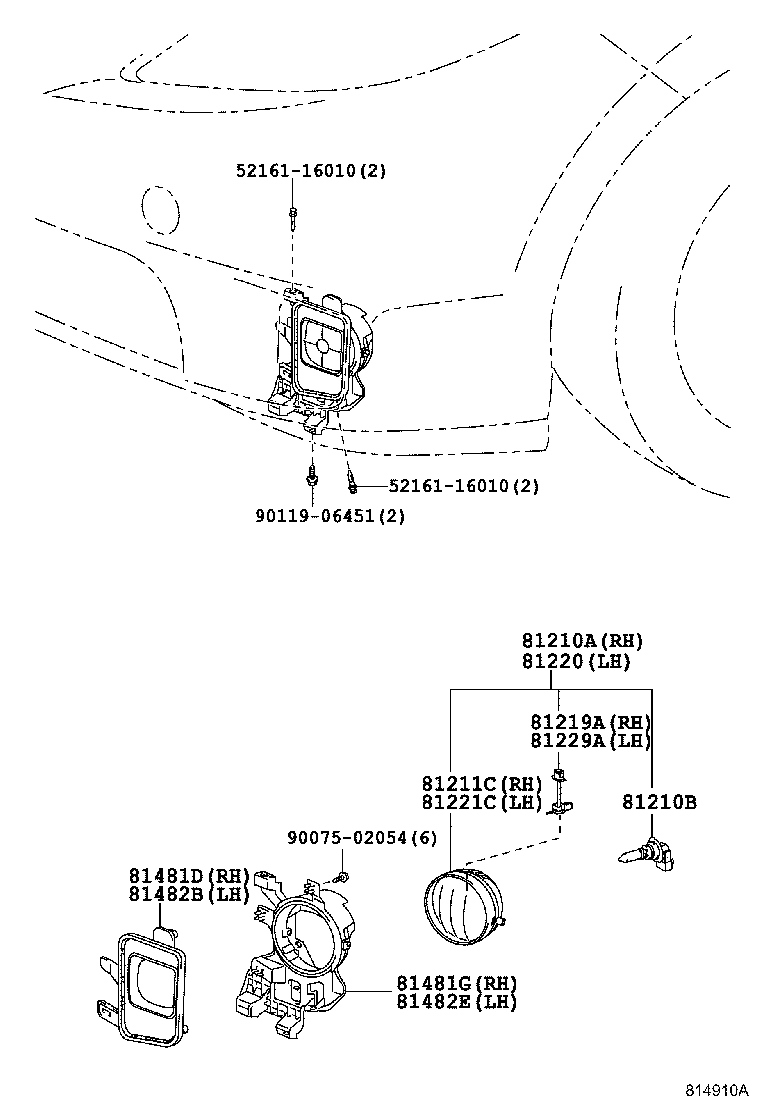

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-42050 |
AHR20..CBU |
1 | ||
| 81210-42050 |
AHR20..CBU |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
AHR20..CBU 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13047 |
AHR20..CBU 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-42050 |
AHR20..CBU |
1 | ||
| 81211-42050 |
AHR20..CBU |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81218-42050 |
AHR20..CBU |
1 | ||
| 81218-42050 |
AHR20..CBU |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-42050 |
AHR20..CBU |
1 | ||
| 81220-42050 |
AHR20..CBU |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-42050 |
AHR20..CBU |
1 | ||
| 81221-42050 |
AHR20..CBU |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81228-42050 |
AHR20..CBU |
1 | ||
| 81228-42050 |
AHR20..CBU |
1 | ||
| 81481D - COVER, FOG LAMP, RH | ||||
| 81481-28300 |
AHR20..CBU ﾒｯｷ |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-28190 |
AHR20..CBU |
1 | ||
| 81481-28280 |
AHR20..CBU |
1 | ||
| 81482B - COVER, FOG LAMP, LH | ||||
| 81482-28300 |
AHR20..CBU ﾒｯｷ |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-28280 |
AHR20..CBU |
1 | ||
| 81482-28110 |
AHR20..CBU |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90075-02054 | ||||
| 90119-06451 | ||||
