AHR20W-GFXEB (2008)
Toyota Estima Hybrid
Production
Dec 2008
-
Apr 2012
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0606-1605)

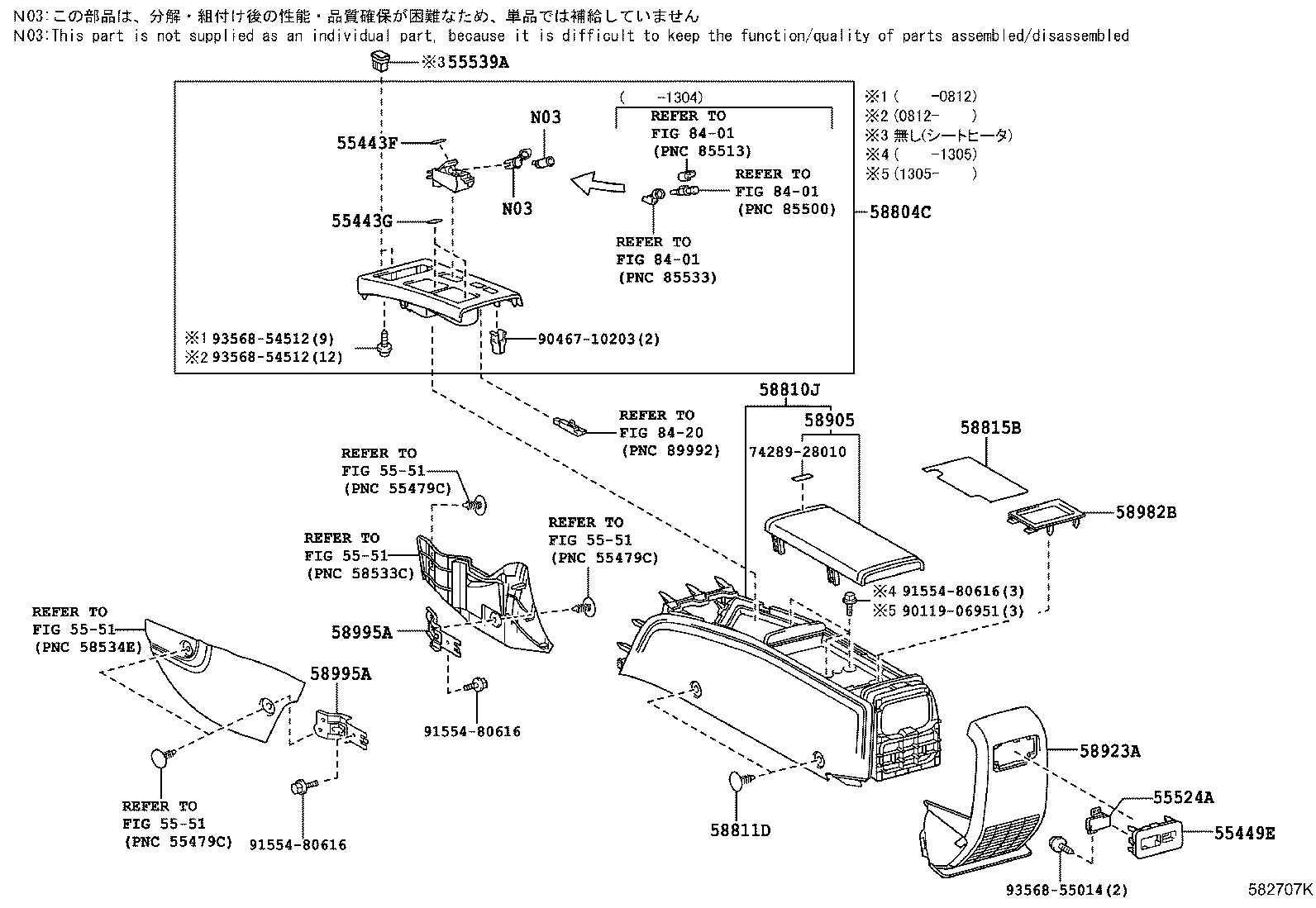

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55443F - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-28060 |
AHR20..CBU |
1 | ||
| 55443-28060 |
AHR20..CBU |
1 | ||
| 55443G - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-28060 |
AHR20..CBU |
2 | ||
| 55443-28060 |
AHR20..CBU |
2 | ||
| 55449E - BASE, SWITCH | ||||
| 55449-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55449-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 55524A - COVER, SWITCH BASE HOLE | ||||
| 55524-28050E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 55524-28050E0 |
AHR20..X..CBU GREGE,TRIM4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160E0 |
AHR20..X..CBU GREGE,TRIM4# |
2 | ||
| 58804C - INSERT SUB-ASSY, CONSOLE BOX, FRONT | ||||
| 58804-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 58804-28020E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-28530E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 58810-28380E0 |
AHR20..X GREGE,TRIM4# |
1 | ||
| 58810-28520E0 |
AHR20..X..CBU GREGE,TRIM4# |
1 | ||
| 58810-28390E0 |
AHR20..G..CBU GREGE,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212E0 |
AHR20..CBU GREGE,TRIM4# |
4 | ||
| 90467-07212E0 |
AHR20..CBU GREGE,TRIM4# |
4 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-28010 |
AHR20..CBU |
1 | ||
| 58815-28010 |
AHR20..CBU |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-28010 |
AHR20..X |
1 | ||
| 58905-28050 |
AHR20..X..CBU |
1 | ||
| 58905-28020 |
AHR20..G..CBU |
1 | ||
| 58905-28060 |
AHR20..G..CBU |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 58923-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 58982B - RETAINER, CONSOLE BOX, NO.3 | ||||
| 58982-28010 |
AHR20..CBU |
1 | ||
| 58982-28010 |
AHR20..CBU |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-28030 |
AHR20..CBU |
2 | ||
| 58995-28030 |
AHR20..CBU |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-28030 |
AHR20..CBU |
2 | ||
| 58995-28030 |
AHR20..CBU |
2 | ||
| Common parts | ||||
| 74289-28010 | ||||
| 90119-06951 | ||||
| 90467-10203 | ||||
| 91554-80616 | ||||
| 93568-54512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
| 8420 | ||||
