AHR20W-GFXEB (2006)
Toyota Estima Hybrid

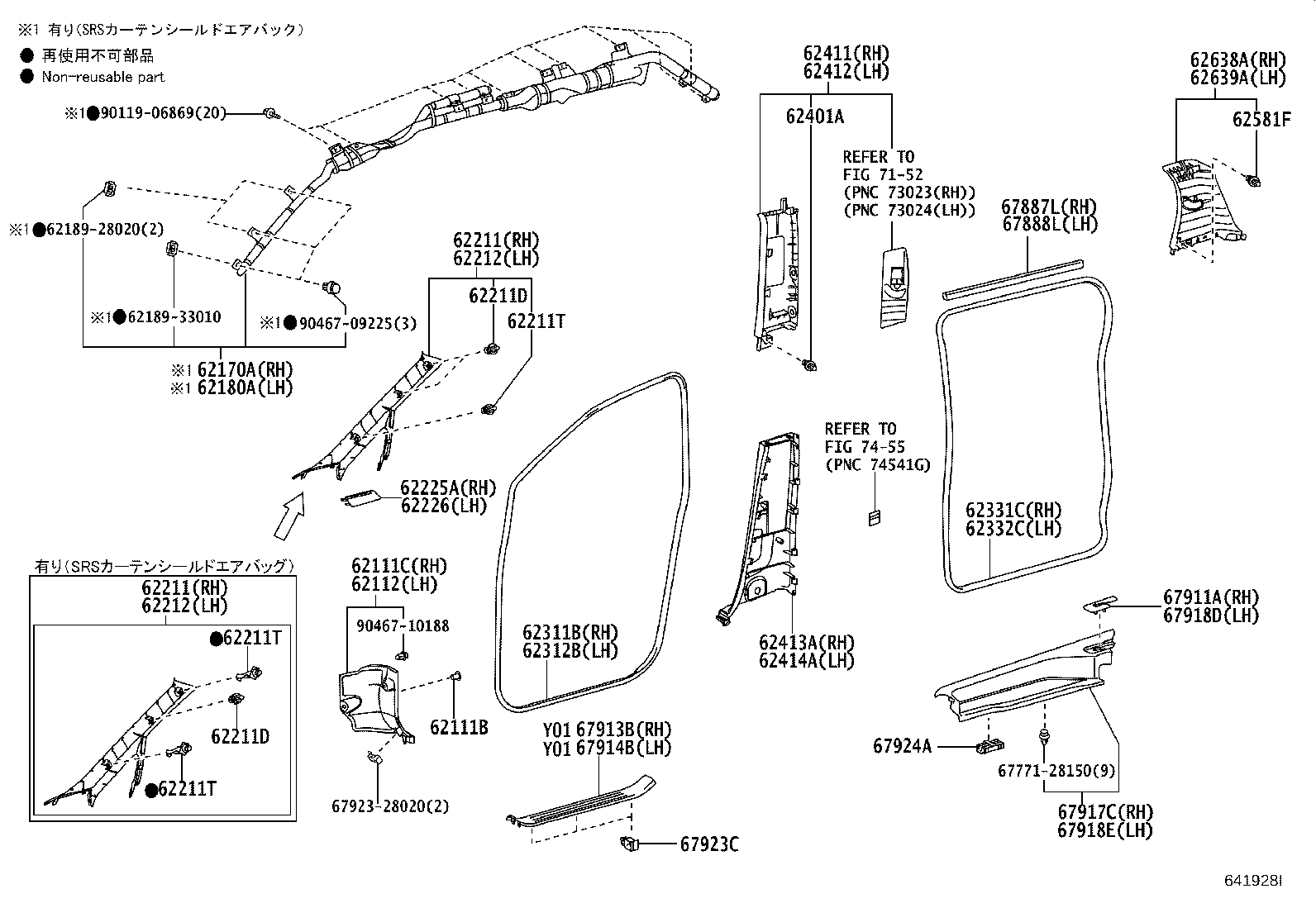

ILLUST NO. 1 OF 2(0606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06193E0 |
AHR20..CBU GREGE,TRIM4# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-28160E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62111-28190E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-28170E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-28020 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62170-28021 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-28020 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62180-28021 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-28101E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62210-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62210-28070E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62210-28111E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-28101E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62210-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62210-28070E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62210-28111E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
2 | ||
| 90467-10161 |
AHR20..CBU |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
2 | ||
| 90467-10161 |
AHR20..CBU |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-20010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
4 | ||
| 90467-10167 |
AHR20..CBU |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-20010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
4 | ||
| 90467-10167 |
AHR20..CBU |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-20010 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
4 | ||
| 90467-10167 |
AHR20..CBU |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-28070E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62220-28111E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62220-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62220-28101E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-28070E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62220-28111E0 |
AHR20..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62220-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62220-28101E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62225-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62226-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 67871-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 67872-28110E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10161 |
AHR20..CBU |
2 | ||
| 90467-10161 |
AHR20..CBU |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-28080E1 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62410-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62420-28080E1 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-28100E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62413-28080E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-28110E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62414-28130E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-10161 |
AHR20..07S..CBU |
2 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..CBU |
2 | ||
| 90467-10161 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 90467-10161 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-28190E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 62638-28210E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28210E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28210E0 |
AHR20..07S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28210E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28210E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62638-28250E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 62638-28270E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-28240E0 |
AHR20..07S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28220E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28230E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 62639-28290E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28300E0 |
AHR20..07S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 62639-28250E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28090 |
AHR20..CBU |
1 | ||
| 67888L - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-28100 |
AHR20..CBU |
1 | ||
| 67911A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67933-28030E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 67933-28030E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67913-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67914-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-28140E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67917-28111E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67934-28030E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67934-28030E0 |
AHR20..07S..CBU GREGE,TRIM4# |
1 | ||
| 67934-28020E0 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28140E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67918-28101E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28030 |
AHR20..CBU |
6 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-28010 |
AHR20..CBU |
6 | ||
| Common parts | ||||
| 62189-28020 | ||||
| 62189-33010 | ||||
| 67771-28150 | ||||
| 67923-28020 | ||||
| 90119-06869 | ||||
| 90467-09225 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

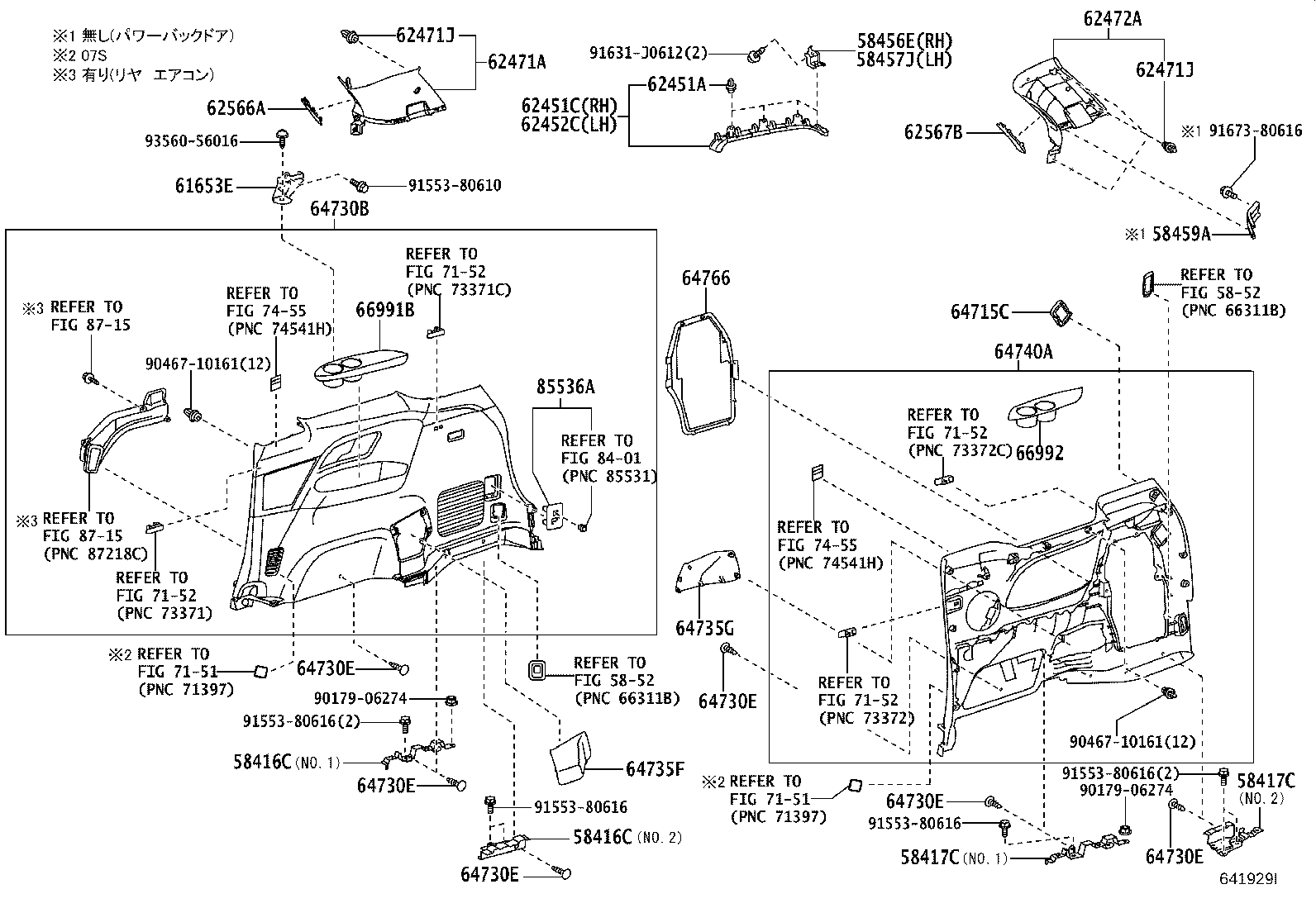

ILLUST NO. 2 OF 2(0606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58416C - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-28130 |
AHR20..CBU NO.2 |
1 | ||
| 58416-28120 |
AHR20..CBU NO.1 |
1 | ||
| 58416C - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-28130 |
AHR20..CBU NO.2 |
1 | ||
| 58416-28120 |
AHR20..CBU NO.1 |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-28070 |
AHR20..CBU NO.2 |
1 | ||
| 58417-28060 |
AHR20..CBU NO.1 |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-28070 |
AHR20..CBU NO.2 |
1 | ||
| 58417-28060 |
AHR20..CBU NO.1 |
1 | ||
| 58456E - BRACKET, REAR GARNISH, NO.1 RH | ||||
| 58456-28050 |
AHR20..CBU |
1 | ||
| 58457J - BRACKET, REAR GARNISH, NO.1 LH | ||||
| 58456-28050 |
AHR20..CBU |
1 | ||
| 58459A - BRACKET, REAR GARNISH, NO.2 LH | ||||
| 58459-28010 |
AHR20..CBU |
1 | ||
| 61653E - BRACKET, DECK SIDE TRIM | ||||
| 61653-28060 |
AHR20..CBU |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10188 |
AHR20..CBU |
8 | ||
| 90467-10188 |
AHR20..CBU |
8 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62451-28020E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-28020E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62452-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-28160E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
AHR20..CBU |
6 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
AHR20..CBU |
6 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-28200E0 |
AHR20..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 62472-28190E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-28010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62566-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 62567-28010E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64715-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-28820E0 |
AHR20..07S..X GREGE,TRIM4# |
1 | ||
| 64730-28800E2 |
AHR20..07S..X 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 64730-28780E2 |
AHR20..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05164E2 |
AHR20..CBU GREGE,TRIM4# |
6 | ||
| 64735F - COVER, DECK TRIM SIDE SERVICE HOLE, RH | ||||
| 64735-28060E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64735-28030E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64735G - COVER, DECK TRIM SIDE SERVICE HOLE, LH | ||||
| 64735-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64735-28040E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64740A - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-28310E7 |
AHR20..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 64740-28600E2 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28570E2 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28600E2 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28740E1 |
AHR20..07S..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 64740-28610E5 |
AHR20..07S..X GREGE,TRIM4# |
1 | ||
| 64740-28600E2 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28600E2 |
AHR20..07S..X ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28570E2 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28570E2 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64740-28750E1 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾘﾔNO.2ｼｰﾄ−有り(電動床下格納),GREGE,TRIM4# |
1 | ||
| 64740-28570E2 |
AHR20..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-28090E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 64766-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-28070E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-28050E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| 85536A - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-28020E0 |
AHR20..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-10161 | ||||
| 91553-80610 | ||||
| 91553-80616 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 5852 | ||||
| 7151 | ||||
| 7152 | ||||
| 7455 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
