Toyota Estima hybrid AHR10 RADIATOR GRILLE

AHR10W-MREGB (2001)

Toyota Estima Hybrid

Production May 2001 - Jan 2006

Engine 2AZFXE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

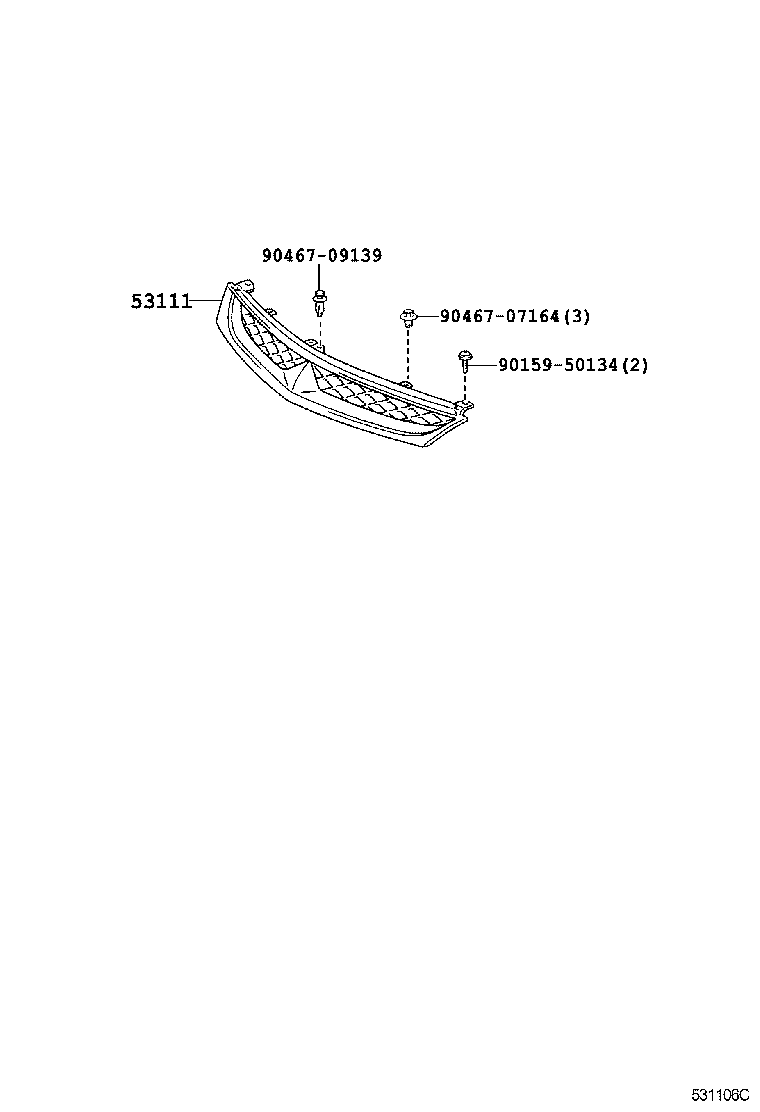

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-28330J0	AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),DK. BLUE MC,8P8	08/2002 - 08/2003	1
53111-28340B0	AHR10 SILVER ME.,1C0	08/2003 - 01/2006	1
53111-28340G0	AHR10 LT.GREEN ME.,6S0	08/2003 - 01/2006	1
53111-28350A0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),WHITE PM.,042	08/2003 - 01/2006	1
53111-28340J0	AHR10 DARK BLUE MC.,8P8	08/2003 - 01/2006	1
53111-28350G0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),LT.GREEN ME.,6S0	08/2003 - 01/2006	1
53111-28260	AHR10	05/2001 - 08/2003	1
53111-28350B0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SILVER ME.,1C0	08/2003 - 01/2006	1
53111-28350J1	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),PALE BLUE M.M.,8R0	08/2003 - 01/2006	1
53111-28340A0	AHR10 WHITE PM.,042	08/2003 - 01/2006	1
53111-28350J0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),DARK BLUE MC.,8P8	08/2003 - 01/2006	1
53111-28340J1	AHR10 PALE BLUE M.M.,8R0	08/2003 - 01/2006	1
53111-28330A0	AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),WHITE PEARL CS.,062	08/2002 - 08/2003	1
Common parts
90159-50134
90467-07164
90467-09139

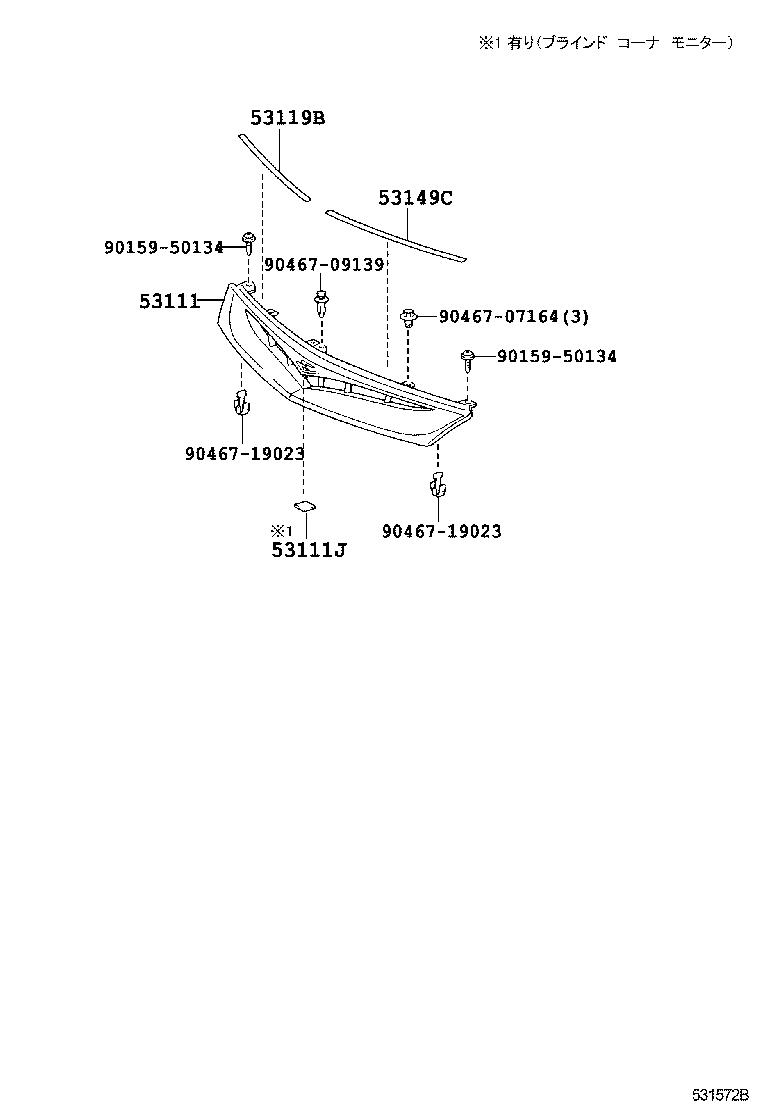

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-28330J0	AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),DK. BLUE MC,8P8	08/2002 - 08/2003	1
53111-28340B0	AHR10 SILVER ME.,1C0	08/2003 - 01/2006	1
53111-28340G0	AHR10 LT.GREEN ME.,6S0	08/2003 - 01/2006	1
53111-28350A0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),WHITE PM.,042	08/2003 - 01/2006	1
53111-28340J0	AHR10 DARK BLUE MC.,8P8	08/2003 - 01/2006	1
53111-28350G0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),LT.GREEN ME.,6S0	08/2003 - 01/2006	1
53111-28260	AHR10	05/2001 - 08/2003	1
53111-28350B0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SILVER ME.,1C0	08/2003 - 01/2006	1
53111-28350J1	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),PALE BLUE M.M.,8R0	08/2003 - 01/2006	1
53111-28340A0	AHR10 WHITE PM.,042	08/2003 - 01/2006	1
53111-28350J0	AHR10 ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),DARK BLUE MC.,8P8	08/2003 - 01/2006	1
53111-28340J1	AHR10 PALE BLUE M.M.,8R0	08/2003 - 01/2006	1
53111-28330A0	AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),WHITE PEARL CS.,062	08/2002 - 08/2003	1
53111J - PROTECTOR, RADIATOR GRILLE
53119-28070	AHR10	08/2003 - 12/2999	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-28060	AHR10	08/2003 - 12/2999	1
53149C - PROTECTOR, RADIATOR GRILLE, NO.2
53149-28010	AHR10	08/2003 - 12/2999	1
Common parts
90159-50134
90467-07164
90467-09139
90467-19023
