AHR10W-MFEGB (2001)

Toyota Estima Hybrid

Production May 2001 - Jan 2006
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

Click highlighted areas on diagram

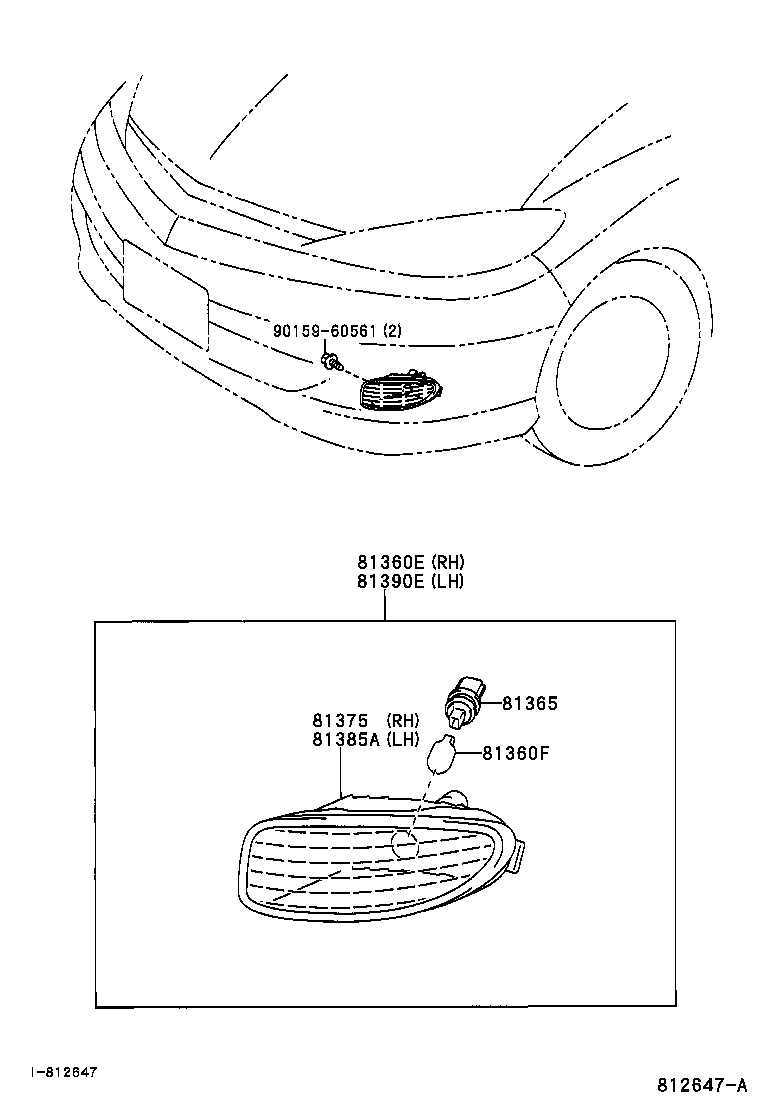

diagram 81360E 81360F 81365 81375 81385A 81390E 9015960561
Part # Description Qty Price
81360E - LAMP ASSY, CORNERING, RH
81360-28050

AHR10

 1
81360F - BULB, CORNERING LAMP
90981-13043

AHR10

12V 21W

 2
81365 - SOCKET & WIRE, CORNERING LAMP
90075-99128

AHR10

 2
81375 - LENS & BODY, CORNERING LAMP, RH
81375-28050

AHR10

 1
81385A - LENS & BODY, CORNERING LAMP, LH
81385-28050

AHR10

 1
81390E - LAMP ASSY, CORNERING, LH
81390-28050

AHR10

 1
Common parts
90159-60561
