AHR10W-MFEGB (2001)

Toyota Estima Hybrid

Production May 2001 - Jan 2006
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0308)

Click highlighted areas on diagram

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

diagram 53271A 81110B 81110D 81135 81144C 81145A 81175 81210D 81510C 81515B 81610F 81615D 9007510010 9015950311 9015950311 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

AHR10

 2
53271-44010

AHR10

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13063

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

AHR10

12V 65W

 2
90981-13046

AHR10

12V65W(SAE),60W(ECE)

 2
81135 - UNIT ASSY, HEADLAMP, RH
81140-28610

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28170

AHR10

 1
81145-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28600

AHR10

 1
81144C - COVER, HEADLAMP SOCKET
90075-65019

AHR10

 2
90075-65019

AHR10

 2
81145A - ADAPTER ASSY
90075-99140

AHR10

 2
90075-99140

AHR10

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-28260

AHR10

 1
81185-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81070-28530

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81170-28170

AHR10

 1
81210D - BULB, FOG LAMP
90080-81040

AHR10

12V 51W

 2
90981-13047

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AHR10

12V 21W

 2
90981-13043

AHR10

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99128

AHR10

 2
90075-99128

AHR10

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AHR10

12V 5W

 2
99132-12050

AHR10

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60046

AHR10

 2
90075-60046

AHR10

 2
Common parts
90075-10010
90159-50311
90189-05142

(0105-0308)

Click highlighted areas on diagram

ﾃﾞｨｽﾁｬ-ｼﾞﾍｯﾄﾞﾗﾝﾌﾟ

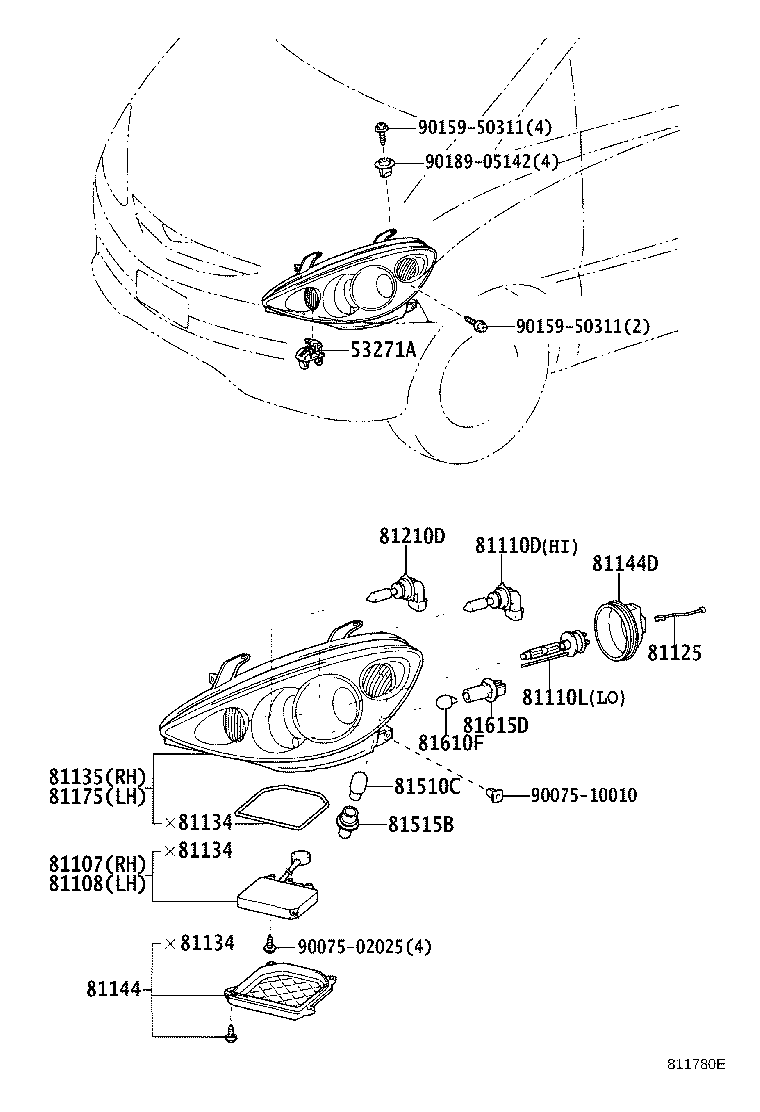

diagram 53271A 81107 81108 81110D 81110L 81125 81134 81134 81134 81135 81144 81144D 81175 81210D 81510C 81515B 81610F 81615D 9007502025 9007510010 9015950311 9015950311 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

AHR10

 2
53271-44010

AHR10

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-28560

AHR10

 1
81107-28560

AHR10

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-28560

AHR10

 1
81107-28560

AHR10

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

AHR10

12V 65W

 2
90981-13046

AHR10

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20005

AHR10

85V 35W

 2
90981-20005

AHR10

85V 35W

 2
81125 - CORD, HEADLAMP
81125-28560

AHR10

 2
81125-28560

AHR10

 2
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81135 - UNIT ASSY, HEADLAMP, RH
81140-28610

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28170

AHR10

 1
81145-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28600

AHR10

 1
81144 - COVER, HEADLAMP, NO.1
90075-67002

AHR10

 2
90075-67002

AHR10

 2
81144D - CAP, HEADLAMP LOCKING
90075-66003

AHR10

 2
90075-66003

AHR10

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-28260

AHR10

 1
81185-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81070-28530

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81170-28170

AHR10

 1
81210D - BULB, FOG LAMP
90080-81040

AHR10

12V 51W

 2
90981-13047

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AHR10

12V 21W

 2
90981-13043

AHR10

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99128

AHR10

 2
90075-99128

AHR10

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AHR10

12V 5W

 2
99132-12050

AHR10

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60046

AHR10

 2
90075-60046

AHR10

 2
Common parts
90075-02025
90075-10010
90159-50311
90189-05142

(0308- )

Click highlighted areas on diagram

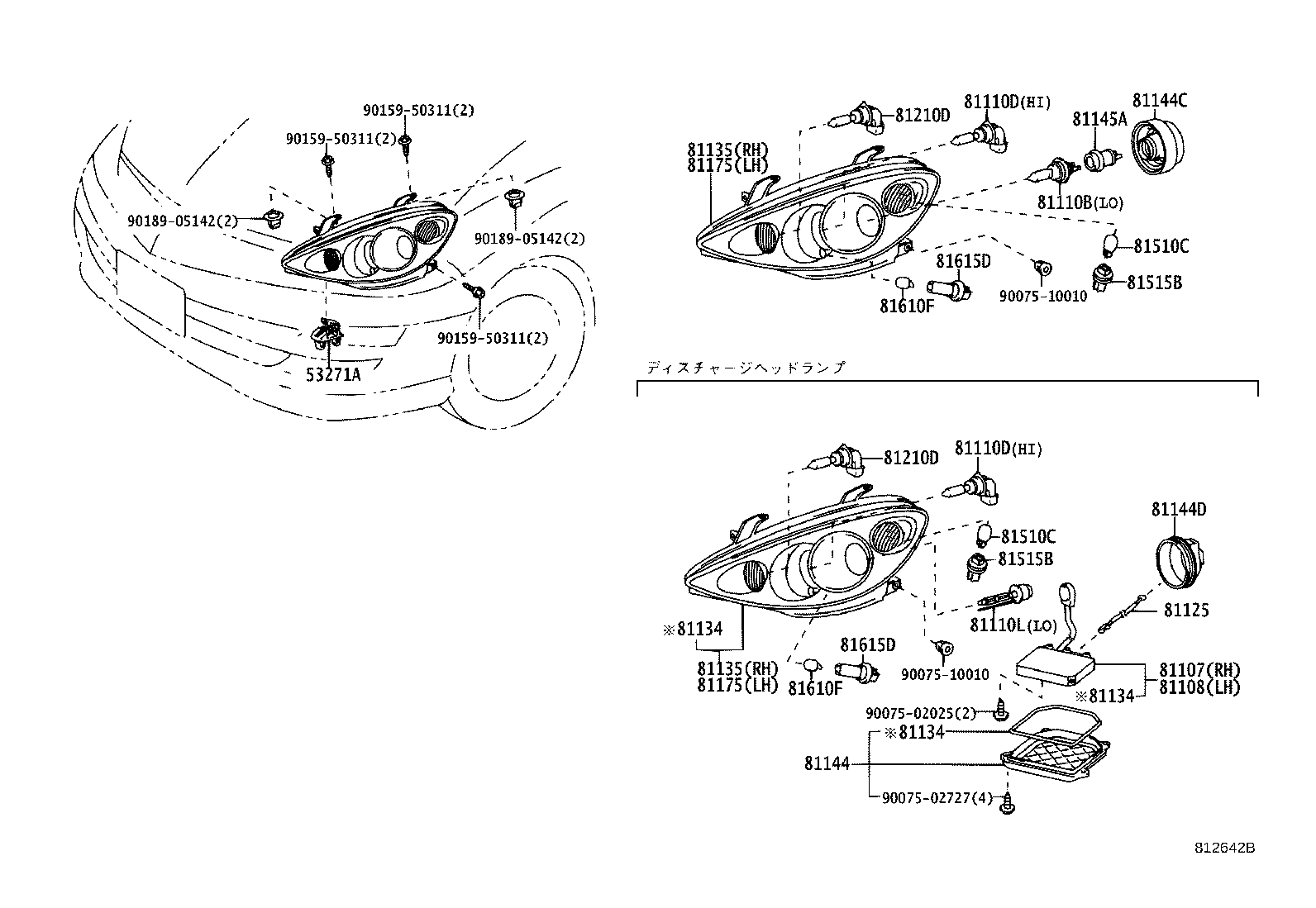

diagram 53271A 81107 81108 81110B 81110D 81110D 81110L 81125 81134 81134 81134 81135 81135 81144 81144C 81144D 81145A 81175 81175 81210D 81210D 81510C 81510C 81515B 81515B 81610F 81610F 81615D 81615D 9007502025 9007502727 9007510010 9007510010 9015950311 9015950311 9015950311 9018905142 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

AHR10

 2
53271-44010

AHR10

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-28560

AHR10

 1
81107-28560

AHR10

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-28560

AHR10

 1
81107-28560

AHR10

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13063

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

AHR10

12V 65W

 2
90981-13046

AHR10

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

AHR10

12V 65W

 2
90981-13046

AHR10

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20005

AHR10

85V 35W

 2
90981-20005

AHR10

85V 35W

 2
81125 - CORD, HEADLAMP
81125-28560

AHR10

 2
81125-28560

AHR10

 2
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81134 - GASKET, HEADLAMP
90075-99137

AHR10

 4
90075-99137

AHR10

 4
81135 - UNIT ASSY, HEADLAMP, RH
81140-28610

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28170

AHR10

 1
81145-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28600

AHR10

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-28610

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28170

AHR10

 1
81145-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-28600

AHR10

 1
81144 - COVER, HEADLAMP, NO.1
90075-67002

AHR10

 2
90075-67002

AHR10

 2
81144C - COVER, HEADLAMP SOCKET
90075-65019

AHR10

 2
90075-65019

AHR10

 2
81144D - CAP, HEADLAMP LOCKING
90075-66003

AHR10

 2
90075-66003

AHR10

 2
81145A - ADAPTER ASSY
90075-99140

AHR10

 2
90075-99140

AHR10

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-28260

AHR10

 1
81185-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81070-28530

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81170-28170

AHR10

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-28260

AHR10

 1
81185-28800

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81070-28530

AHR10

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81170-28170

AHR10

 1
81210D - BULB, FOG LAMP
90080-81040

AHR10

12V 51W

 2
90981-13047

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81210D - BULB, FOG LAMP
90080-81040

AHR10

12V 51W

 2
90981-13047

AHR10

12V 55W,ﾊﾛｹﾞﾝ

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AHR10

12V 21W

 2
90981-13043

AHR10

12V 21W

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AHR10

12V 21W

 2
90981-13043

AHR10

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99128

AHR10

 2
90075-99128

AHR10

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99128

AHR10

 2
90075-99128

AHR10

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AHR10

12V 5W

 2
99132-12050

AHR10

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AHR10

12V 5W

 2
99132-12050

AHR10

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60046

AHR10

 2
90075-60046

AHR10

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60046

AHR10

 2
90075-60046

AHR10

 2
Common parts
90075-02025
90075-02727
90075-10010
90159-50311
90189-05142
