AHR10W-MFEGB (2001)
Toyota Estima Hybrid

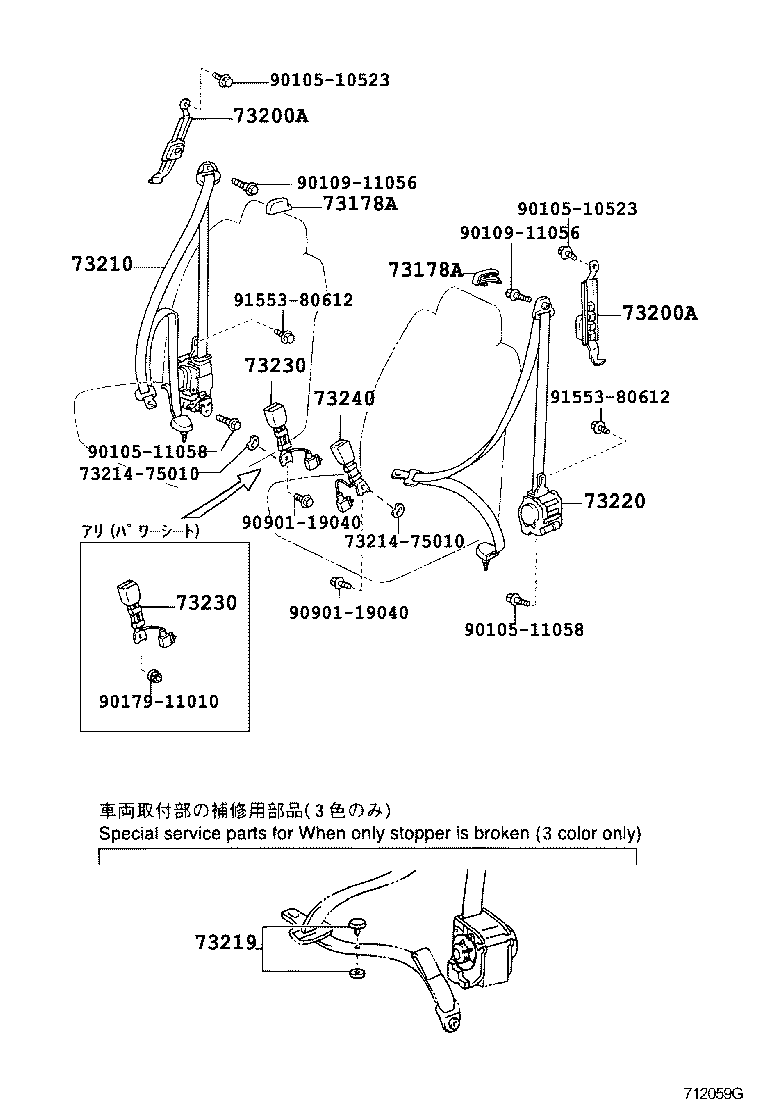

ILLUST NO. 1 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 73178-33020B1 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 73178-33020B2 |
AHR10 LT. BLUISH GRAY,TRIM13 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 73178-33020B1 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 73178-33020B2 |
AHR10 LT. BLUISH GRAY,TRIM13 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-28030B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
2 | ||
| 73200-28030B1 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 73200-28030B2 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 73200-28030A0 |
AHR10 IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-28030B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
2 | ||
| 73200-28030B1 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 73200-28030B2 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 73200-28030A0 |
AHR10 IVORY,TRIM0# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28690B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73210-28690B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73210-28750C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73210-28750A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
AHR10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
AHR10 ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33010 |
AHR10 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28650B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73220-28710C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73220-28650B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73220-28710A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28230B1 |
AHR10 DK.CHARCOAL,TRIM14 |
1 | ||
| 73230-28230B0 |
AHR10 BLUE GRAY,TRIM13 |
1 | ||
| 73230-28360B0 |
AHR10 DK.GRAY,TRIM1# |
1 | ||
| 73230-28380A1 |
AHR10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 73230-28360A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28230B1 |
AHR10 DK.CHARCOAL,TRIM14 |
1 | ||
| 73230-28230B0 |
AHR10 BLUE GRAY,TRIM13 |
1 | ||
| 73230-28360B0 |
AHR10 DK.GRAY,TRIM1# |
1 | ||
| 73230-28380A1 |
AHR10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 73230-28360A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-28360A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73230-28230B0 |
AHR10 BLUE GRAY,TRIM13 |
1 | ||
| 73230-28360B0 |
AHR10 DK.GRAY,TRIM1# |
1 | ||
| 73230-28230B1 |
AHR10 DK.CHARCOAL,TRIM14 |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11056 | ||||
| 90179-11010 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||

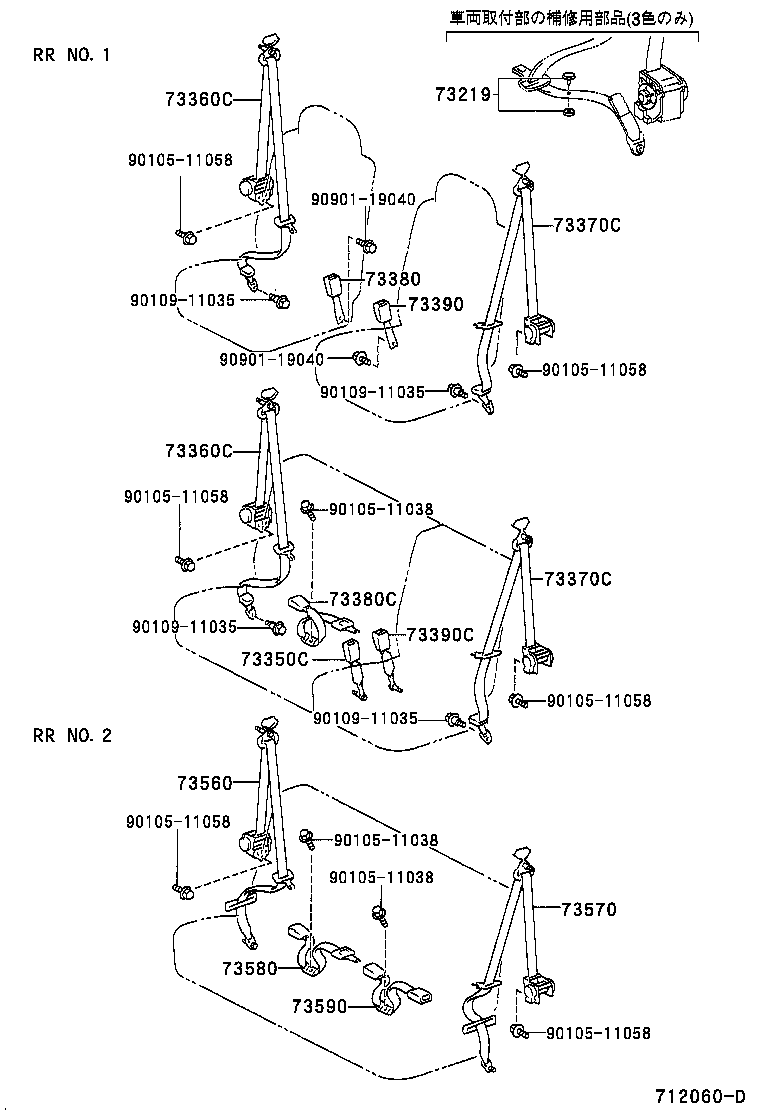

ILLUST NO. 2 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
AHR10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
AHR10 ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
AHR10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33010 |
AHR10 ﾌﾞﾗｯｸ |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73360-28630C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73360-28630A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73360-28580B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73360-28630C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73360-28630A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73360-28580B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73370-28550C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73370-28550A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73370-28550C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73370-28550A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73230-28250B0 |
AHR10..07S BLUE GRAY,TRIM13 |
1 | ||
| 73230-28250B1 |
AHR10..07S DK.CHARCOAL,TRIM14 |
1 | ||
| 73230-28390B0 |
AHR10..07S DK.GRAY,TRIM1# |
1 | ||
| 73230-28390A0 |
AHR10..07S IVORY,TRIM0# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73230-28250B1 |
AHR10..07S DK.CHARCOAL,TRIM14 |
1 | ||
| 73230-28250B0 |
AHR10..07S BLUE GRAY,TRIM13 |
1 | ||
| 73230-28390A0 |
AHR10..07S IVORY,TRIM0# |
1 | ||
| 73230-28390B0 |
AHR10..07S DK.GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28320B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73560-28340C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73560-28340A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73560-28320B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28320B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73570-28340A1 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73570-28340C1 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73570-28320B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28180C0 |
AHR10 BLACK,TRIM1# |
1 | ||
| 73380-28330B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73380-28330B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73580-28180A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-28100B0 |
AHR10 BLUISH GRAY,TRIM13 |
1 | ||
| 73590-28100B1 |
AHR10 GRAY,TRIM14 |
1 | ||
| 73590-28130A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 73590-28130C0 |
AHR10 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90109-11035 | ||||
| 90901-19040 | ||||
