AHR10W-MFEGB (2001)
Toyota Estima Hybrid

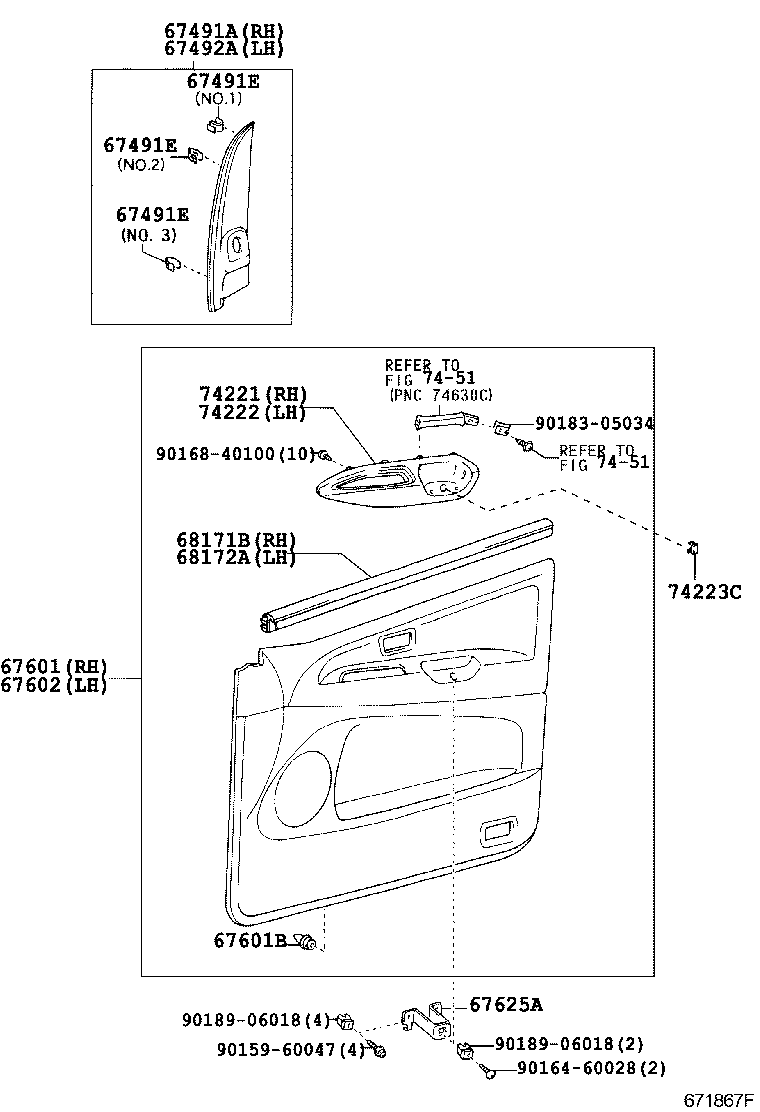

ILLUST NO. 1 OF 3(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-28070 |
AHR10 |
1 | ||
| 67491-28040 |
AHR10 |
1 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-44010 |
AHR10 NO.2 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67771-28080 |
AHR10 NO.3 |
2 | ||
| 67771-28090 |
AHR10 NO.1 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-28040 |
AHR10 |
1 | ||
| 67492-28070 |
AHR10 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-28060B0 |
AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),DK.CHARCOAL,TRIM14 |
1 | ||
| 67610-2J090B1 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.CHARCOAL,TRIM14 |
1 | ||
| 67610-28B11A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 67610-28B01B1 |
AHR10 DK.GRAY,TRIM1# |
1 | ||
| 67610-28B00B1 |
AHR10 DARK GRAY,TRIM1# |
1 | ||
| 67610-28B01B0 |
AHR10 DARK GRAY,TRIM1# |
1 | ||
| 67610-28B10A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 67610-2J090B0 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,BLUISH GRAY,TRIM13 |
1 | ||
| 67610-2J110B4 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLUISH GRAY,TRIM13 |
1 | ||
| 67610-2J110B5 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.CHARCOAL,TRIM14 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AHR10 |
26 | ||
| 90467-09203 |
AHR10 ﾌﾞﾙｰ |
4 | ||
| 90467-09206 |
AHR10 ﾅﾁｭﾗﾙ |
22 | ||
| 90467-09206 |
AHR10 |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2J090B1 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.CHARCOAL,TRIM14 |
1 | ||
| 67620-28B00B1 |
AHR10 DARK GRAY,TRIM1# |
1 | ||
| 67620-28B01B1 |
AHR10 DK.GRAY,TRIM1# |
1 | ||
| 67620-2J090B0 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,BLUISH GRAY,TRIM13 |
1 | ||
| 67660-28060B0 |
AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y),DK.CHARCOAL,TRIM14 |
1 | ||
| 67620-2J110B3 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.CHARCOAL,TRIM14 |
1 | ||
| 67620-2J110B2 |
AHR10 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLUISH GRAY,TRIM13 |
1 | ||
| 67620-28B10A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 67620-28B01B0 |
AHR10 DARK GRAY,TRIM1# |
1 | ||
| 67620-28B11A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-28040 |
AHR10 |
2 | ||
| 67625-28040 |
AHR10 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28050 |
AHR10 |
1 | ||
| 68171-28051 |
AHR10 |
1 | ||
| 68171-28050 |
AHR10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28040 |
AHR10 |
1 | ||
| 68172-28041 |
AHR10 |
1 | ||
| 68172-28040 |
AHR10 |
1 | ||
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-28030 |
AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y) |
1 | ||
| 74221-28110 |
AHR10 ﾓｸﾒ |
1 | ||
| 74221-28060 |
AHR10 |
1 | ||
| 74221-28110 |
AHR10 ﾓｸﾒ |
1 | ||
| 74221-28060 |
AHR10 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-28030 |
AHR10 ｱｲﾚﾑｴﾃﾞｲｼﾖﾝ *(Y) |
1 | ||
| 74222-28100 |
AHR10 |
1 | ||
| 74222-28110 |
AHR10 ﾓｸﾒ |
1 | ||
| 74222-28110 |
AHR10 ﾓｸﾒ |
1 | ||
| 74222-28100 |
AHR10 |
1 | ||
| 74223C - CAP, DOOR ARMREST | ||||
| 74223-28050 |
AHR10 ｼﾙﾊﾞ- |
2 | ||
| 74223-28040 |
AHR10 |
2 | ||
| 74223-28050 |
AHR10 ｼﾙﾊﾞ- |
2 | ||
| 74223-28040 |
AHR10 |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90164-60028 | ||||
| 90168-40100 | ||||
| 90183-05034 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||

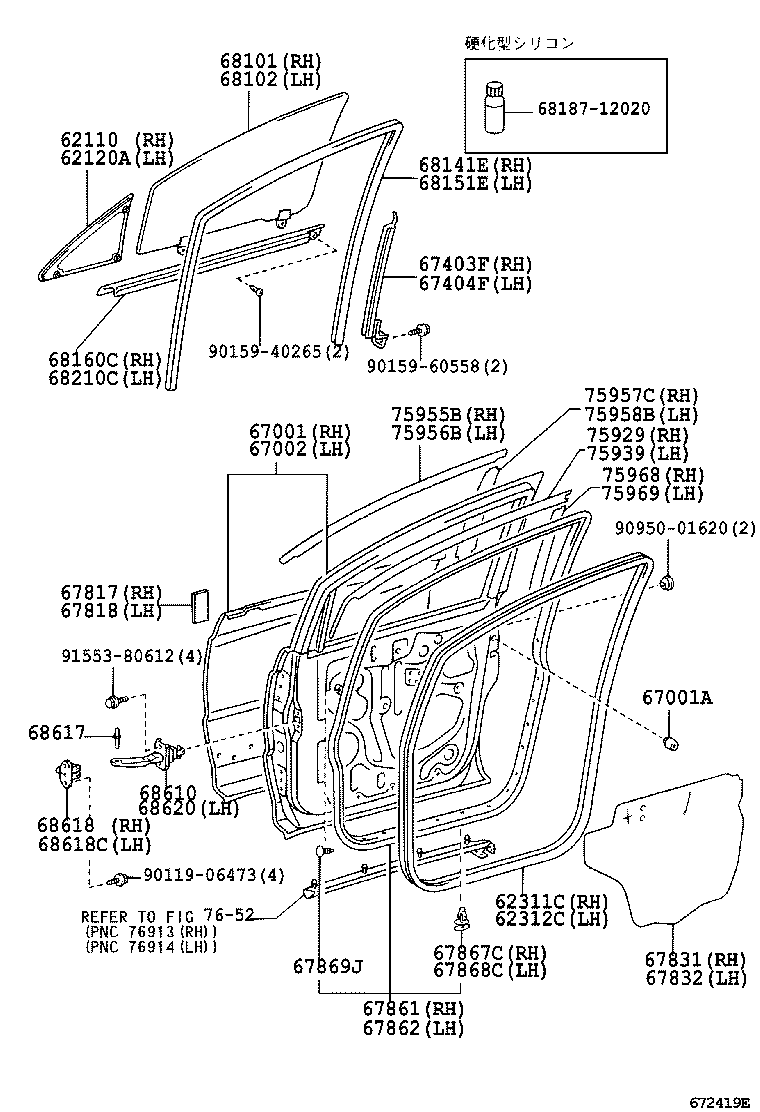

ILLUST NO. 2 OF 3(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110 - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-28032 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62110-28032 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62110-28031 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62120A - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-28151 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62120-28152 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62120-28152 |
AHR10 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28090B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
1 | ||
| 62311-28090A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 62311-28090B2 |
AHR10 MD.GRAY,TRIM1# |
1 | ||
| 62311-28091A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 62311-28091B2 |
AHR10 MD.GRAY,TRIM1# |
1 | ||
| 62311-28090B1 |
AHR10 MD.CHARCOAL,TRIM14 |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28091A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 62312-28090B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
1 | ||
| 62312-28090A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 62312-28090B1 |
AHR10 MD.CHARCOAL,TRIM14 |
1 | ||
| 62312-28091B2 |
AHR10 MD.GRAY,TRIM1# |
1 | ||
| 62312-28090B2 |
AHR10 MD.GRAY,TRIM1# |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28161 |
AHR10 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67001-28131 |
AHR10 |
1 | ||
| 67001-28131 |
AHR10 |
1 | ||
| 67001-28161 |
AHR10 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09109 |
AHR10 |
4 | ||
| 90541-09109 |
AHR10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28181 |
AHR10 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67002-28181 |
AHR10 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67002-28151 |
AHR10 |
1 | ||
| 67002-28151 |
AHR10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28060 |
AHR10 |
1 | ||
| 67403-28060 |
AHR10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28060 |
AHR10 |
1 | ||
| 67404-28060 |
AHR10 |
1 | ||
| 67817 - PACKING, FRONT DOOR PROTECTOR, RH | ||||
| 67817-28010 |
AHR10 |
2 | ||
| 67817-28010 |
AHR10 |
2 | ||
| 67818 - PACKING, FRONT DOOR PROTECTOR, LH | ||||
| 67817-28010 |
AHR10 |
2 | ||
| 67817-28010 |
AHR10 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28100 |
AHR10 |
1 | ||
| 67831-28100 |
AHR10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-28100 |
AHR10 |
1 | ||
| 67831-28100 |
AHR10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28050 |
AHR10 |
1 | ||
| 67861-28050 |
AHR10 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28050 |
AHR10 |
1 | ||
| 67862-28050 |
AHR10 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AHR10 |
18 | ||
| 67867-12150 |
AHR10 |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AHR10 |
18 | ||
| 67867-12150 |
AHR10 |
18 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
AHR10 |
2 | ||
| 67869-20030 |
AHR10 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28230 |
AHR10..07S *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68101-28220 |
AHR10 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-28230 |
AHR10..07S *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68101-28220 |
AHR10 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28120 |
AHR10..07S *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68102-28220 |
AHR10 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-28220 |
AHR10 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-28120 |
AHR10..07S *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28100 |
AHR10..07S ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68141-28081 |
AHR10 |
1 | ||
| 68141-28081 |
AHR10 |
1 | ||
| 68141-28100 |
AHR10..07S ﾓﾃﾞﾘｽﾀ ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28051 |
AHR10 |
1 | ||
| 68151-28070 |
AHR10..07S ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68151-28070 |
AHR10..07S ﾓﾃﾞﾘｽﾀ ﾓﾊﾞｲﾙ ｵﾌｲｽ |
1 | ||
| 68151-28051 |
AHR10 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28041 |
AHR10 |
1 | ||
| 68161-28040 |
AHR10 |
1 | ||
| 68161-28040 |
AHR10 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28041 |
AHR10 |
1 | ||
| 68162-28040 |
AHR10 |
1 | ||
| 68162-28040 |
AHR10 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-28040 |
AHR10 |
1 | ||
| 68610-28040 |
AHR10 |
1 | ||
| 68610-28040 |
AHR10 ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ) |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-53010 |
AHR10 |
2 | ||
| 68617-53010 |
AHR10 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-20030 |
AHR10 |
1 | ||
| 68618-20030 |
AHR10 |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-20030 |
AHR10 |
1 | ||
| 68618-20030 |
AHR10 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-28040 |
AHR10 |
1 | ||
| 68620-28030 |
AHR10 ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ) |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-28010 |
AHR10 |
1 | ||
| 75929-28010 |
AHR10 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-28010 |
AHR10 |
1 | ||
| 75939-28010 |
AHR10 |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-28010 |
AHR10 |
1 | ||
| 75955-28010 |
AHR10 |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-28010 |
AHR10 |
1 | ||
| 75956-28010 |
AHR10 |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-28010 |
AHR10 |
1 | ||
| 75957-28010 |
AHR10 |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-28010 |
AHR10 |
1 | ||
| 75958-28010 |
AHR10 |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-28010 |
AHR10 |
1 | ||
| 75968-28010 |
AHR10 |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-28010 |
AHR10 |
1 | ||
| 75969-28010 |
AHR10 |
1 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90119-06473 | ||||
| 90159-40265 | ||||
| 90159-60558 | ||||
| 90950-01620 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7652 | ||||

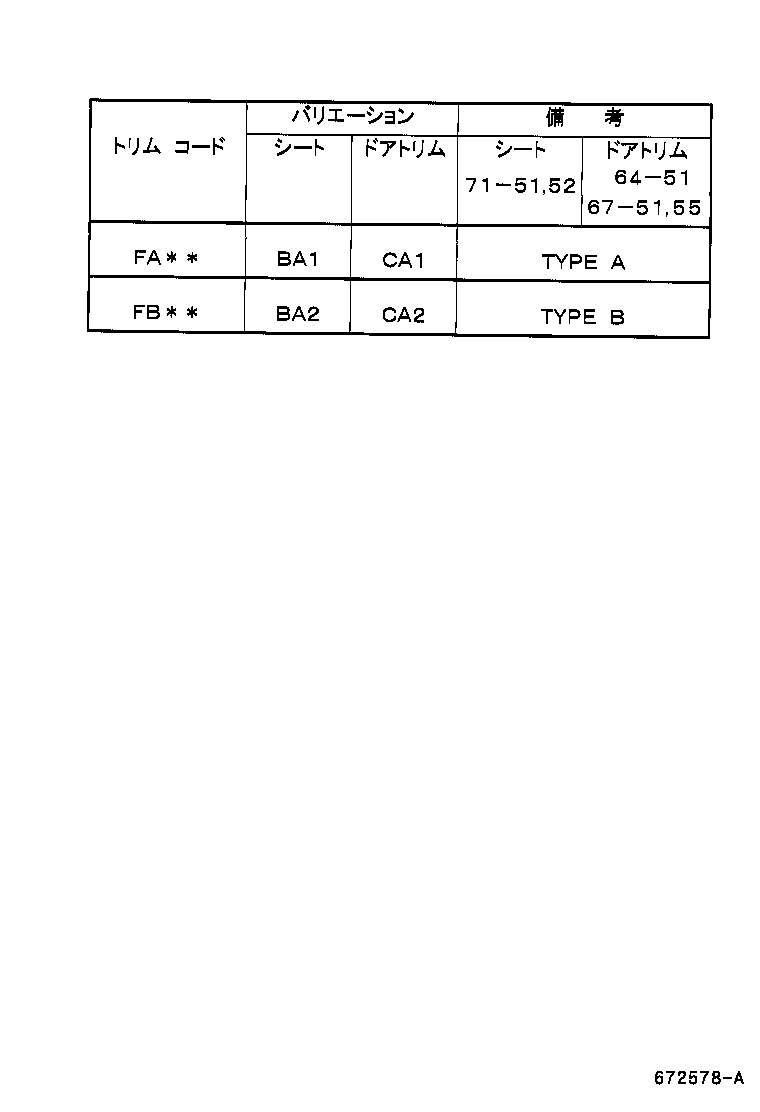

ILLUST NO. 3 OF 3(0105-0308)
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
