AHR10W-MFEGB (2001)
Toyota Estima Hybrid

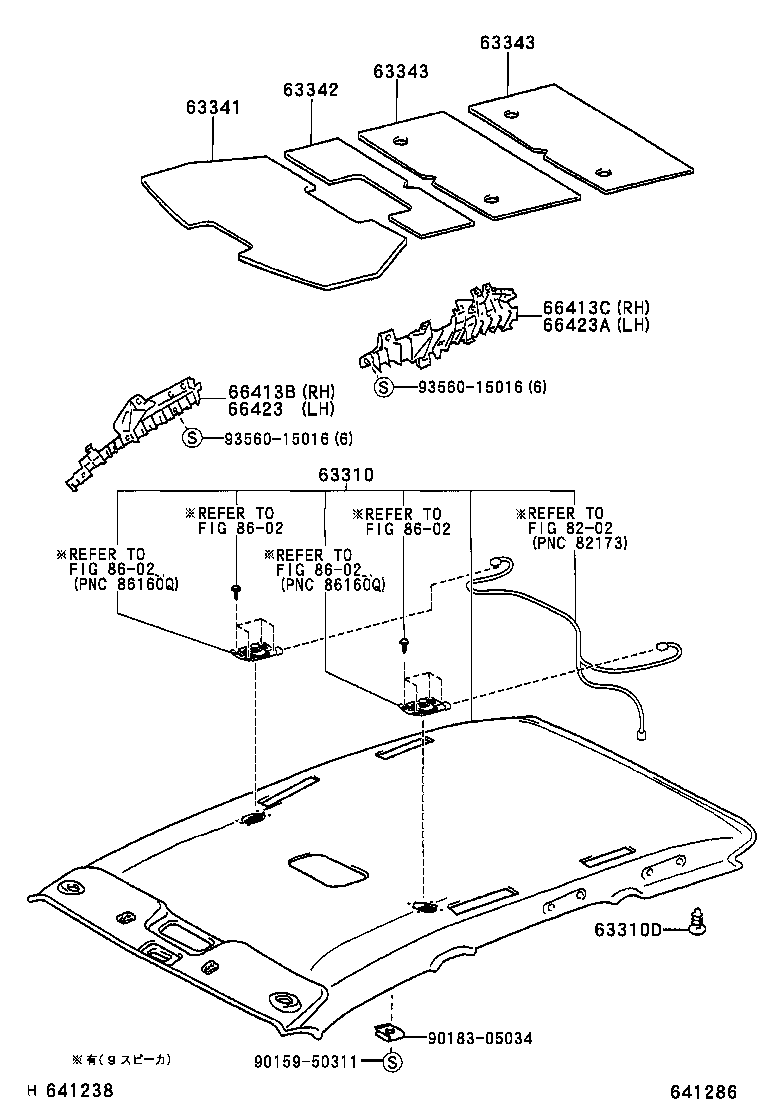

(0105-0308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28770B1 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28770B0 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B0 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28B90A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63310-28880A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & 9 ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 63310-28720B1 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28720B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28A40A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-28A40B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310-28890A0 |
AHR10 ｱﾘ(9 ｽﾋﾟ-ｶ),IVORY,TRIM0# |
1 | ||
| 63310-2J040B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-2J040B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B1 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28B90B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-05164B5 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.GRAY,TRIM1# |
3 | ||
| 90467-05164A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
3 | ||
| 90467-05164B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-06177B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 90467-05164B5 |
AHR10 MD.GRAY,TRIM1# |
7 | ||
| 90467-06177B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164A0 |
AHR10 IVORY,TRIM0# |
7 | ||
| 90467-06177B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-28070 |
AHR10 |
1 | ||
| 63341-28070 |
AHR10 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-28040 |
AHR10 |
1 | ||
| 63342-28040 |
AHR10 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
AHR10 |
2 | ||
| 63343-28030 |
AHR10 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
AHR10 |
2 | ||
| 63343-28030 |
AHR10 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
AHR10 |
1 | ||
| 66413-28010 |
AHR10 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
AHR10 |
1 | ||
| 66413-28030 |
AHR10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
AHR10 |
1 | ||
| 66423-28010 |
AHR10 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
AHR10 |
1 | ||
| 66423-28030 |
AHR10 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90183-05034 | ||||
| 93560-15016 | ||||

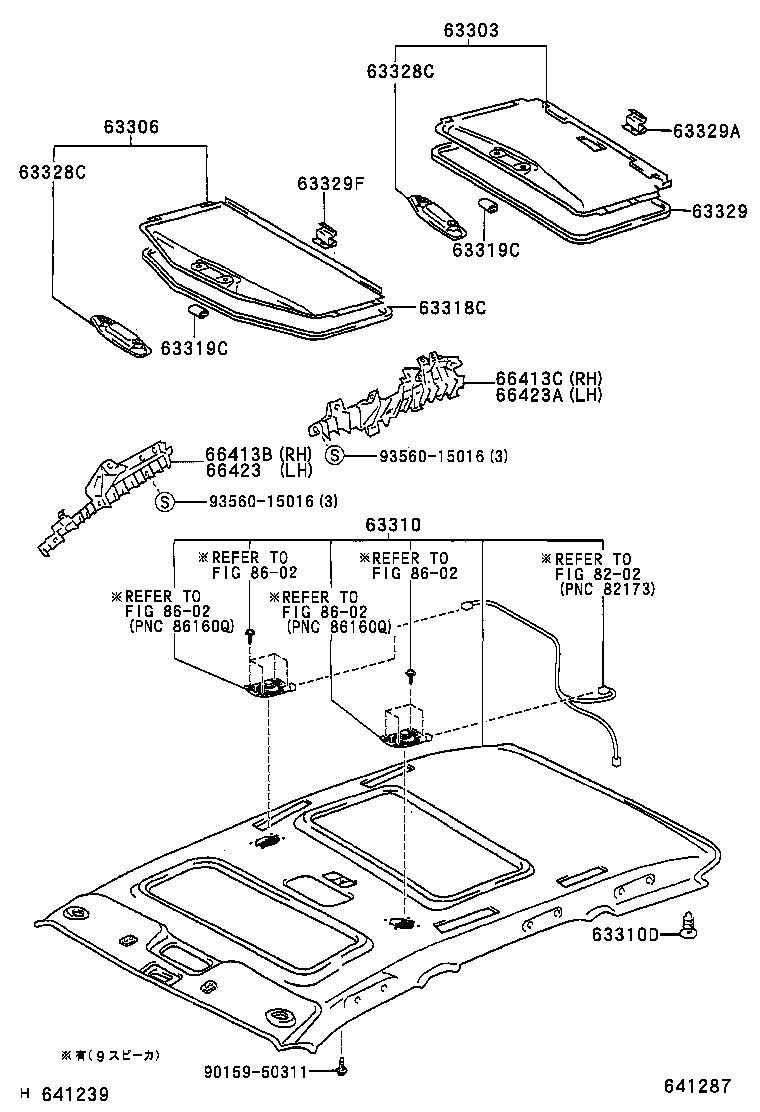

(0105-0308)
ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-28080B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63303-28060B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63303-28081B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63303-28081A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63303-28080A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63303-28060B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-28091A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63306-28090A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63306-28070B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63306-28090B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63306-28070B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63306-28091B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28770B1 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28770B0 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B0 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28B90A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63310-28880A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & 9 ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 63310-28720B1 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28720B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28A40A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-28A40B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310-28890A0 |
AHR10 ｱﾘ(9 ｽﾋﾟ-ｶ),IVORY,TRIM0# |
1 | ||
| 63310-2J040B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-2J040B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B1 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28B90B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-05164B5 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.GRAY,TRIM1# |
3 | ||
| 90467-05164A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
3 | ||
| 90467-05164B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-06177B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 90467-05164B5 |
AHR10 MD.GRAY,TRIM1# |
7 | ||
| 90467-06177B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164A0 |
AHR10 IVORY,TRIM0# |
7 | ||
| 90467-06177B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-28030B2 |
AHR10 長さ=2159,LT.GRAY,TRIM1# |
1 | ||
| 63318-28031A0 |
AHR10 長さ=2159,IVORY,TRIM0# |
1 | ||
| 63318-28030A0 |
AHR10 長さ=2159,IVORY,TRIM0# |
1 | ||
| 63318-28031B2 |
AHR10 長さ=2159,LT.GRAY,TRIM1# |
1 | ||
| 63318-28030B0 |
AHR10 長さ=2159,LT. BLUISH GRAY,TRIM13 |
1 | ||
| 63318-28030B1 |
AHR10 長さ=2159,MD.CHARCOAL,TRIM14 |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63319-87004B3 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63319-87004B1 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63319-87004B0 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63319-87004B3 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63319-87004B1 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63319-87004B0 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63328-12030A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63328-12030B5 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328-12030B7 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63328-12030A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63328-12030B5 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328-12030B7 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2 | ||||
| 63329-28060B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
1 | ||
| 63329-28060A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63329-28060B1 |
AHR10 MD.CHARCOAL,TRIM14 |
1 | ||
| 63329-28060B2 |
AHR10 LT.GRAY,TRIM1# |
1 | ||
| 63329-28061A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63329-28061B2 |
AHR10 LT.GRAY,TRIM1# |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-28070 |
AHR10 |
1 | ||
| 63329-28070 |
AHR10 |
2 | ||
| 63329-28070 |
AHR10 |
1 | ||
| 63329F - STOPPER, SUNSHADE LOCK | ||||
| 63329-28090 |
AHR10 |
2 | ||
| 63329-28090 |
AHR10 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
AHR10 |
1 | ||
| 66413-28010 |
AHR10 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
AHR10 |
1 | ||
| 66413-28030 |
AHR10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
AHR10 |
1 | ||
| 66423-28010 |
AHR10 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
AHR10 |
1 | ||
| 66423-28030 |
AHR10 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 93560-15016 | ||||
(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28770B1 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28770B0 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B0 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28B90A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63310-28880A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & 9 ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 63310-28720B1 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28720B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28A40A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-28A40B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310-28890A0 |
AHR10 ｱﾘ(9 ｽﾋﾟ-ｶ),IVORY,TRIM0# |
1 | ||
| 63310-2J040B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-2J040B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B1 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28B90B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-05164B5 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.GRAY,TRIM1# |
3 | ||
| 90467-05164A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
3 | ||
| 90467-05164B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-06177B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 90467-05164B5 |
AHR10 MD.GRAY,TRIM1# |
7 | ||
| 90467-06177B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164A0 |
AHR10 IVORY,TRIM0# |
7 | ||
| 90467-06177B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-28070 |
AHR10 |
1 | ||
| 63341-28070 |
AHR10 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-28040 |
AHR10 |
1 | ||
| 63342-28040 |
AHR10 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
AHR10 |
2 | ||
| 63343-28030 |
AHR10 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
AHR10 |
2 | ||
| 63343-28030 |
AHR10 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
AHR10 |
1 | ||
| 66413-28010 |
AHR10 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
AHR10 |
1 | ||
| 66413-28030 |
AHR10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
AHR10 |
1 | ||
| 66423-28010 |
AHR10 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
AHR10 |
1 | ||
| 66423-28030 |
AHR10 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90183-05034 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
(0308- )
ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-28080B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63303-28060B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63303-28081B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63303-28081A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63303-28080A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63303-28060B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-28091A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63306-28090A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63306-28070B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63306-28090B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63306-28070B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63306-28091B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28770B1 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28770B0 |
AHR10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B0 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28B90A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63310-28880A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & 9 ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 63310-28720B1 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28720B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-28A40A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-28A40B0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310-28890A0 |
AHR10 ｱﾘ(9 ｽﾋﾟ-ｶ),IVORY,TRIM0# |
1 | ||
| 63310-2J040B1 |
AHR10 LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-2J040B0 |
AHR10 MEDIUM CHARCOAL,TRIM14 |
1 | ||
| 63310-2J030B1 |
AHR10 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM13 |
1 | ||
| 63310-28B90B0 |
AHR10 LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-05164B5 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.GRAY,TRIM1# |
3 | ||
| 90467-05164A0 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
3 | ||
| 90467-05164B3 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM13 |
3 | ||
| 90467-06177B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164B4 |
AHR10 MD.CHARCOAL,TRIM14 |
7 | ||
| 90467-05164B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 90467-05164B5 |
AHR10 MD.GRAY,TRIM1# |
7 | ||
| 90467-06177B4 |
AHR10 ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14 |
3 | ||
| 90467-05164A0 |
AHR10 IVORY,TRIM0# |
7 | ||
| 90467-06177B3 |
AHR10 LT. BLUISH GRAY,TRIM13 |
7 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-28030B2 |
AHR10 長さ=2159,LT.GRAY,TRIM1# |
1 | ||
| 63318-28031A0 |
AHR10 長さ=2159,IVORY,TRIM0# |
1 | ||
| 63318-28030A0 |
AHR10 長さ=2159,IVORY,TRIM0# |
1 | ||
| 63318-28031B2 |
AHR10 長さ=2159,LT.GRAY,TRIM1# |
1 | ||
| 63318-28030B0 |
AHR10 長さ=2159,LT. BLUISH GRAY,TRIM13 |
1 | ||
| 63318-28030B1 |
AHR10 長さ=2159,MD.CHARCOAL,TRIM14 |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63319-87004B3 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63319-87004B1 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63319-87004B0 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63319-87004B3 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63319-87004B1 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63319-87004B0 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63328-12030A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63328-12030B5 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328-12030B7 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
AHR10 MD.CHARCOAL,TRIM14 |
2 | ||
| 63328-12030A1 |
AHR10 IVORY,TRIM0# |
2 | ||
| 63328-12030B5 |
AHR10 LT.BLUISH GRAY,TRIM13 |
2 | ||
| 63328-12030B7 |
AHR10 LT.GRAY,TRIM1# |
2 | ||
| 63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2 | ||||
| 63329-28060B0 |
AHR10 LT. BLUISH GRAY,TRIM13 |
1 | ||
| 63329-28060A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63329-28060B1 |
AHR10 MD.CHARCOAL,TRIM14 |
1 | ||
| 63329-28060B2 |
AHR10 LT.GRAY,TRIM1# |
1 | ||
| 63329-28061A0 |
AHR10 IVORY,TRIM0# |
1 | ||
| 63329-28061B2 |
AHR10 LT.GRAY,TRIM1# |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-28070 |
AHR10 |
1 | ||
| 63329-28070 |
AHR10 |
2 | ||
| 63329-28070 |
AHR10 |
1 | ||
| 63329F - STOPPER, SUNSHADE LOCK | ||||
| 63329-28090 |
AHR10 |
2 | ||
| 63329-28090 |
AHR10 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
AHR10 |
1 | ||
| 66413-28010 |
AHR10 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
AHR10 |
1 | ||
| 66413-28030 |
AHR10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
AHR10 |
1 | ||
| 66423-28010 |
AHR10 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
AHR10 |
1 | ||
| 66423-28030 |
AHR10 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
