AHR10W-MFEGB (2001)
Toyota Estima Hybrid
Production
May 2001
-
Jan 2006
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

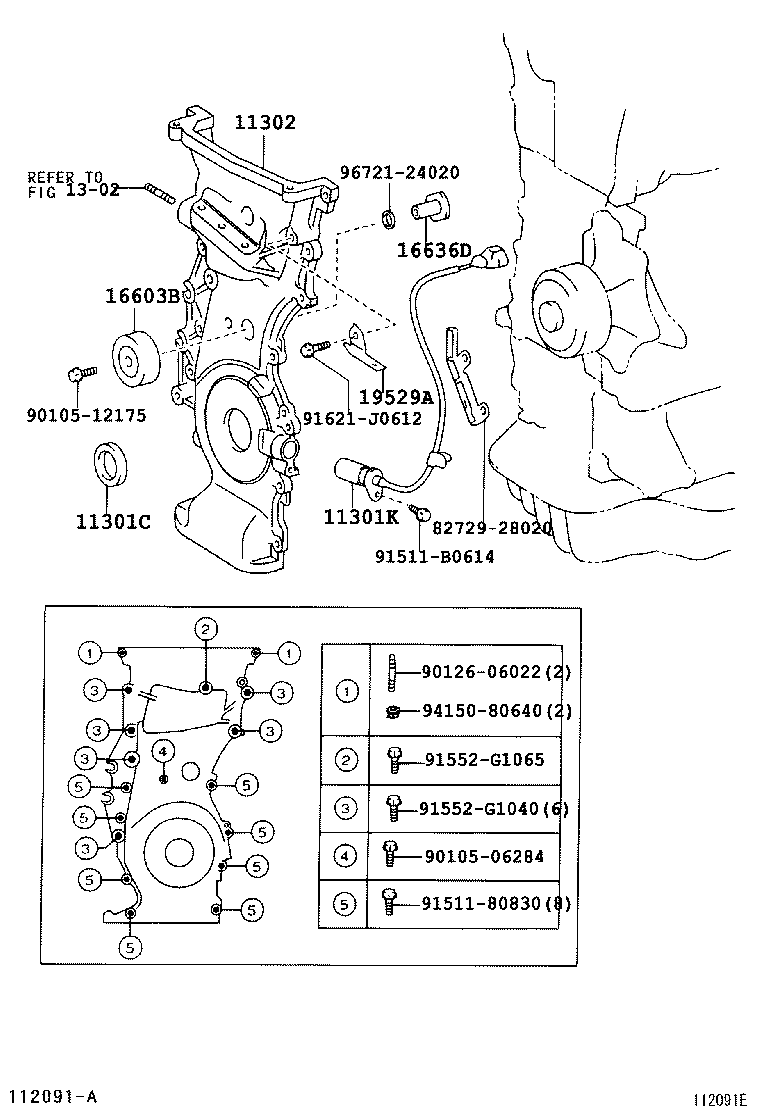

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-38084 |
2AZFXE..AHR10 |
1 | ||
| 90311-38084 |
2AZFXE..AHR10 NOK |
1 | ||
| 90311-38089 |
2AZFXE..AHR10 |
1 | ||
| 90311-38078 |
2AZFXE..AHR10 |
1 | ||
| 90311-38089 |
2AZFXE..AHR10 |
1 | ||
| 90311-38088 |
2AZFXE..AHR10 KOYO |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05047 |
2AZFXE..AHR10 |
1 | ||
| 90919-05047 |
2AZFXE..AHR10 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-28041 |
2AZFXE..AHR10 |
1 | ||
| 11321-28042 |
2AZFXE..AHR10 |
1 | ||
| 11321-28041 |
2AZFXE..AHR10 |
1 | ||
| 16603B - PULLEY SUB-ASSY, IDLER | ||||
| 16603-28010 |
2AZFXE..AHR10 |
1 | ||
| 16603-28011 |
2AZFXE..AHR10 |
1 | ||
| 16603-28011 |
2AZFXE..AHR10 |
1 | ||
| 16636D - SHAFT, IDLER PULLEY | ||||
| 16636-28010 |
2AZFXE..AHR10 |
1 | ||
| 16636-28010 |
2AZFXE..AHR10 |
1 | ||
| 19529A - CLAMP | ||||
| 19529-28010 |
2AZFXE..AHR10 |
1 | ||
| 19529-28010 |
2AZFXE..AHR10 |
1 | ||
| Common parts | ||||
| 82729-28020 | ||||
| 90105-06284 | ||||
| 90105-12175 | ||||
| 90126-06022 | ||||
| 91511-80830 | ||||
| 91511-B0614 | ||||
| 91552-G1040 | ||||
| 91552-G1065 | ||||
| 91621-J0612 | ||||
| 94150-80640 | ||||
| 96721-24020 | ||||
| Linked diagrams | ||||
| 1302 | ||||
