TCR21G-RRSSK (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Aug 1993
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9201- )TCR1#,2#

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730F 44758 44763A 44772B 44773F 44774 9046110739 9046110739 9046110739 9046110751 9094901624 9161160814 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CXR1#,2#

 1
44730-10010

TCR1#,2#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09163

CXR1#,2#

 1
90404-51319

TCR1#,2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28100

TCR1#,2#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-28030

CXR1#,2#

 1
44763-28050

TCR1#,2#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-28070

TCR1#,2#

 1
44773F - HOSE, UNION TO CHECK VALVE
90445-17039

TCR1#,2#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28130

CXR1#,2#

 1
44774-28120

TCR1#,2#

 1
Common parts
90461-10739
90461-10751
90949-01624
91611-60814
91651-40816

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 44610 44785 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28730

TCR11,21

ｱﾘ(ABS)

 1
44610-28750

TCR1#,2#

 1
44610-28760

CXR1#,2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CXR1#,2#,TCR1#,2#

 1
Common parts
90179-08057

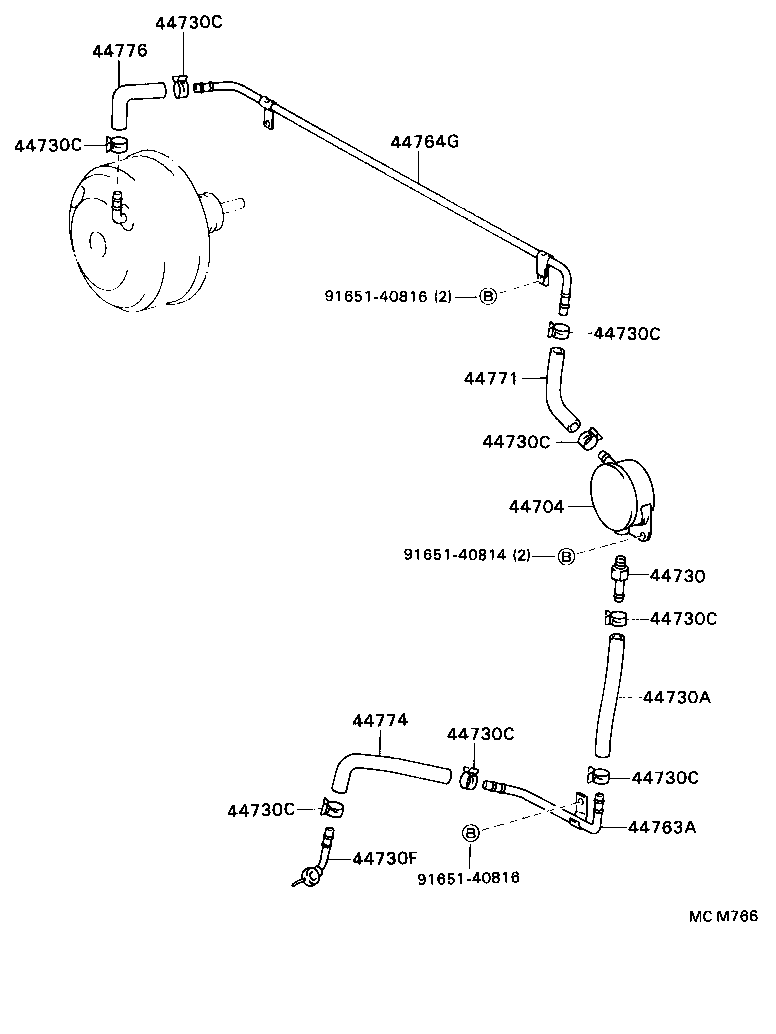

ILLUST NO. 2 OF 2(9201-9308)CXR1#,2#

Click highlighted areas on diagram

diagram 44704 44730 44730A 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44763A 44764G 44771 44774 44776 9165140814 9165140816 9165140816
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-28040

CXR1#,2#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CXR1#,2#

 1
44730-10010

TCR1#,2#

 1
44730A - HOSE, VACUUM, NO.1
95446-09160

CXR1#,2#

 1
95446-09190

CXR1#,2#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
90467-16002

CXR1#,2#

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09163

CXR1#,2#

 1
90404-51319

TCR1#,2#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-28030

CXR1#,2#

 1
44763-28050

TCR1#,2#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-28060

CXR1#,2#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-28050

CXR1#,2#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28130

CXR1#,2#

 1
44774-28120

TCR1#,2#

 1
44776 - HOSE, BRAKE BOOSTER
44776-28020

CXR1#,2#

 1
Common parts
91651-40814
91651-40816
