TCR21G-RRSSK (1992)
Toyota Estima Emina/Lucida
Production
Jan 1992
-
Aug 1993
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

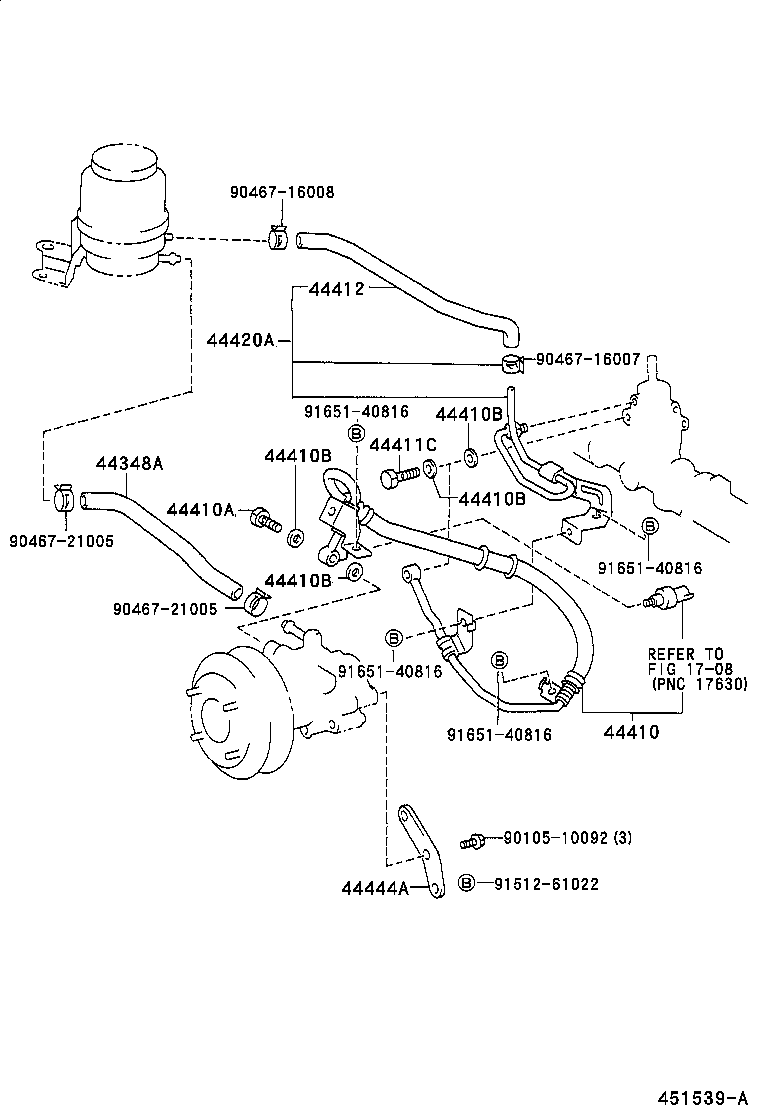

(9201-9501)TCR1#,2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-28220 |
TCR1#,2# |
1 | ||
| 44410-28230 |
CXR1#,2# |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16014 |
TCR1#,2# |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
CXR1#,2#,TCR1#,2# *16−1.5PX26−12 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-28230 |
CXR1#,2# |
1 | ||
| 44412-28180 |
TCR1#,2# |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-28010 |
TCR1#,2# |
1 | ||
| 44420-28020 |
CXR1#,2# |
1 | ||
| 44444A - STAY, PUMP, REAR NO.1 | ||||
| 44444-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90467-16007 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91512-61022 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1708 | ||||

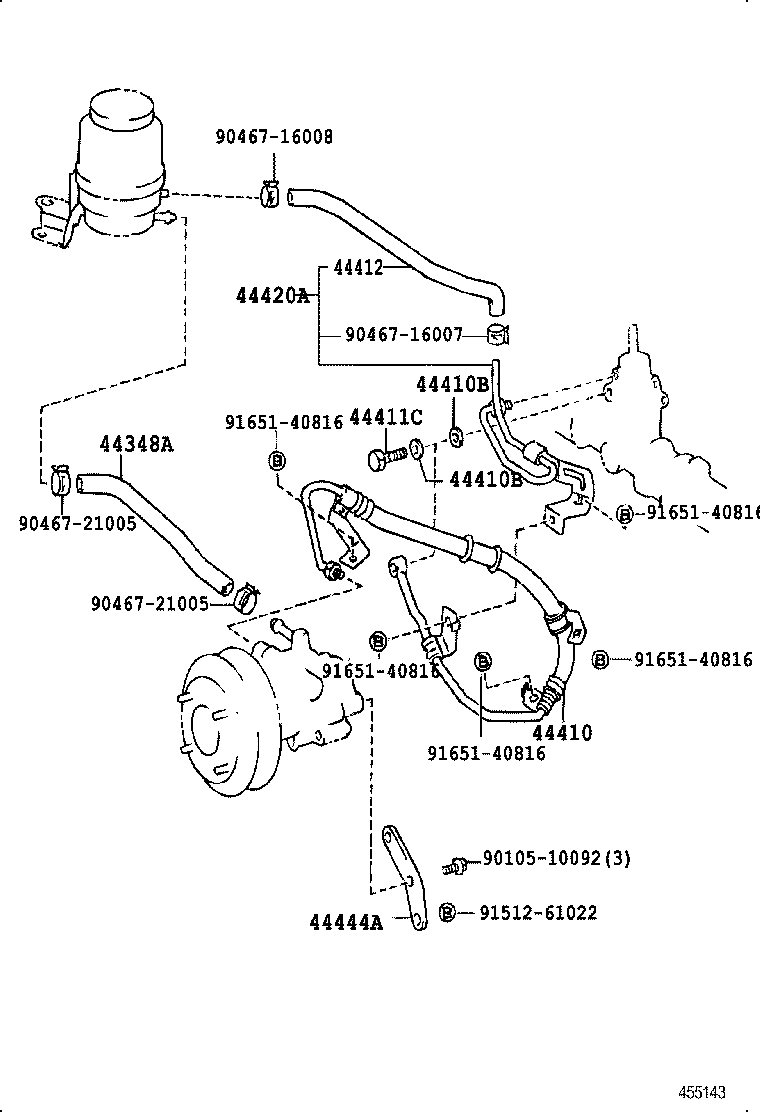

(9201-9501)CXR1#,2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-28220 |
TCR1#,2# |
1 | ||
| 44410-28230 |
CXR1#,2# |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
CXR1#,2# |
2 | ||
| 90430-16242 |
TCR1#,2# |
4 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
CXR1#,2#,TCR1#,2# *16−1.5PX26−12 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-28230 |
CXR1#,2# |
1 | ||
| 44412-28180 |
TCR1#,2# |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-28010 |
TCR1#,2# |
1 | ||
| 44420-28020 |
CXR1#,2# |
1 | ||
| 44444A - STAY, PUMP, REAR NO.1 | ||||
| 44444-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90467-16007 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91512-61022 | ||||
| 91651-40816 | ||||
