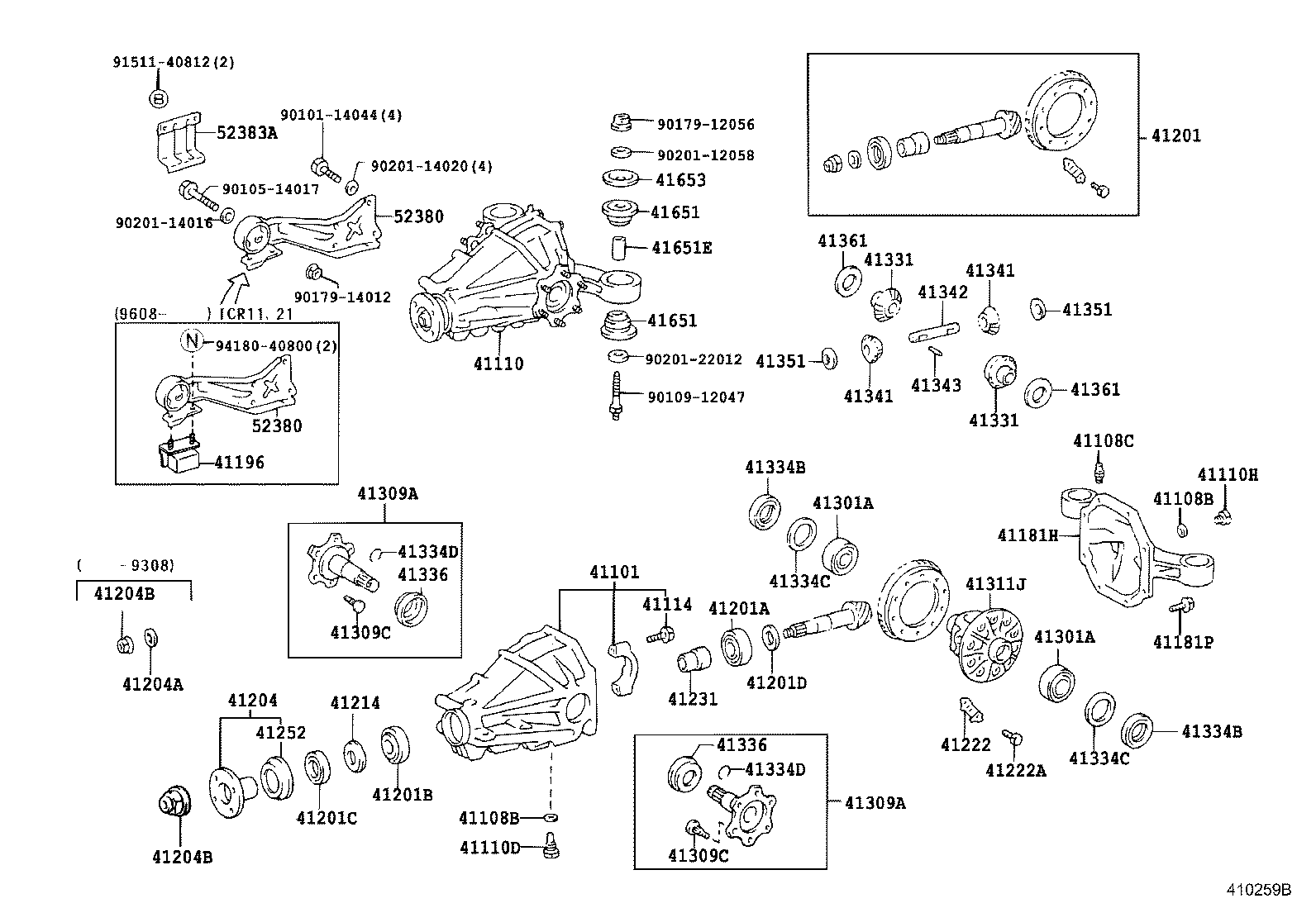

TCR21G-RRSSK (1992)
Toyota Estima Emina/Lucida
(9201- )CXR11,21,TCR11,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-28030 |
CXR11,21,TCR11,21 |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
CXR11,21,TCR11,21 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
CXR11,21,TCR11,21 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
CXR11,21,TCR11,21 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-28200 |
CXR21,TCR11,21 *FGR=43:10=4.300 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18030 |
CXR11,21,TCR11,21 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18006 |
CXR11,21,TCR11,21 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12163 |
CXR11,21,TCR11,21 |
4 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41181-28030 |
CXR11,21,TCR11,21 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90119-10307 |
CXR11,21,TCR11,21 |
8 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80004 |
CXR2#,TCR2#;CXR1#,TCR1#..ATM *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
CXR11,21,TCR11,21 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
CXR11,21,TCR11,21 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38010 |
CXR11,21,TCR11,21 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35436 |
CXR1#,2#,TCR1#,2# 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35437 |
CXR1#,2#,TCR1#,2# 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35434 |
CXR1#,2#,TCR1#,2# 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35399 |
CXR1#,2#,TCR1#,2# 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35400 |
CXR1#,2#,TCR1#,2# 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35397 |
CXR1#,2#,TCR1#,2# 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35403 |
CXR1#,2#,TCR1#,2# 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35435 |
CXR1#,2#,TCR1#,2# 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35396 |
CXR1#,2#,TCR1#,2# 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35401 |
CXR1#,2#,TCR1#,2# 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35402 |
CXR1#,2#,TCR1#,2# 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35404 |
CXR1#,2#,TCR1#,2# 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35439 |
CXR1#,2#,TCR1#,2# 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35440 |
CXR1#,2#,TCR1#,2# 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 90201-35441 |
CXR1#,2#,TCR1#,2# 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35438 |
CXR1#,2#,TCR1#,2# 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35398 |
CXR1#,2#,TCR1#,2# 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 90201-18485 |
CXR11,21,TCR11,21 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CXR11,21,TCR11,21 |
1 | ||
| 90179-18001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CXR11,21,TCR11,21 |
1 | ||
| 90179-18001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
CXR1#,2#,TCR1#,2# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
CXR1#,2#,TCR1#,2# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50006 |
CXR11,21,TCR11,21 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50006 |
CXR11,21,TCR11,21 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-28020 |
CXR11,21,TCR11,21 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-28020 |
CXR11,21,TCR11,21 |
2 | ||
| 41309C - BOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10028 |
CXR11,21,TCR11,21 |
8 | ||
| 41309C - BOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10028 |
CXR11,21,TCR11,21 |
8 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-22060 |
CXR21,TCR11,21 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
CXR11,21,TCR11,21 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
CXR11,21,TCR11,21 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
CXR11,21,TCR11,21 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
CXR11,21,TCR11,21 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65010 |
CXR11,21,TCR11,21 厚さ=2.67 |
2 | ||
| 90201-65012 |
CXR11,21,TCR11,21 厚さ=2.73 |
2 | ||
| 90201-65013 |
CXR11,21,TCR11,21 厚さ=2.76 |
2 | ||
| 90201-65009 |
CXR11,21,TCR11,21 厚さ=2.64 |
2 | ||
| 90201-65008 |
CXR11,21,TCR11,21 厚さ=2.61 |
2 | ||
| 90201-65011 |
CXR11,21,TCR11,21 厚さ=2.70 |
2 | ||
| 90201-65016 |
CXR11,21,TCR11,21 厚さ=2.85 |
2 | ||
| 90201-65014 |
CXR11,21,TCR11,21 厚さ=2.79 |
2 | ||
| 90201-65018 |
CXR11,21,TCR11,21 厚さ=2.91 |
2 | ||
| 90201-65015 |
CXR11,21,TCR11,21 厚さ=2.82 |
2 | ||
| 90201-65020 |
CXR11,21,TCR11,21 厚さ=2.97 |
2 | ||
| 90201-65017 |
CXR11,21,TCR11,21 厚さ=2.88 |
2 | ||
| 90201-65025 |
CXR11,21,TCR11,21 厚さ=3.12 |
2 | ||
| 90201-65019 |
CXR11,21,TCR11,21 厚さ=2.94 |
2 | ||
| 90201-65024 |
CXR11,21,TCR11,21 厚さ=3.09 |
2 | ||
| 90201-65007 |
CXR11,21,TCR11,21 厚さ=2.58 |
2 | ||
| 90201-65021 |
CXR11,21,TCR11,21 厚さ=3.00 |
2 | ||
| 90201-65022 |
CXR11,21,TCR11,21 厚さ=3.03 |
2 | ||
| 90201-65029 |
CXR11,21,TCR11,21 厚さ=3.24 |
2 | ||
| 90201-65027 |
CXR11,21,TCR11,21 厚さ=3.18 |
2 | ||
| 90201-65028 |
CXR11,21,TCR11,21 厚さ=3.21 |
2 | ||
| 90201-65023 |
CXR11,21,TCR11,21 厚さ=3.06 |
2 | ||
| 90201-65026 |
CXR11,21,TCR11,21 厚さ=3.15 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65010 |
CXR11,21,TCR11,21 厚さ=2.67 |
2 | ||
| 90201-65012 |
CXR11,21,TCR11,21 厚さ=2.73 |
2 | ||
| 90201-65013 |
CXR11,21,TCR11,21 厚さ=2.76 |
2 | ||
| 90201-65009 |
CXR11,21,TCR11,21 厚さ=2.64 |
2 | ||
| 90201-65008 |
CXR11,21,TCR11,21 厚さ=2.61 |
2 | ||
| 90201-65011 |
CXR11,21,TCR11,21 厚さ=2.70 |
2 | ||
| 90201-65016 |
CXR11,21,TCR11,21 厚さ=2.85 |
2 | ||
| 90201-65014 |
CXR11,21,TCR11,21 厚さ=2.79 |
2 | ||
| 90201-65018 |
CXR11,21,TCR11,21 厚さ=2.91 |
2 | ||
| 90201-65015 |
CXR11,21,TCR11,21 厚さ=2.82 |
2 | ||
| 90201-65020 |
CXR11,21,TCR11,21 厚さ=2.97 |
2 | ||
| 90201-65017 |
CXR11,21,TCR11,21 厚さ=2.88 |
2 | ||
| 90201-65025 |
CXR11,21,TCR11,21 厚さ=3.12 |
2 | ||
| 90201-65019 |
CXR11,21,TCR11,21 厚さ=2.94 |
2 | ||
| 90201-65024 |
CXR11,21,TCR11,21 厚さ=3.09 |
2 | ||
| 90201-65007 |
CXR11,21,TCR11,21 厚さ=2.58 |
2 | ||
| 90201-65021 |
CXR11,21,TCR11,21 厚さ=3.00 |
2 | ||
| 90201-65022 |
CXR11,21,TCR11,21 厚さ=3.03 |
2 | ||
| 90201-65029 |
CXR11,21,TCR11,21 厚さ=3.24 |
2 | ||
| 90201-65027 |
CXR11,21,TCR11,21 厚さ=3.18 |
2 | ||
| 90201-65028 |
CXR11,21,TCR11,21 厚さ=3.21 |
2 | ||
| 90201-65023 |
CXR11,21,TCR11,21 厚さ=3.06 |
2 | ||
| 90201-65026 |
CXR11,21,TCR11,21 厚さ=3.15 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
CXR11,21,TCR11,21 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
CXR11,21,TCR11,21 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
CXR11,21,TCR11,21 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
CXR11,21,TCR11,21 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30060 |
CXR1#,2#,TCR1#,2# 厚さ=1.2 |
2 | ||
| 41361-30070 |
CXR1#,2#,TCR1#,2# 厚さ=1.3 |
2 | ||
| 41361-30050 |
CXR1#,2#,TCR1#,2# 厚さ=1.1 |
2 | ||
| 41361-30040 |
CXR1#,2#,TCR1#,2# 厚さ=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30060 |
CXR1#,2#,TCR1#,2# 厚さ=1.2 |
2 | ||
| 41361-30070 |
CXR1#,2#,TCR1#,2# 厚さ=1.3 |
2 | ||
| 41361-30050 |
CXR1#,2#,TCR1#,2# 厚さ=1.1 |
2 | ||
| 41361-30040 |
CXR1#,2#,TCR1#,2# 厚さ=1.0 |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-28030 |
CXR11,21,TCR11,21 |
4 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-28030 |
CXR11,21,TCR11,21 |
4 | ||
| 41651E - COLLAR (FOR REAR DIFFERENTIAL MOUNT CUSHION) | ||||
| 90387-22007 |
CXR11,21,TCR11,21 |
2 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-28010 |
CXR11,21,TCR11,21 |
2 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-28010 |
CXR11,21,TCR11,21 |
1 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-28010 |
CXR11,21,TCR11,21 |
1 | ||
| 52383A - PROTECTOR, REAR DIFFERNTIAL SUPPORT | ||||
| 52383-28020 |
CXR11,21,TCR11,21 |
1 | ||
| Common parts | ||||
| 90101-14044 | ||||
| 90105-14017 | ||||
| 90109-12047 | ||||
| 90179-12056 | ||||
| 90179-14012 | ||||
| 90201-12058 | ||||
| 90201-14016 | ||||
| 90201-14020 | ||||
| 90201-22012 | ||||
| 91511-40812 | ||||
| 94180-40800 | ||||
