TCR21G-RFSGK (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

diagram 6784128030 6784228020 6784828022 81550B 81550B 81550D 81550D 81551 81551A 81555 81555A 81561 81561A 81565 81565A 9017906115 9018905027 9018906018 9033340001 9095006119 9354086020
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 1
90981-11039

CXR1#,2#,TCR1#,2#

12V 16W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 1
90981-11039

CXR1#,2#,TCR1#,2#

12V 16W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 1
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81581-28060

CXR1#,2#,TCR1#,2#

 1
81551-28080

CXR1#,2#,TCR1#,2#

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81551-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81551-28061

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28060

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28140

CXR1#,2#,TCR1#,2#

 1
81551-28061

CXR1#,2#,TCR1#,2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28080

CXR1#,2#,TCR1#,2#

 1
81585-28060

CXR1#,2#,TCR1#,2#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28050

CXR1#,2#,TCR1#,2#

 1
81555-28140

CXR1#,2#,TCR1#,2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28070

CXR1#,2#,TCR1#,2#

 1
81591-28060

CXR1#,2#,TCR1#,2#

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81561-28100

CXR1#,2#,TCR1#,2#

EMINA

 1
81561-28140

CXR1#,2#,TCR1#,2#

 1
81561-28101

CXR1#,2#,TCR1#,2#

 1
81561-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81561-28101

CXR1#,2#,TCR1#,2#

EMINA

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28080

CXR1#,2#,TCR1#,2#

 1
81585-28060

CXR1#,2#,TCR1#,2#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28140

CXR1#,2#,TCR1#,2#

 1
81555-28050

CXR1#,2#,TCR1#,2#

 1
Common parts
67841-28030
67842-28020
67848-28022
90179-06115
90189-05027
90189-06018
90333-40001
90950-06119
93540-86020

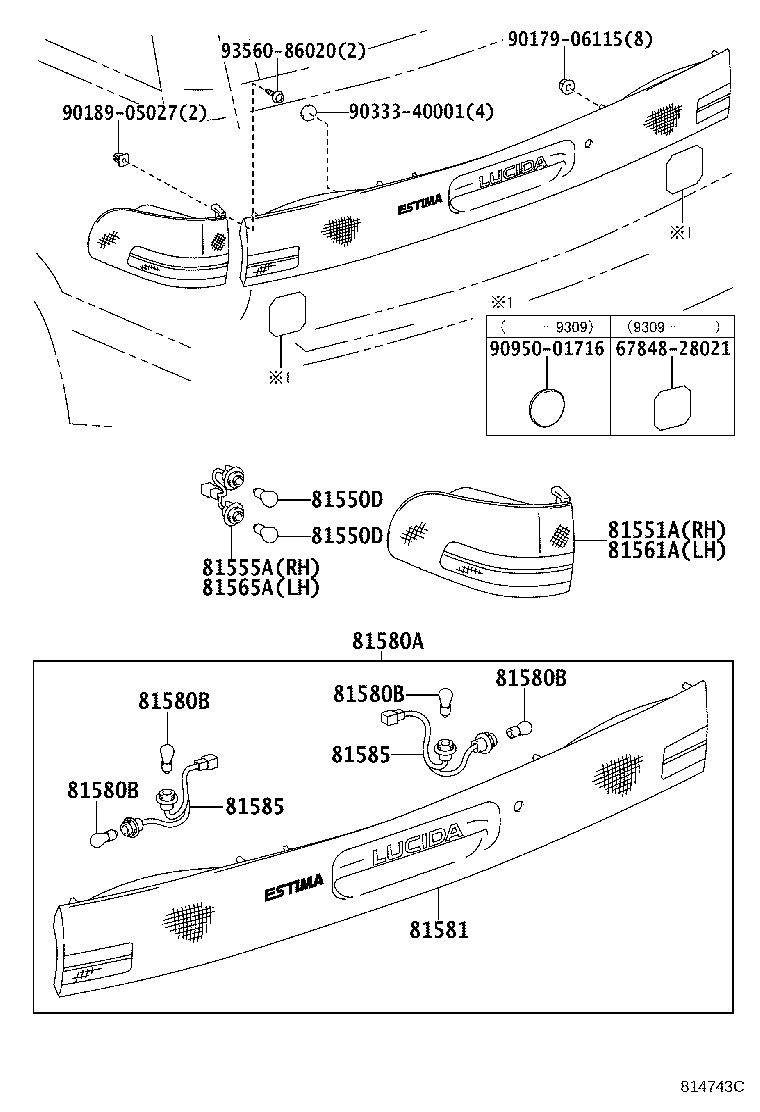

(9201-9501)

Click highlighted areas on diagram

diagram 6784828021 81550D 81550D 81551A 81555A 81561A 81565A 81580A 81580B 81580B 81580B 81580B 81581 81585 81585 9017906115 9018905027 9033340001 9095001716 9356086020
Part # Description Qty Price
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81551A - LENS, REAR COMBINATION LAMP, RH
81551-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81551-28061

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28060

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28140

CXR1#,2#,TCR1#,2#

 1
81551-28061

CXR1#,2#,TCR1#,2#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28050

CXR1#,2#,TCR1#,2#

 1
81555-28140

CXR1#,2#,TCR1#,2#

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81561-28100

CXR1#,2#,TCR1#,2#

EMINA

 1
81561-28140

CXR1#,2#,TCR1#,2#

 1
81561-28101

CXR1#,2#,TCR1#,2#

 1
81561-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81561-28101

CXR1#,2#,TCR1#,2#

EMINA

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28140

CXR1#,2#,TCR1#,2#

 1
81555-28050

CXR1#,2#,TCR1#,2#

 1
81580A - LAMP ASSY, REAR
81550-28120

CXR1#,2#,TCR1#,2#

EMINA

 1
81550-28121

CXR1#,2#,TCR1#,2#

EMINA

 1
81550-28110

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81580B - BULB (FOR REAR LAMP)
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
81580B - BULB (FOR REAR LAMP)
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
81580B - BULB (FOR REAR LAMP)
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
81580B - BULB (FOR REAR LAMP)
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
81581 - LENS, REAR LAMP
81551-28120

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28110

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81551-28121

CXR1#,2#,TCR1#,2#

EMINA

 1
81585 - SOCKET & WIRE, REAR LAMP
81555-28110

CXR1#,2#,TCR1#,2#

 2
81585 - SOCKET & WIRE, REAR LAMP
81555-28110

CXR1#,2#,TCR1#,2#

 2
Common parts
67848-28021
90179-06115
90189-05027
90333-40001
90950-01716
93560-86020

(9501-9608)

Click highlighted areas on diagram

diagram 6761 6784828021 6784828021 81550 81550B 81550B 81550D 81550D 81551 81551A 81555 81555A 81560 81561 81561A 81565 81565A 9017906115 9018905027 9033340001 9356086020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-28080

CXR1#,2#,TCR1#,2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 1
90981-11039

CXR1#,2#,TCR1#,2#

12V 16W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 1
90981-11039

CXR1#,2#,TCR1#,2#

12V 16W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 1
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CXR1#,2#,TCR1#,2#

12V 21W

 2
90981-11043

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
99132-21210

CXR1#,2#,TCR1#,2#

12V 21/5W

 2
90981-11042

CXR1#,2#,TCR1#,2#

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81581-28060

CXR1#,2#,TCR1#,2#

 1
81551-28080

CXR1#,2#,TCR1#,2#

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81551-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81551-28061

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28060

CXR1#,2#,TCR1#,2#

EMINA

 1
81551-28140

CXR1#,2#,TCR1#,2#

 1
81551-28061

CXR1#,2#,TCR1#,2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28080

CXR1#,2#,TCR1#,2#

 1
81585-28060

CXR1#,2#,TCR1#,2#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28050

CXR1#,2#,TCR1#,2#

 1
81555-28140

CXR1#,2#,TCR1#,2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-28070

CXR1#,2#,TCR1#,2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28070

CXR1#,2#,TCR1#,2#

 1
81591-28060

CXR1#,2#,TCR1#,2#

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81561-28100

CXR1#,2#,TCR1#,2#

EMINA

 1
81561-28140

CXR1#,2#,TCR1#,2#

 1
81561-28101

CXR1#,2#,TCR1#,2#

 1
81561-28050

CXR1#,2#,TCR1#,2#

LUCIDA

 1
81561-28101

CXR1#,2#,TCR1#,2#

EMINA

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28080

CXR1#,2#,TCR1#,2#

 1
81585-28060

CXR1#,2#,TCR1#,2#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28140

CXR1#,2#,TCR1#,2#

 1
81555-28050

CXR1#,2#,TCR1#,2#

 1
Common parts
67848-28021
90179-06115
90189-05027
90333-40001
93560-86020
Linked diagrams
6761
