Toyota Estima emina/lucida TCR10 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
ESTIMA EMINA/LUCIDA
TCR10G-RRSQK (1995)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

TCR10G-RRSQK (1995)

Toyota Estima Emina/Lucida

Production Jan 1995 - Dec 1999

Engine 2TZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

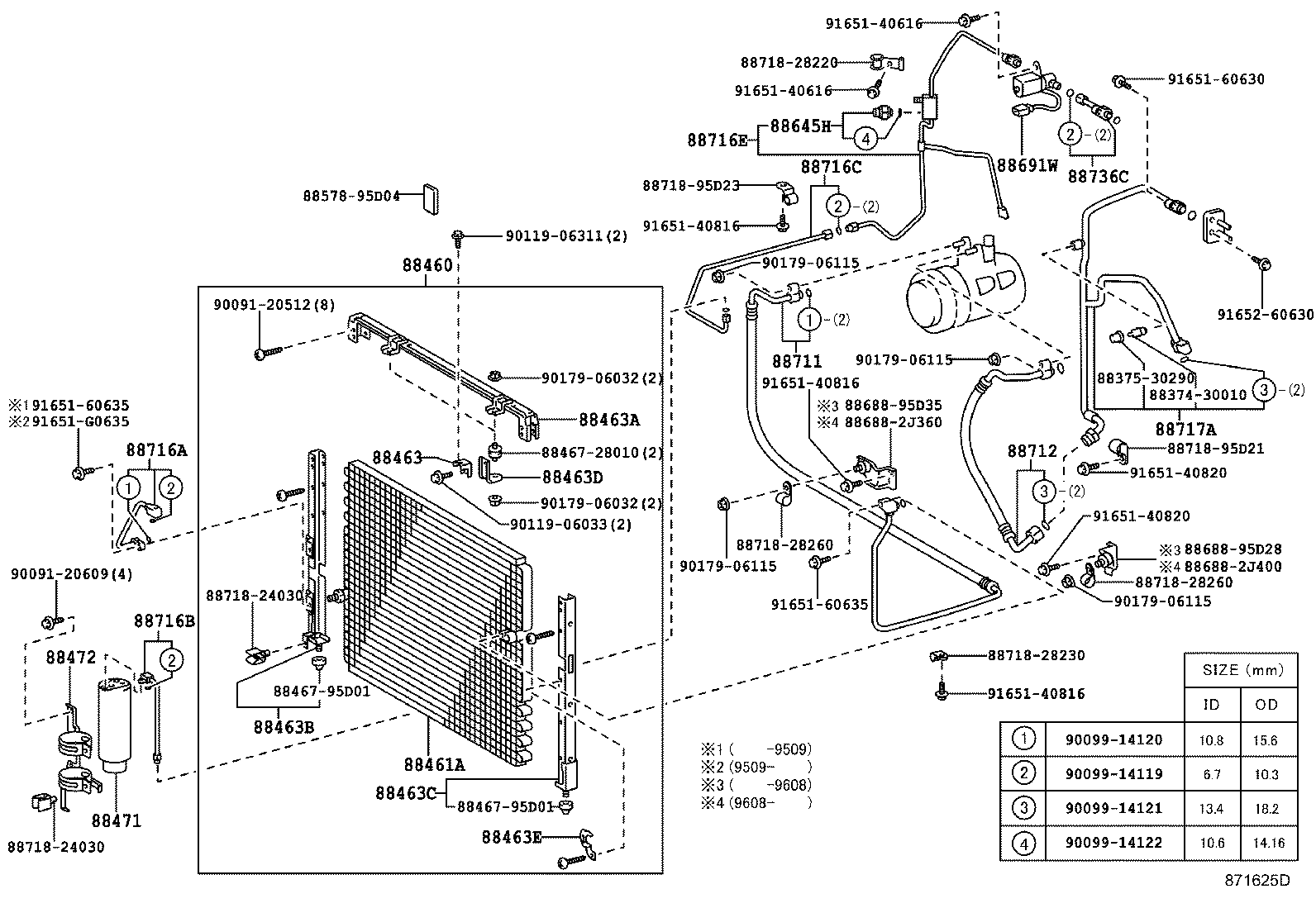

ILLUST NO. 1 OF 2(9508-9604)CXR1#,2# ; (9604- )

Click highlighted areas on diagram

FRONT, W(COOL BOX)

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-28100	CXR10,20,TCR10..D,F ﾃﾞｲﾗｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88460-28240	TCR1#,2#	08/1995 - 04/1996	1
88460-28421	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88460-28420	CXR1#,2#	08/1995 - 04/1996	1
88460-28050	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88461A - CORE, COOLER CONDENSER
88461-28060	TCR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88461-28220	CXR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88461-28030	CXR1#,2#,TCR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88461-28221	CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶｵﾌﾟｼﾖﾝ	04/1996 - 12/1999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-28070	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-28400	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28110	TCR1#,2#	08/1995 - 04/1996	1
88463-28110	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463-28400	CXR1#,2#	08/1995 - 04/1996	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-28120	TCR1#,2#	08/1995 - 04/1996	1
88463-28410	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28410	CXR1#,2#	08/1995 - 04/1996	1
88463-28120	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-28420	CXR1#,2#	08/1995 - 04/1996	1
88463-28420	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28130	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463-28130	TCR1#,2#	08/1995 - 04/1996	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-28140	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	2
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-28430	CXR1#,2#	08/1995 - 04/1996	1
88463-28250	TCR1#,2#	08/1995 - 04/1996	1
88463-28150	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88463-28150	CXR10,20,TCR10..D,F ﾃﾞｲﾗｵﾌﾟｼﾖﾝ	01/1992 - 08/1993	2
88463-28430	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-28120	CXR1#,2#	08/1995 - 04/1996	1
88472-28120	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88472-28020	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88472-28040	TCR1#,2#	08/1995 - 04/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-30281	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88691W - VALVE, MAGNET
88690-28100	CXR1#,2#,TCR1#,2#..F,G,S,X	01/1992 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-28840	CXR1#,2#	08/1995 - 04/1996	1
88711-28880	CXR1#,2#,TCR1#,2#	04/1996 - 08/1996	1
88711-28320	TCR1#,2#	08/1995 - 04/1996	1
88711-28070	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88711-28890	CXR1#,2#,TCR1#,2#	08/1996 - 12/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28030	TCR1#,2#	01/1992 - 08/1993	1
88712-28560	CXR1#,2#,TCR1#,2#	08/1996 - 12/1999	1
88712-28040	CXR1#,2#	01/1992 - 08/1993	1
88712-28220	CXR1#,2#,TCR1#,2#	01/1995 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470	CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88716-2R560	CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	04/1996 - 12/1999	1
88716-2R560	CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88716-2J330	TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28760	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28460	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-28240	CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88710-28270	TCR1#,2#	01/1992 - 08/1993	1
88710-28280	TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88710-2R200	CXR1#,2#	08/1996 - 08/1999	1
88710-28230	CXR1#,2#	01/1992 - 08/1993	1
88710-2R220	TCR1#,2#	08/1996 - 12/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-28300	TCR1#,2#	01/1992 - 08/1993	1
88717-2J750	TCR1#,2#	08/1996 - 12/1999	1
88717-2J770	CXR1#,2#	08/1996 - 08/1999	1
88717-28310	TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88717-28250	CXR1#,2#	01/1992 - 08/1993	1
88736C - TUBE, LIQUID, C(FOR COOL BOX)
88716-28450	CXR1#,2#,TCR1#,2#..F,G,S,X	01/1992 - 08/1993	1
Common parts
88374-30010
88375-30290
88467-28010
88467-95D01
88578-95D04
88688-2J360
88688-2J400
88688-95D28
88688-95D35
88718-24030
88718-28220
88718-28230
88718-28260
88718-95D21
88718-95D23
90091-20512
90091-20609
90099-14119
90099-14120
90099-14121
90099-14122
90119-06033
90119-06311
90179-06032
90179-06115
91651-40616
91651-40816
91651-40820
91651-60630
91651-60635
91651-G0635
91652-60630

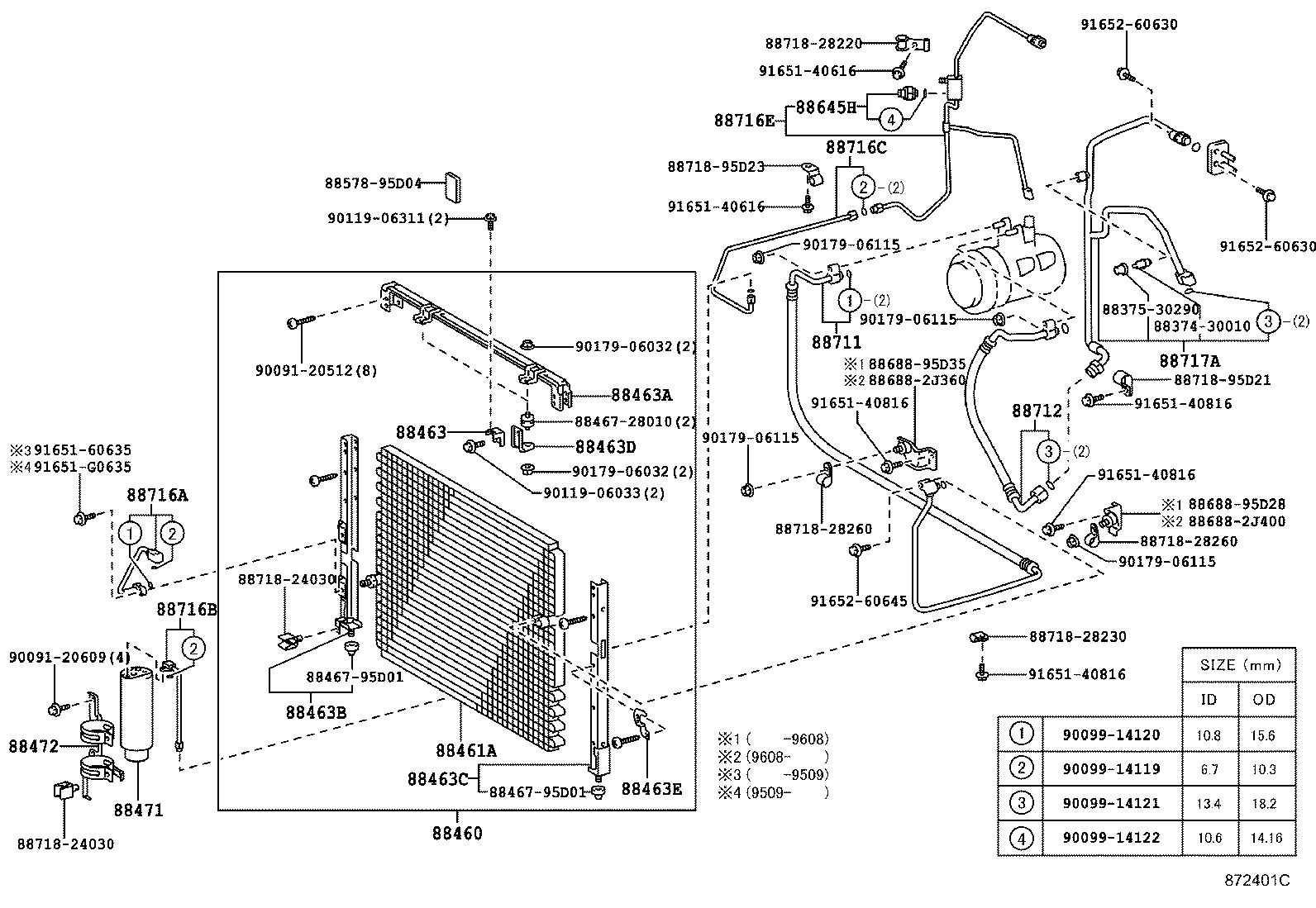

ILLUST NO. 1 OF 2(9508-9604)CXR1#,2# ; (9604- )

Click highlighted areas on diagram

FRONT,W/O(COOL BOX)

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-28100	CXR10,20,TCR10..D,F ﾃﾞｲﾗｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88460-28240	TCR1#,2#	08/1995 - 04/1996	1
88460-28421	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88460-28420	CXR1#,2#	08/1995 - 04/1996	1
88460-28050	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88461A - CORE, COOLER CONDENSER
88461-28060	TCR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88461-28220	CXR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88461-28030	CXR1#,2#,TCR1#,2# ﾒ-ｶｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88461-28221	CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶｵﾌﾟｼﾖﾝ	04/1996 - 12/1999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-28070	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-28400	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28110	TCR1#,2#	08/1995 - 04/1996	1
88463-28110	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463-28400	CXR1#,2#	08/1995 - 04/1996	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-28120	TCR1#,2#	08/1995 - 04/1996	1
88463-28410	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28410	CXR1#,2#	08/1995 - 04/1996	1
88463-28120	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-28420	CXR1#,2#	08/1995 - 04/1996	1
88463-28420	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88463-28130	CXR1#,2#,TCR1#,2#	01/1992 - 08/1995	1
88463-28130	TCR1#,2#	08/1995 - 04/1996	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-28140	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	2
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-28430	CXR1#,2#	08/1995 - 04/1996	1
88463-28250	TCR1#,2#	08/1995 - 04/1996	1
88463-28150	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88463-28150	CXR10,20,TCR10..D,F ﾃﾞｲﾗｵﾌﾟｼﾖﾝ	01/1992 - 08/1993	2
88463-28430	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-28120	CXR1#,2#	08/1995 - 04/1996	1
88472-28120	CXR1#,2#,TCR1#,2#	04/1996 - 12/1999	1
88472-28020	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88472-28040	TCR1#,2#	08/1995 - 04/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-30281	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-28840	CXR1#,2#	08/1995 - 04/1996	1
88711-28880	CXR1#,2#,TCR1#,2#	04/1996 - 08/1996	1
88711-28320	TCR1#,2#	08/1995 - 04/1996	1
88711-28070	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88711-28890	CXR1#,2#,TCR1#,2#	08/1996 - 12/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28030	TCR1#,2#	01/1992 - 08/1993	1
88712-28560	CXR1#,2#,TCR1#,2#	08/1996 - 12/1999	1
88712-28040	CXR1#,2#	01/1992 - 08/1993	1
88712-28220	CXR1#,2#,TCR1#,2#	01/1995 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470	CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ	01/1992 - 03/1993	1
88716-2R560	CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	04/1996 - 12/1999	1
88716-2R560	CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88716-2J330	TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28760	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28460	CXR1#,2#,TCR1#,2#	01/1992 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-28240	CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88710-28270	TCR1#,2#	01/1992 - 08/1993	1
88710-28280	TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88710-2R200	CXR1#,2#	08/1996 - 08/1999	1
88710-28230	CXR1#,2#	01/1992 - 08/1993	1
88710-2R220	TCR1#,2#	08/1996 - 12/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-28300	TCR1#,2#	01/1992 - 08/1993	1
88717-2J750	TCR1#,2#	08/1996 - 12/1999	1
88717-2J770	CXR1#,2#	08/1996 - 08/1999	1
88717-28310	TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙﾎﾞﾂｸｽ)	01/1992 - 08/1993	1
88717-28250	CXR1#,2#	01/1992 - 08/1993	1
Common parts
88374-30010
88375-30290
88467-28010
88467-95D01
88578-95D04
88688-2J360
88688-2J400
88688-95D28
88688-95D35
88718-24030
88718-28220
88718-28230
88718-28260
88718-95D21
88718-95D23
90091-20512
90091-20609
90099-14119
90099-14120
90099-14121
90099-14122
90119-06033
90119-06311
90179-06032
90179-06115
91651-40616
91651-40816
91651-60635
91651-G0635
91652-60630
91652-60645
