TCR10G-RRSQK (1995)

Toyota Estima Emina/Lucida

Production Jan 1995 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

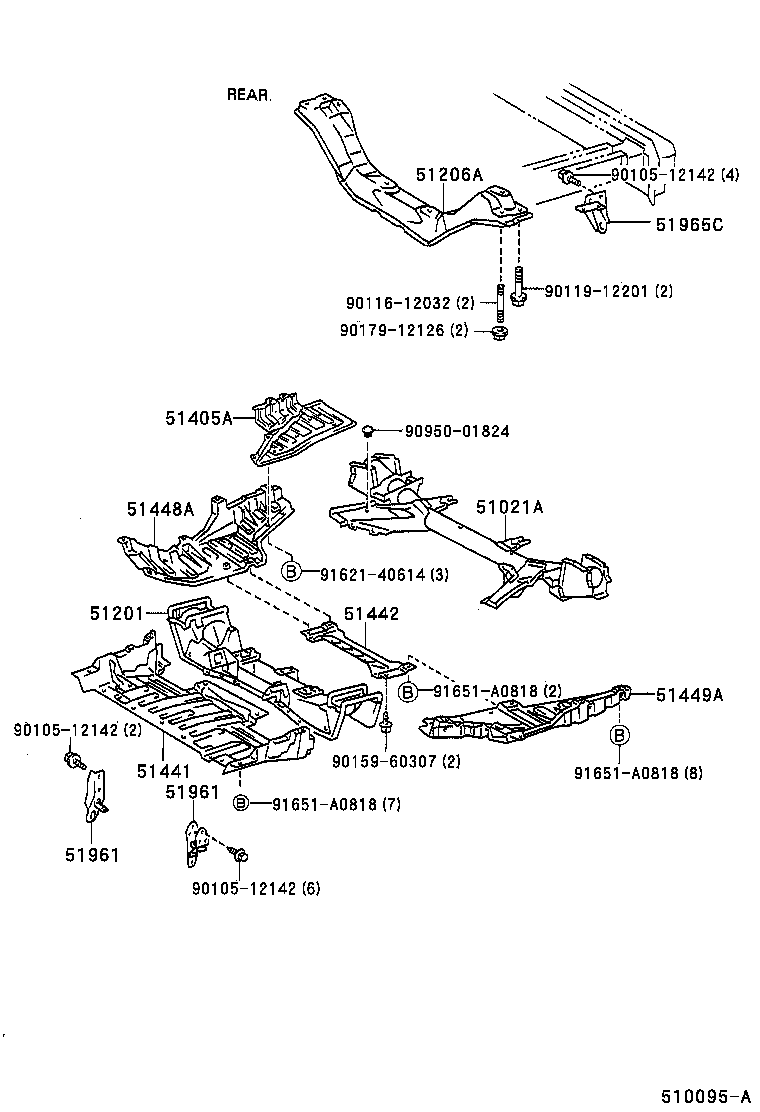

(9201-9608)TCR1#,2#

Click highlighted areas on diagram

diagram 51021A 51201 51206A 51405A 51441 51442 51448A 51449A 51961 51961 51965C 9010512142 9010512142 9010512142 9011612032 9011912201 9015960307 9017912126 9095001824 9162140614 91651A0818 91651A0818 91651A0818
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-28080

CXR1#,TCR1#

 1
51021-28010

TCR1#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28020

CXR1#,TCR1#

 1
51201-28040

CXR1#,TCR1#

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-28060

TCR1#,2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28040

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
51410-28030

TCR1#,2#

 1
51410-28020

TCR1#,2#

 1
51410-28010

CXR1#,2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-28010

CXR1#,2#..ATM

 1
51406-28030

TCR1#,2#;CXR1#,2#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-28030

TCR1#,2#

 1
51448-28050

TCR1#,2#

 1
51440-28030

CXR1#,2#

 1
51440-28080

CXR1#,2#

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51965C - HOOK, REAR
51965-28020

CXR1#,2#,TCR1#,2#

 1
Common parts
90105-12142
90116-12032
90119-12201
90159-60307
90179-12126
90950-01824
91621-40614
91651-A0818

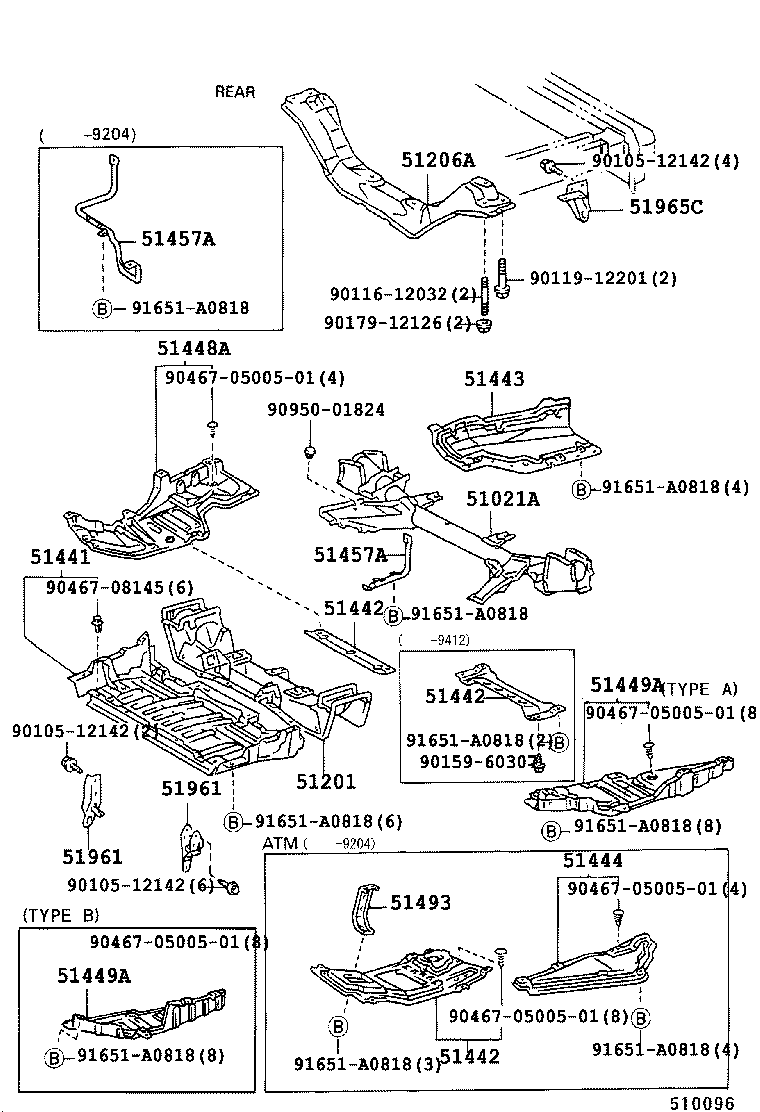

(9201-9608)CXR1#,2#

Click highlighted areas on diagram

diagram 51021A 51201 51206A 51441 51442 51442 51442 51443 51444 51448A 51449A 51449A 51457A 51457A 51493 51961 51961 51965C 9010512142 9010512142 9010512142 9011612032 9011912201 9015960307 9017912126 904670500501 904670500501 904670500501 904670500501 904670500501 9046708145 9095001824 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-28080

CXR1#,TCR1#

 1
51021-28010

TCR1#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28020

CXR1#,TCR1#

 1
51201-28040

CXR1#,TCR1#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28040

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
51410-28030

TCR1#,2#

 1
51410-28020

TCR1#,2#

 1
51410-28010

CXR1#,2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-28010

CXR1#,2#..ATM

 1
51406-28030

TCR1#,2#;CXR1#,2#..MTM

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-28010

CXR1#,2#..ATM

 1
51406-28030

TCR1#,2#;CXR1#,2#..MTM

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-28010

CXR1#,2#..ATM

 1
51406-28030

TCR1#,2#;CXR1#,2#..MTM

 1
51443 - COVER, ENGINE UNDER, REAR RH
51460-28030

CXR1#,2#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51470-28020

CXR1#,2#..ATM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-28030

TCR1#,2#

 1
51448-28050

TCR1#,2#

 1
51440-28030

CXR1#,2#

 1
51440-28080

CXR1#,2#

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51457A - BRACKET, ENGINE UNDER COVER, NO.3
51407-28020

CXR1#,2#

 1
51457A - BRACKET, ENGINE UNDER COVER, NO.3
51407-28020

CXR1#,2#

 1
51493 - BRACKET, UNDER GUARD
51493-28010

CXR1#,2#..ATM

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51965C - HOOK, REAR
51965-28020

CXR1#,2#,TCR1#,2#

 1
Common parts
90105-12142
90116-12032
90119-12201
90159-60307
90179-12126
90467-0500501
90467-08145
90950-01824
91651-A0818

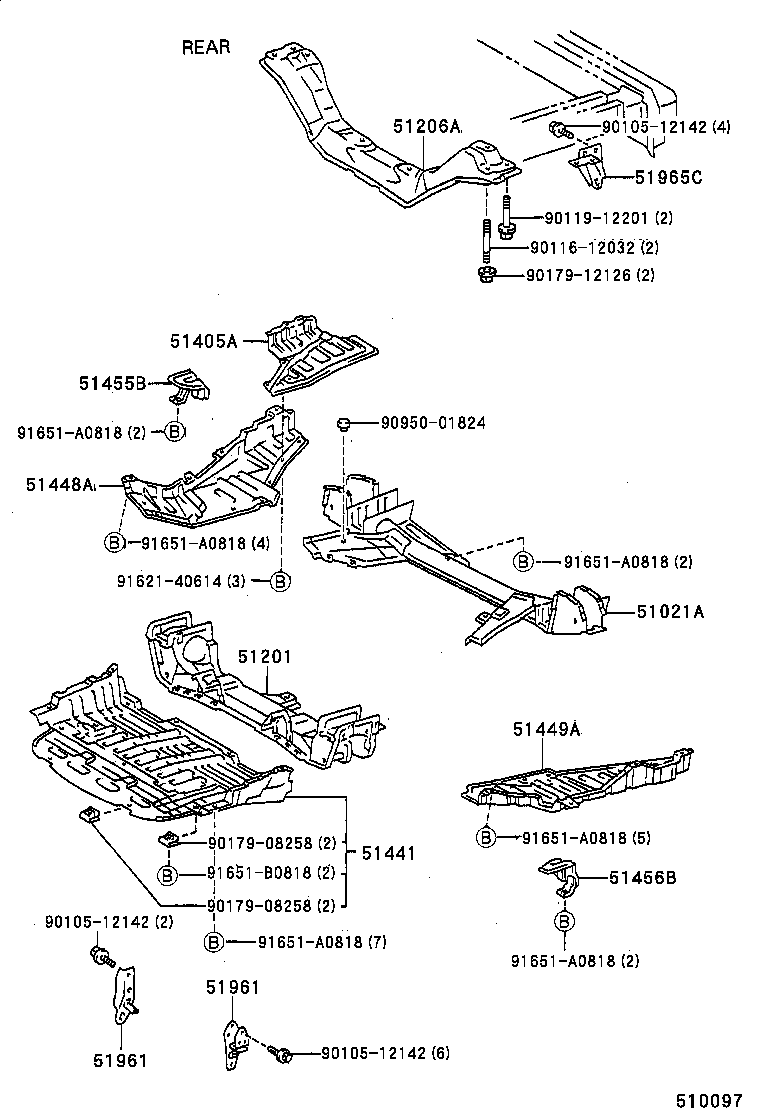

(9608- )TCR1#,2#

Click highlighted areas on diagram

diagram 51021A 51201 51206A 51405A 51441 51448A 51449A 51455B 51456B 51961 51961 51965C 9010512142 9010512142 9010512142 9011612032 9011912201 9017908258 9017908258 9017912126 9095001824 9162140614 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651B0818
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-28080

CXR1#,TCR1#

 1
51021-28010

TCR1#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28020

CXR1#,TCR1#

 1
51201-28040

CXR1#,TCR1#

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-28060

TCR1#,2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28040

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
51410-28030

TCR1#,2#

 1
51410-28020

TCR1#,2#

 1
51410-28010

CXR1#,2#

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-28030

TCR1#,2#

 1
51448-28050

TCR1#,2#

 1
51440-28030

CXR1#,2#

 1
51440-28080

CXR1#,2#

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51455B - BRACKET, ENGINE UNDER COVER, REAR RH
51047-28010

CXR1#,2#,TCR1#,2#

 1
51456B - BRACKET, ENGINE UNDER COVER, REAR LH
51048-28010

CXR1#,2#,TCR1#,2#

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51965C - HOOK, REAR
51965-28020

CXR1#,2#,TCR1#,2#

 1
Common parts
90105-12142
90116-12032
90119-12201
90179-08258
90179-12126
90950-01824
91621-40614
91651-A0818
91651-B0818

(9608- )CXR1#,2#

Click highlighted areas on diagram

diagram 51021A 51201 51206A 51441 51443 51448A 51449A 51449A 51455B 51456B 51457A 51961 51961 51965C 9010512142 9010512142 9010512142 9011612032 9011912201 9017912126 904670500501 904670500501 904670500501 9046708145 9095001824 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-28080

CXR1#,TCR1#

 1
51021-28010

TCR1#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28020

CXR1#,TCR1#

 1
51201-28040

CXR1#,TCR1#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28040

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
51410-28030

TCR1#,2#

 1
51410-28020

TCR1#,2#

 1
51410-28010

CXR1#,2#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51460-28030

CXR1#,2#

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-28030

TCR1#,2#

 1
51448-28050

TCR1#,2#

 1
51440-28030

CXR1#,2#

 1
51440-28080

CXR1#,2#

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51450-28020

CXR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51449-28040

CXR1#,2#,TCR1#,2#..EFI,TDEFI

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51450-28040

CXR1#,2#..ATM

 1
51449-28050

TCR1#,2#;CXR10,20..MTM

 1
51455B - BRACKET, ENGINE UNDER COVER, REAR RH
51047-28010

CXR1#,2#,TCR1#,2#

 1
51456B - BRACKET, ENGINE UNDER COVER, REAR LH
51048-28010

CXR1#,2#,TCR1#,2#

 1
51457A - BRACKET, ENGINE UNDER COVER, NO.3
51407-28020

CXR1#,2#

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51961 - HOOK, NO.1
51970-28020

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),右側

 1
51980-28030

CXR10,TCR10..XLUX

ｼﾔﾙﾑ & ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),左側

 1
51980-28010

CXR1#,2#,TCR1#,2#

左側

 1
51970-28010

CXR1#,2#,TCR1#,2#

右側

 1
51965C - HOOK, REAR
51965-28020

CXR1#,2#,TCR1#,2#

 1
Common parts
90105-12142
90116-12032
90119-12201
90179-12126
90467-0500501
90467-08145
90950-01824
91651-A0818
