TCR10G-RRSQK (1995)
Toyota Estima Emina/Lucida

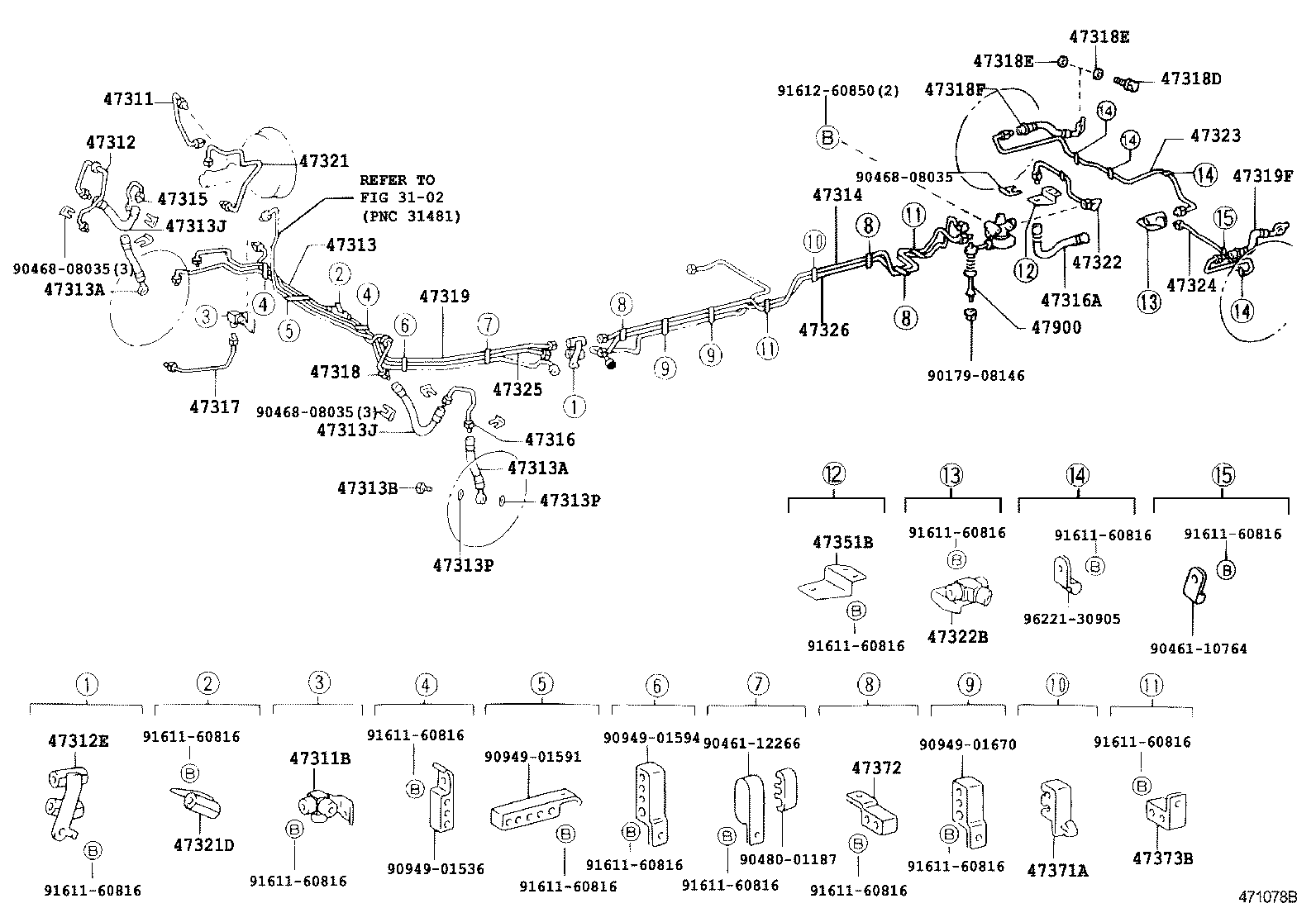

ILLUST NO. 1 OF 2(9501-9608)TCR10,20
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28301 |
CXR1#,2# |
1 | ||
| 47311-28290 |
CXR1#,2# |
1 | ||
| 47311-28270 |
TCR1#,2# |
1 | ||
| 47311-28281 |
TCR1#,2# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10042 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47312-28182 |
CXR1#,2# |
1 | ||
| 47312-28170 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47312-28251 |
TCR1#,2# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10191 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28160 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47313-28182 |
CXR1#,2# |
1 | ||
| 47313-28251 |
TCR1#,2# |
1 | ||
| 47313-28161 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28180 |
CXR10,20,TCR10,20 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02883 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02617 |
CXR10,20,TCR10,20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28090 |
TCR1#,2# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28031 |
TCR1#,2# |
1 | ||
| 47318-28032 |
TCR1#,2# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
CXR10,20,TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CXR10,20,TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CXR10,20,TCR10,20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02A39 |
CXR10,20,TCR10,20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47319-28010 |
CXR1#,2# ｱﾘ(*66) |
1 | ||
| 47319-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A40 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02898 |
CXR10,20,TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28270 |
TCR1#,2# |
1 | ||
| 47321-28290 |
CXR1#,2# |
1 | ||
| 47321-28420 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47321-28421 |
TCR1#,2# |
1 | ||
| 47321-28271 |
TCR1#,2# |
1 | ||
| 47321-28302 |
CXR1#,2# |
1 | ||
| 47321-28291 |
CXR1#,2# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10178 |
TCR1#,2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28170 |
CXR10,20,TCR10,20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
CXR10,20,TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28230 |
CXR10,20,TCR10,20 |
1 | ||
| 47323-28320 |
CXR10,20,TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28160 |
CXR10,20,TCR10,20 |
1 | ||
| 47324-28190 |
CXR10,20,TCR10,20 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28221 |
TCR1#,2# |
1 | ||
| 47325-28220 |
TCR1#,2# |
1 | ||
| 47325-28162 |
CXR1#,2# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28110 |
CXR10,20,TCR10,20 |
1 | ||
| 47326-28220 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
CXR10,20,TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01594 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372-25010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06112 |
CXR1#,2# |
3 | ||
| 47373-25010 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90461-06112 |
TCR10,20 |
7 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-28200 |
CXR10,20,TCR10,20 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-10764 | ||||
| 90461-12266 | ||||
| 90468-08035 | ||||
| 90480-01187 | ||||
| 90949-01536 | ||||
| 90949-01591 | ||||
| 90949-01594 | ||||
| 90949-01670 | ||||
| 91611-60816 | ||||
| 91612-60850 | ||||
| 96221-30905 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 2(9608- )TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28301 |
CXR1#,2# |
1 | ||
| 47311-28290 |
CXR1#,2# |
1 | ||
| 47311-28270 |
TCR1#,2# |
1 | ||
| 47311-28281 |
TCR1#,2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47312-28182 |
CXR1#,2# |
1 | ||
| 47312-28170 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47312-28251 |
TCR1#,2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28160 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47313-28182 |
CXR1#,2# |
1 | ||
| 47313-28251 |
TCR1#,2# |
1 | ||
| 47313-28161 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02883 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02617 |
CXR10,20,TCR10,20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28031 |
TCR1#,2# |
1 | ||
| 47318-28032 |
TCR1#,2# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
CXR10,20,TCR10,20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
CXR10,20,TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CXR10,20,TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CXR10,20,TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CXR10,20,TCR10,20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02A39 |
CXR10,20,TCR10,20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A40 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02898 |
CXR10,20,TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28270 |
TCR1#,2# |
1 | ||
| 47321-28290 |
CXR1#,2# |
1 | ||
| 47321-28420 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47321-28421 |
TCR1#,2# |
1 | ||
| 47321-28271 |
TCR1#,2# |
1 | ||
| 47321-28302 |
CXR1#,2# |
1 | ||
| 47321-28291 |
CXR1#,2# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10178 |
TCR1#,2# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
CXR10,20,TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28230 |
CXR10,20,TCR10,20 |
1 | ||
| 47323-28320 |
CXR10,20,TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28160 |
CXR10,20,TCR10,20 |
1 | ||
| 47324-28190 |
CXR10,20,TCR10,20 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28221 |
TCR1#,2# |
1 | ||
| 47325-28220 |
TCR1#,2# |
1 | ||
| 47325-28162 |
CXR1#,2# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28110 |
CXR10,20,TCR10,20 |
1 | ||
| 47326-28220 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
CXR10,20,TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01594 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372-25010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06112 |
CXR1#,2# |
3 | ||
| 47373-25010 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90461-06112 |
TCR10,20 |
7 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-25010 |
TCR1#,2# |
4 | ||
| Common parts | ||||
| 90461-10764 | ||||
| 90468-08035 | ||||
| 91611-60816 | ||||
| 96221-30905 | ||||

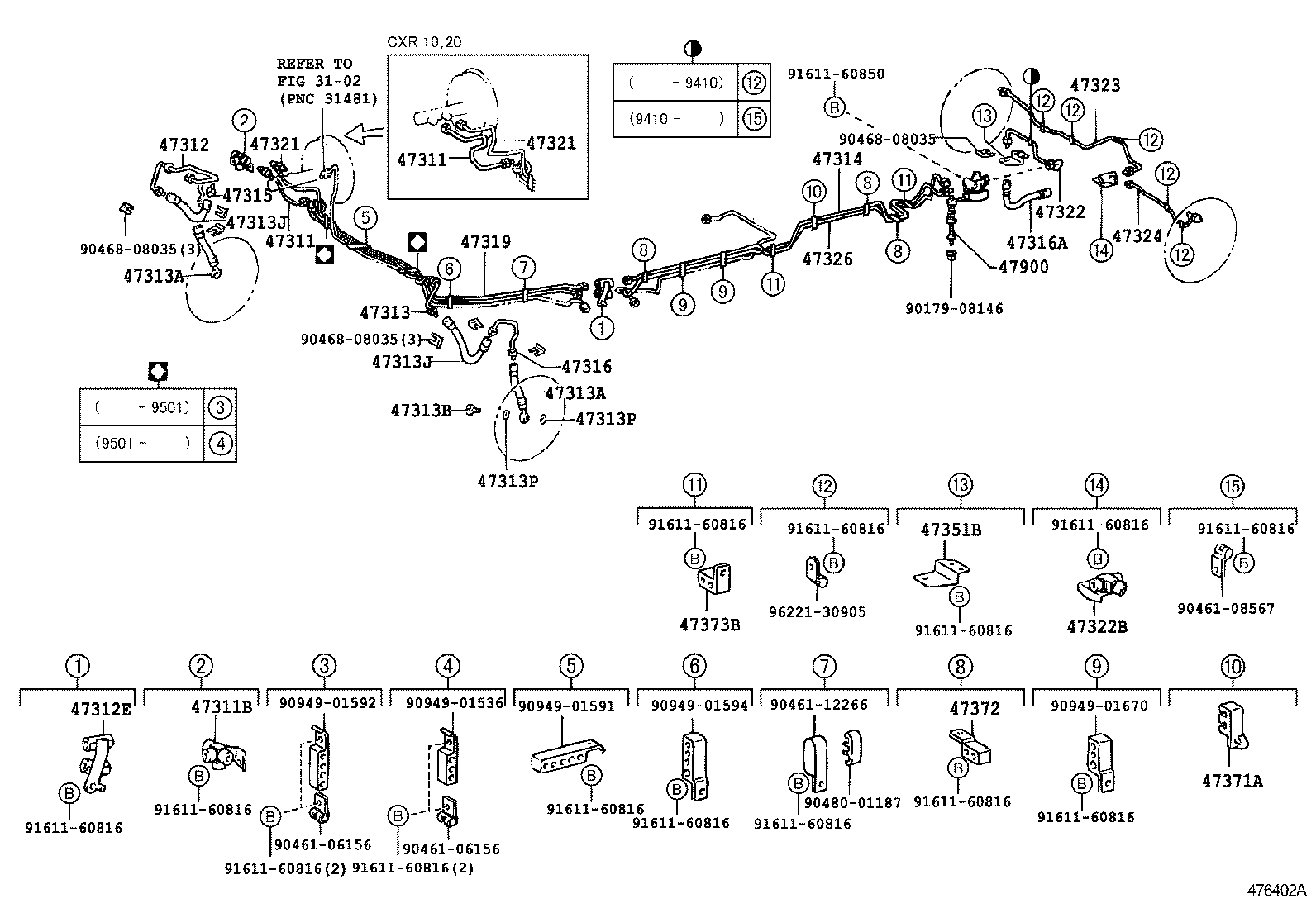

(9201-9608)CXR10,20,TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28301 |
CXR1#,2# |
1 | ||
| 47311-28290 |
CXR1#,2# |
1 | ||
| 47311-28270 |
TCR1#,2# |
1 | ||
| 47311-28281 |
TCR1#,2# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28301 |
CXR1#,2# |
1 | ||
| 47311-28290 |
CXR1#,2# |
1 | ||
| 47311-28270 |
TCR1#,2# |
1 | ||
| 47311-28281 |
TCR1#,2# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10042 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47312-28182 |
CXR1#,2# |
1 | ||
| 47312-28170 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47312-28251 |
TCR1#,2# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10191 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28160 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313-28250 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47313-28182 |
CXR1#,2# |
1 | ||
| 47313-28251 |
TCR1#,2# |
1 | ||
| 47313-28161 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02882 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90947-02604 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02720 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28180 |
CXR10,20,TCR10,20 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02883 |
CXR10,20,TCR10,20 |
1 | ||
| 90947-02617 |
CXR10,20,TCR10,20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47319-28010 |
CXR1#,2# ｱﾘ(*66) |
1 | ||
| 47319-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28270 |
TCR1#,2# |
1 | ||
| 47321-28290 |
CXR1#,2# |
1 | ||
| 47321-28420 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47321-28421 |
TCR1#,2# |
1 | ||
| 47321-28271 |
TCR1#,2# |
1 | ||
| 47321-28302 |
CXR1#,2# |
1 | ||
| 47321-28291 |
CXR1#,2# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28270 |
TCR1#,2# |
1 | ||
| 47321-28290 |
CXR1#,2# |
1 | ||
| 47321-28420 |
TCR1#,2# ｱﾘ(ABS) |
1 | ||
| 47321-28421 |
TCR1#,2# |
1 | ||
| 47321-28271 |
TCR1#,2# |
1 | ||
| 47321-28302 |
CXR1#,2# |
1 | ||
| 47321-28291 |
CXR1#,2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28170 |
CXR10,20,TCR10,20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
CXR10,20,TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28230 |
CXR10,20,TCR10,20 |
1 | ||
| 47323-28320 |
CXR10,20,TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28160 |
CXR10,20,TCR10,20 |
1 | ||
| 47324-28190 |
CXR10,20,TCR10,20 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28110 |
CXR10,20,TCR10,20 |
1 | ||
| 47326-28220 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
CXR10,20,TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01594 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 47372-25010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06112 |
CXR1#,2# |
3 | ||
| 47373-25010 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90461-06112 |
TCR10,20 |
7 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-28200 |
CXR10,20,TCR10,20 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06156 | ||||
| 90461-08567 | ||||
| 90461-12266 | ||||
| 90468-08035 | ||||
| 90480-01187 | ||||
| 90949-01536 | ||||
| 90949-01591 | ||||
| 90949-01592 | ||||
| 90949-01594 | ||||
| 90949-01670 | ||||
| 91611-60816 | ||||
| 91611-60850 | ||||
| 96221-30905 | ||||
| Linked diagrams | ||||
| 3102 | ||||

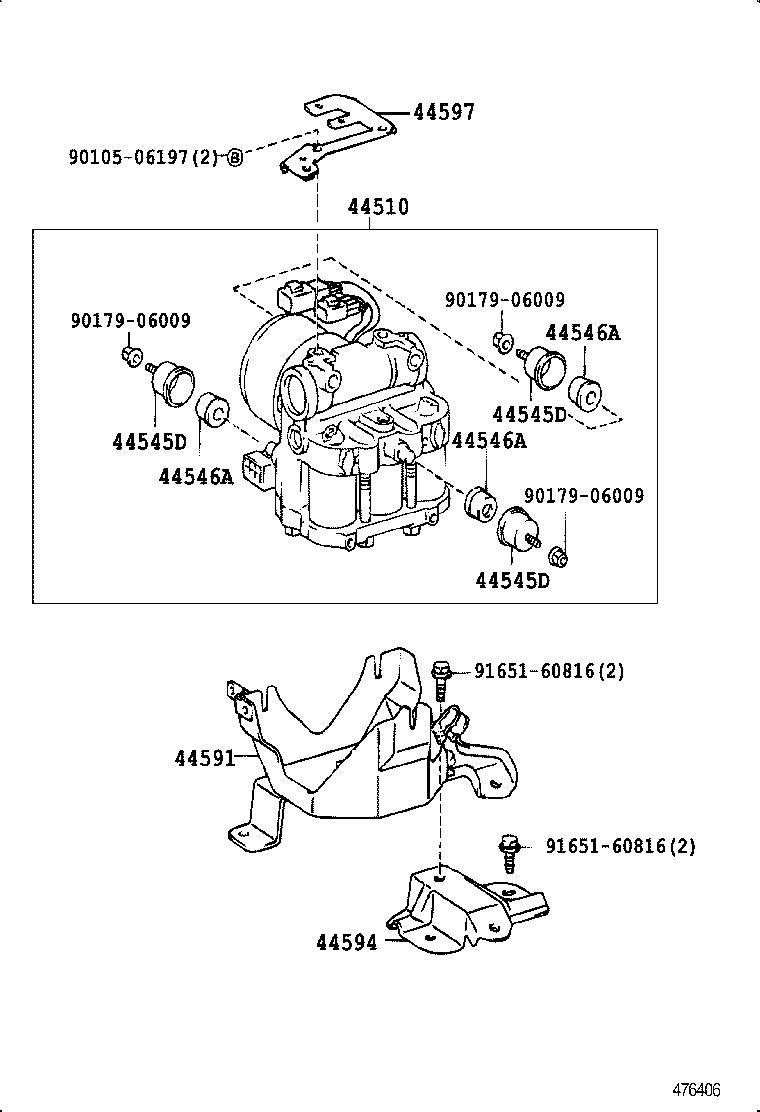

ILLUST NO. 2 OF 2(9501-9608)TCR1#,2#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44510-28060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44050-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44545-42020 |
CXR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44545-42020 |
CXR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44545-42020 |
CXR1#,2# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28070 |
TCR1#,2# |
1 | ||
| 44590-28041 |
TCR1#,2# |
1 | ||
| 44590-28090 |
CXR1#,2# |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-28040 |
TCR1#,2# |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-28040 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90179-06009 | ||||
| 91651-60816 | ||||
ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44510-28060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44050-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44545-42020 |
CXR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44545-42020 |
CXR1#,2# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CXR1#,2# |
3 | ||
| 44546-33010 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28070 |
TCR1#,2# |
1 | ||
| 44590-28041 |
TCR1#,2# |
1 | ||
| 44590-28090 |
CXR1#,2# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
