TCR10G-RRSQK (1995)
Toyota Estima Emina/Lucida

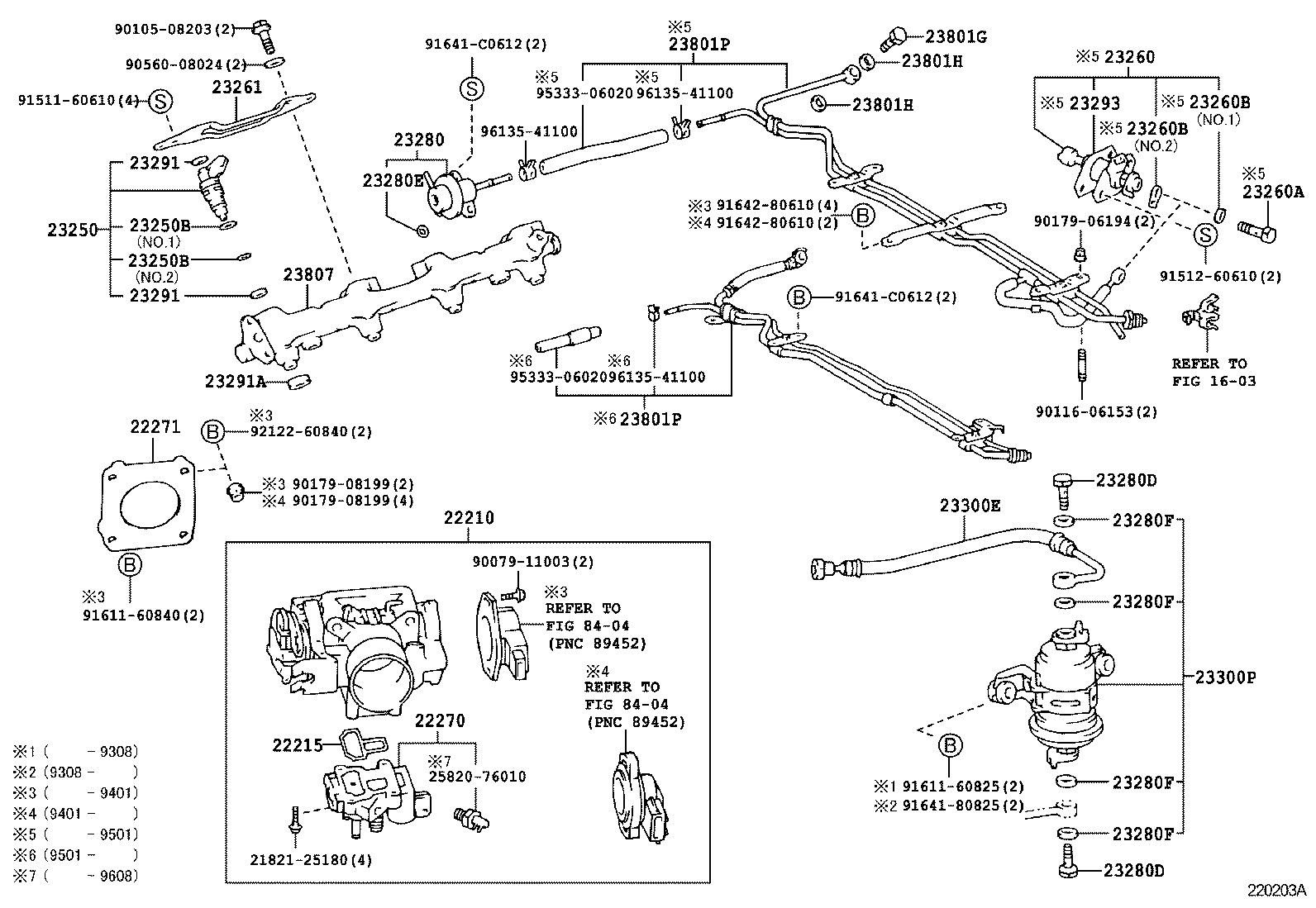

ILLUST NO. 1 OF 2(9201- )2TZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-76021 |
2TZFE..TCR1#,2# |
1 | ||
| 22210-76060 |
2TZFE..TCR1#,2# |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 22270-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79045 |
2TZFE..TCR1#,2# |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2TZFE..TCR1#,2# NO.1 |
4 | ||
| 90301-17007 |
2TZFE..TCR1#,2# NO.2 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2TZFE..TCR1#,2# NO.1 |
4 | ||
| 90301-17007 |
2TZFE..TCR1#,2# NO.2 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79205 |
2TZFE..TCR1#,2# |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-08003 |
2TZFE..TCR1#,2# |
1 | ||
| 23260B - GASKET | ||||
| 90430-08015 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 90430-08014 |
2TZFE..TCR1#,2# NO.1 |
1 | ||
| 23260B - GASKET | ||||
| 90430-08015 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 90430-08014 |
2TZFE..TCR1#,2# NO.1 |
1 | ||
| 23261 - COVER, INJECTOR | ||||
| 23261-76010 |
2TZFE..TCR1#,2# |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
2TZFE..TCR1#,2# |
2 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
2TZFE..TCR1#,2# |
2 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
2TZFE..TCR1#,2# |
1 | ||
| 90301-07024 |
2TZFE..TCR1#,2# |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
4 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
4 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
4 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75020 |
2TZFE..TCR1#,2# |
8 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75020 |
2TZFE..TCR1#,2# |
8 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2TZFE..TCR1#,2# |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-75010 |
2TZFE..TCR1#,2# |
1 | ||
| 23300E - HOSE, FUEL | ||||
| 90923-01391 |
2TZFE..TCR1#,2# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79285 |
2TZFE..TCR1#,2# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
2TZFE..TCR1#,2# |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2TZFE..TCR1#,2# |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 23801-76040 |
2TZFE..TCR1#,2# |
1 | ||
| 23801-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 23801-76040 |
2TZFE..TCR1#,2# |
1 | ||
| 23801-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-76010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 25820-76010 | ||||
| 90079-11003 | ||||
| 90105-08203 | ||||
| 90116-06153 | ||||
| 90179-06194 | ||||
| 90179-08199 | ||||
| 90560-08024 | ||||
| 91511-60610 | ||||
| 91512-60610 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91641-80825 | ||||
| 91641-C0612 | ||||
| 91642-80610 | ||||
| 92122-60840 | ||||
| 95333-06020 | ||||
| 96135-41100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8404 | ||||

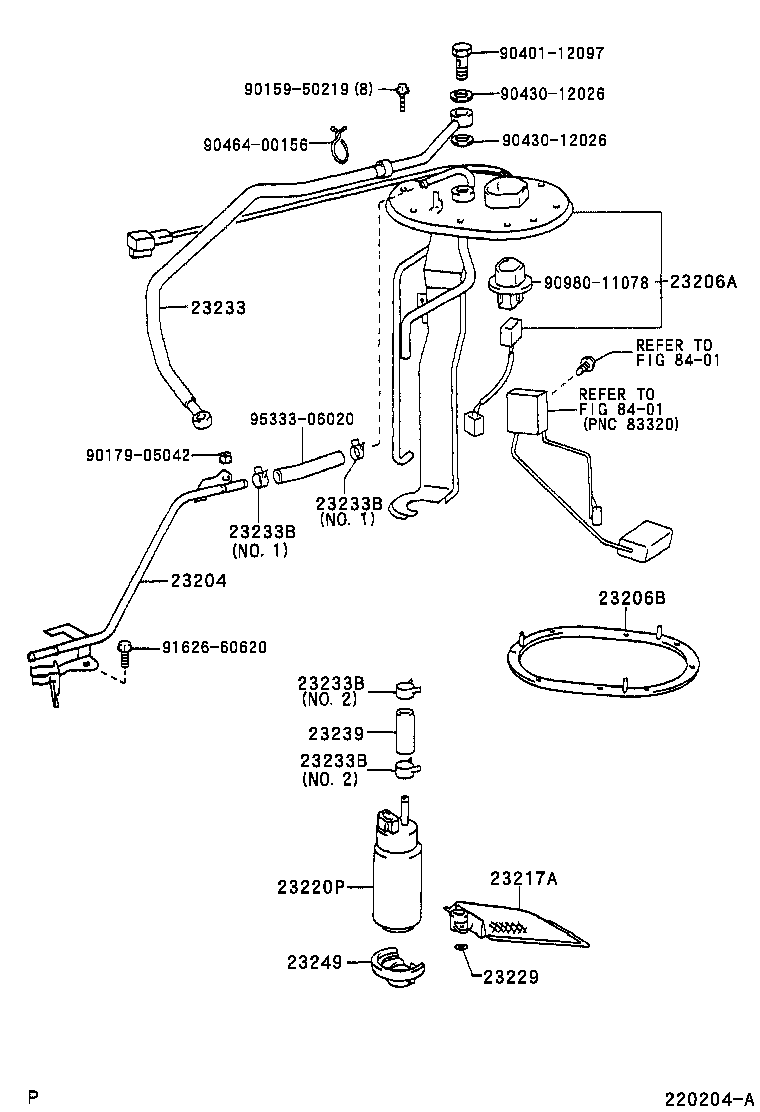

ILLUST NO. 2 OF 2(9201- )2TZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-76040 |
2TZFE..TCR1#,2# |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-76050 |
2TZFE..TCR1#,2# |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
2TZFE..TCR1#,2# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74030 |
2TZFE..TCR1#,2# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
2TZFE..TCR1#,2# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2TZFE..TCR1#,2# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23091-76040 |
2TZFE..TCR1#,2# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12056 |
2TZFE..TCR1#,2# NO.1 |
2 | ||
| 90467-13054 |
2TZFE..TCR1#,2# NO.2 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12056 |
2TZFE..TCR1#,2# NO.1 |
2 | ||
| 90467-13054 |
2TZFE..TCR1#,2# NO.2 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12056 |
2TZFE..TCR1#,2# NO.1 |
2 | ||
| 90467-13054 |
2TZFE..TCR1#,2# NO.2 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12056 |
2TZFE..TCR1#,2# NO.1 |
2 | ||
| 90467-13054 |
2TZFE..TCR1#,2# NO.2 |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
2TZFE..TCR1#,2# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90464-00156 | ||||
| 90980-11078 | ||||
| 91626-60620 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
