TCR10G-RRSQK (1995)

Toyota Estima Emina/Lucida

Production Jan 1995 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )2TZFE

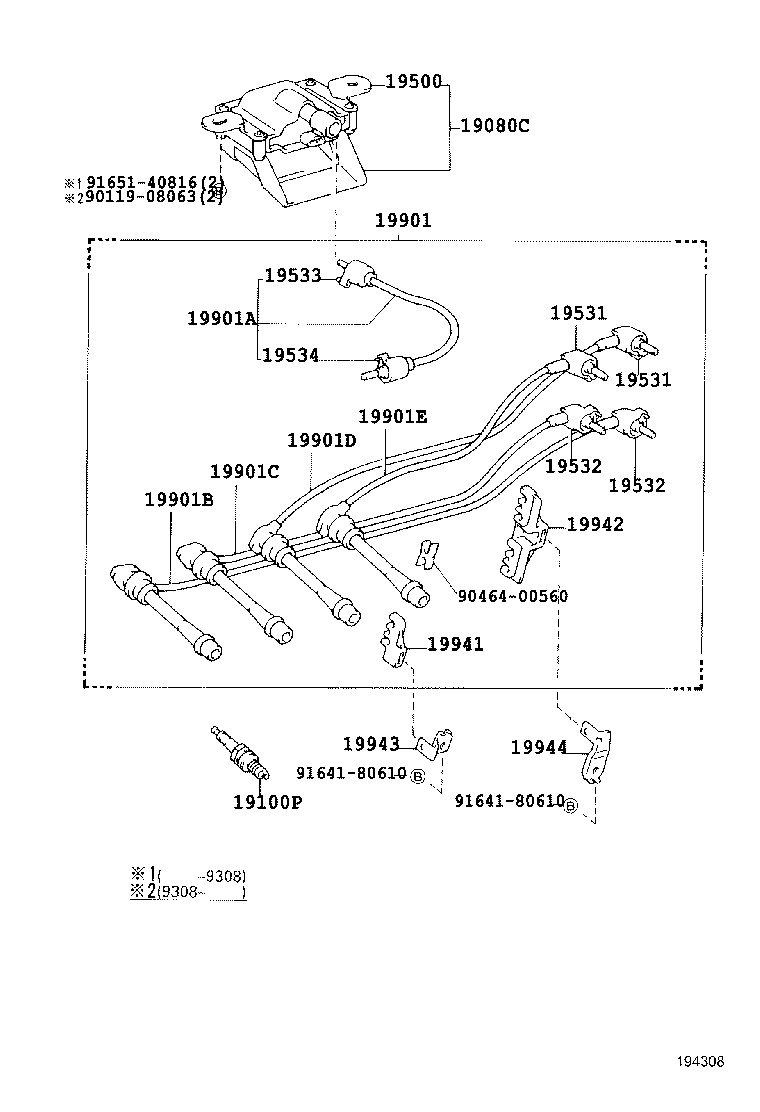

Click highlighted areas on diagram

diagram 19080C 19100P 19500 19531 19531 19532 19532 19533 19534 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19944 9011908063 9046400560 9164180610 9164180610 9165140816
Part # Description Qty Price
19080C - COIL ASSY, W/BRACKET
19080-76010

2TZFE..TCR1#,2#

 1
19100P - PLUG, SPARK
90919-01168

2TZFE..TCR1#,2#

PK16R11,NIPPONDENSO

 4
90919-01169

2TZFE..TCR1#,2#

BKR5EP−11,NGK

 4
19500 - COIL ASSY, IGNITION
90919-02200

2TZFE..TCR1#,2#

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-76010

2TZFE..TCR1#,2#

 2
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-76010

2TZFE..TCR1#,2#

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-76020

2TZFE..TCR1#,2#

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-76020

2TZFE..TCR1#,2#

 2
19533 - HOLDER, RESISTIVE CORD, NO.3
19533-76010

2TZFE..TCR1#,2#

 1
19534 - HOLDER, RESISTIVE CORD, NO.4
19534-76010

2TZFE..TCR1#,2#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21489

2TZFE..TCR1#,2#

 1
19901A - CORD, COIL RESISTIVE
90919-13354

2TZFE..TCR1#,2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15084

2TZFE..TCR1#,2#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15085

2TZFE..TCR1#,2#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15086

2TZFE..TCR1#,2#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15087

2TZFE..TCR1#,2#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-76010

2TZFE..TCR1#,2#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-76010

2TZFE..TCR1#,2#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-76010

2TZFE..TCR1#,2#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-76010

2TZFE..TCR1#,2#

 1
Common parts
90119-08063
90464-00560
91641-80610
91651-40816
