TCR10G-RRSQK (1995)

Toyota Estima Emina/Lucida

Production Jan 1995 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )2TZFE

Click highlighted areas on diagram

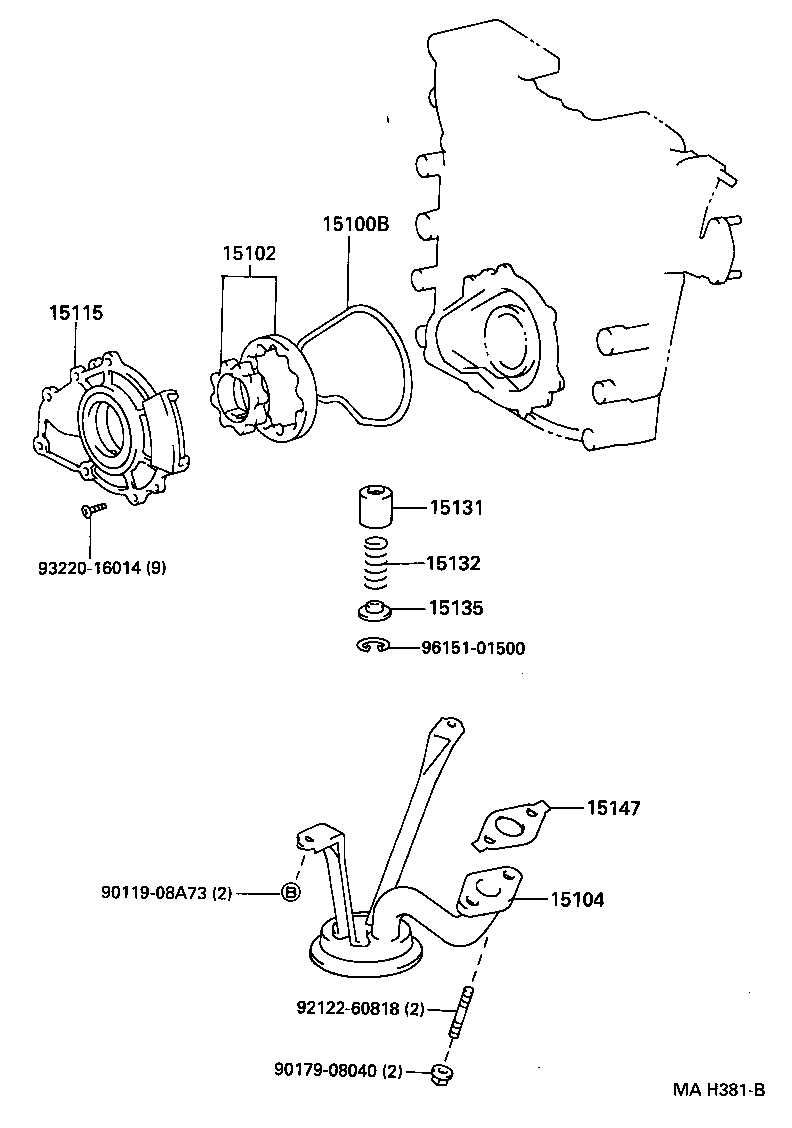

diagram 15100B 15102 15104 15115 15131 15132 15135 15147 9011908A73 9017908040 9212260818 9322016014 9615101500
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
15188-76040

2TZFE..TCR1#,2#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-76040

2TZFE..TCR1#,2#

 1
15115 - COVER, OIL PUMP
15115-76040

2TZFE..TCR1#,2#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2TZFE..TCR1#,2#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-75010

2TZFE..TCR1#,2#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2TZFE..TCR1#,2#

 1
15147 - GASKET, OIL STRAINER
15147-76020

2TZFE..TCR1#,2#

 1
Common parts
90119-08A73
90179-08040
92122-60818
93220-16014
96151-01500
