TCR10G-RRSNK (1992)
Toyota Estima Emina/Lucida

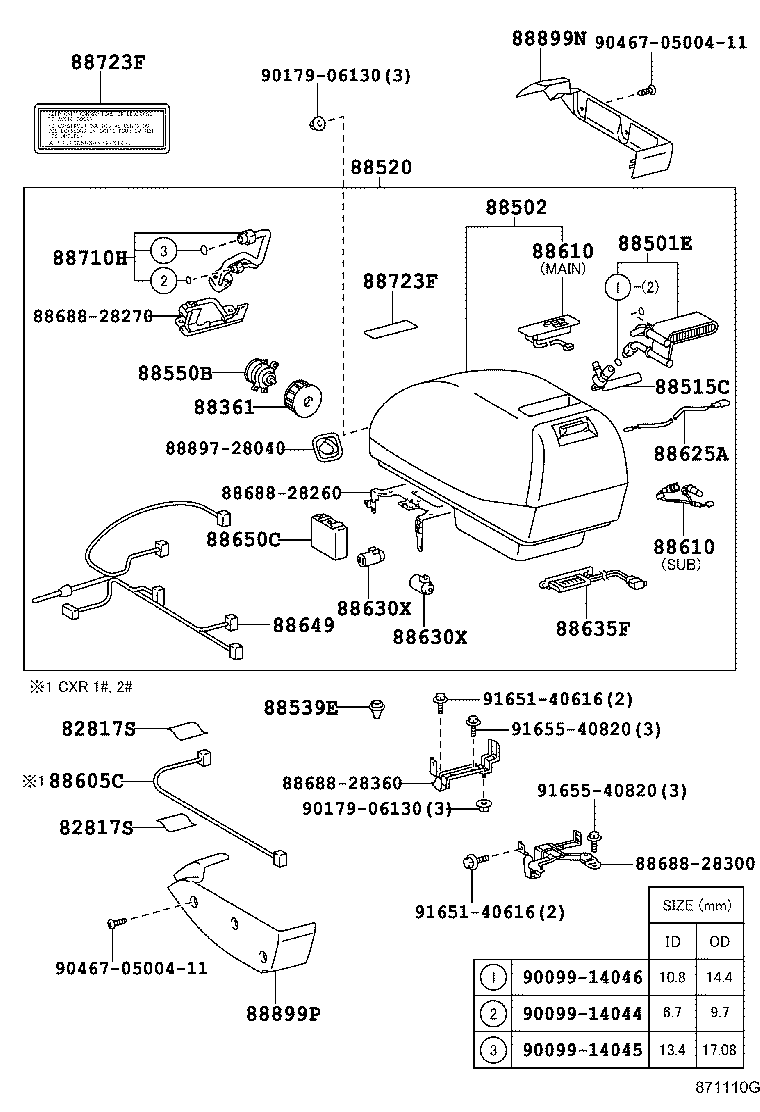

ILLUST NO. 3 OF 3(9201-9308)
ｸｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28030 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28170B0 |
CXR1#,2#,TCR1#,2#..F,G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28170E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-28130B0 |
CXR1#,2#..F,G,X LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28130E0 |
CXR1#,2#..G,X LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-28040E1 |
TCR1#,2#..G,X LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-28040B0 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28040 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-2J170 |
CXR1#,2#..F,G,X |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28070 |
CXR1#,2#,TCR1#,2#..F,G,S,X MAIN |
1 | ||
| 88610-95713 |
CXR1#,2#,TCR1#,2#..F,G,S,X SUB |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28070 |
CXR1#,2#,TCR1#,2#..F,G,S,X MAIN |
1 | ||
| 88610-95713 |
CXR1#,2#,TCR1#,2#..F,G,S,X SUB |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
2 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
2 | ||
| 88635F - RESISTER, COOLER BLOWER | ||||
| 88635-95D00 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-28280 |
TCR1#,2# |
1 | ||
| 88605-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28200 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88723F - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28150 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88723F - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28150 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-28150E1 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28150B0 |
CXR1#,2#,TCR1#,2#..F,G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28140E1 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28140B0 |
CXR1#,2#,TCR1#,2#..F,G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 88688-28260 | ||||
| 88688-28270 | ||||
| 88688-28300 | ||||
| 88688-28360 | ||||
| 88897-28040 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90179-06130 | ||||
| 90467-0500411 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
ILLUST NO. 2 OF 3(9201-9308)
ﾘﾔ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 87105-28010 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 87105-28010 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88550-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88550-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88501-28060 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 82630-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-28260B0 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28210B0 |
CXR10,20,TCR1#,2#..D,F,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28261B0 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28211B0 |
CXR10,20,TCR1#,2#..D,F,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28150E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4#,UPPER |
1 | ||
| 88502-28150B0 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28160E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4#,LOWER |
1 | ||
| 88502-28160B0 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28150E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4#,UPPER |
1 | ||
| 88502-28150B0 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28160E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAIGE,TRIM4#,LOWER |
1 | ||
| 88502-28160B0 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-28010 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88544-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-28010 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88544-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28010 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88560-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28010 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88560-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28030 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88570-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28030 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88570-28020 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-28830 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX CURTAIN SWITCH |
1 | ||
| 88605-28270 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88605-28830 |
CXR10,20..AERAS;CXR10,20,TCR1#,2#..(AERAS,S,X)..(EFI,TD) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),CURTAIN SWITCH |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-28830 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX CURTAIN SWITCH |
1 | ||
| 88605-28270 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88605-28830 |
CXR10,20..AERAS;CXR10,20,TCR1#,2#..(AERAS,S,X)..(EFI,TD) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),CURTAIN SWITCH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X NO.1 ﾌﾛﾝﾄ |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 88899-28300 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| Linked diagrams | ||||
| 8401 | ||||

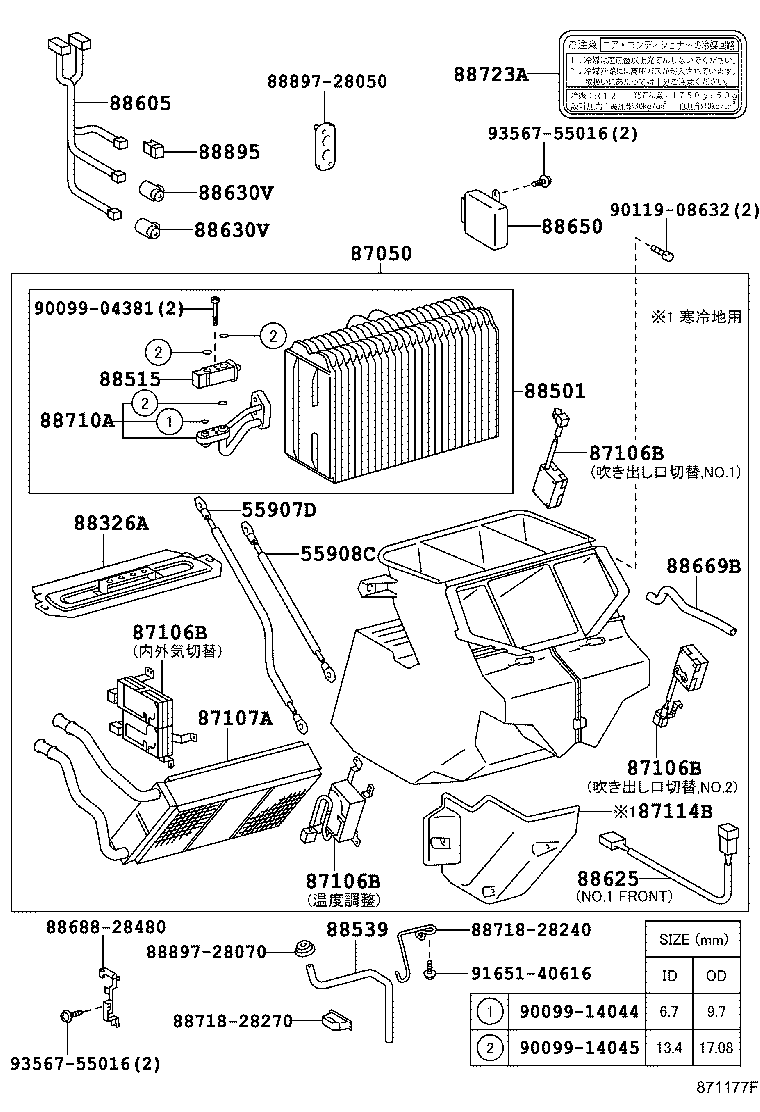

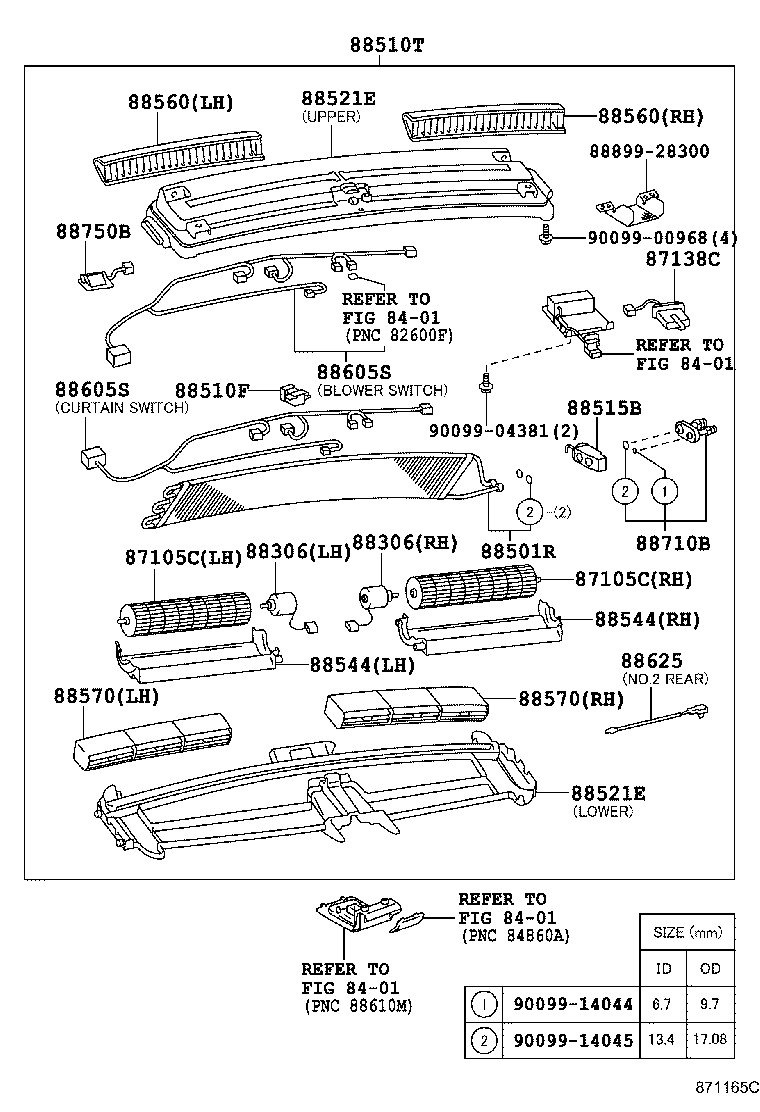

ILLUST NO. 1 OF 3(9201-9308)
ﾌﾛﾝﾄ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28010 |
CXR10,20,TCR1#,2#..D,F,S,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87107-28060 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D05 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-95D05 |
CXR10,20,TCR1#,2#..D,F,S,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88515-33010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28430 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88605-28840 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88605-28420 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X NO.1 ﾌﾛﾝﾄ |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95701 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88630-14030 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-16090 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28130 |
CXR1#,2# |
1 | ||
| 88650-28140 |
TCR1#,2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28730 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28140 |
CXR1#,2#,TCR1#,2# R12 |
1 | ||
| 88895 - HOLDER, FUSE | ||||
| 88895-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 88688-28480 | ||||
| 88718-28240 | ||||
| 88897-28020 | ||||
| 88897-28050 | ||||
| 88897-28070 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90119-08632 | ||||
| 91651-40816 | ||||
| 93567-55016 | ||||

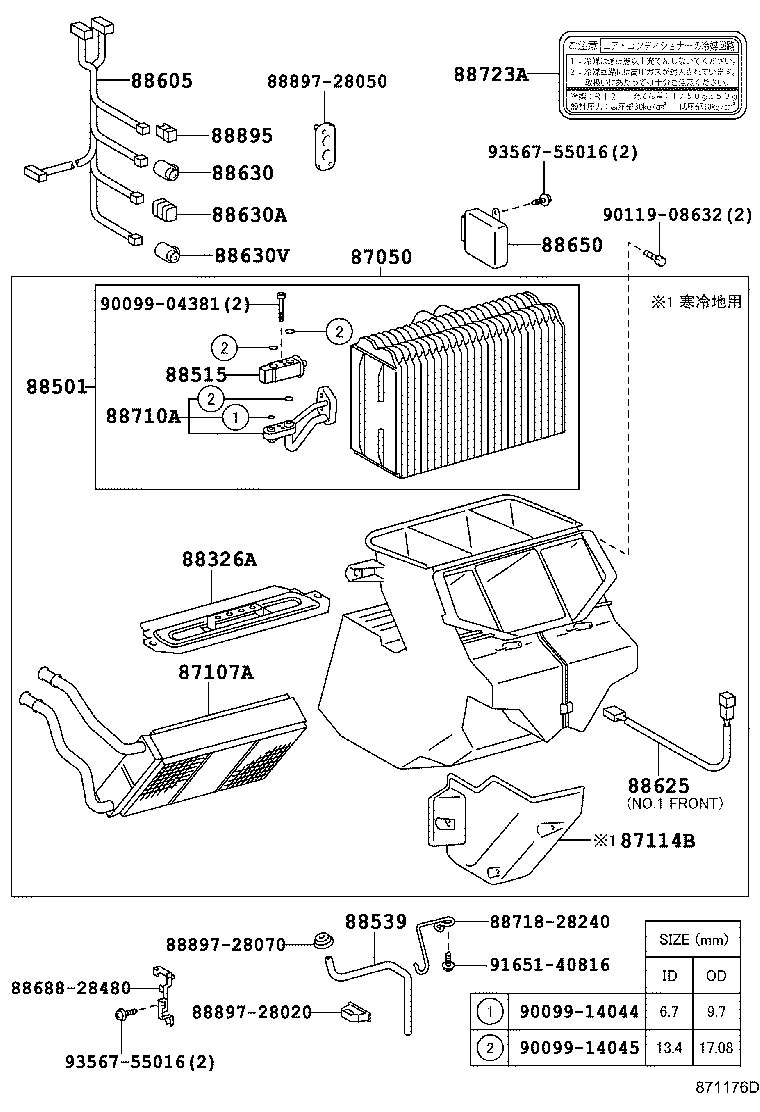

ILLUST NO. 1 OF 3(9201-9308)
ﾌﾛﾝﾄ ﾕﾆｯﾄ,ｵ-ﾄﾏﾁﾂｸ ｴｱｺﾝﾃﾞｼﾖﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28010 |
CXR10,20,TCR1#,2#..D,F,S,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D03 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX 吹き出し口切替用,NO.1 |
1 | ||
| 87106-95D00 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 内外気切替用 |
1 | ||
| 87106-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 温度調整用 |
1 | ||
| 87106-95D04 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 吹き出し口切替用,NO.2 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D03 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX 吹き出し口切替用,NO.1 |
1 | ||
| 87106-95D00 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 内外気切替用 |
1 | ||
| 87106-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 温度調整用 |
1 | ||
| 87106-95D04 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 吹き出し口切替用,NO.2 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D03 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX 吹き出し口切替用,NO.1 |
1 | ||
| 87106-95D00 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 内外気切替用 |
1 | ||
| 87106-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 温度調整用 |
1 | ||
| 87106-95D04 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 吹き出し口切替用,NO.2 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D03 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX 吹き出し口切替用,NO.1 |
1 | ||
| 87106-95D00 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 内外気切替用 |
1 | ||
| 87106-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 温度調整用 |
1 | ||
| 87106-95D04 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX 吹き出し口切替用,NO.2 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87107-28060 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D05 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-95D05 |
CXR10,20,TCR1#,2#..D,F,S,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88515-33010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28840 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88605-28430 |
CXR1#,2#,TCR1#,2#..G,GLUX,XLUX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88605-28420 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X NO.1 ﾌﾛﾝﾄ |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28130 |
CXR1#,2# |
1 | ||
| 88650-28140 |
TCR1#,2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28730 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28140 |
CXR1#,2#,TCR1#,2# R12 |
1 | ||
| 88895 - HOLDER, FUSE | ||||
| 88895-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 88688-28480 | ||||
| 88718-28240 | ||||
| 88718-28270 | ||||
| 88897-28050 | ||||
| 88897-28070 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90119-08632 | ||||
| 91651-40616 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 3(9201- )
ﾘﾔ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95D31 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 88688-95D29 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95D31 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 88688-95D29 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95D39 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 88688-95D33 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95D39 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 88688-95D33 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-28370 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-28380 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-28380 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-28380 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88539-95D00 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ,右側 |
1 | ||
| 88539-95D00 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88539-28030 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ,左側 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88539-95D00 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ,右側 |
1 | ||
| 88539-95D00 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88539-28030 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ,左側 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95D02 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88561-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-28030 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 88561-28020 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28010 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28010 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28250 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28250 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899K - PLATE, COVER | ||||
| 88899-28160B0 |
TCR1#,20..G,X;TCR21..ATM..G ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160B0 |
TCR11,21..S;CXR1#,2#..G,X;TCR21..MTM..G LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160B0 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAIGE,TRIM4#,左側 |
1 | ||
| 88899-28170B0 |
TCR10,20..ATM;TCR10..MTM..F;CXR1#,2#,TCR11,21 LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 88899-28170E0 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAIGE,TRIM4#,右側 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-28160B0 |
TCR1#,20..G,X;TCR21..ATM..G ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160B0 |
TCR11,21..S;CXR1#,2#..G,X;TCR21..MTM..G LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160B0 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 88899-28160E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAIGE,TRIM4#,左側 |
1 | ||
| 88899-28170B0 |
TCR10,20..ATM;TCR10..MTM..F;CXR1#,2#,TCR11,21 LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 88899-28170E0 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ),LIGHT GRAIGE,TRIM4#,右側 |
1 | ||
| 88899U - PLATE, HOLL COVER(FOR SLIDING ROOF SWITCH) | ||||
| 88899-28180 |
CXR1#,2#,TCR1#,2# ﾌﾞﾗﾂｸ ﾄｿｳ |
1 | ||
| 88899V - PLATE, HOLL COVER(FOR CURTAIN SWITCH) | ||||
| 88899-28190 |
CXR1#,2#,TCR1#,2# ﾌﾞﾗﾂｸ ﾄｿｳ |
1 | ||
| Common parts | ||||
| 67326-28010 | ||||
| 88578-28100 | ||||
| 88578-95J09 | ||||
| 90179-06069 | ||||
| 90480-25024 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
