TCR10G-RRSEK (1992)
Toyota Estima Emina/Lucida

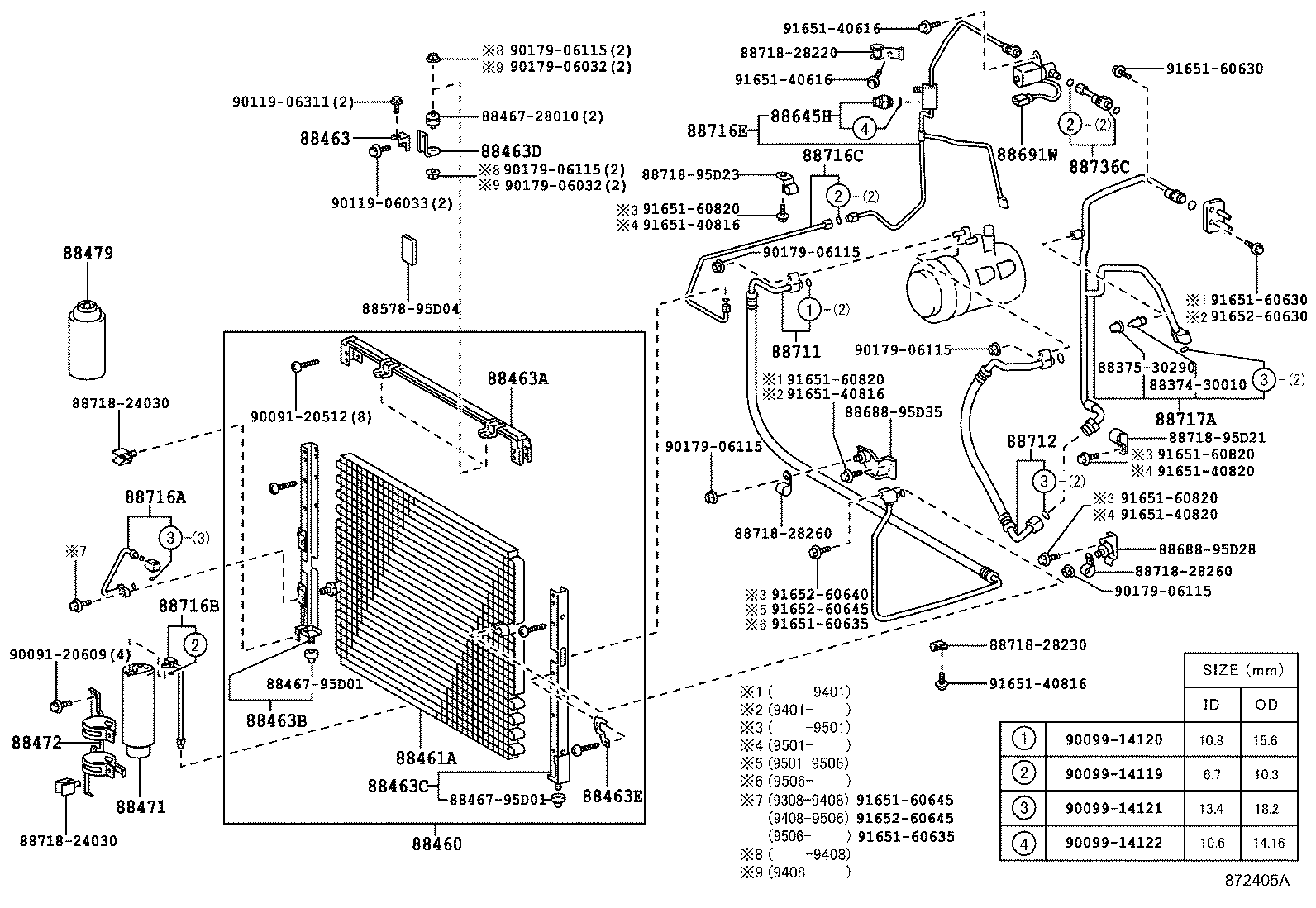

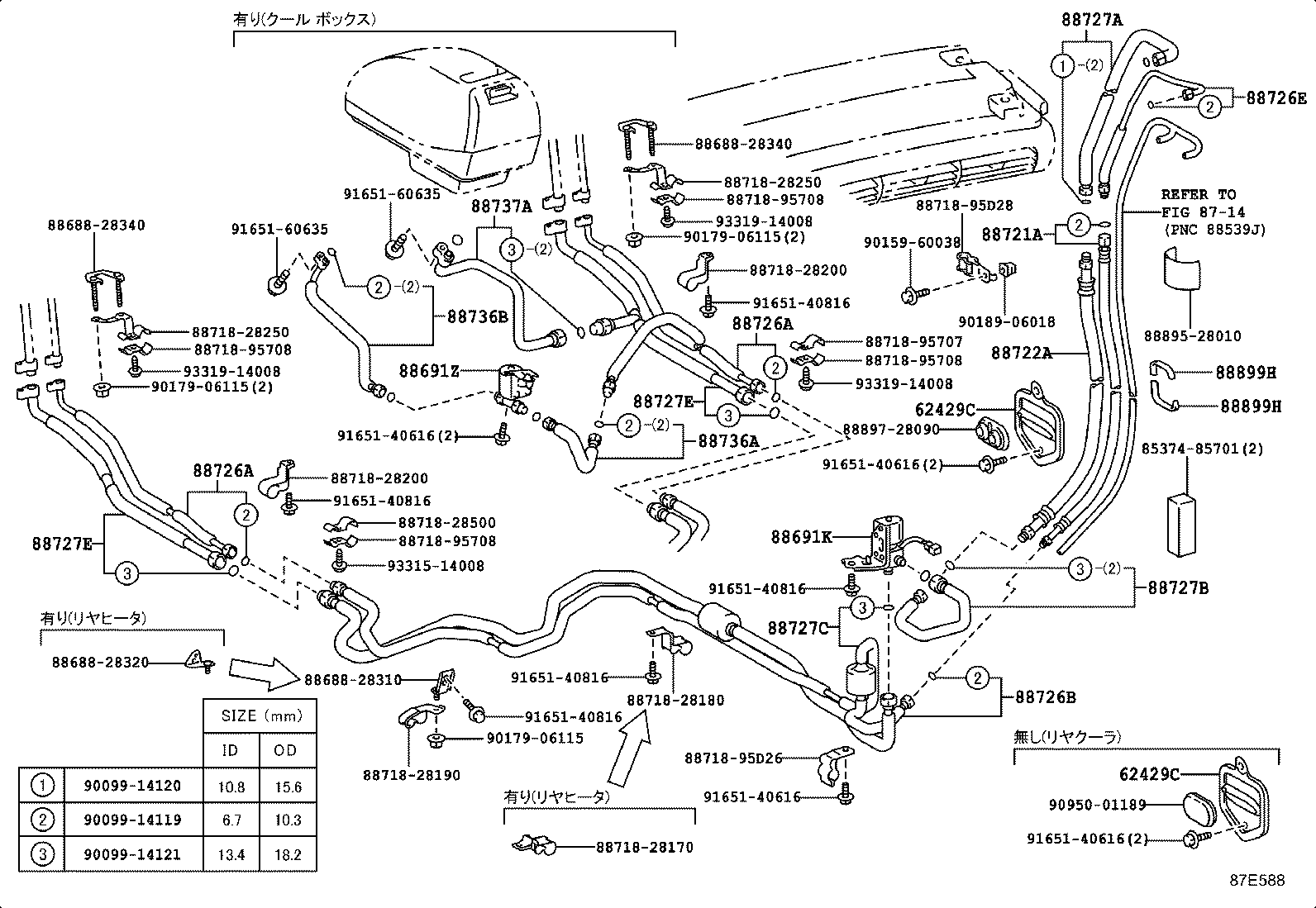

ILLUST NO. 1 OF 2(9201-9308)
FRONT, W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
CXR10,20,TCR10..D,F 250G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-28350 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20609 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
| 93385-18045 | ||||

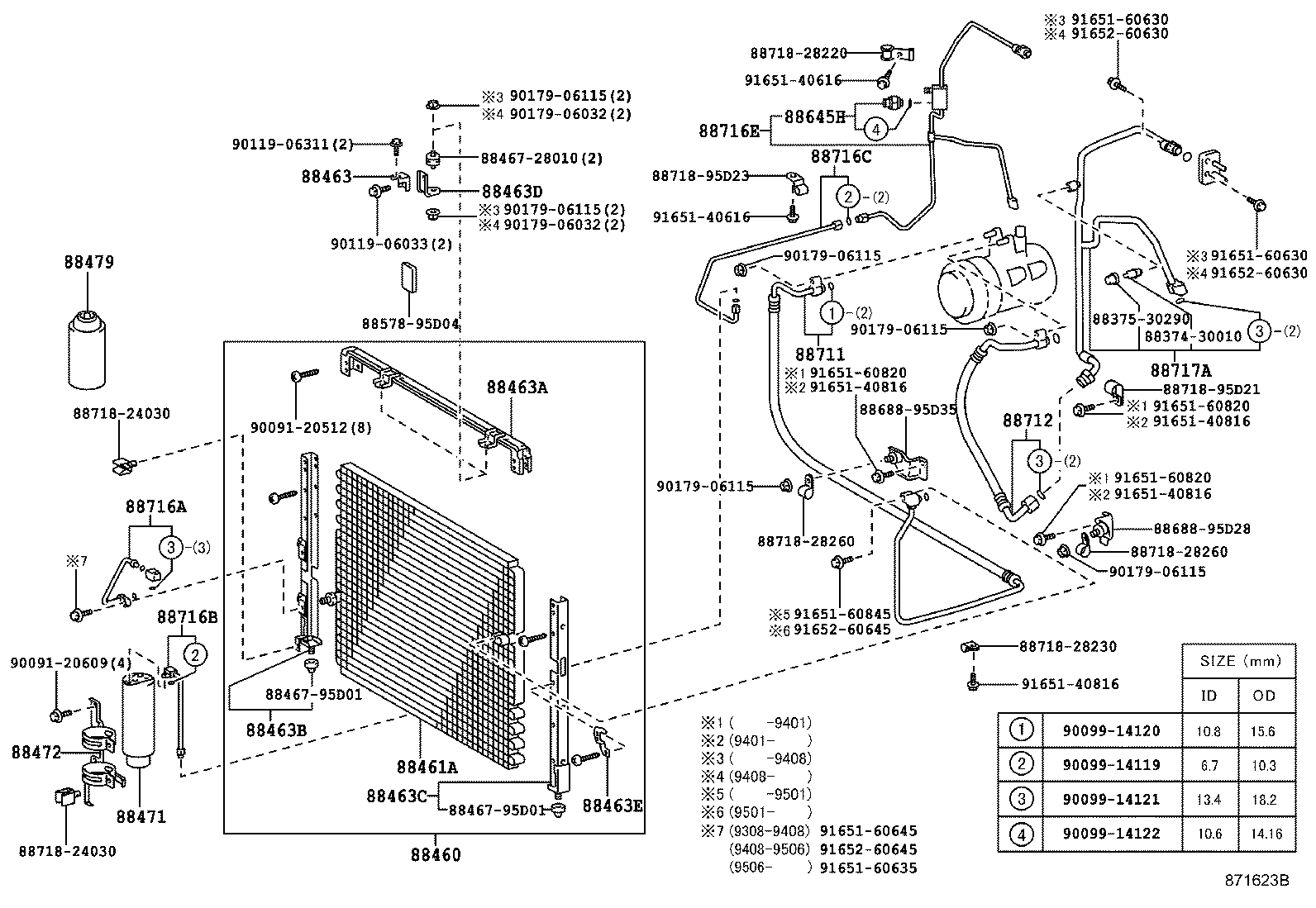

ILLUST NO. 1 OF 2(9308-9508) ; (9508-9604)TCR1#,2#
FRONT, W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
CXR10,20,TCR10..D,F 250G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| Common parts | ||||
| 88374-30010 | ||||
| 88375-30290 | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60630 | ||||
| 91651-60635 | ||||
| 91651-60645 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
| 91652-60630 | ||||
| 91652-60645 | ||||
ILLUST NO. 1 OF 2(9201-9308)
FRONT, W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
CXR10,20,TCR10..D,F 250G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28280 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 88690-28100 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| 88736C - TUBE, LIQUID, C(FOR COOL BOX) | ||||
| 88716-2J150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28450 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-28350 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20609 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
| 93385-18045 | ||||
ILLUST NO. 1 OF 2(9508-9604)CXR1#,2# ; (9604- )
FRONT, W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28280 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 88690-28100 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| 88736C - TUBE, LIQUID, C(FOR COOL BOX) | ||||
| 88716-2J150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28450 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| Common parts | ||||
| 88374-30010 | ||||
| 88375-30290 | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-2J360 | ||||
| 88688-2J400 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60630 | ||||
| 91651-60635 | ||||
| 91651-G0635 | ||||
| 91652-60630 | ||||

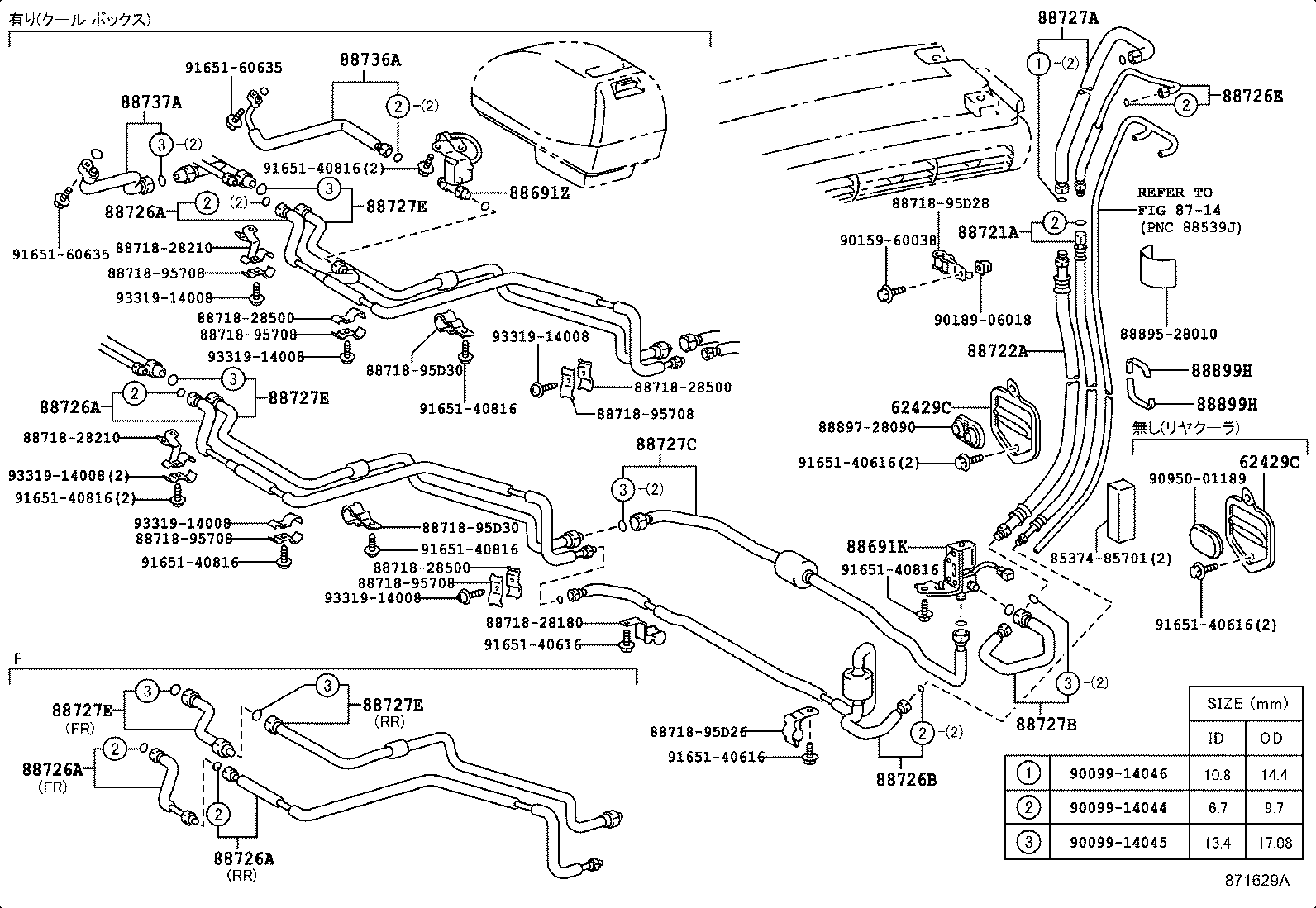

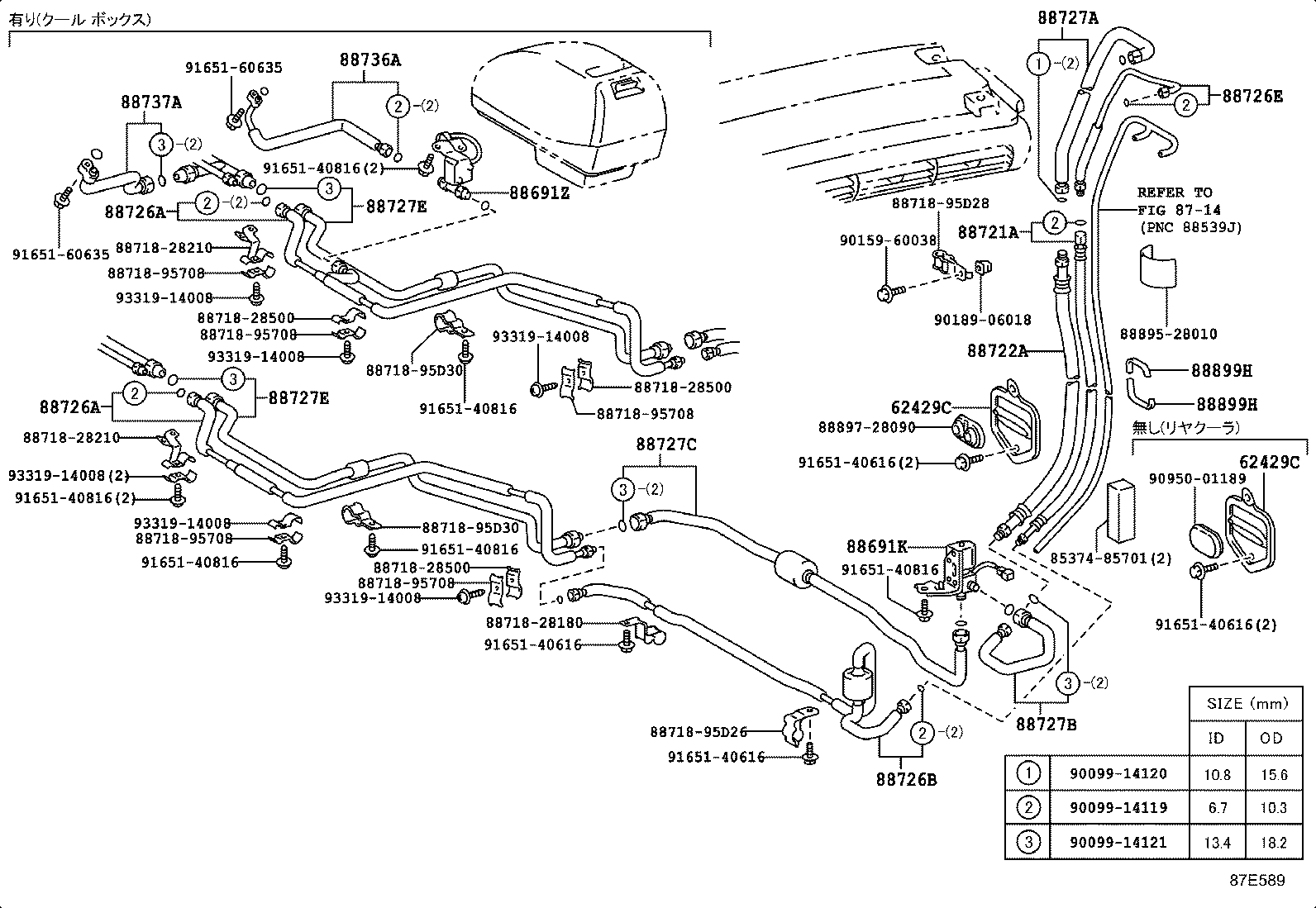

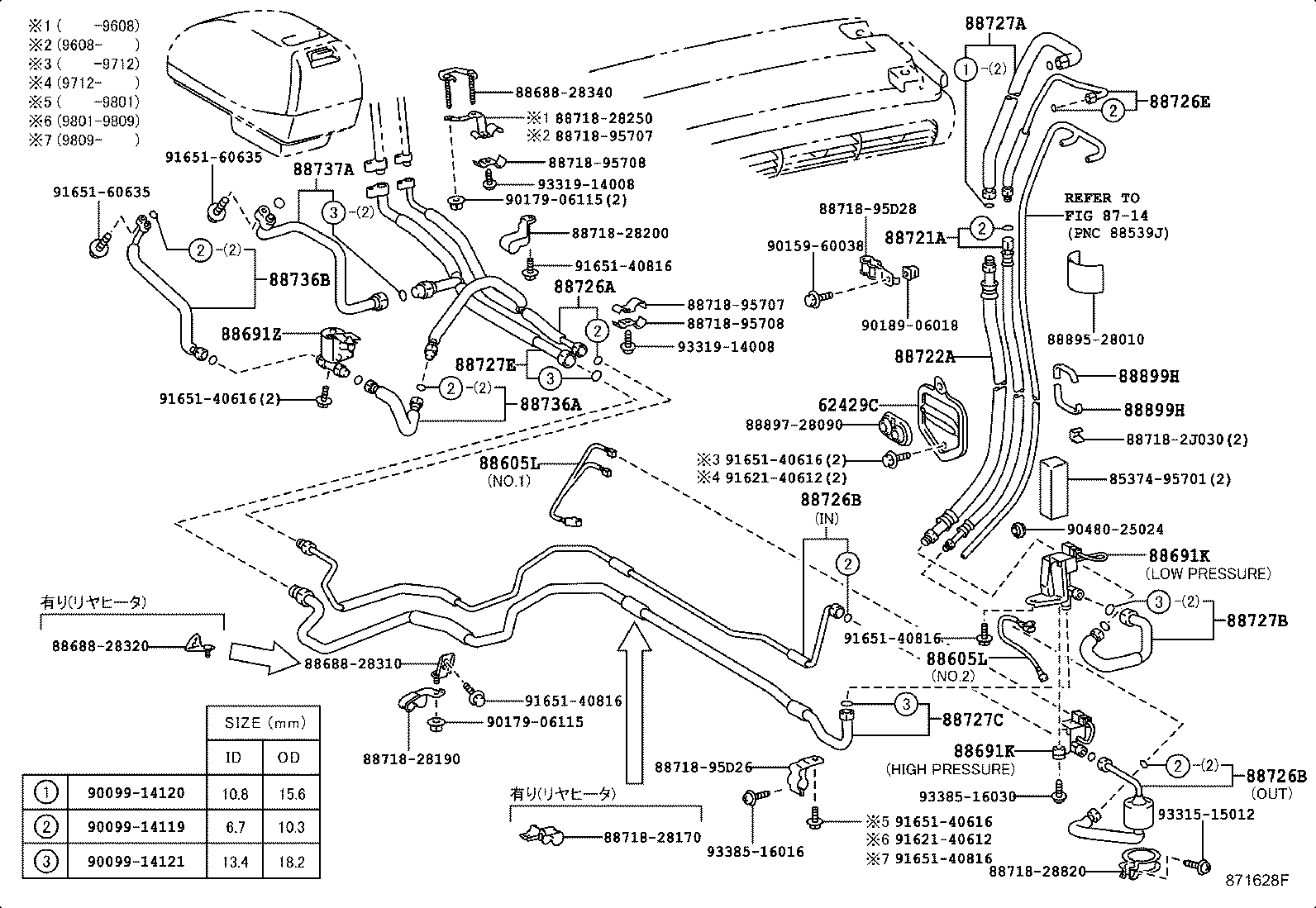

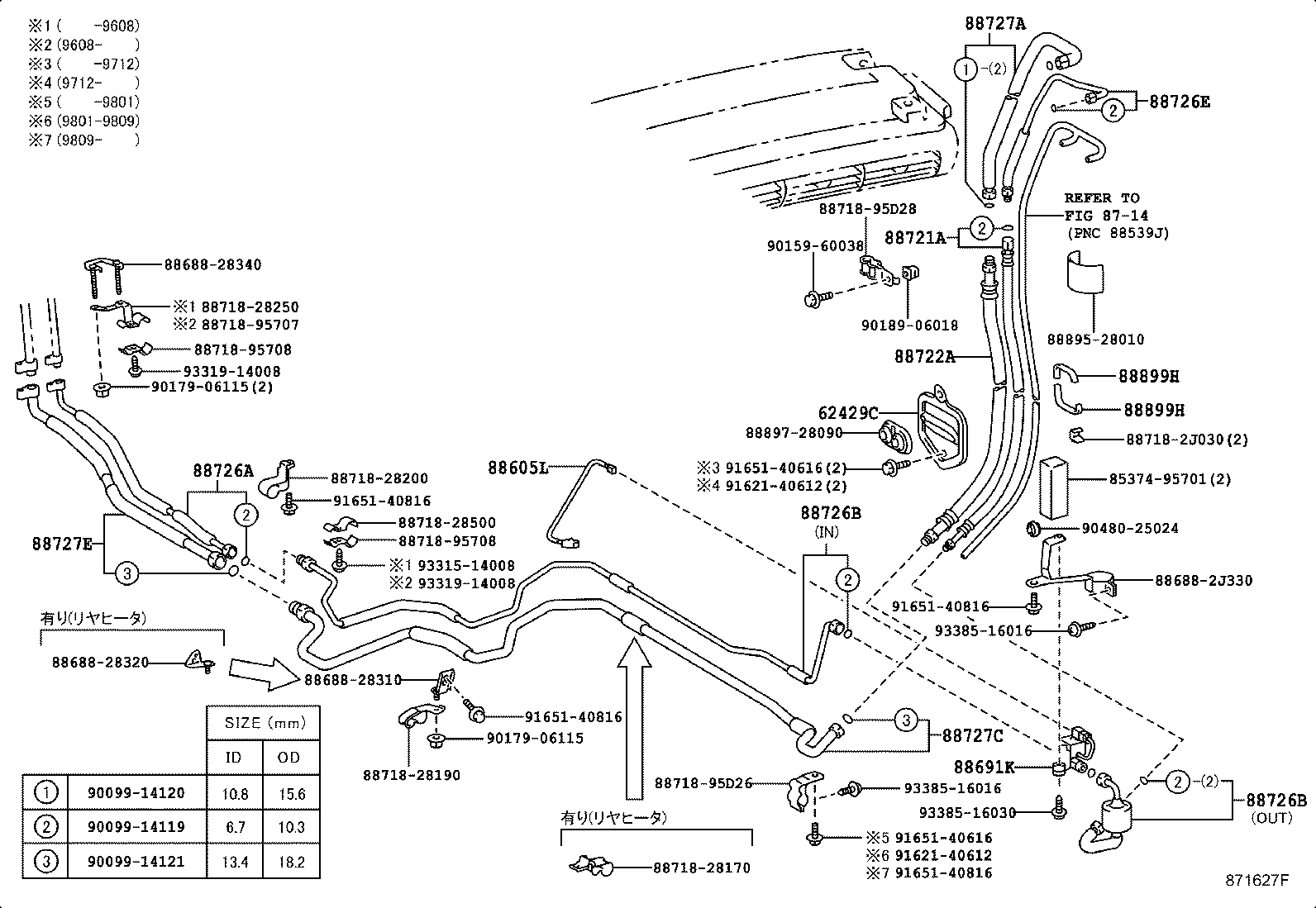

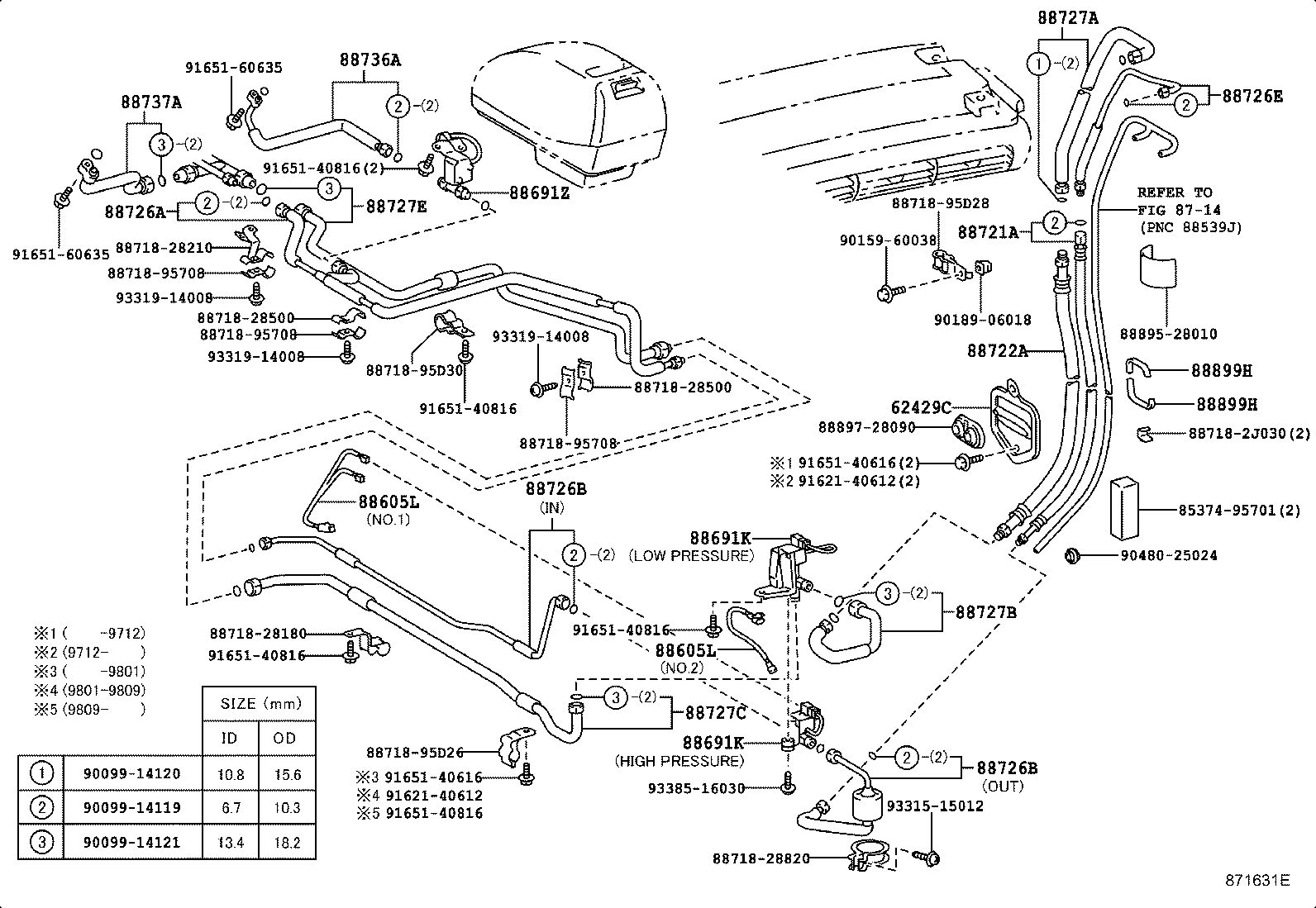

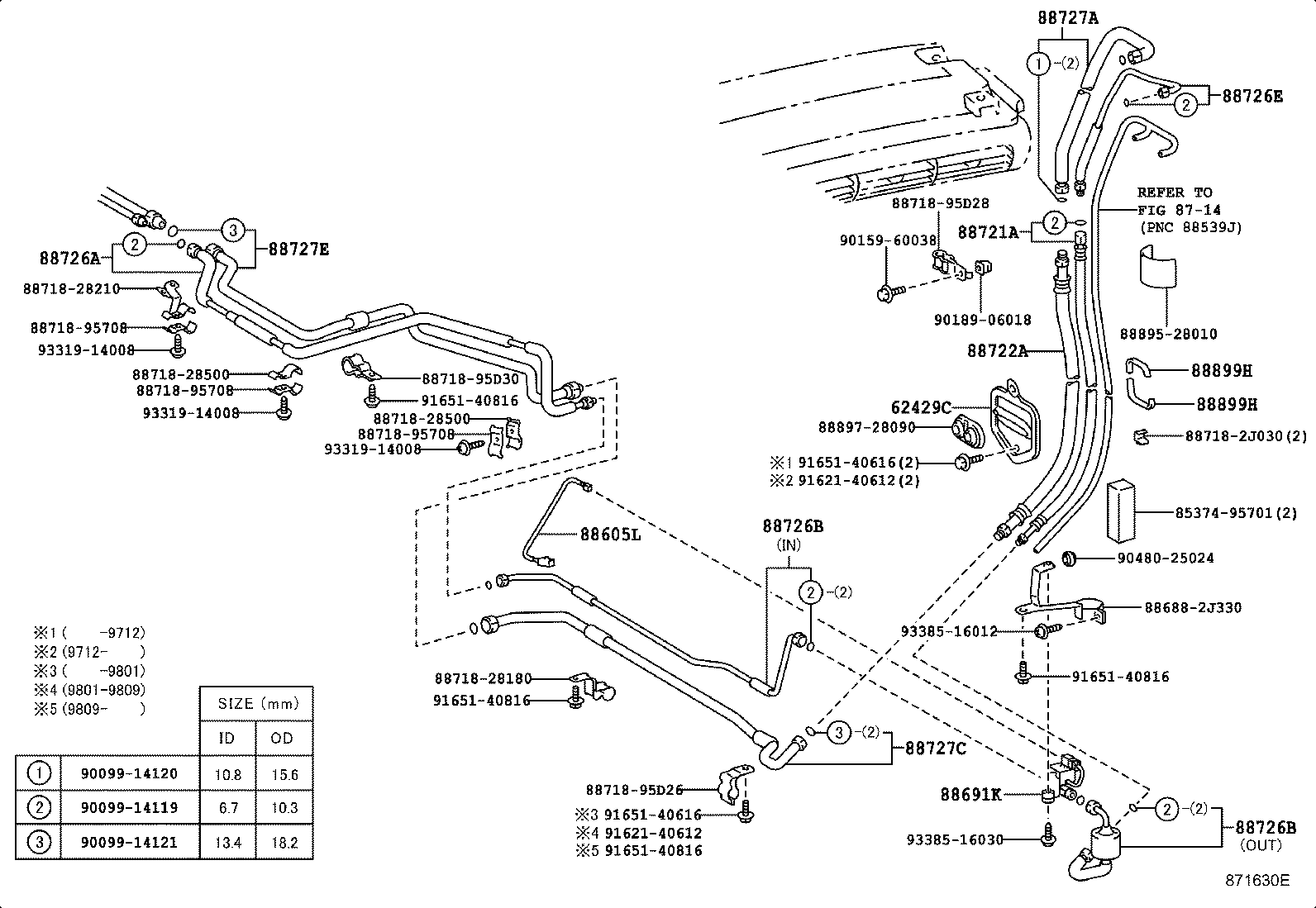

ILLUST NO. 2 OF 2(9201-9308)CXR1#,2#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-2J470 |
CXR1#,2# |
1 | ||
| 88716-28400 |
CXR1#,2#..F,G,X |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-85701 | ||||
| 88688-28310 | ||||
| 88688-28320 | ||||
| 88688-28340 | ||||
| 88718-28170 | ||||
| 88718-28180 | ||||
| 88718-28190 | ||||
| 88718-28200 | ||||
| 88718-28250 | ||||
| 88718-28500 | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90159-60038 | ||||
| 90179-06115 | ||||
| 90189-06018 | ||||
| 90950-01189 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93315-14008 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9411- )CXR1#,2#
REAR, W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-95701 | ||||
| 88688-28310 | ||||
| 88688-28320 | ||||
| 88688-28340 | ||||
| 88688-2J330 | ||||
| 88718-28170 | ||||
| 88718-28190 | ||||
| 88718-28200 | ||||
| 88718-28250 | ||||
| 88718-28500 | ||||
| 88718-2J030 | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90179-06115 | ||||
| 90189-06018 | ||||
| 90480-25024 | ||||
| 91621-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93315-14008 | ||||
| 93319-14008 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9411- )CXR1#,2#
REAR, W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-2J470 |
CXR1#,2# |
1 | ||
| 88716-28400 |
CXR1#,2#..F,G,X |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-95701 | ||||
| 88688-28310 | ||||
| 88688-28320 | ||||
| 88688-28340 | ||||
| 88718-28170 | ||||
| 88718-28190 | ||||
| 88718-28200 | ||||
| 88718-28250 | ||||
| 88718-28820 | ||||
| 88718-2J030 | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90179-06115 | ||||
| 90189-06018 | ||||
| 90480-25024 | ||||
| 91621-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93315-15012 | ||||
| 93319-14008 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9201-9308)TCR1#,2#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-85701 | ||||
| 88718-28180 | ||||
| 88718-28210 | ||||
| 88718-28500 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88718-95D30 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
| 90950-01189 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9411- )TCR1#,2#
REAR, W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-95701 | ||||
| 88688-2J330 | ||||
| 88718-28180 | ||||
| 88718-28210 | ||||
| 88718-28500 | ||||
| 88718-2J030 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88718-95D30 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
| 90480-25024 | ||||
| 91621-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93319-14008 | ||||
| 93385-16012 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9411- )TCR1#,2#
REAR, W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-2R230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605-2R220 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2R250 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-95701 | ||||
| 88718-28180 | ||||
| 88718-28210 | ||||
| 88718-28500 | ||||
| 88718-28820 | ||||
| 88718-2J030 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88718-95D30 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
| 90480-25024 | ||||
| 91621-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93315-15012 | ||||
| 93319-14008 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(9508-9604)CXR1#,2# ; (9604- )
FRONT,W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| Common parts | ||||
| 88374-30010 | ||||
| 88375-30290 | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-2J360 | ||||
| 88688-2J400 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-G0635 | ||||
| 91652-60630 | ||||
| 91652-60645 | ||||
ILLUST NO. 1 OF 2(9308-9508) ; (9508-9604)TCR1#,2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28100 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28240 |
TCR1#,2# |
1 | ||
| 88460-28421 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88460-28420 |
CXR1#,2# |
1 | ||
| 88460-28250 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88460-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-28060 |
TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28220 |
CXR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28030 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28060 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28070 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88461-28221 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28070 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28110 |
TCR1#,2# |
1 | ||
| 88463-28110 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28400 |
CXR1#,2# |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-28120 |
TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28410 |
CXR1#,2# |
1 | ||
| 88463-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-28420 |
CXR1#,2# |
1 | ||
| 88463-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28130 |
TCR1#,2# |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-28140 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-28430 |
CXR1#,2# |
1 | ||
| 88463-28250 |
TCR1#,2# |
1 | ||
| 88463-28150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28250 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88463-28150 |
CXR10,20,TCR10..D,F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ |
2 | ||
| 88463-28430 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88471-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28120 |
CXR1#,2# |
1 | ||
| 88472-28120 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88472-28040 |
TCR1#,2# |
1 | ||
| 88472-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
CXR10,20,TCR10..D,F 250G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88645-34010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28280 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 88690-28100 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28840 |
CXR1#,2# |
1 | ||
| 88711-28880 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
TCR1#,2# |
1 | ||
| 88711-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28320 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88711-28890 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28030 |
TCR1#,2# |
1 | ||
| 88712-28560 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28040 |
CXR1#,2# |
1 | ||
| 88712-28220 |
TCR1#,2# |
1 | ||
| 88712-28210 |
CXR1#,2# |
1 | ||
| 88712-28220 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28470 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J510 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2R560 |
CXR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-2J330 |
CXR1#,2#,TCR1#,2# ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J340 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28760 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2J350 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28460 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-28240 |
CXR1#,2#..F,G,X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-28270 |
TCR1#,2# |
1 | ||
| 88710-28280 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J100 |
TCR1#,2# |
1 | ||
| 88710-2J110 |
TCR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88710-2R200 |
CXR1#,2# |
1 | ||
| 88710-2J030 |
CXR1#,2# |
1 | ||
| 88710-28230 |
CXR1#,2# |
1 | ||
| 88710-2R220 |
TCR1#,2# |
1 | ||
| 88710-2J040 |
CXR1#,2# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28300 |
TCR1#,2# |
1 | ||
| 88717-2J050 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J750 |
TCR1#,2# |
1 | ||
| 88717-2J040 |
TCR1#,2# |
1 | ||
| 88717-2J770 |
CXR1#,2# |
1 | ||
| 88717-28880 |
CXR1#,2# |
1 | ||
| 88717-28310 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28250 |
CXR1#,2# |
1 | ||
| 88736C - TUBE, LIQUID, C(FOR COOL BOX) | ||||
| 88716-2J150 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-28450 |
CXR1#,2#,TCR1#,2#..F,G,S,X |
1 | ||
| Common parts | ||||
| 88374-30010 | ||||
| 88375-30290 | ||||
| 88467-28010 | ||||
| 88467-95D01 | ||||
| 88578-95D04 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-28220 | ||||
| 88718-28230 | ||||
| 88718-28260 | ||||
| 88718-95D21 | ||||
| 88718-95D23 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06033 | ||||
| 90119-06311 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60630 | ||||
| 91651-60635 | ||||
| 91651-60645 | ||||
| 91651-60820 | ||||
| 91652-60630 | ||||
| 91652-60640 | ||||
| 91652-60645 | ||||
ILLUST NO. 2 OF 2(9308-9411)CXR1#,2#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-2J470 |
CXR1#,2# |
1 | ||
| 88716-28400 |
CXR1#,2#..F,G,X |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-85701 | ||||
| 88688-28310 | ||||
| 88688-28320 | ||||
| 88688-28340 | ||||
| 88718-28170 | ||||
| 88718-28180 | ||||
| 88718-28190 | ||||
| 88718-28200 | ||||
| 88718-28250 | ||||
| 88718-28500 | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90179-06115 | ||||
| 90189-06018 | ||||
| 90950-01189 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93315-14008 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(9308-9411)TCR1#,2#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 62429-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-28420 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28420 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),HIGH PRESSURE |
1 | ||
| 88690-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88690-28430 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),LOW PRESSURE |
1 | ||
| 88690-28290 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-28090 |
TCR1#,2# |
1 | ||
| 88690-28080 |
CXR1#,2#..F,G,X |
1 | ||
| 88690-28300 |
CXR1#,2# |
1 | ||
| 88690-28310 |
TCR1#,2# |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-28140 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88721-28140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88721-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88712-28200 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88712-28230 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88712-28230 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28410 |
TCR1#,2# |
1 | ||
| 88716-28370 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28770 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾘﾔ |
1 | ||
| 88716-28360 |
CXR1#,2# |
1 | ||
| 88716-2J420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2J370 |
CXR1#,2# |
1 | ||
| 88716-28420 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-28780 |
TCR10..F ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ (ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),ﾌﾛﾝﾄ |
1 | ||
| 88716-2J410 |
TCR1#,2# |
1 | ||
| 88716-2R580 |
TCR1#,2# |
1 | ||
| 88716-2J380 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2J390 |
CXR1#,2# |
1 | ||
| 88716-28380 |
CXR1#,2# |
1 | ||
| 88716-28430 |
TCR1#,2# |
1 | ||
| 88716-2R450 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R460 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ),MAGNET VALVE OUT |
1 | ||
| 88716-2R610 |
CXR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2J430 |
TCR1#,2# |
1 | ||
| 88716-2R470 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R600 |
TCR1#,2# MAGNET VALVE IN |
1 | ||
| 88716-2R480 |
CXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX MAGNET VALVE OUT |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2J020 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88716-95D33 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88716-2J230 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88716-2J020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..ELU,G,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-95D13 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28200 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88715-28240 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
1 | ||
| 88715-28200 |
TCR10,20..ATM..(X,XLUX);CXR1#,2#,TCR11,21..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J030 |
CXR1#,2#..G,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J030 |
TCR1#,2# |
1 | ||
| 88717-2J030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88717-28240 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2J070 |
TCR1#,2# |
1 | ||
| 88717-2J020 |
CXR1#,2# |
1 | ||
| 88717-28330 |
TCR1#,2# |
1 | ||
| 88717-2J650 |
TCR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-2J690 |
TCR1#,2# |
1 | ||
| 88717-2J640 |
CXR1#,2# |
1 | ||
| 88717-2J630 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28280 |
CXR1#,2# |
1 | ||
| 88717-2J660 |
TCR1#,2# |
1 | ||
| 88717-2J730 |
CXR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-28260 |
CXR1#,2# |
1 | ||
| 88717-28270 |
CXR1#,2#..F,G,X ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28530 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ |
1 | ||
| 88717-28890 |
CXR1#,2# |
1 | ||
| 88717-2J010 |
CXR1#,2# ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88717-28540 |
TCR10..F ﾃﾞｲﾗ- ｵﾌﾟｼﾖﾝ,ﾘﾔ |
1 | ||
| 88717-2J710 |
CXR1#,2# |
1 | ||
| 88717-28320 |
TCR1#,2# |
1 | ||
| 88717-2J680 |
TCR1#,2# |
1 | ||
| 88717-2J060 |
TCR1#,2# |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2J460 |
CXR1#,2# |
1 | ||
| 88716-2J480 |
TCR1#,2# |
1 | ||
| 88716-28390 |
CXR1#,2#..F,G,X |
1 | ||
| 88716-28440 |
TCR1#,2# |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-28340 |
TCR1#,2# |
1 | ||
| 88717-2J100 |
CXR1#,2# |
1 | ||
| 88717-28290 |
CXR1#,2#..F,G,X |
1 | ||
| 88717-2J110 |
TCR1#,2# |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX |
2 | ||
| 88899-28580 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82817-87009 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 85374-85701 | ||||
| 88718-28180 | ||||
| 88718-28210 | ||||
| 88718-28500 | ||||
| 88718-95708 | ||||
| 88718-95D26 | ||||
| 88718-95D28 | ||||
| 88718-95D30 | ||||
| 88895-28010 | ||||
| 88897-28090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
| 90950-01189 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
