TCR10G-RRSEK (1992)
Toyota Estima Emina/Lucida
ILLUST NO. 1 OF 2(9201- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28120 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87130-28410 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 87130-28420 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87130-28140 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130-28420 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28120 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87130-28410 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 87130-28420 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87130-28140 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130-28420 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-28010 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87138-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138-95D00 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28030 |
CXR1#,2#,TCR1#,2#..F,G,S,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87452-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28030 |
CXR1#,2#,TCR1#,2#..F,G,S,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87452-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-28400 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88605-2J300 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 88605-2J310 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 88605-28680 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605-2J310 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 88750A - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-28020 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 88750-28020 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-28390 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06060 | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||

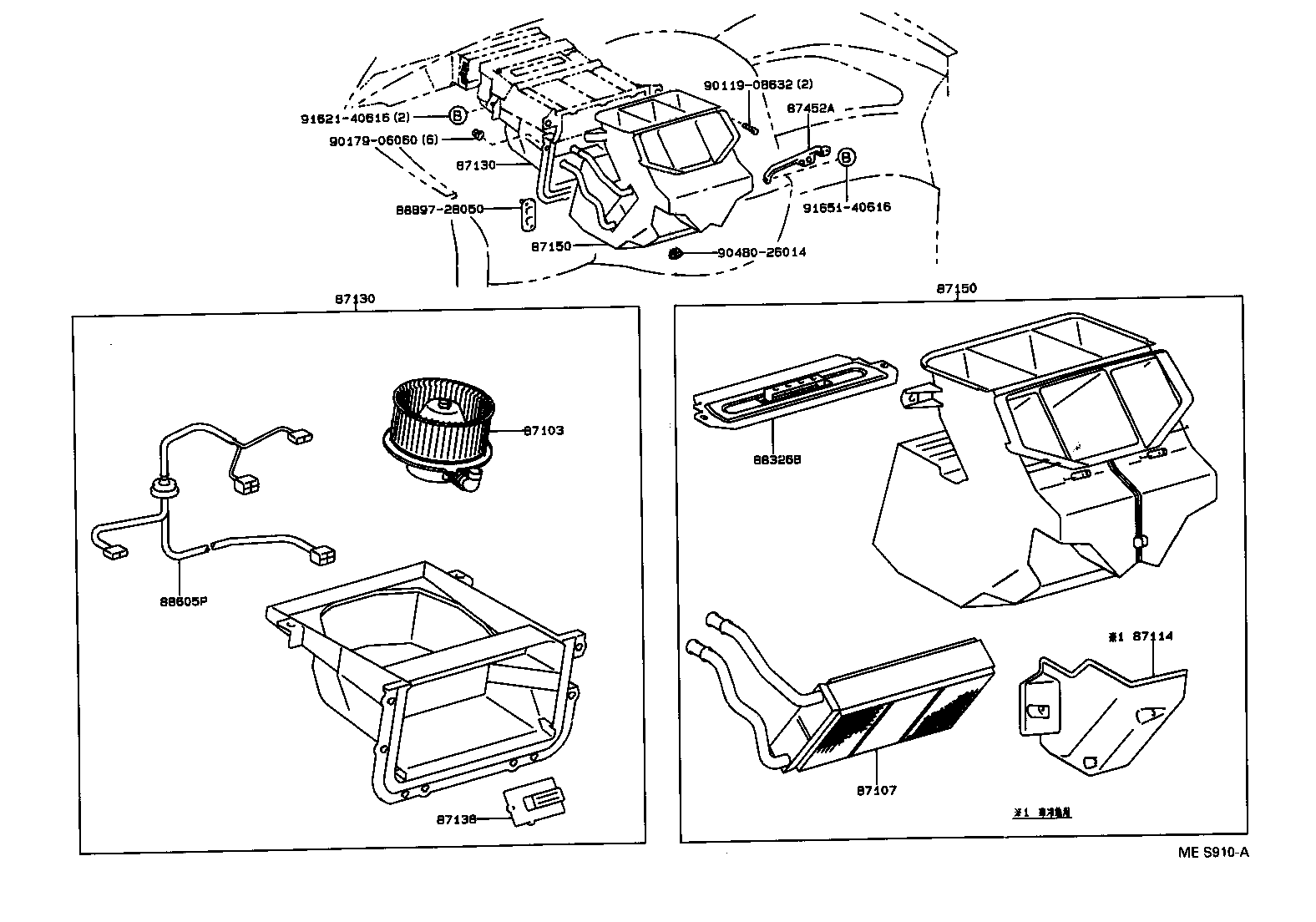

ILLUST NO. 1 OF 2(9201-9501)D,F
FRONT, W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28060 |
CXR10,20,TCR10..D,F ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87107-28070 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28120 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87130-28410 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 87130-28420 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87130-28140 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130-28420 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28120 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87130-28410 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 87130-28420 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87130-28140 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130-28420 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-28010 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87138-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138-95D00 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28200 |
CXR10,20,TCR10..D,F ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87150-28210 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28200 |
CXR10,20,TCR10..D,F ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87150-28210 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28030 |
CXR1#,2#,TCR1#,2#..F,G,S,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87452-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88326B - PLATE, COVER | ||||
| 88326-95D00 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-28400 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88605-2J300 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 88605-2J310 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 88605-28680 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605-2J310 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| Common parts | ||||
| 88897-28050 | ||||
| 90119-08632 | ||||
| 90179-06060 | ||||
| 90480-26014 | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||
ILLUST NO. 2 OF 2(9201- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-28050 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87104-28050 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-28030 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87105-28030 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-28100 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-28100 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-28010 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28020 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28010 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28010 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-28010 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28020 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28010 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-28010 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87125A - GRILLE, AIR OUTLET | ||||
| 87125-28010B0 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,LIGHT GRAY,TRIM1# |
1 | ||
| 87125-28010E1 |
CXR1#,2#..G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ,LIGHT GRAIGE,TRIM4# |
1 | ||
| 87125-28010B0 |
TCR1#,2#..AERAS,GLUX,XLUX;CXR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ,LIGHT GRAY,TRIM1# |
1 | ||
| 87125-28010B0 |
TCR1#,2#..G,X LIGHT GRAY,TRIM1# |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 88635-28020 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88635-28020 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90183-05016 | ||||
| 90189-06018 | ||||
ILLUST NO. 1 OF 2(9501- )
FRONT, W(COLD SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28120 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 87130-28410 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 87130-28420 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87130-28140 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87130-28420 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-28010 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87138-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138-95D00 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-28010 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| 87138-28010 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 87138-95D00 |
CXR10,20,TCR1#,2#..AERAS,D,F,S,X |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28030 |
CXR1#,2#,TCR1#,2#..F,G,S,X ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87452-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-28400 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 88605-2J300 |
CXR10,20,TCR10,20..AERAS,F,X |
1 | ||
| 88605-2J310 |
CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX |
1 | ||
| 88605-28680 |
CXR10,20,TCR10..D,F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605-2J310 |
CXR10,20,TCR10,20..X *AAC |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93567-55016 | ||||
