TCR10G-RRMEK (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Aug 1996
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201-9501)

Click highlighted areas on diagram

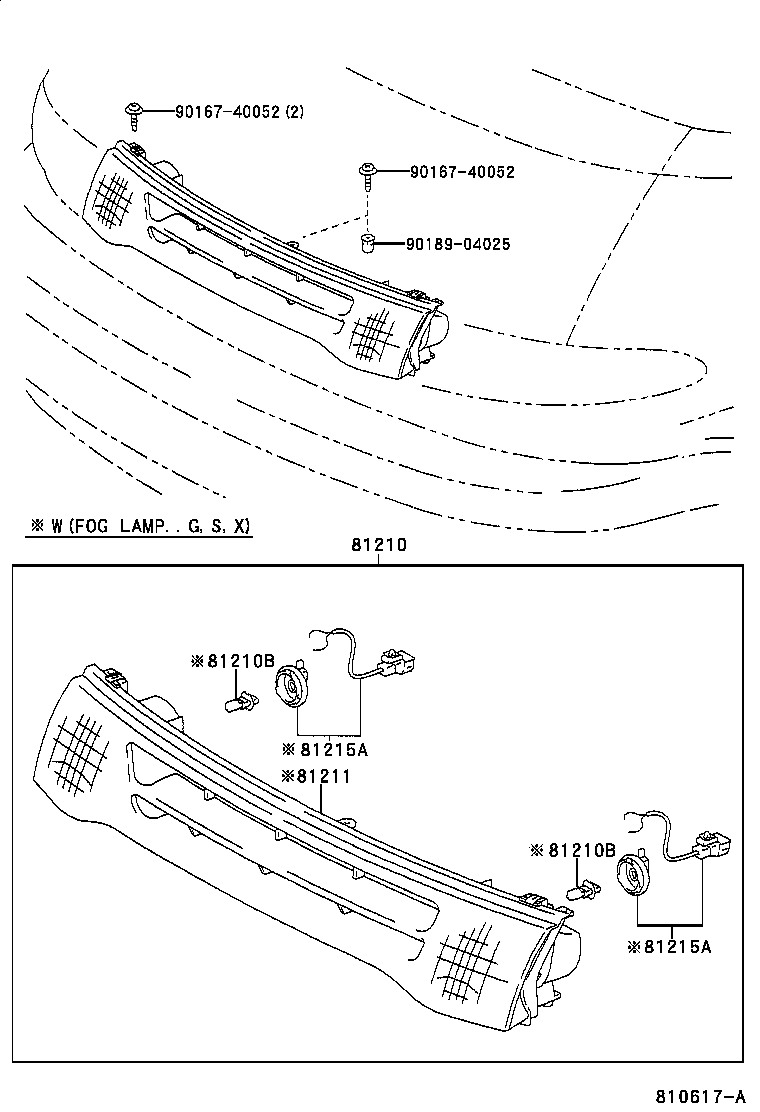

LUCIDA

diagram 81210 81210B 81210B 81211 81215A 81215A 9016740052 9016740052 9018904025
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-28020

CXR1#,2#,TCR1#,2#..G,S,X

LUCIDA

 1
81210-28040

CXR1#,2#,TCR1#,2#..G,S,X

EMINA

 1
81210-28030

CXR10,20,TCR10..D,F

LUCIDA

 1
81210-28050

CXR10,20,TCR10..D,F

EMINA

 1
81210B - BULB, FOG LAMP
90981-13040

CXR1#,2#,TCR1#,2#..G,S,X

12V 35W,ﾊﾛｹﾞﾝ

 2
81210B - BULB, FOG LAMP
90981-13040

CXR1#,2#,TCR1#,2#..G,S,X

12V 35W,ﾊﾛｹﾞﾝ

 2
81211 - LENS, FOG LAMP
81211-28040

CXR1#,2#,TCR1#,2#..G,S,X

EMINA

 1
81211-28020

CXR1#,2#,TCR1#,2#..G,S,X

LUCIDA

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-28020

CXR1#,2#,TCR1#,2#..G,S,X

 2
81215A - SOCKET & WIRE, FOG LAMP
81215-28020

CXR1#,2#,TCR1#,2#..G,S,X

 2
Common parts
90167-40052
90189-04025

(9201-9501)

Click highlighted areas on diagram

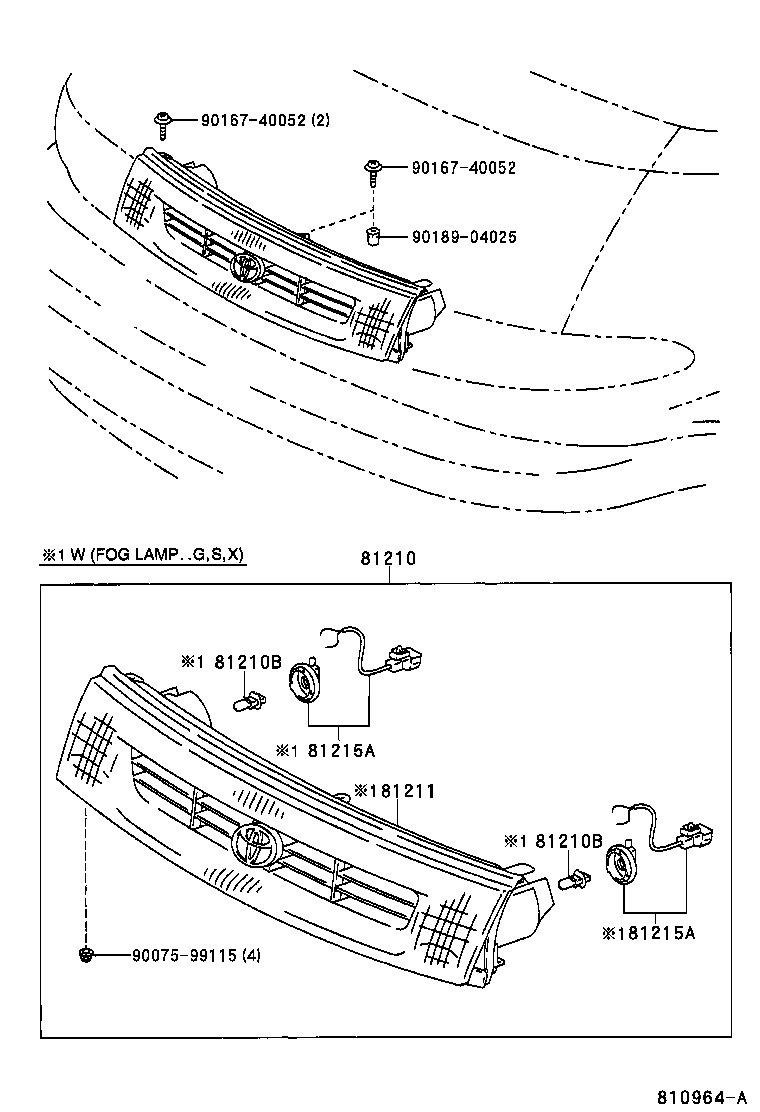

EMINA

diagram 81210 81210B 81210B 81211 81215A 81215A 9007599115 9016740052 9016740052 9018904025
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-28020

CXR1#,2#,TCR1#,2#..G,S,X

LUCIDA

 1
81210-28040

CXR1#,2#,TCR1#,2#..G,S,X

EMINA

 1
81210-28030

CXR10,20,TCR10..D,F

LUCIDA

 1
81210-28050

CXR10,20,TCR10..D,F

EMINA

 1
81210B - BULB, FOG LAMP
90981-13040

CXR1#,2#,TCR1#,2#..G,S,X

12V 35W,ﾊﾛｹﾞﾝ

 2
81210B - BULB, FOG LAMP
90981-13040

CXR1#,2#,TCR1#,2#..G,S,X

12V 35W,ﾊﾛｹﾞﾝ

 2
81211 - LENS, FOG LAMP
81211-28040

CXR1#,2#,TCR1#,2#..G,S,X

EMINA

 1
81211-28020

CXR1#,2#,TCR1#,2#..G,S,X

LUCIDA

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-28020

CXR1#,2#,TCR1#,2#..G,S,X

 2
81215A - SOCKET & WIRE, FOG LAMP
81215-28020

CXR1#,2#,TCR1#,2#..G,S,X

 2
Common parts
90075-99115
90167-40052
90189-04025
